Product description The Echo Express III-D Desktop Thunderbolt 2 Expansion Chassis from Sonnet enables you to connect three compatible full-size professional video capture, audio interface and other special-purpose cards to your iMac, Mac mini, MacBook Air, MacBook Pro or the new Mac Pro with a Thunderbolt port. The Echo Express III-D integrates a universal 300W power supply and includes a 75W auxiliary power connector for cards that require supplementary power. The expansion chassis is eco-friendly as it automatically powers off when the connected computer is powered off or in sleep mode. The use of larger, slower-spinning fans in the Echo Express III-D reduces noise. Two Thunderbolt 2 ports support daisy chaining of up to six devices to a single port on your computer. - Thunderbolt 2
- The original 10 Gb/s Thunderbolt interface has provided breakthrough bandwidth for external expansion, which is more than sufficient to support the maximum performance of most PCIe cards. However, some high-bandwidth cards such as the RED Rocket, 16 Gb Fibre Channel, multi-port 10 Gigabit Ethernet cards, or multiple bandwidth-hungry cards require more than 10 Gb/s. Thunderbolt 2 overcomes this barrier by providing a higher bandwidth of up to 20 Gb/s for these demanding applications.
- PCIe 2.0 Cards over Thunderbolt 2
- Sonnet's Echo Express III-D makes possible to use full-size professional video capture, audio interface, SAS & SATA HBA, 16Gb & 8Gb Fibre Channel, 10 Gigabit Ethernet and RAID controller PCIe cards with your Thunderbolt 2 port-equipped Mac. Featuring high-bandwidth Thunderbolt 2 technologies, the Echo Express chassis squeezes every bit of performance out of the most demanding PCIe cards and ensures optimum performance with every compatible computer.
- Smart Design
- Constructed of rugged and lightweight aluminum, the outer shell of the Echo Express chassis securely protects the PCIe cards installed inside without weighing you down. The chassis also includes an internal 300W universal power supply with a 75W auxiliary power connector and power harness cable to provide ample power for cards with high power requirements. Two large, remarkably quiet, and temperature-controlled, variable-speed fans and airflow management ensure that hot-running cards and the chassis components remain reliably cool without having to install an extra blower in one of the three slots. Because the fans automatically speed up and slow down in steps as needed, there is no guesswork in setting a switch position, and no need for tools to change settings. Echo Express products are environment-friendly, automatically powering on and off with your computer.
- RED Rocket Support

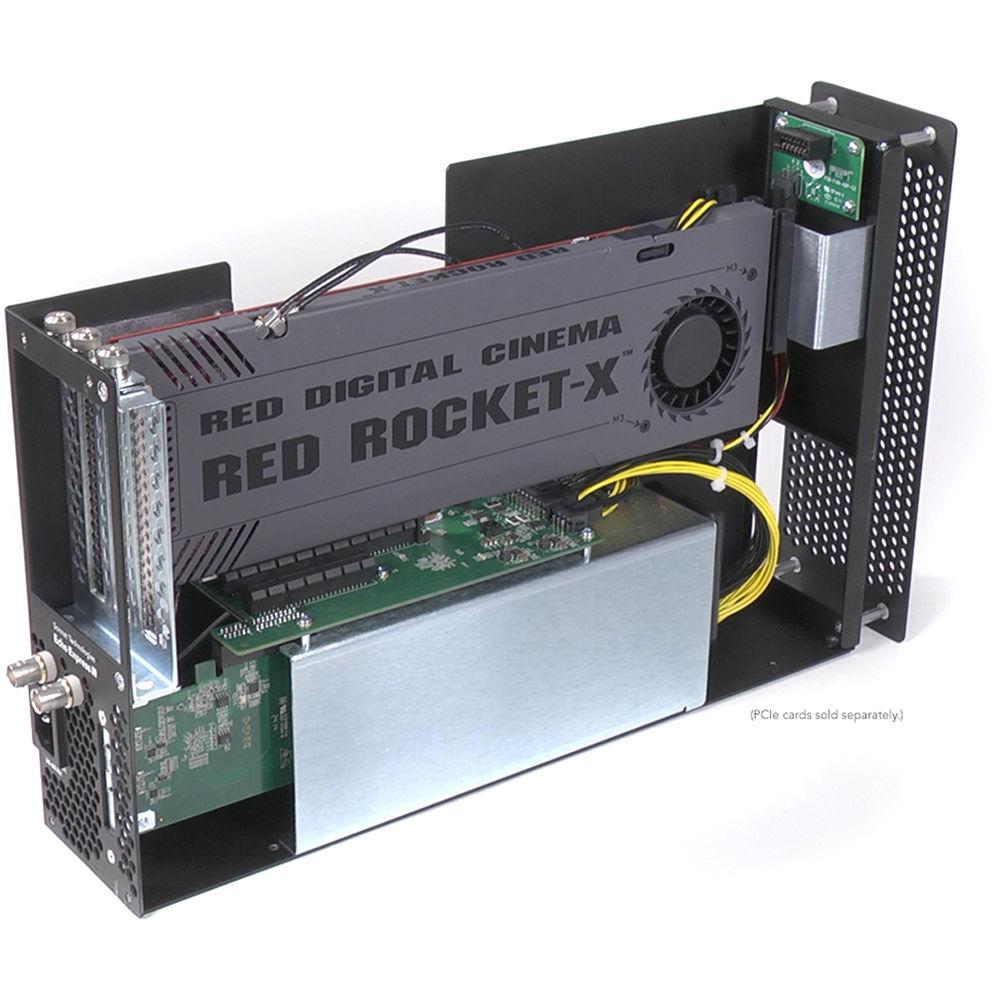

- The Echo Express III-D is designed to make the card work in one slot without sacrificing any connections. This Echo chassis includes mounting holes that have been designed specifically for the installation of two BNC connectors, enabling you to install the RED Rocket card in one slot and its BNC connectors in the Echo chassis' mounting holes, leaving the two remaining slots open.

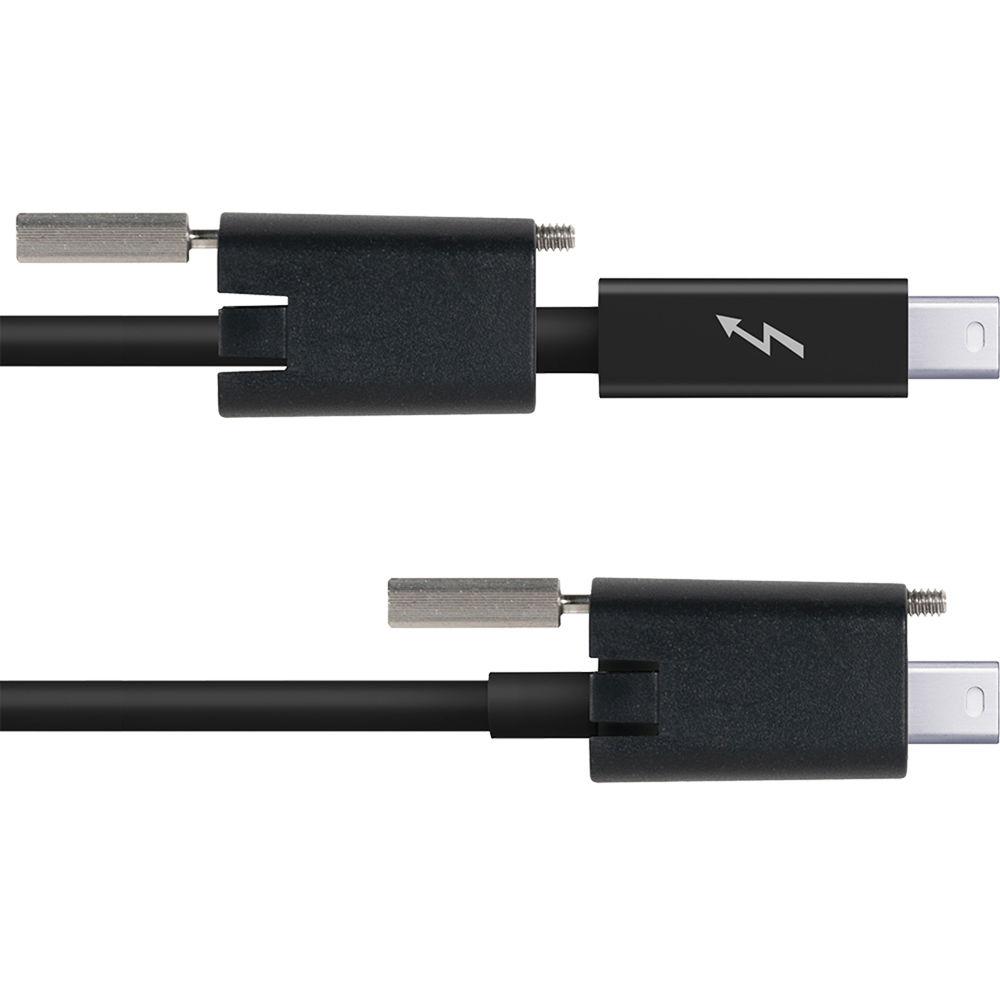

UPC: 732311009983 In the Box Sonnet Echo Express III-D Desktop Thunderbolt 2 Expansion Chassis Power Cord Thunderbolt Cable Thunderbolt Cable Lock 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Echo Express III-D Desktop Thunderbolt 2 Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet Echo Express III Specs | | | Expansion Slots | 1 x PCIe 2.0 x8 (x8 mode)
1 x PCIe 2.0 x16 (x8 mode)
1 x PCIe x8 (x4 mode) | | Supported PCI Card Sizes | Full-Height, Full-Length, Double-Width | | Ports | 2 x Mini DisplayPort Thunderbolt 2 | | Operating System Support | macOS/OS X | | | | Power Source Type | 300 W Internal PSU | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 3.8 x 10.2 x 16.0" / 7.5 x 25.9 x 40.5 cm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 10.35 lb | | Box Dimensions (LxWxH) | 20.1 x 13.1 x 4.3" |
