Product description The Echo Express SEL Thunderbolt 2 Expansion Chassis from Sonnet is a single slot expansion chassis. It features 20 Gb/s Thunderbolt 2 technology that provides sufficient bandwidth to support many high-performance and demanding PCIe cards. It delivers maximum performance when connected to a computer with Thunderbolt 2. The SEL is also fully compatible with computers with 10 Gb/s Thunderbolt technology, supporting most cards at full-performance, and may also be upgraded to Thunderbolt 3.The SEL is enabled by Thunderbolt technology, allowing PCIe expansion slots to be connected outside a computer. This compact desktop Thunderbolt 2 to PCIe card expansion chassis is suitable for connecting one professional 16Gb or 8Gb Fibre Channel, 10 Gigabit Ethernet, SAS/SATA host bus adapter or RAID controller PCIe card to any Mac with a Thunderbolt port. - Use PCIe Expansion Cards with Computers Lacking Slots
- Use high performance PCIe cards with any Mac that has a Thunderbolt port
- Thunderbolt 2 Interface
- Maximize the performance of computers with Thunderbolt 2 technology. Backwards compatible with host computers and other devices equipped with 10 Gb/s Thunderbolt technology.
- Upgradable to Thunderbolt 3
- The Echo Express SEL can be upgraded to Thunderbolt 3.
- Small and Light
- Most compact Thunderbolt 2 to PCIe expansion system available, designed to fit the Thunderbolt compatible high speed networking and storage controller interface cards.
- One PCIe Slot
- Supports low profile card.

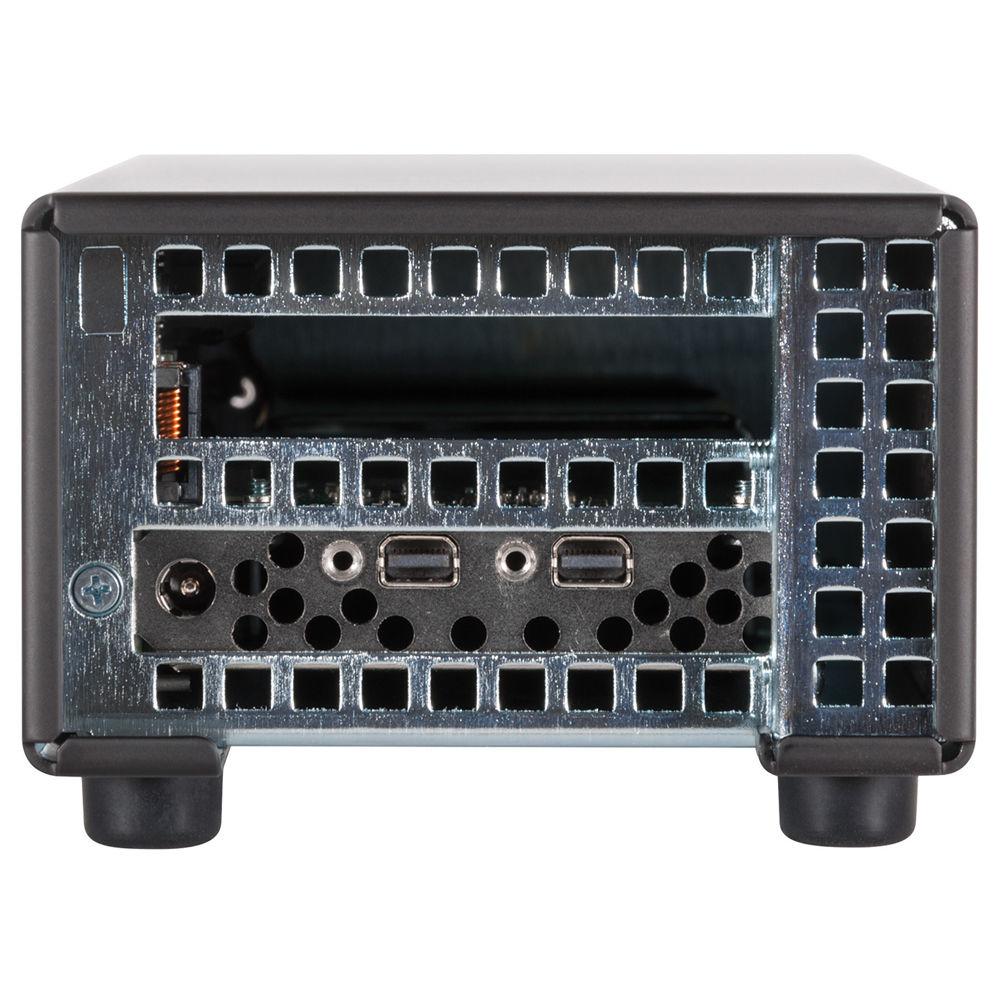

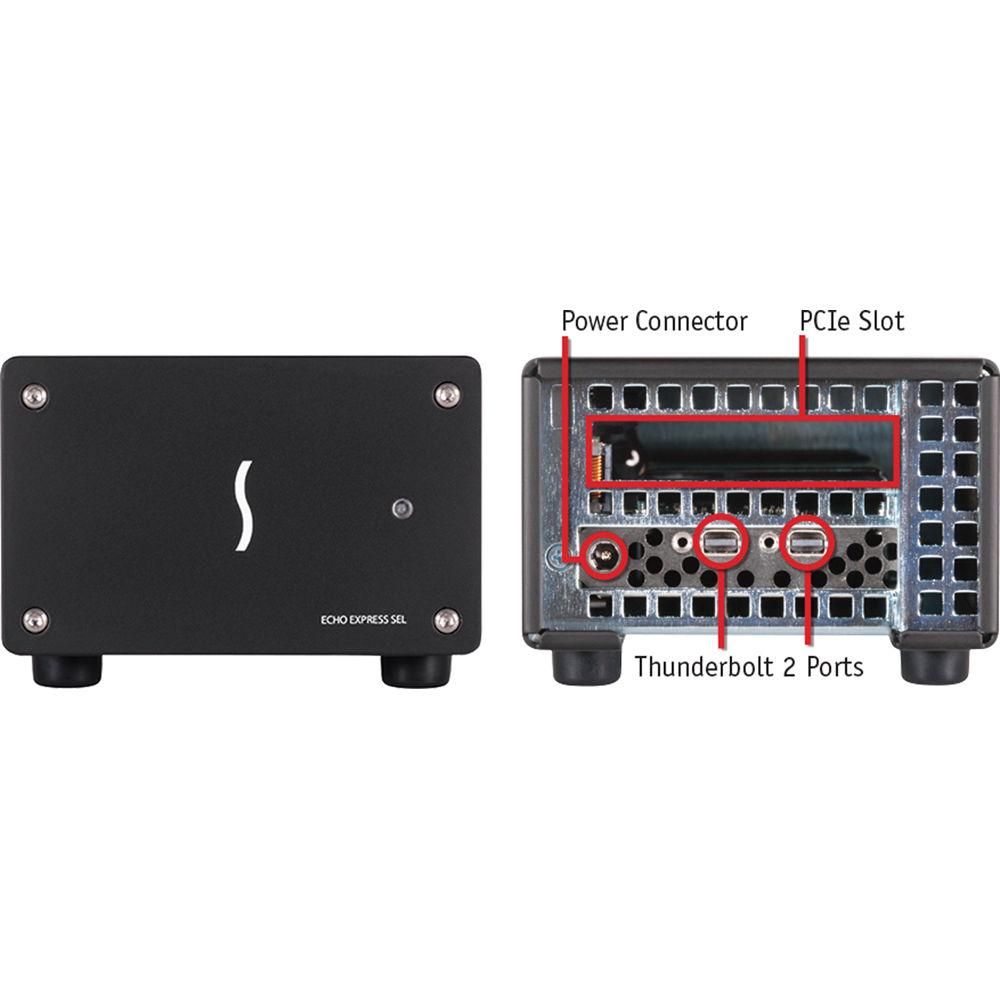

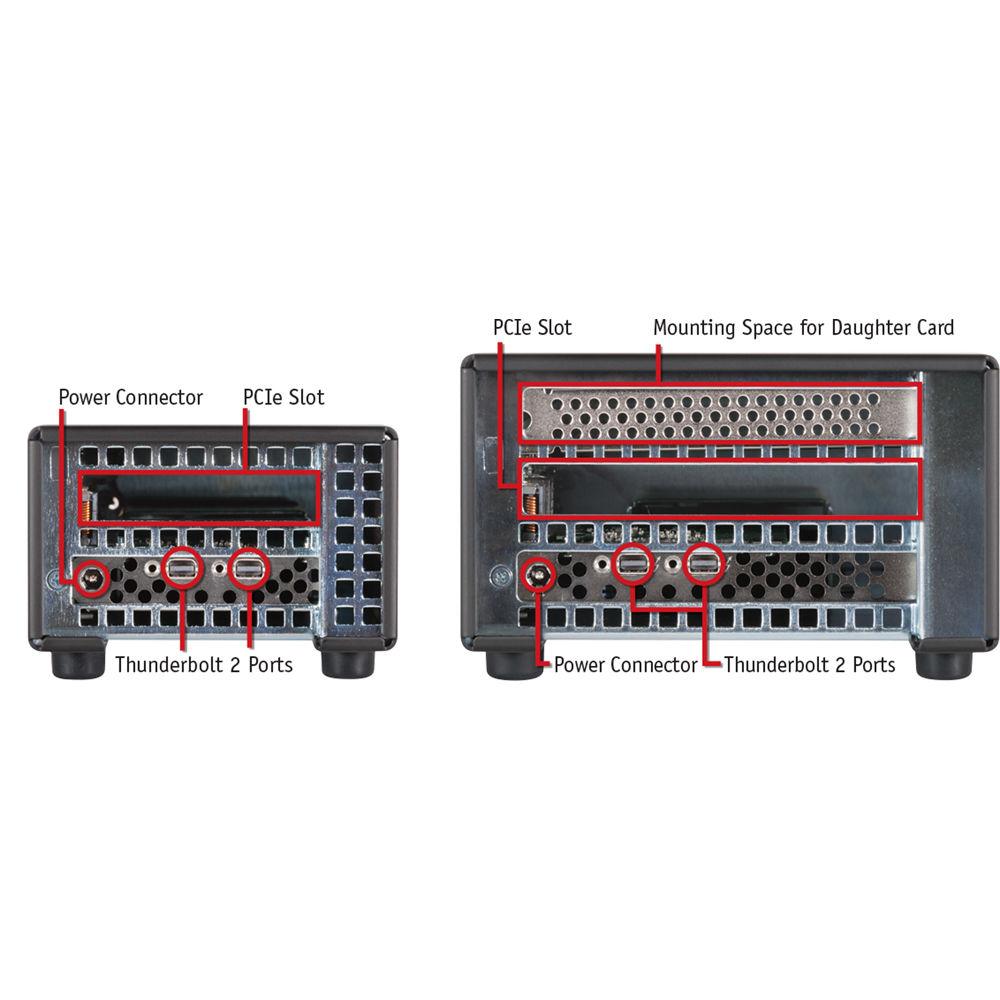

- Two Thunderbolt Ports
- Daisy-chain up to six devices to a single port on the host computer.
- Quiet Cooling
- The Echo Express SEL is designed to be quiet so that it can comfortably be used in noise-sensitive environments. The airflow path within the chassis has been specially designed to quietly and efficiently cool the installed card with a temperature controlled, variable speed fan.
- Energy Saver Mode
- It features automatic power on/off to save energy. Since Echo Express products automatically power on and off with your computer, there is no power switch on the chassis.
- Rugged Aluminum Housing
- Constructed of rugged and lightweight aluminum, the outer shell of the Echo Express SEL securely protects the PCIe card installed inside. The variable speed, temperature controlled fan automatically speeds up as necessary to ensure that even a hot running card and the chassis's components remain reliably cool. Because the fan automatically speeds up and slows down as needed, there is no guesswork in setting a switch position, and no need for tools to change settings.
- Full Performance in a Small and Light Package
- The Echo Express SEL is small, light, and suitable for use in situations where only a single low profile PCIe card is needed. Measuring a scant 4" wide by 8.4" long by 2.8" tall, the SEL is designed to house one low profile PCIe card including compatible high speed networking and storage controller cards. The SEL includes two Thunderbolt ports to support daisy chaining of up to six devices from a single port, on your computer.

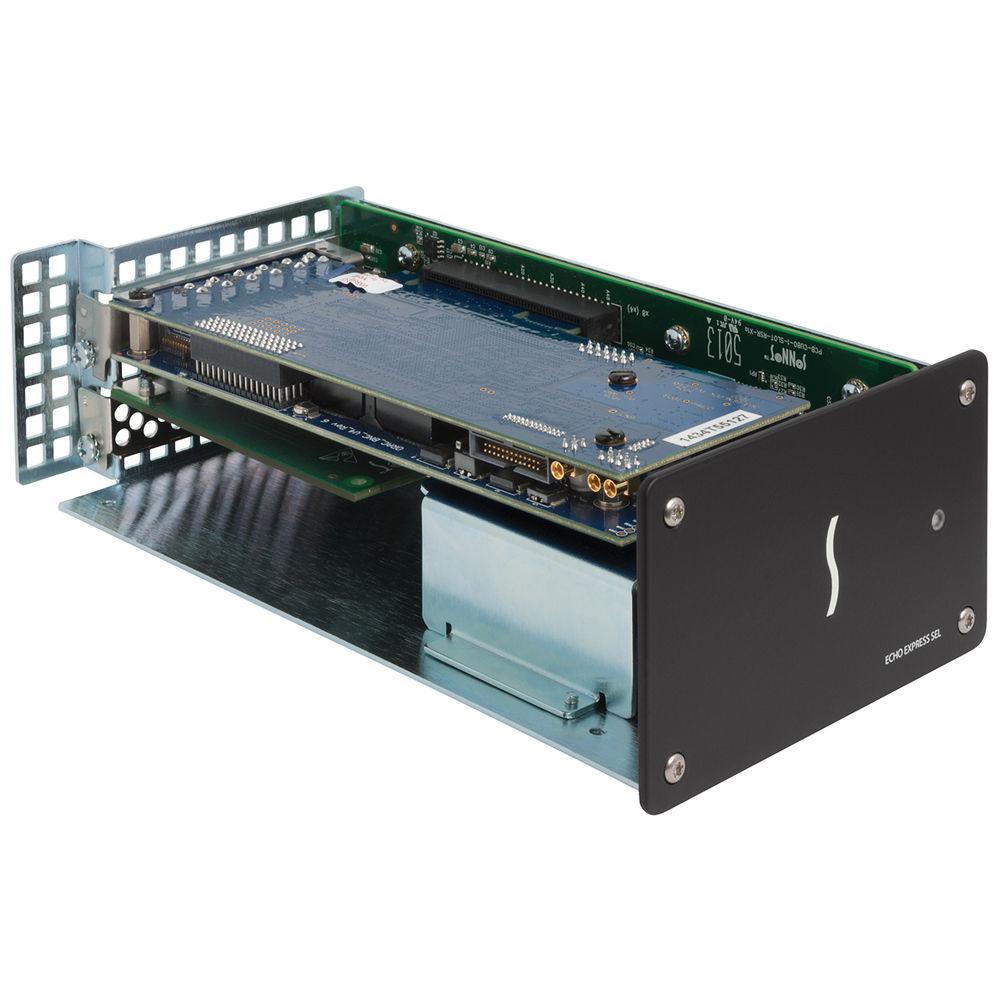

- Designed for Low-Profile PCIe Cards

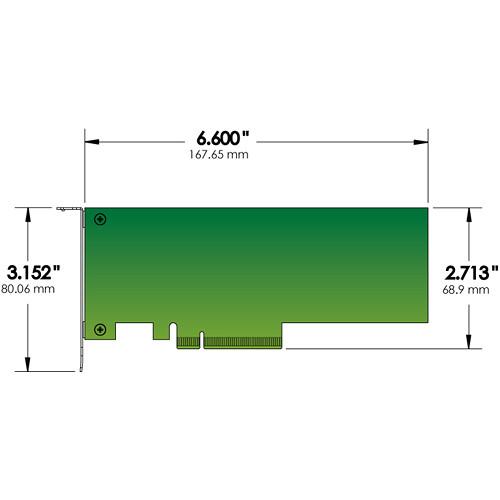

- It supports one half-length (up to 6.6"), low profile, single width PCIe card. PCIe 1.1, PCIe 2.0, and PCIe 3.0 cards are supported.
- Thunderbolt Cable Lock (Optional)

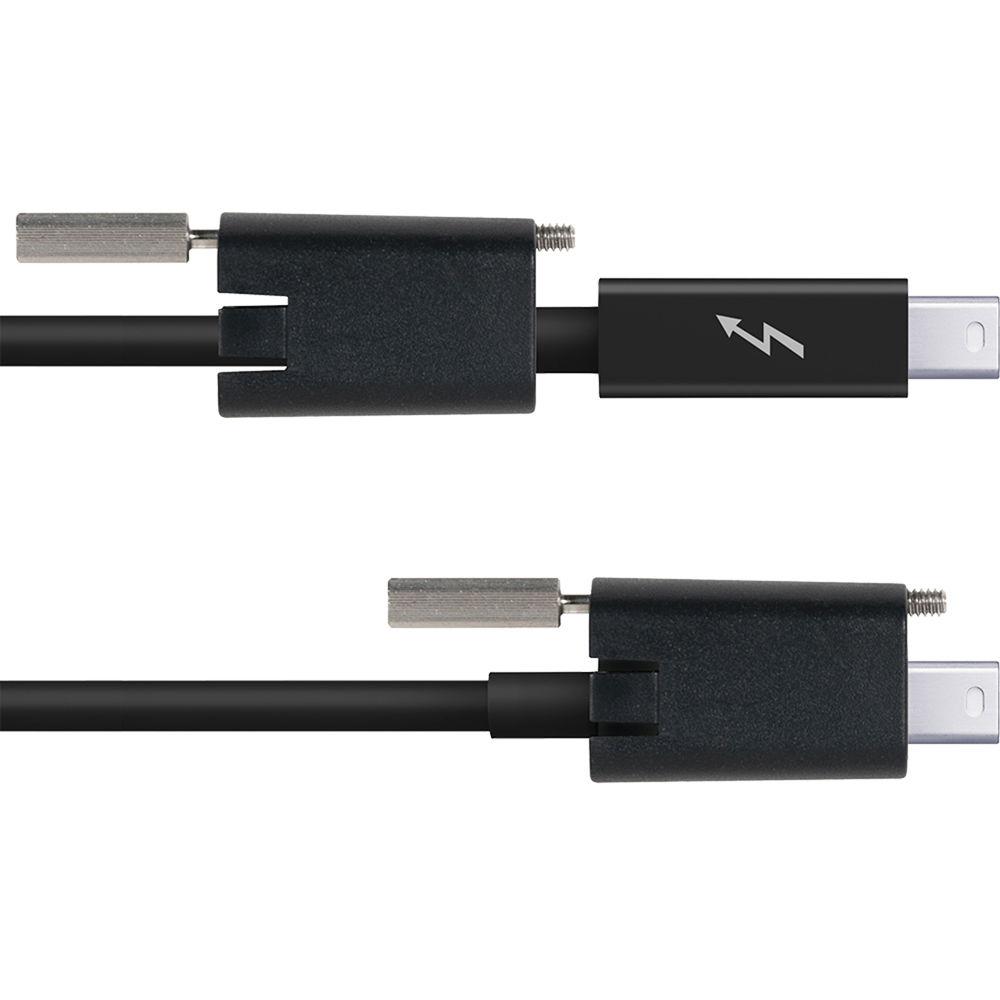

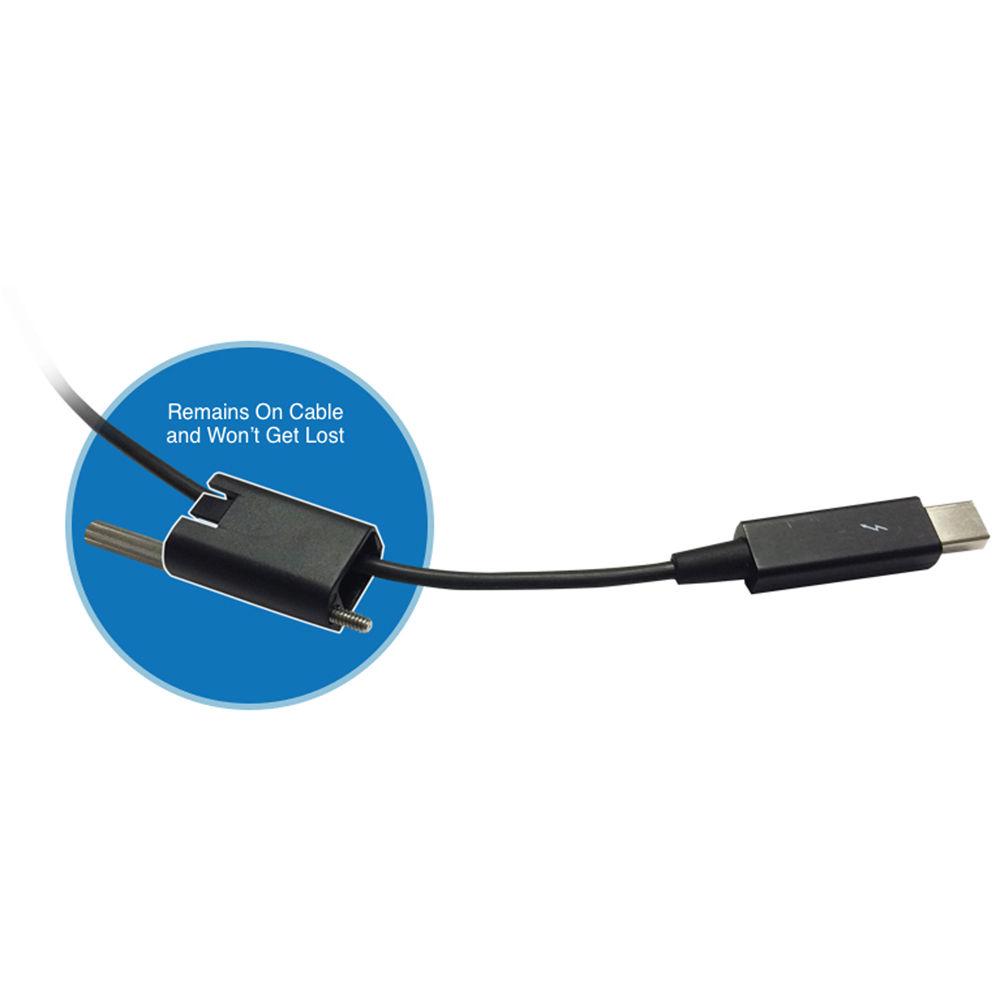

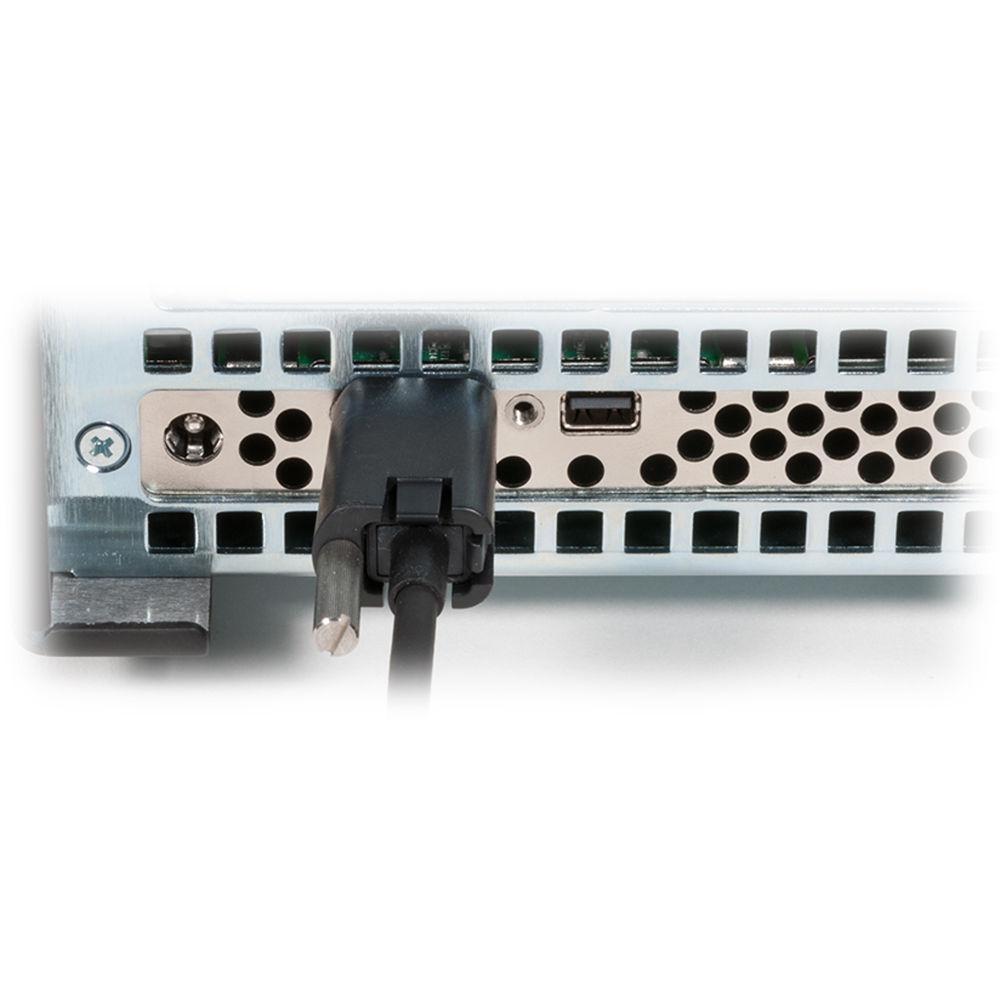

- Sonnet optional Thunderbolt cable lock secures Thunderbolt connectors plugged into the Echo chassis. It is easy to install and prevents accidental cable disconnections. 1
Please Note: Thunderbolt cable lock is compatible with Apple and Sonnet Thunderbolt cables. close UPC: 732311010231 In the Box Sonnet Echo Express SEL Thunderbolt 2 Expansion Chassis Power Adapter Power Cord Thunderbolt Cable Limited 1-Year Warranty Manual PDF 2mbfcstfcrbfvtexrqeuceszbefvrqvzerxc Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Echo Express SEL Thunderbolt 2 Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet ECHO-EXP-SEL Specs | Form Factor | Desktop | | External Connectors | 2 x Thunderbolt
Power | | Expansion Slot | One x8 mechanical (x4 electrical) PCIe 2.0 | | Supported PCIe Cards | 1 x low-profile PCIe card (sold separately) | | Power Supply | Universal 60 W, 100 to 240 VAC, 50 to 60 Hz | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Compatibility | Mac Compatibility:
Mac with a Thunderbolt 2 or Thunderbolt port
OS X 10.8.5+
PC Compatibility:
Any PC with a Thunderbolt 2 or Thunderbolt port
Windows 8, 7 | | PCIe Card Compatibility | (Windows requires a Thunderbolt 2 interface in the computer and in the expansion chassis to support more than 2 PCIe controllers.) Some PCIe cards have a bridge to multiple controllers, so it is possible for a single dual controller PCIe card to reach the limit, if not connected via Thunderbolt 2. | | Compliance | RoHS | | Dimensions (W x H x D) | 4.00 x 2.82 x 8.42" (10.16 x 7.16 x 21.39 cm) | | Weight | 1.7 lb (3.4 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 11.9 x 7.5 x 6.9" | Note: Not all Mac-compatible PCIe cards are also compatible with Windows.
