User Manual for Sonnet eGFX Breakaway Box with 550W Power Supply Click to enlarge the picture
Contents of the user manual for the Sonnet eGFX Breakaway Box with 550W
- Product category: Expansion Chassis Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Expansion Chassis
 |
User manual for the Sonnet eGFX Breakaway Box with 550W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|

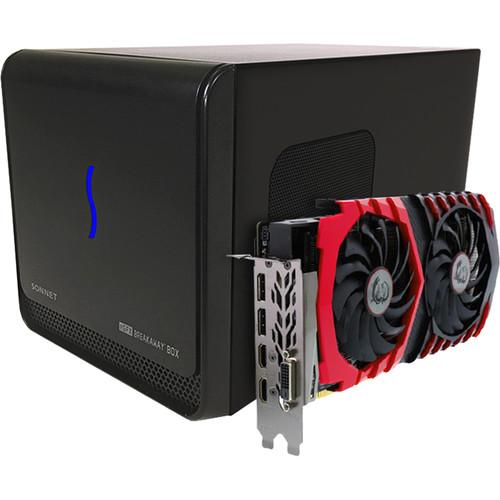

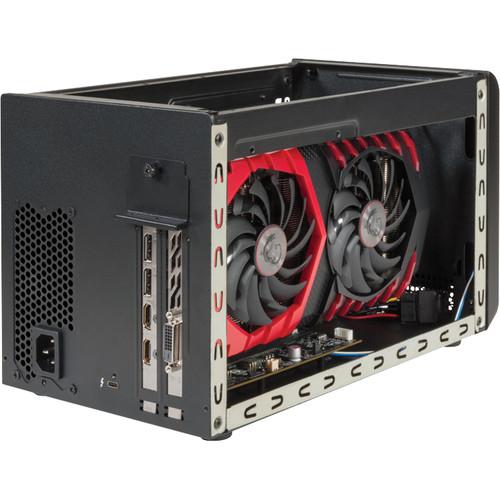

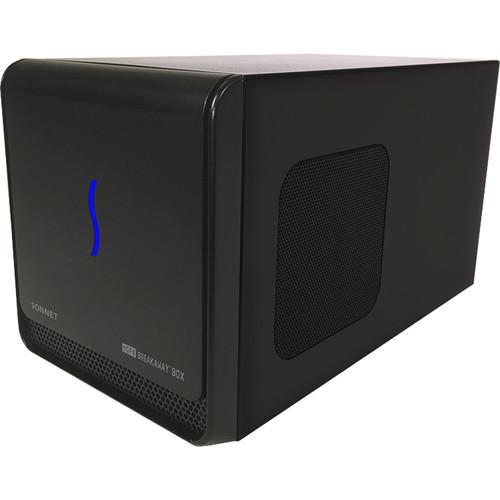

Product description Upgrade your Thunderbolt 3-equipped notebook's graphical capabilities with the eGFX Breakaway Box from Sonnet. The eGFX Breakaway connects to notebooks and ultra-compact desktops via a Thunderbolt 3 connection to provide one PCIe 3.0 x16 slot, so you can install a user-supplied dedicated graphics card for gaming or creating 3D visuals. For broadcasting environments, the slot can accept a video capture card. To support a wide variety of cards, Sonnet has designed the eGFX Breakaway with ample space to house one PCIe card that features a full-length, full-height, and double-width form factor.
Powering the dedicated graphics card and even your notebook can be accomplished with the built-in 550W power supply, which delivers up to 87W of upstream power for recharging your notebook's battery. The power supply sports two 8-pin PCIe power connectors to support PCIe cards requiring up to 375W of power. Aside from power, the eGFX Breakaway comes outfitted with a variable-speed fan that cools all the internal components while staying quiet. Included along with the eGFX Breakaway is a 1.5' (0.5m) Thunderbolt 3 cable to help you connect with your computer. - Connects a supported GPU card to your eGFX-compatible computer with Thunderbolt 3 ports
- Supports AMD Radeon R9 and RX as well as NVIDIA GeForce GTX 7, 9, and 10 series
- Compatible with up to full-length, full-height, and single- or double-width card
- 40 Gbps Thunderbolt 3 interface ensures 2750 MB/s of PCIe bandwidth is dedicated to the installed card
- 550W power supply has dual 8-pin connectors and can also deliver 87W upstream power to charge your computer
- Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools the installed card
- Thunderbolt certified for Mac and Windows
UPC: 732311012303 In the Box Sonnet eGFX Breakaway Box with 550W Power Supply 1.5' (0.5m) Thunderbolt 3 Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet eGFX Breakaway Box with 550W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet GPU-550W-TB3 Specs | | | Expansion Slots | 1 x PCIe 3.0 x16 (x4 mode) | | Supported PCI Card Sizes | Full-Height, Full-Length, Double-Width | | Ports | 1 x USB Type-C Thunderbolt 3 | | Operating System Support | Windows, macOS/OS X | | | | Power Source Type | 550 W Internal PSU | | PCIe Connectors | 2 x 8-Pin | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 7.3 x 13.4 x 8.0" / 18.5 x 34.0 x 20.3 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 9.95 lb | | Box Dimensions (LxWxH) | 17.3 x 11.4 x 11.3" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
