User Manual for Sonnet eGFX Breakaway Box with 650W Power Supply Click to enlarge the picture
Contents of the user manual for the Sonnet eGFX Breakaway Box with 650W
- Product category: Expansion Chassis Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Expansion Chassis
 |
User manual for the Sonnet eGFX Breakaway Box with 650W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|

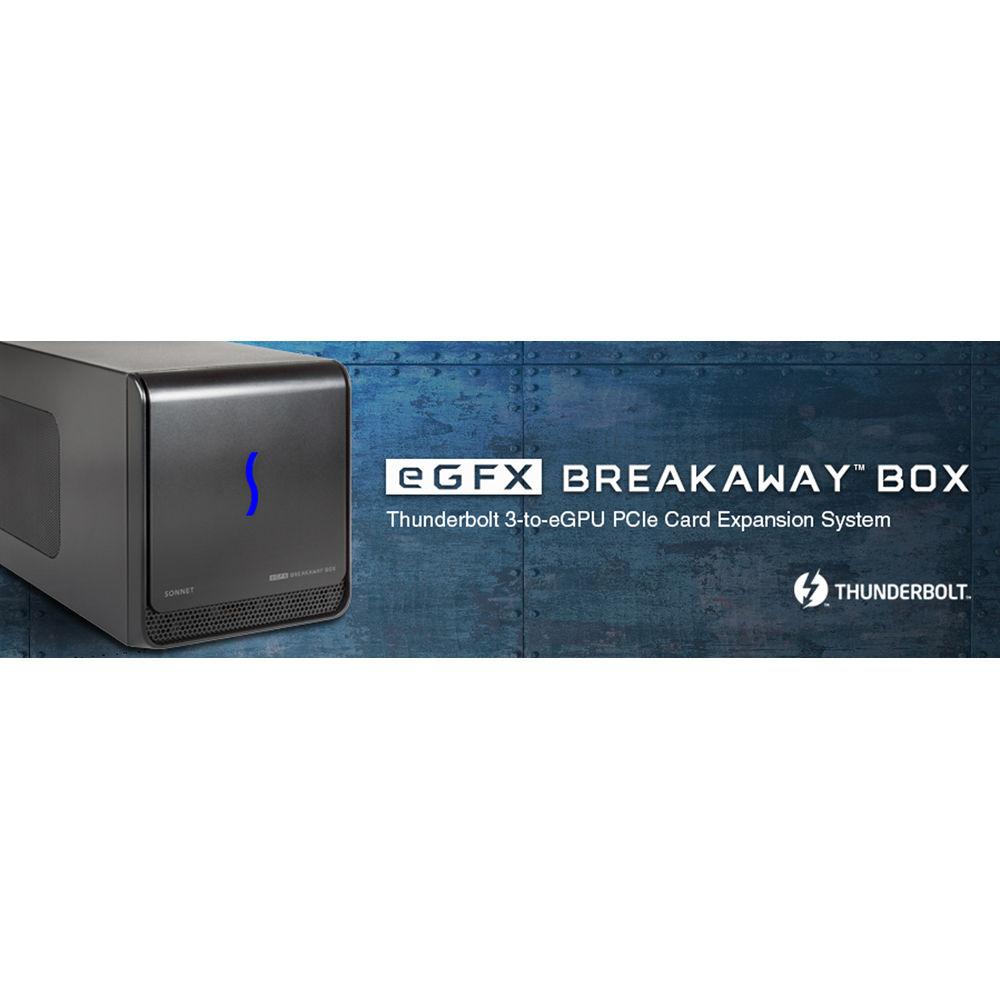

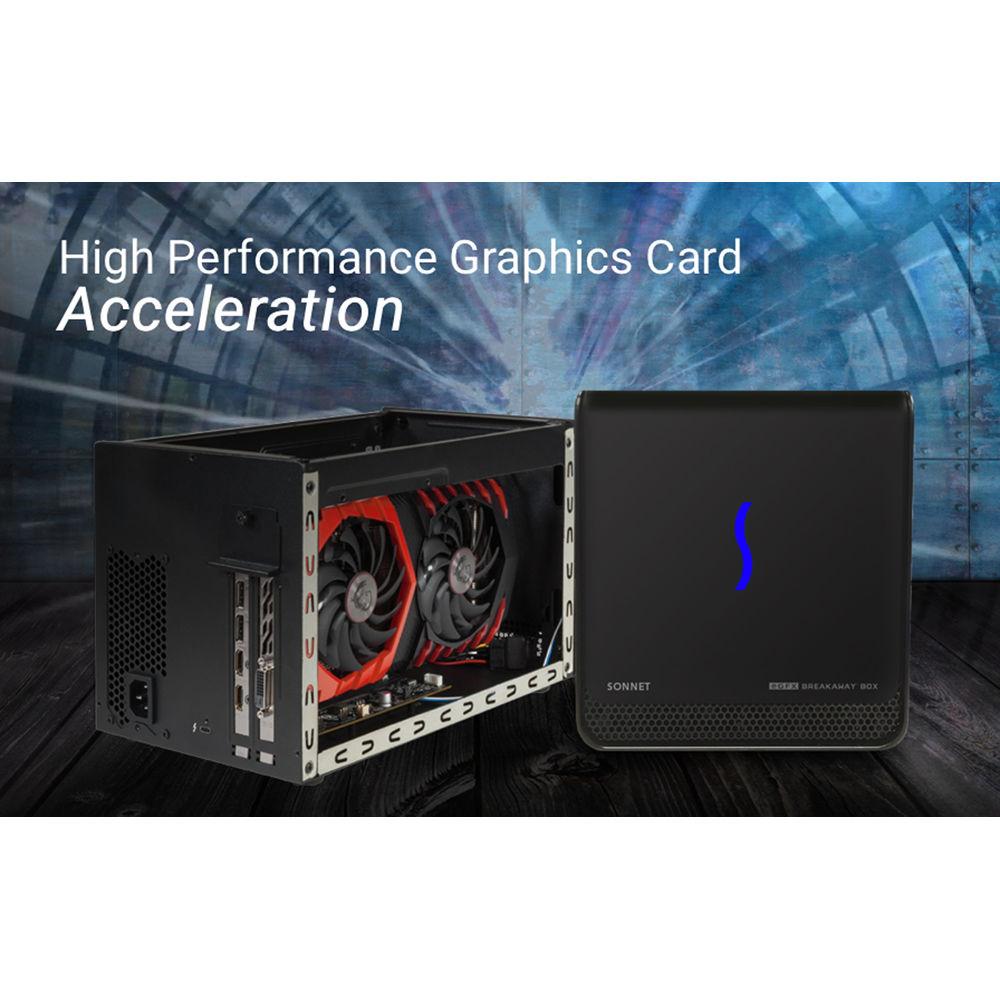

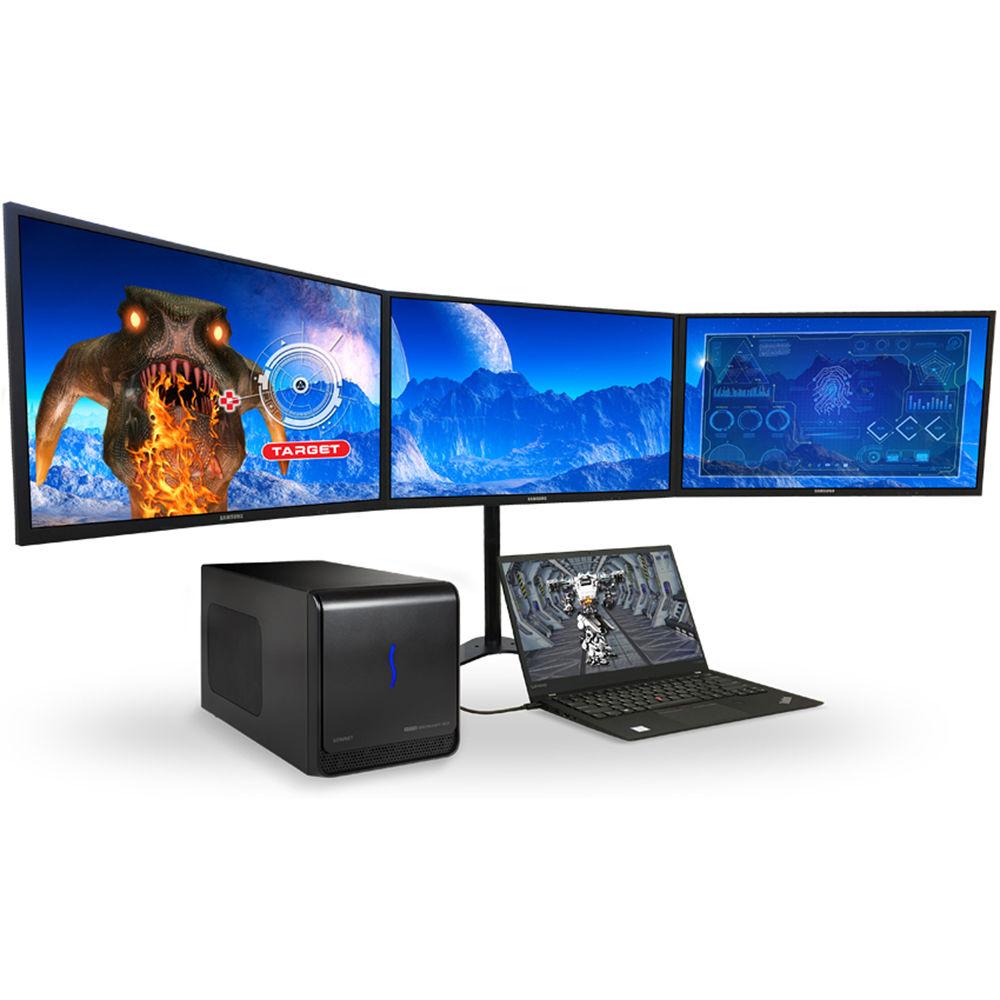

Product description Upgrade your Thunderbolt 3-equipped laptop's graphical capabilities with the Sonnet eGFX Breakaway Box. The eGFX Breakaway connects to laptops and ultra-compact desktops via a Thunderbolt 3 connection to provide one PCIe 3.0 x16 slot, so you can install a user-supplied dedicated graphics card for gaming or creating 3D visuals. For broadcasting environments, the slot can accept a video capture card. To support a wide variety of cards, Sonnet has designed the eGFX Breakaway with ample space to house one PCIe card that features a full-length, full-height, and double-width form factor. Powering the dedicated graphics card and even your notebook can be accomplished with the built-in 650W power supply, which delivers up to 87W of upstream power for recharging your laptop's battery. The power supply sports two 8-pin (6+2) power connectors to support PCIe cards requiring up to 375W of continuous power. Aside from power, the eGFX Breakaway comes outfitted with a variable-speed fan that cools all the internal components while staying quiet. Included along with the eGFX Breakaway is a 1.5' (0.5m) Thunderbolt 3 cable to help you connect with your computer. Features - Connects a supported GPU card to your eGFX-compatible computer with Thunderbolt 3 ports
- Supports compatible GPUs, such as AMD Radeon R9 and RX series, including VEGA 64 and Frontier Edition; and NVIDIA GeForce GTX 9 and 10 series, and TITAN X, Xp, and V.

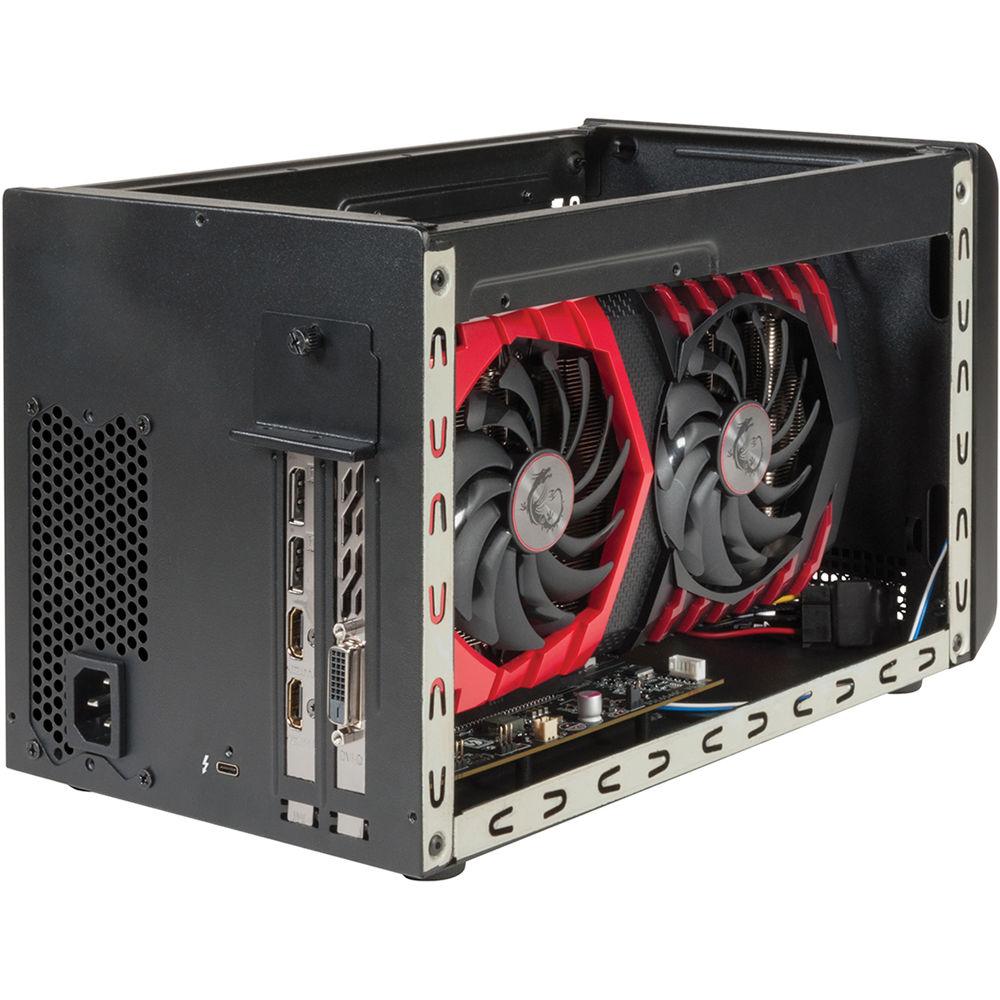

- Compatible with up to a single full-length, full-height, and single- or double-width card
- 40 Gbps Thunderbolt 3 interface ensures 2750 MB/s of PCIe bandwidth is dedicated to the installed card
- 650W power supply has dual 8-pin (6+2) connectors and can also deliver 87W upstream power to charge your computer

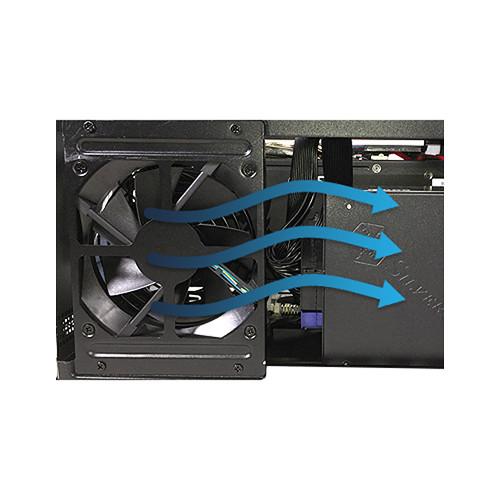

- Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools the installed card
- Thunderbolt certified for Mac and Windows
UPC: 732311012716 In the Box Sonnet eGFX Breakaway Box with 650W Power Supply 1.5' (0.5m) Thunderbolt 3 Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet eGFX Breakaway Box with 650W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet eGFX Breakaway Box Specs | | | Expansion Slots | 1 x PCIe 3.0 x16 (x4 mode) | | GPU | None | | Supported PCI Card Sizes | Full-Height, Full-Length, Double-Width | | Host Connection | PCIe 3.0 x16 Slot | | Ports | 1 x USB Type-C Thunderbolt 3 | | Data Transfer Rates | Thunderbolt 3: 40 Gb/s | | Operating System Support | Windows, macOS/OS X | | | | Power Source Type | 650 W Internal PSU | | PCIe Connectors | 2 x 6+2-Pin | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Fans | 1 | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | | | Form Factor | Desktop | | Certifications | RoHS, as per Manufacturer | | Dimensions | 7.3 x 8.0 x 13.4" / 18.5 x 20.3 x 34.0 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 12.255 lb | | Box Dimensions (LxWxH) | 19.3 x 12.6 x 11.6" |
