User Manual for Sonnet Radeon RX 570 eGFX Breakaway Puck Click to enlarge the picture
Contents of the user manual for the Sonnet Radeon RX 570 eGFX Breakaway
- Product category: Expansion Chassis Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Expansion Chassis
 |
User manual for the Sonnet Radeon RX 570 eGFX Breakaway contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|

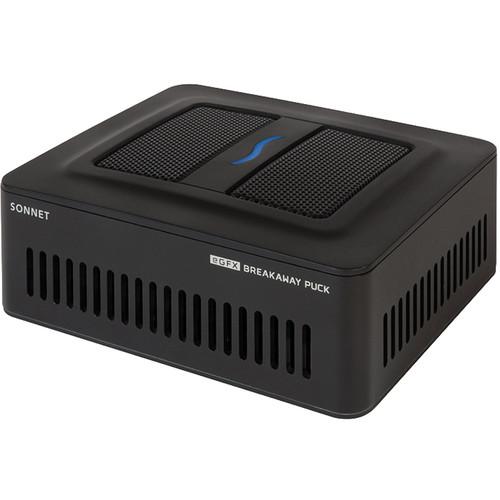

Product description Get the full gaming experience on your laptop with the Sonnet Radeon RX 570 eGFX Breakaway Puck. With up to 2750 MB/s of available PCIe bandwidth, the Puck utilizes the Thunderbolt 3 40 Gb/s interface to provide your computer with all of the performance from the included AMD Radeon RX 570 GPU. The Puck features a compact form factor that houses an AMD Radeon RX 570 graphics card. With 4GB of GDDR5 VRAM, the Puck can dramatically accelerate popular graphics-intensive games and professional applications on your Thunderbolt 3-compatible laptop, all-in-one desktop, or compact desktop tower. The preinstalled GPU features three DisplayPort 1.4 outputs and an HDMI 2.0b output. All four outputs support 4K resolution at 60 Hz. You can also connect up to four 4K displays simultaneously, thanks to AMD's Eyefinity technology. Features - Connect the AMD Radeon RX 570 GPU to your eGFX-compatible computer with a Thunderbolt 3 port

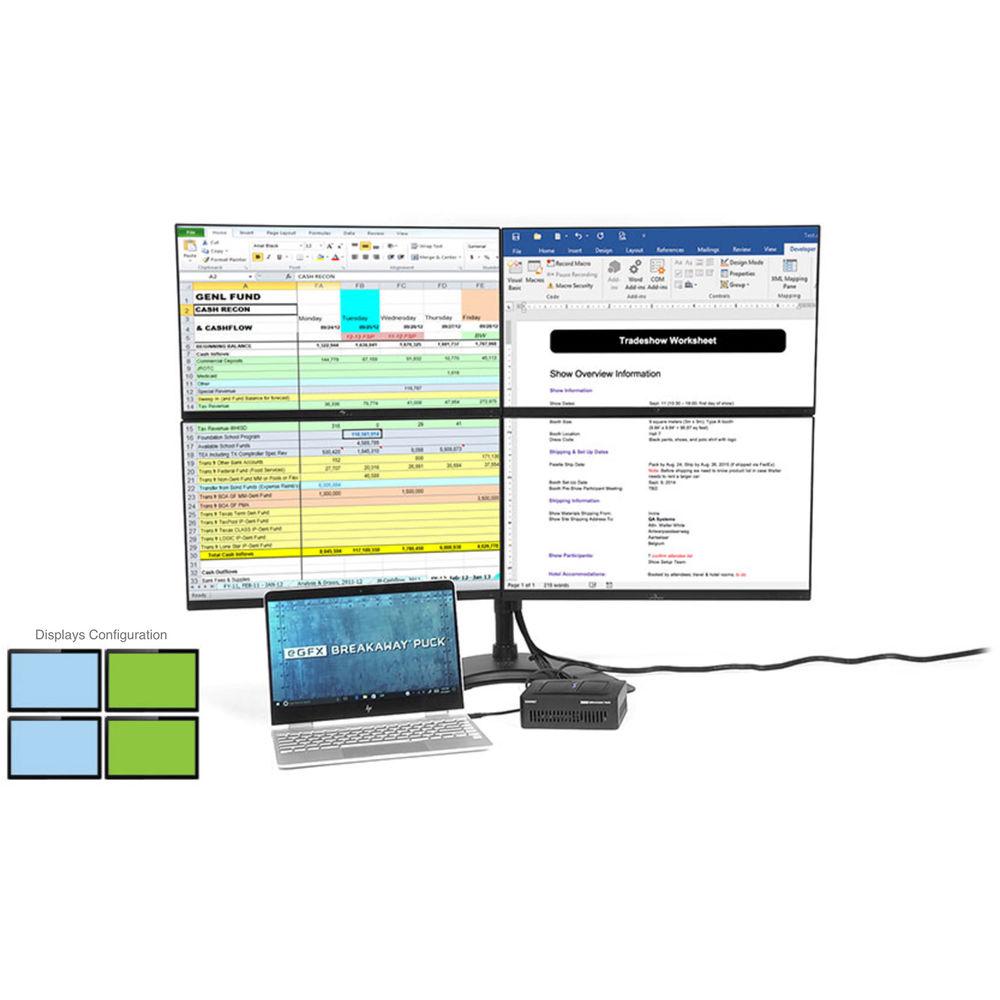

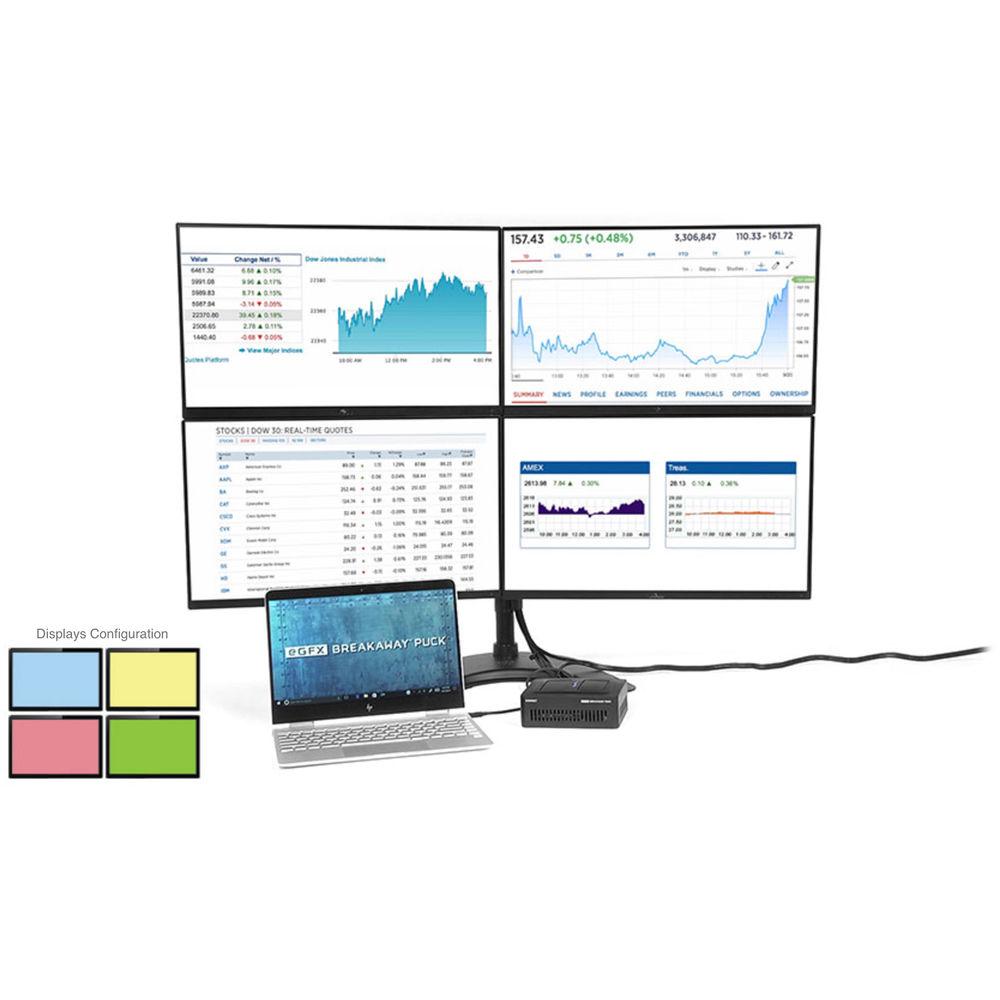

- With its three DisplayPort 1.4 ports and one HDMI 2.0b port, the Puck can support up to four 4K displays
- The Thunderbolt 3 port ensures the full 2750 MB/s of PCIe bandwidth is dedicated to the installed GPU
- The Puck powers and charges your computer while connected, even when not in use, by delivering up to 45 watts

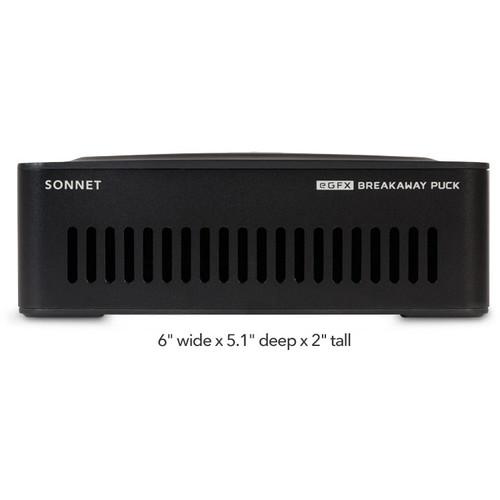

- Measuring 6" wide, 5.1" deep, and 2" tall, the Puck has a small footprint and can fit easily into a computer bag or backpack
- An optional mounting kit can secure the Puck to the back of a monitor or multi-display stand and connecting it with an included DP cable
UPC: 732311012037 In the Box Sonnet Radeon RX 570 eGFX Breakaway Puck Power Adapter 1.6' (0.5m) Thunderbolt 3 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Radeon RX 570 eGFX Breakaway Puck in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet RX 570 eGFX Specs | | | GPU Model | AMD Radeon RX 570 | | Stream Processors | 896 | | Floating Point Performance | 5095.00 GFLOPS | | Supported APIs | DirectX: 12
OpenGL: 4.5
OpenCL: 2 | | | | Memory Speed | 7 Gb/s | | Memory Configuration | 4 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 256-Bit | | Memory Bandwidth | 224 GB/s | | | | Display Connectors | 3 x DisplayPort 1.4
1 x HDMI 2.0b | | | | Max Power Consumption | 220 W | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 11.9 x 9.9 x 4.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
