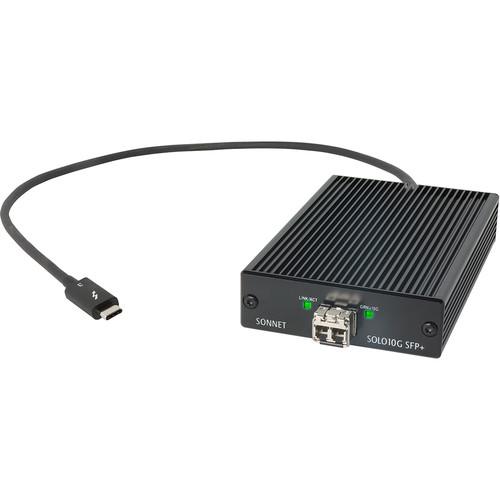

Product description Connect your Thunderbolt 3-equipped Mac or Windows PC to 10 Gb/s Ethernet with the Solo10G SFP+ Thunderbolt 3 Adapter with Short-Range SFP+ Transceiver from Sonnet. This compact adapter comes equipped with an SFP+ port capable of speeds up to 10 Gb/s, and it connects to your macOS or Windows system via an attached Thunderbolt 3 cable. The bus-powered adapter has a rugged aluminum shell designed for portability, while its Energy-Efficient Ethernet support helps to conserve power. Hardware encryption is designed to prevent hackers from tampering with the adapter's firmware. A short-range SFP+ transceiver is included. - Safe and Secure Design
- Incorporating encryption in hardware, the adapter is designed to protect against malicious modification of its firmware. Unauthorized attempts at firmware modification to facilitate surreptitious computer access render the adapter inoperable. This secure design helps to prevent the Solo10G adapter's firmware from being reprogrammed except by a manufacturer's update using a secure encryption key.
- 40 Gb/s Thunderbolt 3 Interface
- Connects to a Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain.
- Replaceable Captive Cable
- Through the use of a captive cable, the Solo10G SFP+ adapter's Thunderbolt connector is designed to remain firmly connected. Should the cable ever break, it can be replaced with an approved replacement cable available from Sonnet or a Sonnet-authorized reseller.
- Intelligent Operation
- The Solo10G SFP+ adapter includes functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory, and stateless offloads such as TCP, UDP, and IPv4 checksum offloading. These processes help your computer to perform better while large file transfers or high I/O operations take place. This Sonnet adapter also supports the Energy-Efficient Ethernet standard (IEEE 802.3az), which reduces the adapter's power demands on your computer.
- Additional SFP+ Transceiver Choices
- Sonnet includes a short-range multi-mode fiber SFP+ module (up to 984'), part number G10E-SFP-SR, with the Solo10G adapter. Sonnet also offers a long-range single-mode fiber module (up to 6.2 miles), part number G10E-SFP-LR (sold separately), and a 10GBASE-T copper module (up to 98' using Cat 6A cables), part number G10E-SFP-T (sold separately). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 32.8' long.
- Pocketable, Bus-Powered, and Quiet
- The Solo10G SFP+ is pocketable, measuring only 3.1" wide by 4.9" deep by 1.1" tall. It's also bus-powered, meaning it can be used without a power adapter. Wrapped in a rugged aluminum case, the Sonnet adapter is designed to run cool without a fan, allowing for quiet and energy-efficient operation.
- Simple Setup

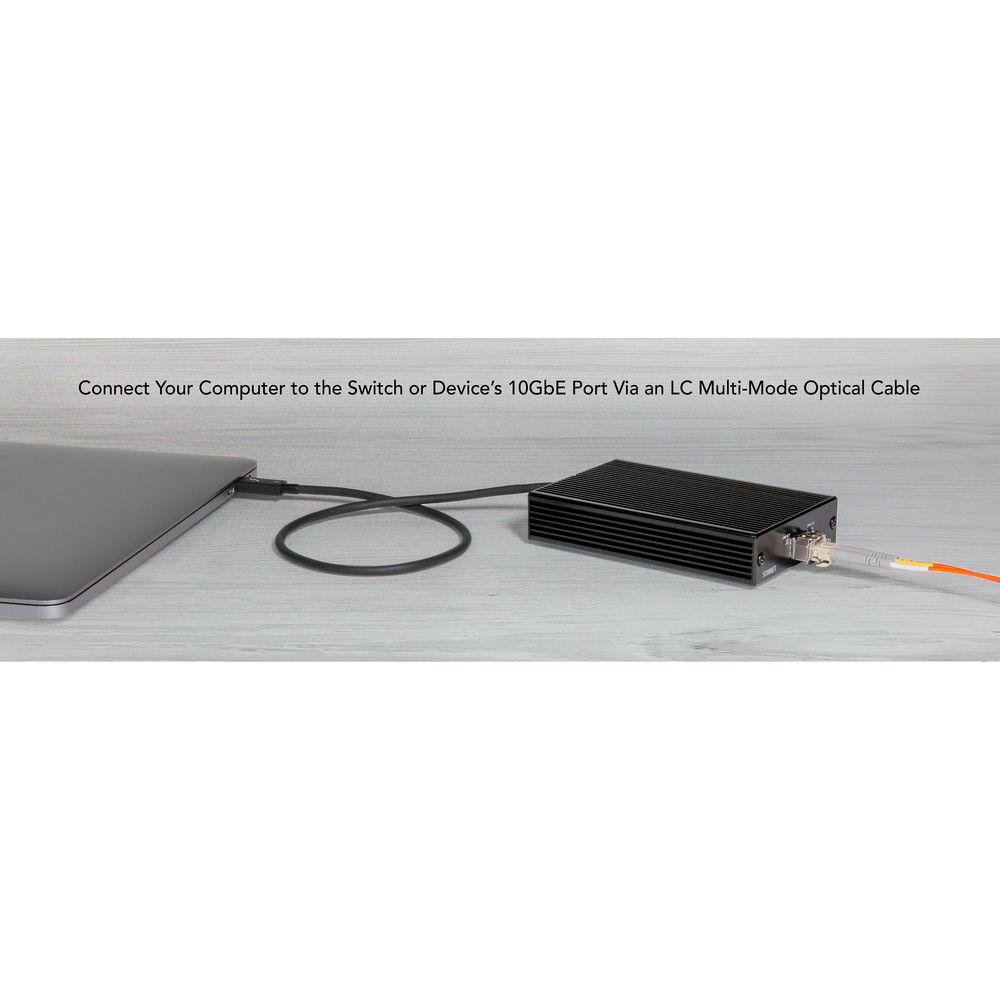

- Connect the Solo10G SFP+ adapter to your computer and to the network switch (or directly to 10 Gb/s-enabled storage), and then configure the adapter's settings through the macOS Network control panel or Windows Device Manager.
- Advanced Features
- Flow control support
MSI (Message Signaled Interrupts)
RSS (Receive-Side Scaling)
Interrupt coalescing
Multicast filtering
Energy-Efficient Ethernet (IEEE 802.3az)
64-bit address support for systems using more than 4GB of physical memory - Stateless Offloads
- TCP, UDP, and IPv4 checksum offloading
TSO (TCP Segmentation Offload)
LRO (Large Receive Offload)
RSS (Receiver Side Scaling) - Hardware Requirements
- Mac or Windows PC with Thunderbolt 3 ports
- OS Compatibility
- macOS 10.13.6 and later
Windows 10 (64-bit) version 1709 or later UPC: 732311012495 In the Box Sonnet Solo10G SFP+ Thunderbolt 3 Adapter with Short-Range SFP+ Transceiver Short-Range SFP+ Transceiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Solo10G SFP Thunderbolt 3 Adapter with Short-Range SFP Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet Solo10G Specs | | | Networking Ports | None | | Transceiver Slots | 1 x Enhanced Small Form-factor Pluggable (SFP+) | | Host Connection | Thunderbolt 3 | | | | Supported IEEE Standards | 802.3az | | Operating System Support | Windows, macOS/OS X | | Jumbo Frames Support | 16,352 Bytes | | Transfer Rates | Thunderbolt 3: 40 Gb/s | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | | | Material of Construction | Aluminum | | Certifications | RoHS, as per Manufacturer | | LED Indicators | Yes | | Dimensions | 3.1 x 4.9 x 1.1" / 78.7 x 124.5 x 27.9 mm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 0.765 lb | | Box Dimensions (LxWxH) | 9.45 x 8.4 x 1.7" |
