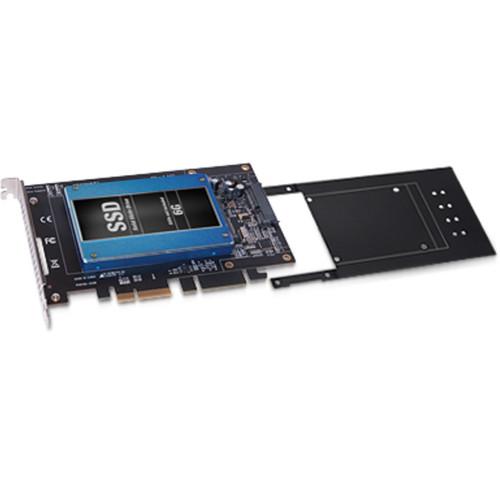

User Manual for Sonnet Tempo 6Gb s SATA PCI Express 2.5" Solid State Drive Card Click to enlarge the picture
Contents of the user manual for the Sonnet Tempo 6Gb s SATA PCI
- Product category: Controller Cards Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Controller Cards
|
User manual for the Sonnet Tempo 6Gb s SATA PCI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|
Product description The Tempo 6Gb/s SATA PCI Express 2.5" Solid State Drive Card from Sonnet is a PCIe card that can control two SSDs and it supports the OS X or Windows RAID feature. The card features a 6Gb/s SATA controller chipset and PCIe 2.0 x2 interface to deliver read speeds up to 660 MB/s from a pair of SSDs configured as a RAID 0 set. AHCI compliance means that installing the card is simple; just attach your SSDs with the provided screws, mount the card in an available PCIe slot, and turn on your computer - the necessary drivers are installed automatically. Drive health monitoring is supported through S.M.A.R.T. data reporting. - PCI Express 2.0 x2 host bus interface for high-performance applications
- Great performance with data transfer speeds up to 660MB/sec
- Unique modular design enables installation of a single SSD in a half length card space, or two SSDs in a full length card space with an included extension plate attached to the card
- Optimized for maximum performance over Thunderbolt
- Supports OS X and Windows RAID features
- Included optional PCIe bracket supports installation of BNC connectors like those used with the RED Rocket
- Supports booting from attached drives under Microsoft Windows 7, and Mac OS X over Thunderbolt
- AHCI compliant - no drivers required
- Supports S.M.A.R.T. data reporting
UPC: 732311009181 In the Box Sonnet Tempo 6Gb/s SATA PCI Express 2.5" Solid State Drive Card Extension Plate (for mounting second SSD) Plate and Drive Mounting Screws Optional PCIe Bracket Documentation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Tempo 6Gb s SATA PCI Express 2.5" Solid State Drive Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet Tempo SSD Specs | Internal Connectors | 2 x SATA Connectors | | Drives Supported | SATA 6 Gb/s
SATA 3 Gb/s
Sata 1.5 Gb/s | | Data Transfer Rate | Up to 660MB/s | | Firmware | Flash-ROM upgradeable to latest firmware version | | Advanced Features | Supports booting from attached drives under Windows 7
Supports S.M.A.R.T. status data reporting | | RoHS Compliant | Yes | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.6 x 5.4 x 1.4" |
