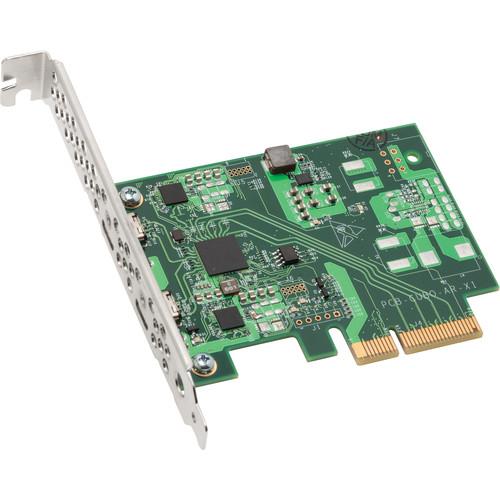

User Manual for Sonnet Thunderbolt 3 Upgrade Card for Echo Express SEL and SEL-Based Thunderbolt 2 Adapters Click to enlarge the picture
Contents of the user manual for the Sonnet Thunderbolt 3 Upgrade Card for
- Product category: Computer Case & Chassis Accessories Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Computer Case & Chassis Accessories
|
User manual for the Sonnet Thunderbolt 3 Upgrade Card for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|
Product description The Thunderbolt 3 Upgrade Card from Sonnet upgrades your Thunderbolt 2 system to 40 Gb/s Thunderbolt 3. By replacing the existing Thunderbolt interface board on your Echo Express SEL and SEL-Based Thunderbolt 2 Adapters with this upgrade board, your chassis will instantly support higher performance, and connect to your Thunderbolt 3-equipped computer without needing an adapter.
With the Thunderbolt 3 interface card installed, your upgraded Echo Express Thunderbolt 2 system gains from 30 to 100% more bandwidth over the original system. Installed in an upgraded system, PCIe cards with high bandwidth requirements, such as 16 Gb Fiber Channel and 4K Video I/O cards supporting high frame rates, will be able to perform better than before. - Replaces existing 20 Gb/s Thunderbolt interface board
- Two Thunderbolt 3 ports, one port reserved for connection to the computer; second port supports daisy-chaining of up to five additional Thunderbolt devices, attaching a single USB peripheral device, or connecting up to two 4K displays or one 5K display
- Compatible with ThunderLok 3 retainer clip
In the Box Sonnet Thunderbolt 3 Upgrade Card for Echo Express SEL and SEL-Based Thunderbolt 2 Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Thunderbolt 3 Upgrade Card for Echo Express SEL and SEL-Based Thunderbolt 2 Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet BRD-UPGR-TB3-SEL Specs Compatibility | Hardware Compatibility: Echo Express SEL (Thunderbolt 2 Edition) Echo Express SEL 10 GbE Twin 10G SFP+ Sonnet Thunderbolt 2 to mini-SAS adapter (included with Fusion DX800RAID Thunderbolt 2 Edition) Mac Compatibility: Mac with Thunderbolt 3 ports Mac with a Thunderbolt/Thunderbolt 2 port with an Apple Thunderbolt 3 to Thunderbolt 2 adapter macOS 10.12.6+ PC Compatibility PC with a Thunderbolt 3 port Windows 10 (Version 1703 and newer) | External Connectors | 2 x Thunderbolt 3 ports | Interface | 40 Gb/s Thunderbolt 3 | System Performance | 2750 MB/s | Compliance | RoHS | Operating Temperature | 32 to 95°F / 0 to 35°C |
