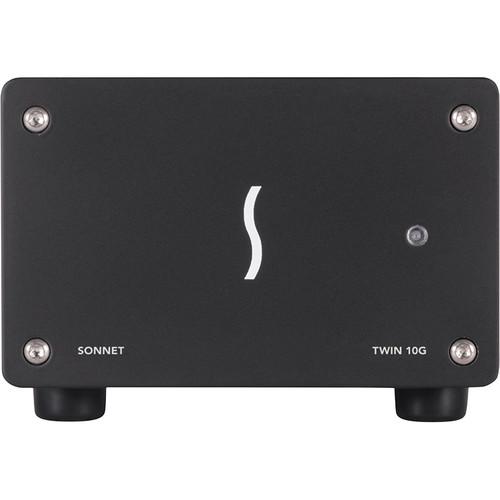

User Manual for Sonnet Twin 10G Thunderbolt 2 to Dual-Port 10 Gigabit Ethernet Adapter Click to enlarge the picture
Contents of the user manual for the Sonnet Twin 10G Thunderbolt 2 to
- Product category: Network Interface Cards & Adapters Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Network Interface Cards & Adapters
 |
User manual for the Sonnet Twin 10G Thunderbolt 2 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|
Product description The Twin 10G Thunderbolt 2 to Dual-Port 10 Gigabit Ethernet Adapter from Sonnet supports enhanced data transfer speeds and offers more bandwidth over shared networks. With specialized applications such as HD video editing using high-performance shared storage systems becoming the norm, the deployment of 10 Gigabit Ethernet (10GbE) networking has skyrocketed. This high-speed wired networking standard offers ten times the performance of Gigabit Ethernet, the most common wired network connection included with most computers today, and yet, most computers aren't equipped to get you connected. If you have a computer with a Thunderbolt port, Sonnet has a simple solution: the Twin 10G. This Thunderbolt-certified for Mac and Windows 10GBase-T adapter is a powerful and cost-effective way to add 10GbE connectivity to your setup.
Note, Thunderbolt 2 port required for Windows compatibility - 10GbE

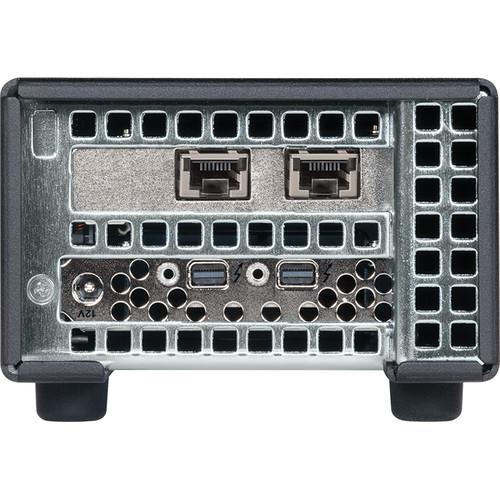

- The Twin 10G is equipped with two RJ45 and two Thunderbolt 2 ports. Using RJ45 connectors, the Twin 10G is able to connect to 10 Gigabit infrastructure via CAT-6 or CAT-6A copper cabling at distances up to 180 ft (55 m) or 328 ft (100 m), respectively. Through one of its two Thunderbolt 2 ports, the Twin 10G connects to your computer through an included Thunderbolt cable; the second Thunderbolt port supports daisy chaining up to six devices to a single port on the host computer.
- Sleek, Quiet, and Compact

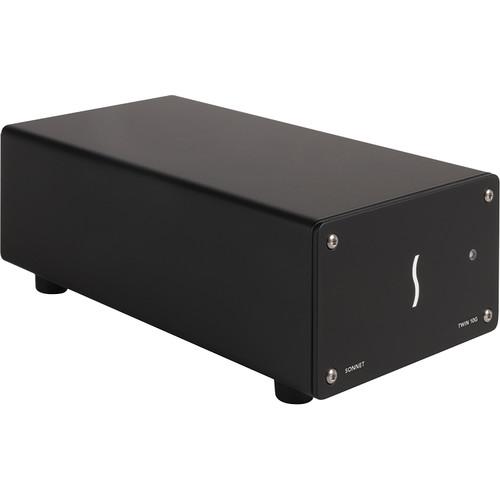

- The Twin 10G features a rugged aluminum housing that is engineered to effectively dissipate heat. Together with a temperature-tuned fan that quietly cools the components inside, this design enables the Twin 10G to be used comfortably in noise-sensitive environments.
- Simple Configuration, Advanced Features
- The Twin 10G is easy to set up, allowing you to configure its settings through the OS X Network control panel or Windows Device Manager. When you configure the device, you can also activate its advanced features: link aggregation (teaming) of its two 10GbE ports increases throughput beyond what a single connection can sustain; transparent failover between 10GbE ports keeps your computer connected in case a single cable is disconnected or one of the ports fails; jumbo packet (jumbo frame) support can increase throughput and reduce CPU utilization; and Wake-on-LAN support enables remotely waking your computer when you need it, and not wasting energy when you don't.
- Mac Pro Mate
- The Twin 10G incorporates mounting points to support firm attachment to our RackMac Pro rackmount enclosure for the new Mac Pro. Using the optional Twin 10G Mounting Kit (sold separately), the adapter is secured to the inside of the enclosure, thereby enabling 10GbE connectivity for the Mac Pro via a separate Thunderbolt 2 port for maximum bandwidth without taking up a PCIe slot or requiring extra rack space.
- 10x the Performance of Gigabit Ethernet
- This Sonnet solution is designed for high-performance computing where low latency, high bandwidth, and low CPU overhead are required. Its increased throughput performance and low host-CPU utilization are achieved with stateless offloads, allowing your computer to perform better while large files transfers or high I/O operations take place.
UPC: 732311012198 In the Box Sonnet Twin 10G Thunderbolt 2 to Dual-Port 10 Gigabit Ethernet Adapter 0.5 m Thunderbolt Cable Universal Power Adapter Power Cord Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Twin 10G Thunderbolt 2 to Dual-Port 10 Gigabit Ethernet Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet TWIN10GC-TB2 Specs | External Connectors | 2 x Thunderbolt 2
2 x RJ-45
1 x 12 V Power | | Cable Distance | CAT-6 Cable - 180 ft / 55 m
CAT-6A Cable - 328 ft / 100 m | | Network | 10Gbase-T | | Packets | Maximum Packet Size: 9000 bytes (jumbo packets) | | Stateless Offload | IP and TCP checksum offload, send and receive
TSO (TCP Segmentation Offload, AKA Large Send Offload)
LRO (Large Receive Offload)
RSS (Receive-Side Scaling)
Interrupt Coalescing
Multicast filtering | | Power Supply | Universal 60 W, 100-240 VAC, 50-60 Hz | | Operating Temperature | 32 to 95°F / 0 to 35°C | | RoHS Compliant | Yes | | Mac Compatibility | Any Mac with a Thunderbolt 2 or Thunderbolt port
OS X 10.8.5+ | | Windows Compatibility | Any Windows PC with a Thunderbolt 2 port
Windows 8, 7, Server 2012, Server 2008 | | Dimensions | 4.9 x 6.3 x 2.7" / 12.5 x 16.0 x 6.8 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 5.8" |
