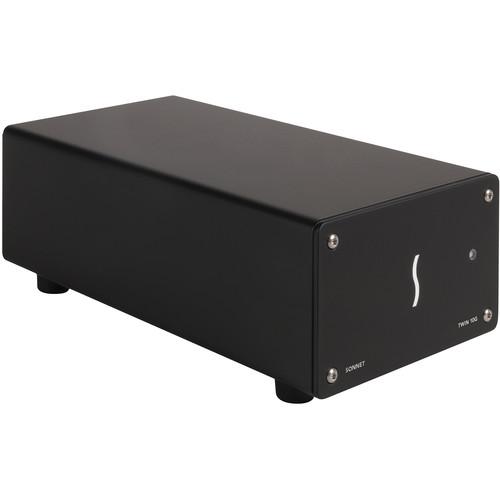

User Manual for Sonnet Twin 10G Thunderbolt 3 to Dual-Port 10 Gigabit Ethernet Adapter Click to enlarge the picture
Contents of the user manual for the Sonnet Twin 10G Thunderbolt 3 to
- Product category: Computer Case & Chassis Accessories Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Computer Case & Chassis Accessories
|
User manual for the Sonnet Twin 10G Thunderbolt 3 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|
Product description The Sonnet Twin 10G Thunderbolt 3 to Dual-Port 10 Gigabit Ethernet Adapter provides two 10GbE ports for your Thunderbolt 3 system. The Twin 10G features two Thunderbolt 3 ports, so you can daisy-chain up to 6 Thunderbolt devices to a single system. To provide a reliable and fast networking connection, the 10GbE ports are outfitted with failover and link-aggregation support. With an onboard Intel X550 10GbE controller, the Twin 10G assists your system's processor with flow controls as well as TCP, UDP, and IPv4 checksum processes, freeing up the CPU to work on other tasks. For cooling the internal components, it comes equipped with a variable-speed fan. Moreover, Sonnet includes a 1.6' Thunderbolt cable along with a ThunderLok 3, which secures the cable to the chassis. - 10GbE
- The Twin 10G Thunderbolt 3 Edition adapter is equipped with two Ethernet ports, enabling it to connect to 10GbE infrastructures via Cat 6 or Cat 6A copper cabling at distances up to 180.4' (55m) or 328.1' (100m), respectively.
- Simplified Setup
- Connect the Twin 10G Thunderbolt 3 Edition adapter to your computer via the included Thunderbolt 3 cable, download and install a driver, connect the adapter to the network switch, and configure the adapter's settings through the Mac OS X Network control panel or Windows Device Manager. Instead of a network switch, you can also connect it directly to a 10GbE-enabled storage device via Cat 6 or Cat 6A cables.
- Intelligent Operation
- The Twin 10G Thunderbolt 3 Edition adapter attains its high-throughput performance and low host-CPU utilization through functions that include flow control, 64-bit address support for systems using more than 4GB of physical memory, and stateless offloads, such as TCP, UDP, and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfer or high I/O operations take place. Its dual 10GbE connections support transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails. In addition, the connections come with link-aggregation support for increased throughput.
- Small and Nearly Noiseless
- The Twin 10G Thunderbolt 3 Edition adapter is compact enough to easily fit in most workspaces, yet large enough to support proper airflow inside the case. The Twin 10G Thunderbolt 3 is armed with a temperature-controlled, variable-speed fan that keeps it running cool and quiet, making it suitable for use in noise-sensitive environments. Constructed of rugged and lightweight aluminum, the adapter's outer shell protects the inner components.
- Thunderbolt 3
- The Twin 10G Thunderbolt 3 Edition adapter includes two Thunderbolt 3 (USB Type-C) ports; the first connects the adapter to your computer, while the second supports daisy-chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer. The 40 Gb/s throughput of Thunderbolt 3 includes support for USB 3.1 with 10 Gb/s speeds, meaning you can connect a typical USB device to the second port using an optional adapter or cable. Thunderbolt 3 also supports dual-bandwidth DisplayPort 1.2, meaning it can power connecting two 4K displays @ 60 Hz or one multi-panel 5K display @ 60 Hz. For connected devices requiring extra power, 15 watts is provided to connected bus-powered devices.
- ThunderLok 3 and Thunderbolt 3 Cable Included
- The Twin 10G Thunderbolt 3 Edition adapter includes a 1.6' (0.5m) Thunderbolt 3 cable to connect to your computer and a Sonnet ThunderLok 3 Thunderbolt connector retainer clip for securing the cable to the adapter. Sonnet's ThunderLok 3 helps prevent accidental cable disconnects that can lead to data loss by securing the Thunderbolt cable to the adapter. ThunderLok 3 is easy to install and use: just slide it over one of the cable's connectors, plug in the connector, and then secure it to the adapter by turning a thumbscrew. Because ThunderLok doesn't attach to the connector, it remains on the cable and won't get lost when not in use.
UPC: 732311012105 In the Box Sonnet Twin 10G Thunderbolt 3 to Dual-Port 10 Gigabit Ethernet Adapter 1.6' (0.5m) Thunderbolt Cable Universal Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Twin 10G Thunderbolt 3 to Dual-Port 10 Gigabit Ethernet Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet TWIN10GC-TB3 Specs | Ports | 2 x Thunderbolt 3
2 x Ethernet
1 x 12 V Power | | Controller | Intel X550 10GbE | | Cable Distance | Cat 6A Cable - 328' / 100 m
Cat 6 Cable - 180' / 55 m | | Packets | Maximum Packet Size: 15,872 bytes (jumbo packets) | | Stateless Offload | TCP, UDP, and IPv4 checksum offloading
TSO (TCP Segmentation Offload — AKA Large Send Offload)
LRO (Large Receive Offload) | | Power Supply | 60 W, 100 to 240 VAC, 50/60 Hz | | Operating Temperature | 32 to 95°F / 0 to 35°C | | RoHS Compliant | Yes | | Dimensions | 4.9 x 6.3 x 2.7" / 12.5 x 16.0 x 6.8 cm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 11.5 x 6.9 x 5.8" |
