User Manual for Sonnet xMac Pro Server PCIe 2.0 Thunderbolt 2 Expansion System Click to enlarge the picture
Contents of the user manual for the Sonnet xMac Pro Server PCIe 2.0
- Product category: Expansion Chassis Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Expansion Chassis
 |
User manual for the Sonnet xMac Pro Server PCIe 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|

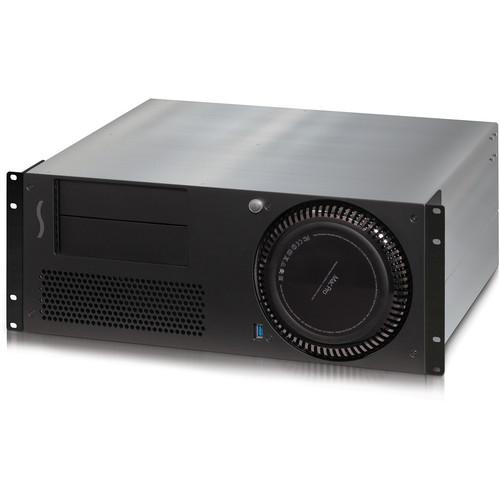

Product description The xMac Pro Server PCIe 2.0 Thunderbolt 2 Expansion System from Sonnet is a 4U rackmount enclosure for the Mac Pro. It has three integrated PCIe 2.0 slots, 20 Gb/s Thunderbolt 2 technology, and expandability of Echo Express III-R Thunderbolt 2 expansion chassis for PCIe cards. Like the III-R, the xMac Pro Server provides space to mount additional equipment, such as storage expansion. To support a wide range of mobile racks, carts, and portable rack cases, the xMac Pro server is 16" deep. The xMac Pro Server securely holds the computer and installed cards, making your Mac Pro road-ready.The xMac Pro server supports three full-length PCIe cards. It has a universal 300W power supply and includes a 75W PCIe power connector for cards that require supplementary power, such as the Avid Pro Tools|HDX or the new RED ROCKET-X. The xMac Pro server is eco-friendly, as it automatically powers the PCIe expansion system on or off whenever the connected computer powers on or wakes, or powers off or sleeps, respectively. Note: Mac Pro, PCIe cards, and mobile rack device mounting kits are sold separately. - Provides PCIe Card Expansion for Mac Pro

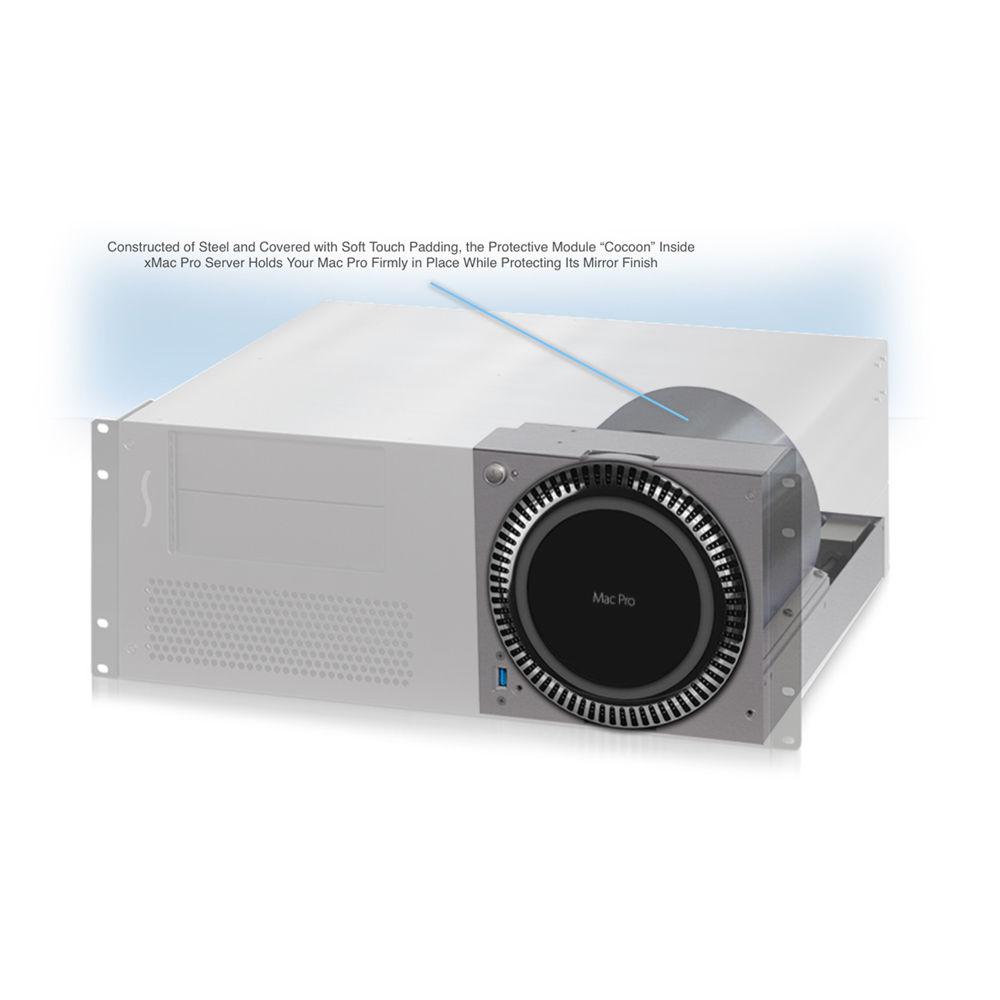

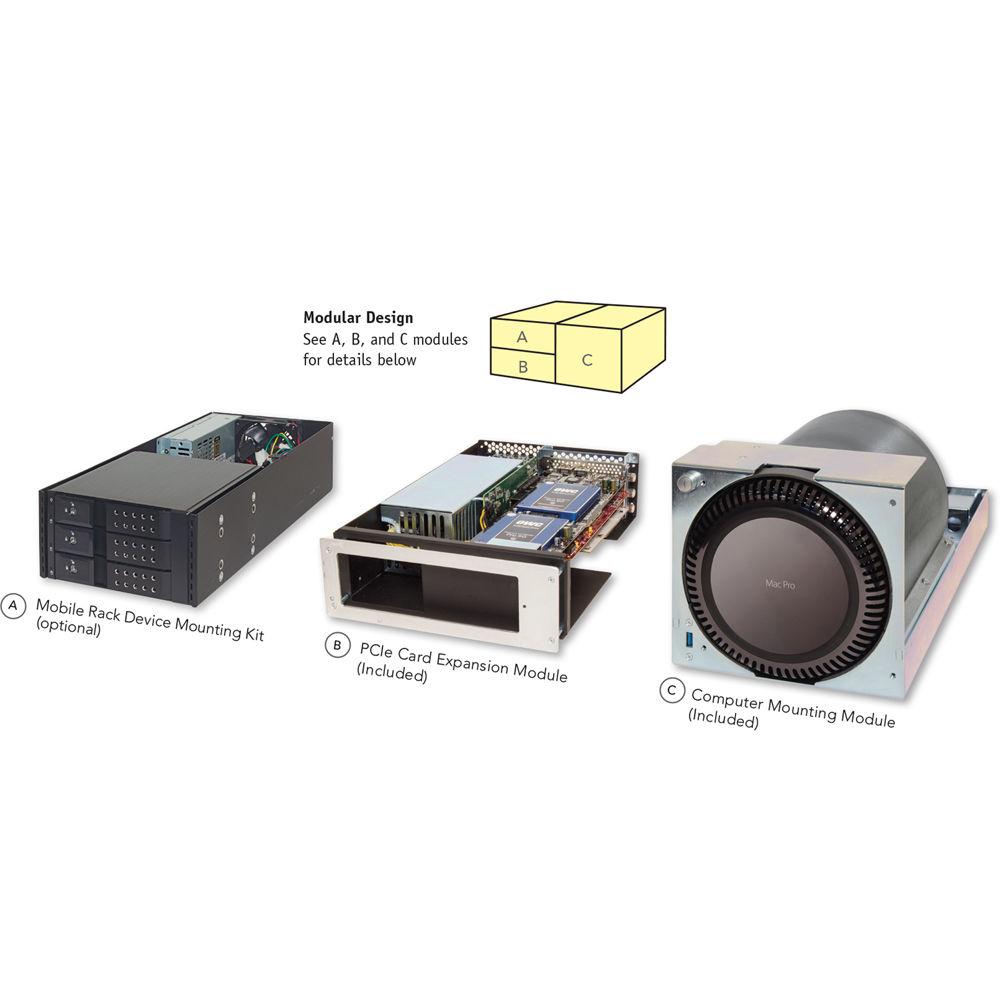

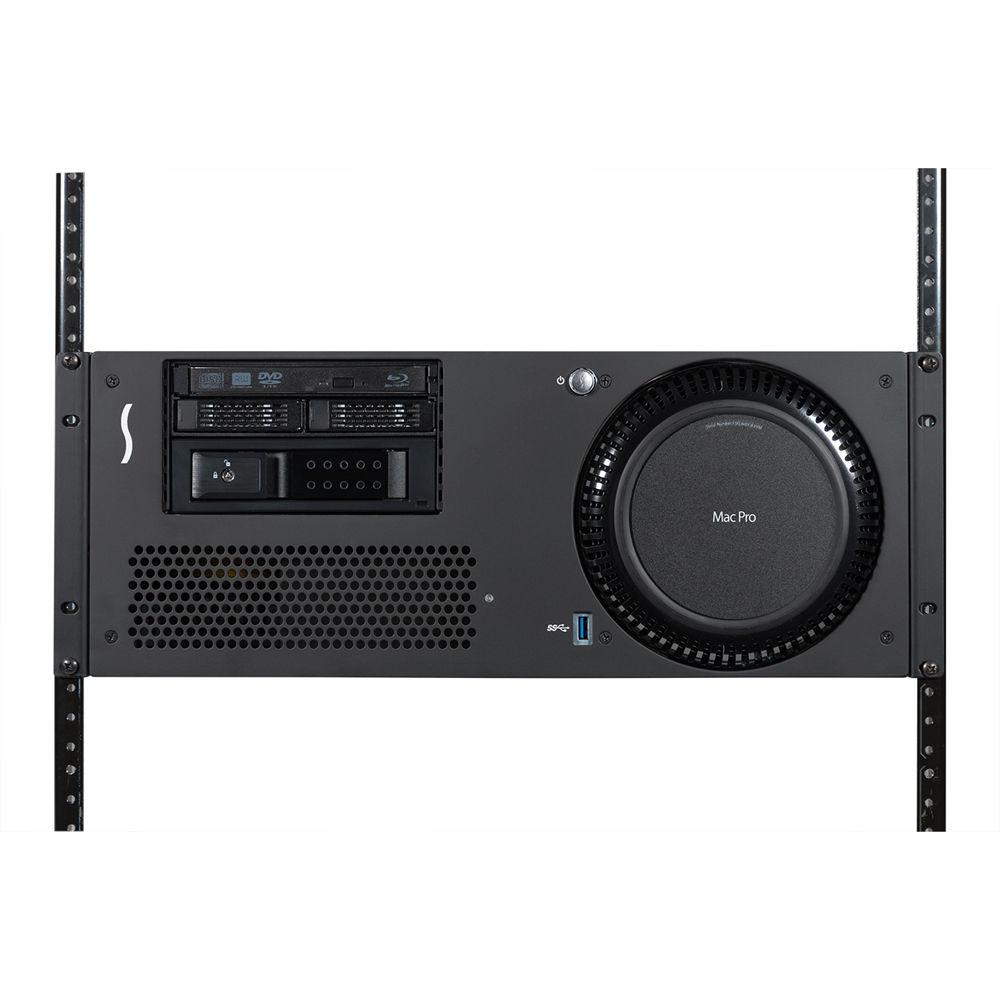

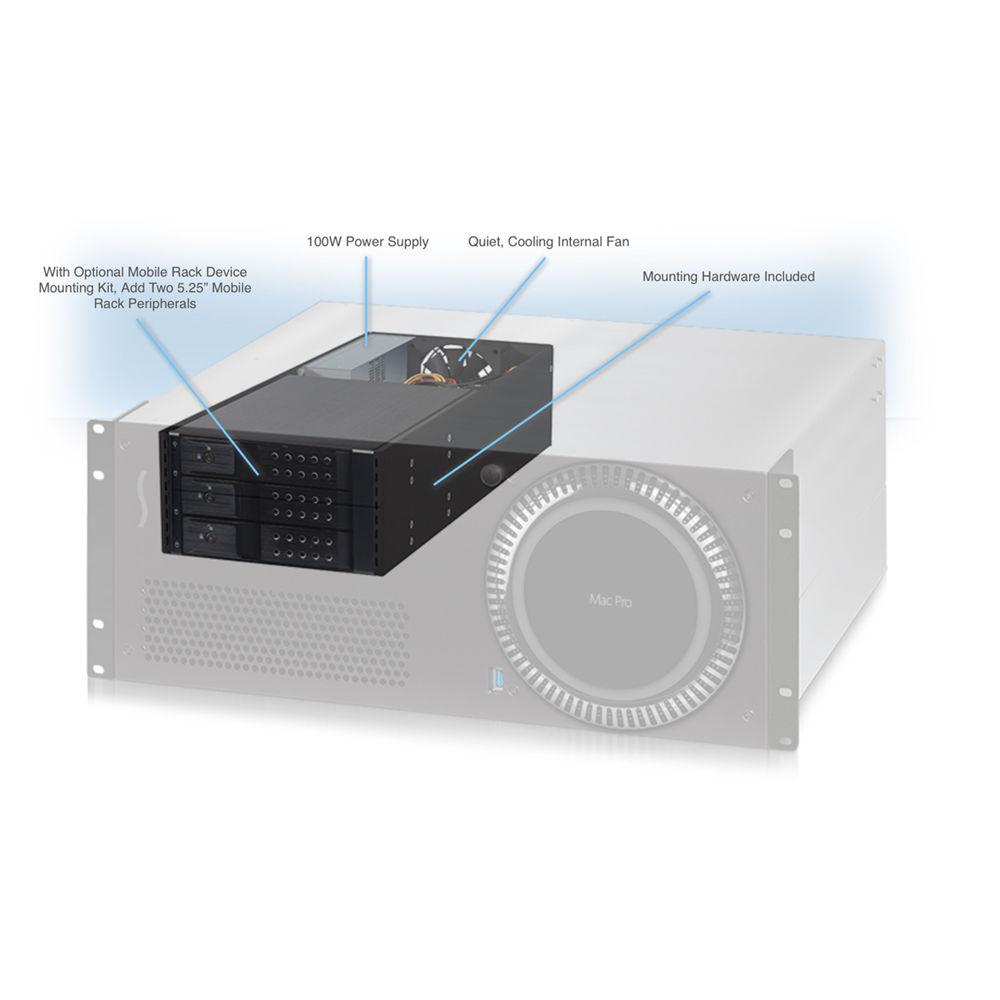

- Constructed of heavy-duty steel, xMac Pro server's outer enclosure provides secure mounting and protection for the computer and PCIe cards installed inside. Hidden behind a front panel, both the computer and PCIe card expansion system reside in separate modules to simplify setup and maintenance, allowing you to work with computer or cards individually. A protective cocoon of steel with soft touch padding to hold the Mac Pro firmly in place, while protecting its mirror finish. There is leftover space in the enclosure, suitable for mounting additional equipment such as hard disk drives, solid state drives, a tape drive, optical drive, or even a Qio MR pro media reader
- Makes Your Mac Pro Road-Ready

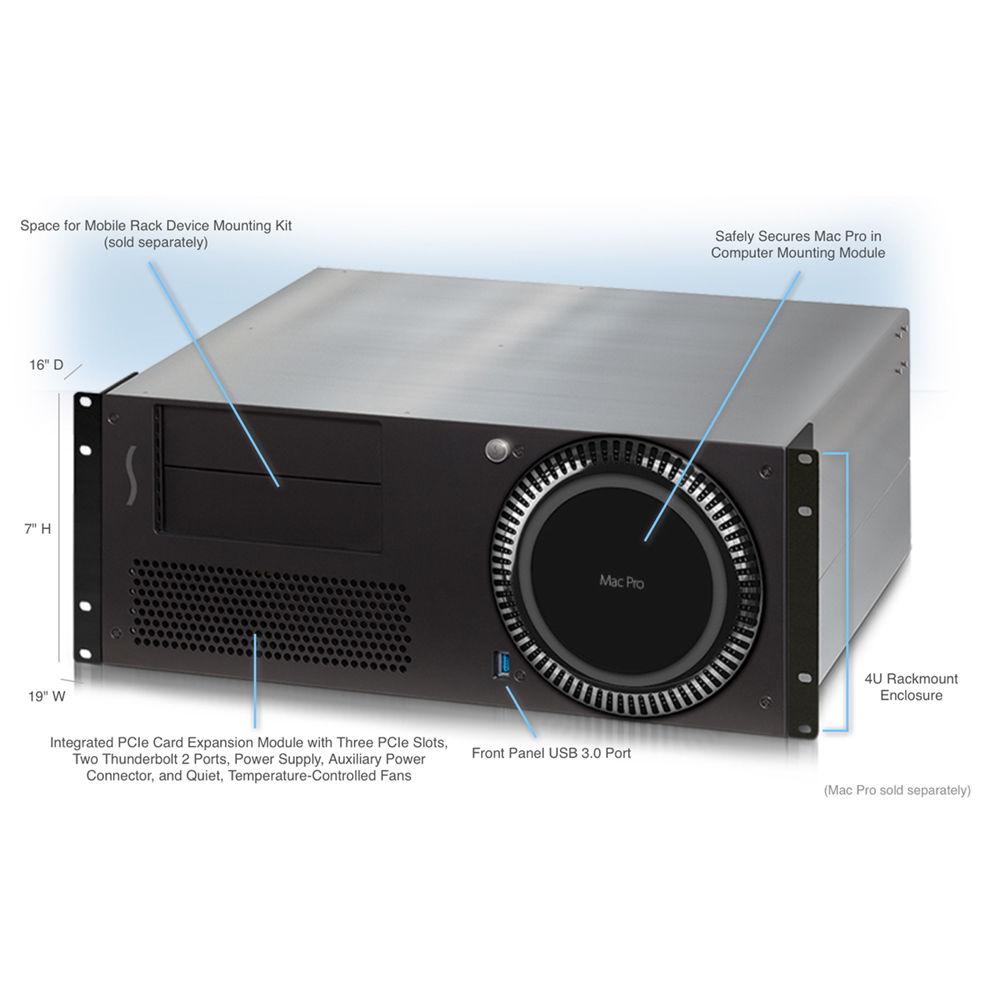

- 4U rackmount enclosure securely holds the computer and PCIe cards in place, adding mobility to the Mac

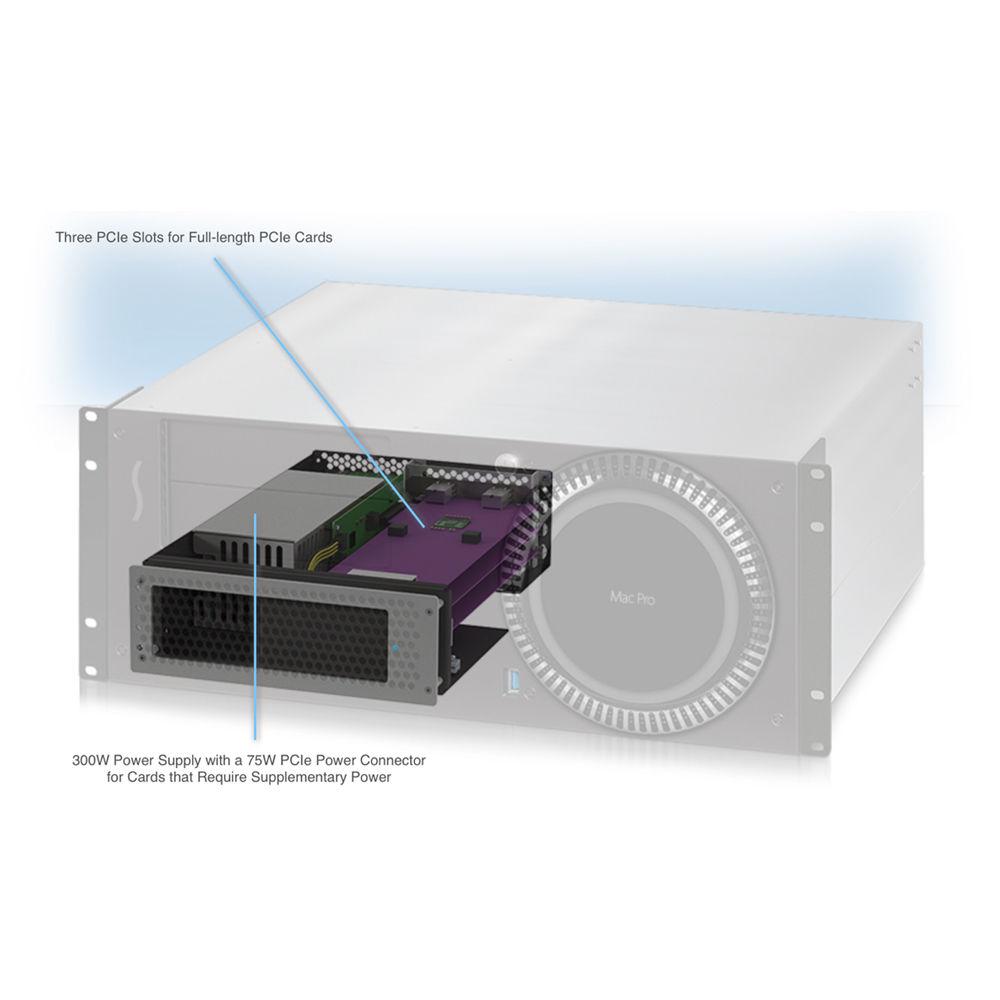

- Three PCIe Slots
- The xMac Pro server supports three full-length PCIe cards or one double-width, full-length card plus one single-width card, enabling it to support Thunderbolt-compatible card available. PCIe 1.1, PCIe 2.0, and PCIe 3.0 cards are supported
- Thunderbolt 2 Interface
- The Mac Pro includes six high-bandwidth Thunderbolt 2 ports The original 10 Gb/s Thunderbolt on older computers interface provided breakthrough bandwidth for external expansion, more than sufficient to support the maximum performance of most PCIe cards. However, some high-bandwidth cards such as the RED ROCKET™, 16Gb Fibre Channel, multi-port 10 Gigabit Ethernet, and other bandwidth-hungry adapters require more than 10Gbps. Thunderbolt 2 technology provides higher bandwidth for demanding applications. The xMac Pro server's 20 Gb/s Thunderbolt 2 interface uses this increased bandwidth to ensure optimum performance from installed cards connected to the Mac Pro. If you need to connect a peripheral equipped with 10 Gb/s Thunderbolt, xMac Pro server is compatible with earlier generation Thunderbolt devices as well
- Power for High Performance PCIe Cards
- Integrated 300W power supply provides optimal power for any card you install; 75W auxiliary PCIe power connector enables use of cards that consume lot of power, such as the Avid Pro Tools|HDX or the RED ROCKET-X
- Cool, Quiet Operator

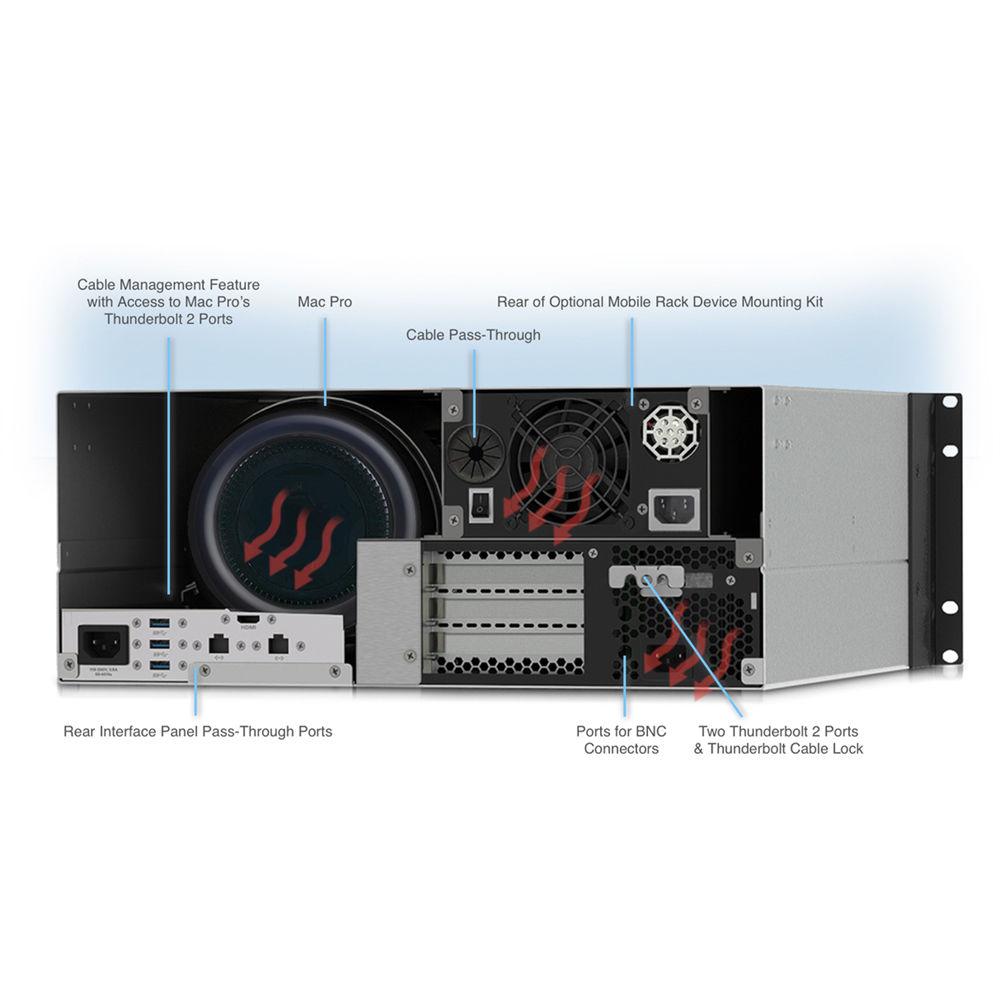

- The Mac Pro's cylindrical core is topped with a single large fan that quietly and efficiently cools the computer, drawing in cool air through the bottom and expelling warm air through the top. Mounted on its side inside xMac Pro server, the computer's airflow path remains unchanged and unobstructed; full, independent airflow through the computer is maintained according to Apple's specifications. The xMac Pro server was designed to be quiet so that it can be comfortably used in noise-sensitive environments The PCIe card expansion system is cooled separately with dual, ultra-quiet, and temperature-controlled fans. Its fans vent warm air through custom Venturi openings with low form-drag grills, resulting in reduced air velocity, turbulence, and fan noise. The fans have variable-speed. The computer-modeled airflow management ensures that even hot-running cards and chassis components remain cool, without the need to install an extra PCIe blower card that would prevent the use of one of the three slots
- Front Panel Operation, Rear Panel Connectivity

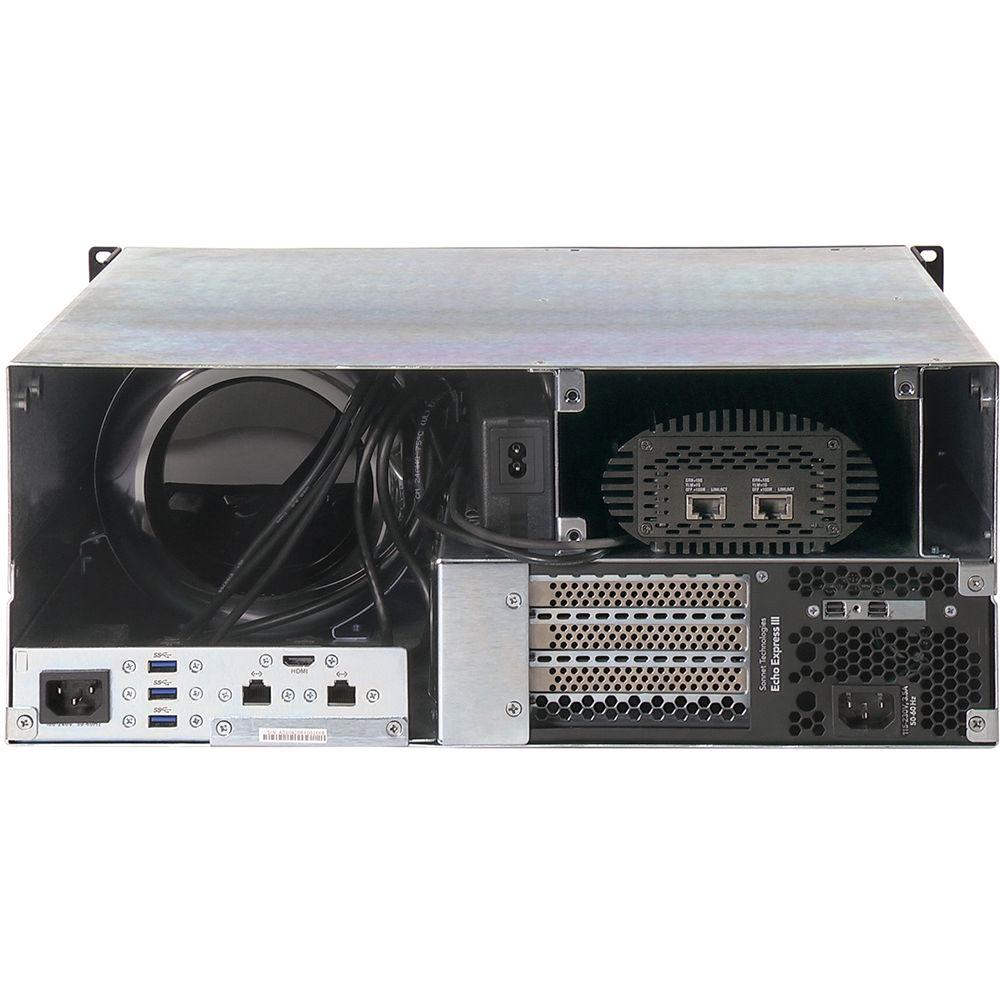

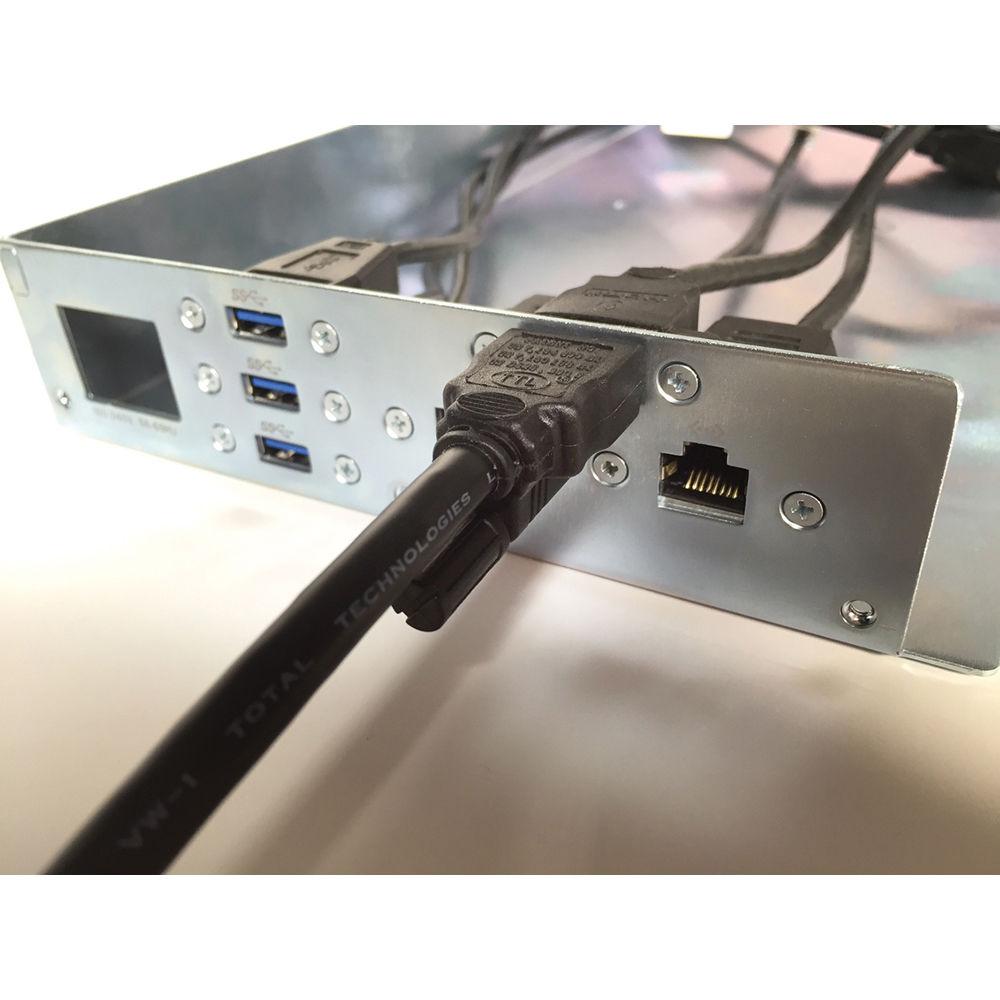

- The xMac Pro server front panel mounted power switch turns the computer on and off without the need for you to reach around the back. The front panel USB 3.0 port connects to the Mac Pro, enabling you to connect a keyboard, a mouse, or a thumb drive to the computer, without having to access its ports from the back. Other Mac Pro interface ports are extended to the back of the chassis and mounted on the rear panel for convenient interfacing of the remaining connections: Gigabit Ethernet, HDMI, and USB 3.0 cables, as well as the power cord. Holes for cable ties enable you to secure cables inside, keeping them clutter-free, while avoiding accidental disconnects An included Thunderbolt cable connects one of the Mac Pro's Thunderbolt 2 port to one of xMac Pro server's Thunderbolt ports, linking the PCIe slots to the computer. xMac Pro server's additional Thunderbolt port supports daisy chaining Thunderbolt peripherals such as additional PCIe expansion, pro video breakout boxes, video capture and playback devices, audio I/O devices, and more. The xMac Pro server includes adjustable and removable rackmount extension rails that allow the enclosure to be installed securely in a variety of racks from 16 to 26" deep
- Energy Efficient
- Variable-speed fans automatically adjust to the needs of each configuration, and the auto power on/off feature ensures that there is no energy wasted with cards powered on, when the Mac Pro is sleeping or is turned off
- RED ROCKET Supporter
- RED ROCKET, or RED ROCKET-X card normally takes up two PCIe slots, one for the card and another for the BNC connector bracket (for HD-SDI output). The xMac Pro server accommodates the card/bracket pair in a single slot. The xMac Pro server includes mounting holes designed specifically for the installation of two BNC connectors, enabling you to install the RED ROCKET card in one slot and its BNC connectors in the Echo chassis mounting holes, leaving the two remaining slots open. The extra bandwidth provided by the Thunderbolt 2 interface increases the ROCKET's throughput Thre xMac Pro server's back panel has two mounting holes for BNC connectors, allowing the use of a RED ROCKET card without the need for the BNC connector bracket that would normally occupy a PCIe slot
- Thunderbolt Cable Lock Included
- Sonnet includes a lock that secures the Thunderbolt cable connectors in place when plugged into the xMac Pro server. It is easy to install and prevents accidental cable disconnections
Note:Mac Pro and PCIe cards are sold separately. UPC: 732311010828 In the Box Sonnet xMac Pro Server PCIe 2.0 Thunderbolt 2 Expansion System 1.0m Thunderbolt Cable Thunderbolt Cable Lock* 2 x Power Cords Limited 5-Year Warranty Note: *Thunderbolt cable lock is compatible with Apple and Sonnet Thunderbolt cables. Not compatible with optical Thunderbolt cables. Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet xMac Pro Server PCIe 2.0 Thunderbolt 2 Expansion System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet XMAC-PS Specs | | | Expansion Slots | 1 x PCIe 2.0 x8 (x8 mode)
1 x PCIe 2.0 x16 (x8 mode)
1 x PCIe 2.0 x8 (x4 mode) | | Supported PCI Card Sizes | Full-Length, Double-Width | | Ports | 2 x Mini DisplayPort Thunderbolt 2
2 x RJ45 Gigabit Ethernet
3 x USB Type-A USB 3.0
1 x HDMI | | Operating System Support | macOS/OS X | | | | Power Source Type | 300 W Internal PSU | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | | | Form Factor | Rackmount (4 RU) | | Certifications | RoHS, as per Manufacturer | | Dimensions | 19.0 x 7.0 x 16.0" / 48.2 x 17.7 x 40.6 cm | | Weight | 32.5 lb / 14.7 kg | | | | Package Weight | 38.4 lb | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 9.0" |
