Product description Power Up Your Sonics with Sonnox Plug-Ins Read More etxuzvcf The Oxford DeClicker from Sonnox is a plug-in that removes short duration noise events from audio material using advanced algorithms that results in a high quality of repair. The plug-in features three main sections - DePop, DeClick and DeCrackle, with each sections dealing with events that are up to 10mS, 3mS and 0.4mS in duration respectively.

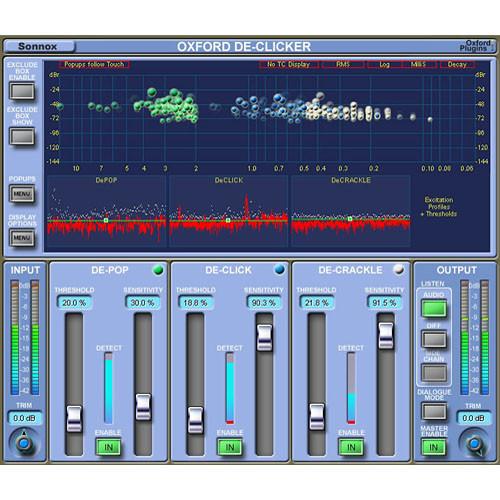

Each of these sections has a threshold and sensitivity control, and an excitation profile which shows the residual signal left after harmonic content is removed. The excitation profile represents how much the signal deviates from the predicted signal. The threshold controls determine how many events are detected, and the sensitivity controls determine how many of those detected events go on to be repaired. - Events Graph
-
- Important visual display, showing events as they are being detected
- Events are shown with duration along the X-axis and amplitude/energy along the Y-axis
- The graph shows green bubbles (DePop), blue bubbles (DeClick) and white bubbles (DeCrackle)
- The size of the bubbles indicates how loud they are, as does their height above the horizontal axis
- Each section has an IN button, and if a section is disabled using the IN button, their bubbles are displayed as Red, meaning these events have been detected but not repaired
- Exclude Box
-
- Enables the exclusion of detected events from the repair section
- Aids in finding the right compromise between removing unwanted noise and leaving the desired remaining audio intact without too much loss of high frequency content
- Simply draw a box around the area on the graph to exclude any events that should not be repaired
- Dialogue Mode
-
- Enables two independent banks of controls to be set up differently for dialogue and background
- Provides control by allowing the setting of a threshold which determines an "above set" and a "below set" which can be controlled quite independently
- Side-chain filters can further help define the threshold between above and below sets
- Output
-
- The listen section of the Output Panel labeled "Diff" contains an option to listen to the difference between the input and the processed output
- Particularly useful for hearing what has been repaired, and for listening to the quality of the repairs without being distracted by the audio material
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnox Oxford DeClicker - Short Duration Noise Event Removal Plug-In in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnox DECLICKERNATIVE Specs | Sample Rates | 44.1, 48, 88.2 and 96kHz | | Latency | Pro Tools RTAS (Samples)
3122/3200 @ 44.1/48kHz
6180/6336 @ 88.2/96kHz
VST (Samples)
2226/2304 @ 44.1/48kHz
4132/4288 @ 88.2/96kHz | | Control Functions and Ranges | Nominal Pop Duration: 2mS to 10mS
Nominal Click Duration: 0.1mS to 3mS
Nominal Crackle Duration: < 0.4mS
Dialogue Mode LF Filter: 20Hz to (HF-15%)
Dialogue Mode HF Filter: (LF+15%) to 20kHz
Minimum Side-Channel Frequency Window: 15%
Input Trim: -12dB to +12dB
Output Trim: -12dB to 0dB | | System Requirements | Mac
OSX 10.4 or later
1GB RAM minimum
Host software that supports Audio Units, RTAS or VST plug-in formats
iLok key with latest drivers
PC
Windows XP, Vista (32- and 64-bit), or Windows 7 (32- and 64-bit)
1GB RAM minimum
Host software that supports RTAS or VST plug-in formats
iLok key with latest drivers |
