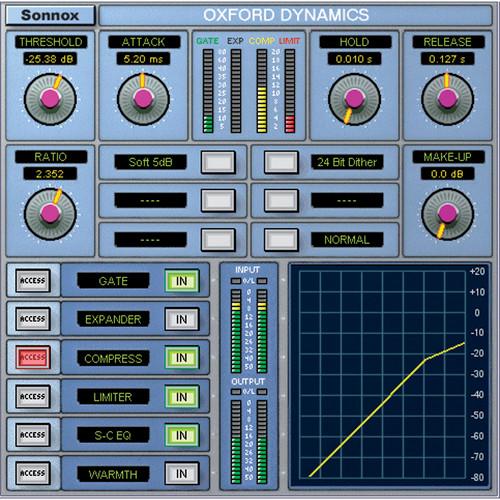

User Manual for Sonnox Oxford Dynamics - Dynamics Plug-In Click to enlarge the picture
Contents of the user manual for the Sonnox Oxford Dynamics - Dynamics Plug-In
- Product category: Virtual Processor Plug-Ins Sonnox
- Brand: Sonnox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnox Virtual Processor Plug-Ins
|
User manual for the Sonnox Oxford Dynamics - Dynamics Plug-In contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnox product will considerably shorten its lifespan!
|
Product description The Oxford Dynamics from Sonnox is a plug-in modeled on the dynamics section used in the Sony Oxford OXF-R3 professional mixing console. It offers separate compress, limit, expand, gate and side chain EQ functions, with full control of all parameters. Features such as selectable time constant curves and variable soft compress functions allow the user to obtain anything from unobtrusive level control and mastering functions, to the production of heavily processed artistic effects.
The plug-in features a feed-forward architecture with logarithmic side chain processing, along with a look-ahead technique that results in sonic and dynamic accuracy. The fully parametric side-chain 2-band equalizer allows for functions such as de-essing, and can be used in the side-chain alone, function in the main signal path as an additional equalizer, or for both combined.
An "Amount" control allows the addition of harmonically related signal with tube or electronic valve like characteristics. The warmth function is independent of other dynamic processes. The buss compressor plug-in includes a 5.1 wide compressor and limiter where the sub channel has some additional individual control. - The dynamics section from the Sony OXF-R3 console
- Separate sections for Compressor, Gate, Expander, Limiter
- 2-band side chain EQ (with audition function)
- Warmth control for extra presence and tube-like warmth
- Three different compressor types (linear and exponential curves)
- Variable soft knee compressor
- Separate 5.1 bus compressor (where supported)
- Ultra low noise and distortion
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnox Oxford Dynamics - Dynamics Plug-In in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnox DYNAMICSHD Specs | Control Ranges | Dynamics
Gate
Threshold: -80dB to 0dB
Ratio/Range: 80dB to 0dB
Attack: 5uS to 26mS
Hold: 10mS to 10S
Release: 7.8mS to 519mS
Expander
Threshold: -60dB to 0dB
Ratio/Range: 80dB to 0dB
Attack: 26uS to 104mS
Hold: 10mS to 20S
Release: 5.2mS to 519mS
Compressor
Threshold: -60dB to 0dB
Ratio/Range: 1:1 to Limit
Attack: 519uS to 52mS
Hold: 10mS to 30S
Release: 52mS to 3.1S
Limiter
Threshold: -60dB to 0dB
Attack: 100uS to 500mS
Hold: 50mS to 10S
Release: 100mS to 10S
Side Chain EQ
LF Peak/Shelf
Gain: +/-20dB
Frequency: 20Hz to 1kHz
Q/Slope: 0.5 to 16
Overshoot: 0 to 50% (Q adjust in Shelf)
HF Peak/Shelf
Gain: +/-20dB
Frequency: 1KHz to 20Khz
Q/Slope: 0.5 to 16
Overshoot: 0 to 50% (Q adjust in Shelf) | | Instantiations per DSP Chip | | Pro Tools | DSP TYPE | 48kHz | 96kHz | 192kHz | | Mono | Stereo | Mono | Stereo | Mono | Stereo | | Full Dynamics & S/C EQ | Mix | 2 | 1 | - | - | - | - | | HD | 3 | 2 | 1 | 1 | - | - | | Accel | 7 | 5 | 3 | 2 | 1 | 1 | | Full Dynamics | Mix | 3 | 2 | - | - | - | - | | HD | 4 | 3 | 1 | 1 | - | - | | Accel | 10 | 7 | 4 | 3 | 2 | 1 | | Compressor & Limiter | Mix | 4 | 3 | - | - | - | - | | HD | 5 | 4 | 2 | 1 | 1 | - | | Accel | 12 | 9 | 6 | 4 | 2 | 2 | | Gate & Compressor | Mix | 4 | - | - | - | - | - | | HD | 5 | - | 2 | - | 1 | - | | Accel | 12 | - | 6 | - | 2 | - | | Gate & Expander | Mix | 5 | 3 | - | - | - | - | | HD | 6 | 4 | 2 | 2 | 1 | - | | Accel | 14 | 10 | 7 | 5 | 3 | 2 | | | System Requirements | Avid approved Pro Tools Mix, HD, Accel system.
Due to constantly changing requirements, for comprehensive hardware specifications and system requirements, please refer to Avid's website at |
