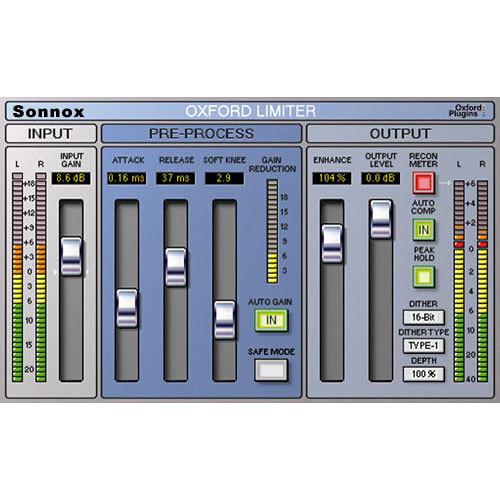

User Manual for Sonnox Oxford Limiter - Limiter Plug-In Click to enlarge the picture
Contents of the user manual for the Sonnox Oxford Limiter - Limiter Plug-In
- Product category: Virtual Processor Plug-Ins Sonnox
- Brand: Sonnox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnox Virtual Processor Plug-Ins
|
User manual for the Sonnox Oxford Limiter - Limiter Plug-In contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnox product will considerably shorten its lifespan!
|
Product description The Oxford Limiter from Sonnox is a limiter plug-in for Pro Tools TDM systems that provide a very high degree of quality and usability in program loudness control and limiting. It employs highly accurate logarithmic side chain processing, along with adaptive timing functions using look-ahead signal acquisition. The plug-in is able to deliver general transparent level control, program loudness maximization, or heavily applied artistic sound effects.
The comprehensive metering displays not only conventional peak sample values, but also allows the user to monitor the absolute values of the program material. This avoids inter sample peaks which can be often go undetected during production, but the generation of which will cause damaging reconstruction overloads in downstream equipment, resulting in degraded audio.
A further function allows the user to dynamically correct for reconstruction overloads in real time, thereby achieving maximum possible modulation levels without the risks of producing illegal signals often associated with compression and limiting. Comprehensive dithering with selectable and variable depth noise shaping ensures first class mastering output in either 24- or 16-bit modes. - Limiter plug-in comprising four cascaded processes in the following order:
- Peak program limiting
- Program enhancement
- Reconstruction metering and compensation
- Dithering and noise shaping
- Enhance section to increase perceived loudness
- Reconstruction meter shows 'actual' signal rather than sampled signal
- Auto compensate feature corrects reconstruction errors without losing overall program loudness
- Attack, release and variable soft knee controls
- Comprehensive dither and noise shaping
- includes many factory presets
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnox Oxford Limiter - Limiter Plug-In in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnox LIMITERHD Specs | Control Ranges and Meters | Input Level Fader: -18dB to +18dB
Input Level Meter: -24dB to +18dB
Attack Fader: 0.05mS to 1.0mS
Release Fader: 0.05mS to 1038mS
Soft Knee Fader: 0dB to 10dB
Gain Red Meter: 0dB to 20dB
Enhance Fader: 0% to 125%
Output Level Fader: -20dB to 0dB
Output Level Meter: -40dB to +6dB | | Instantiations per DSP Chip | | Pro Tools | DSP TYPE | 48kHz | 96kHz | 192kHz | | Mono | Stereo | Mono | Stereo | Mono | Stereo | | | Mix | 1 | 1 | - | - | - | - | | HD | 1 | 1 | 1* | 1* | - | - | | Accel | 4 | 2 | 2 | 1 | 1* | 1* | * Due to processing load restrictions, the Reconstruction meter and Auto compensation options are not available | | System Requirements | Avid approved Pro Tools Mix, HD, Accel system.
Due to constantly changing requirements, for comprehensive hardware specifications and system requirements, please refer to Avid's website at |
