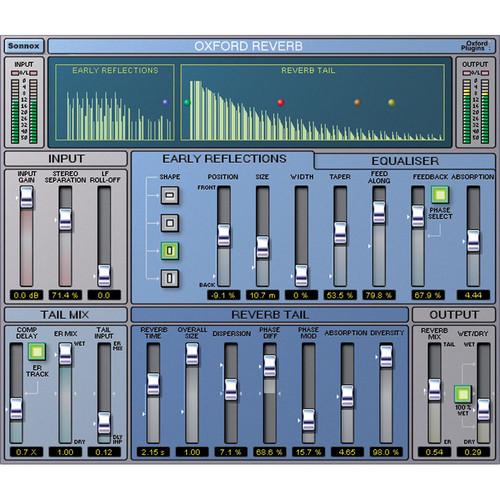

User Manual for Sonnox Oxford Reverb - Stereo Reverb Modeling Plug-In Click to enlarge the picture
Contents of the user manual for the Sonnox Oxford Reverb - Stereo Reverb
- Product category: Virtual Processor Plug-Ins Sonnox
- Brand: Sonnox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnox Virtual Processor Plug-Ins
|
User manual for the Sonnox Oxford Reverb - Stereo Reverb contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnox product will considerably shorten its lifespan!
|
Product description The Oxford Reverb from Sonnox is a stereo modeling reverb plug-in. The user has full control over all parameters, including a very comprehensive early reflections section, and integrated 5-band EQ. A large set of presets are included.
By avoiding fixed algorithms, the reverb allows for easily creating virtual spaces depending on artistic need, ranging from dry reflection ambiences, room and hall simulations, sound effects, all the way to wide open reverberant spaces. Note: Requires iLok if one is not already present on the system. - Extremely flexible stereo modeling reverb
- Real-time continuous control over all parameters
- Independent control of early reflections and reverb tail
- Dual independent paths for both early reflections and reverb tail function
- Each reverb path type can be used independently or in combination
- Integrated 5-band EQ based on the Oxford EQ with high and low pass filters
- More than 120 snapshots for immediate use under the headings of Dry Spaces, Ambient Effects, Vocal Reverbs, Plates, Rooms, Chambers, Halls, Churches and Foley Effects
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnox Oxford Reverb - Stereo Reverb Modeling Plug-In in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnox REVERBNATIVE Specs | Control Functions and Ranges | INPUT LEVEL CONTROLS AND METERS
Input Gain Fader: -144dB to 0.0dB
Stereo Separation Fader: -40dB to +6dB
LF Roll-Off Fader: 0 to 10
Stereo Input Meter: -50dB to 0.0dB
EARLY REFLECTION CONTROL
Select 'Shape' Buttons: Wide Rect, Square, Long Rect and Extended Rect
Position Fader: Listening Position: 80% Front to -100% Rear
Size Fader: Front to Back Room Size: 10cm to 30m
Width Fader: -50dB to 0dB
Taper Fader: Reflections Loudness/Length: 0% to 100%
Feed Along Fader: Re-Injection of Distributed Sound Density: 0% to 100%
Feedback Fader: Re-Circulated Reflections: 0% to 90%
Phase Button: Feedback Phase
Absorption Fader: Hardness/Softness of Room Space: 0 to 10
TAIL MIX
Comp Delay Fader: Start Time of Reverb Tail: 10cm to 30m
ER Track Button: Fixes Tail to Track Early Reflection
ER Mix Fader: X-Fade - Early Reflections and Dry Signal: 0 to 10
Width Fader: X-Fade - Tail Input Source - Early Ref and Untreated: 0 to 1.0
REVERB TAIL
Reverb Tail Fader: 200mS to 10S
Overall Size Fader: Delay Size: 0.15 to 1.0
Dispersion Fader: -100% to +100%
Phase Diff Fader: -100% to +100%
Phase Mod Fader: 0% to 100%
Absorption Fader: Hardness/Softness of Room Space: 0 to 10
Diversity Fader: 50% to 100%
5 BAND EQUALIZER PARAMETERS
LF Peak/Shelf / Filter:
Gain: +/-20dB
Frequency: 20Hz to 400Hz
Q/Slope: 0.5 to 6.0
Filter Character: 12dB/Oct
LMF:
Gain: +/-20dB
Frequency: 30Hz to 600Hz
Q/Slope: 0.5 to 6.0
MF:
Gain: +/-20dB
Frequency: 100Hz to 6kHz
Q/Slope: 0.5 to 6.0
HMF:
Gain: +/-20dB
Frequency: 900Hz to 18kHz
Q/Slope: 0.5 to 6.0
HF Peak/Shelf/Filter:
Gain: +/-20dB
Frequency: 2kHz to 20khz
Q/Slope: 0.5 - 6.0
Filter Character: 12dB/Oct
OUTPUT LEVEL CONTROLS AND METERS
Reverb Mix Fader: Start Time of Reverb Tail: 10cm to 30m
Wet/Dry Fader: X-Fade: 0.0 to 1.0
100% Wet Button: On/Off
Stereo Output Meter: -50dB to 0.0dB | | System Requirements | Mac
OSX 10.4 or later
1GB RAM minimum
Host software that supports Audio Units, RTAS or VST plug-in formats
iLok key with latest drivers
PC
Windows XP, Vista (32- and 64-bit), or Windows 7 (32- and 64-bit)
1GB RAM minimum
Host software that supports RTAS or VST plug-in formats
iLok key with latest drivers |
