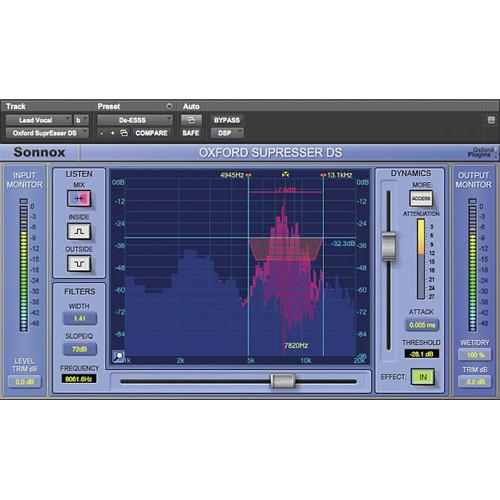

Product description The Oxford SuprEsser DS AAX DSP Plug-in from Sonnox is a professional De-Esser plug-in for use with Avid S3L live consoles and Pro Tools|HDX. With its low latency of sub 2 ms, SuprEsser DS is suitable for live applications or live tracking in Pro Tools.The plug-in is designed for the treatment of sibilance and fricatives in vocals, and the treatment of unwanted whistles and 'spirant' artefacts associated with wind instruments. For the most natural sounding results, the SuprEsser de-esses only the frequency band you set.Detailed visual feedback is provided thanks to the intuitive graphical display, allowing quick identification of the frequencies that need treatment and where to set the threshold. The threshold level and peak hold levels of the user-definable band are shown on the graph, alongside the FFT display of the narrow band signal, which includes retention of the peak level and the frequency containing the most energy.At the heart of the Oxford SuprEsser DS is an enhanced version of the compressor section of the Oxford Dynamics plug-in, which is popular amongst professional users for delivering precise and transparent control of peaks. Around this is built a pair of cross-over filters, modeled on the Oxford EQ, to make the compressor react only to the defined frequency band.Three listen modes allow the user to listen to the mix, the output of the band-pass filter ('Inside') or the output of the band-reject filter ('Outside'). Once the frequency band has been defined, simply lower the threshold fader until the gain reduction meter starts to kick in. The plug-in then automatically tracks the general signal level and the threshold follows accordingly so that it gives the same relative amount of gain reduction as the signal level rises or falls. This is suitable for vocals where, for example, a vocalist is louder in the chorus than the verse, but you want to apply the same relative amount of de-essing, and not over de-ess in the chorus. This Auto Level Tracking mode can also be switched off for a fixed threshold.In its default mode of operation, the Oxford SuprEsser DS feeds the defined 'Band' signal to the compressor to affect only this narrow band signal. The result is that the compressor reacts only to specific frequency components when they reach a specific threshold, and applies compression only to these specific frequency components, leaving the rest of the spectrum untouched. 'Wide' can also be selected to allow wide-band compression reacting to only specific frequencies or any combination of Band and Wide defining 'when the compressor reacts' and 'what it compresses' (narrow or wide-band).The Oxford SuprEsser DS comes complete with many presets to act as good starting points, alternatively the advanced section gives full access to all controls for precise correction, or even creative use. - Operates from 1 to 20 kHz
- Latency of 1.9 ms (at 48 kHz sample rate)
- Supported sample rates: 44.1 and 48 kHz
- Transparently controls aggressive frequencies
- Automatic Level Tracking follows energy levels (no need to automate threshold)
- Large intuitive graphic display makes finding frequencies very easy
- Three different 'Listen' modes
- Advanced mode for control of the Dynamic EQ
- Many creative as well as corrective uses
- Presets giving good starting points
- AAX DSP format supported (not TDM)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnox Oxford SuprEsser DS AAX DSP Plug-in in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnox SUPRESSER DS Specs | Sample Rates | 44.1 & 48 kHz | | Input/Output | Input Trim: -12.0 to +12.0 dB
Output Trim: 0 to -12.0 dB
Wet/Dry: 0 to 100% | | Filters | Width: 0.2 to 4.45 octaves
Slope: 12 to 72 dB/oct
Frequency: 1 to 20 kHz | | Compressor | Threshold: 0.0 to -84.0 dB
Attack: 0.01 to 52 ms
Hold: 0.01 to 30 sec
Release: 0.01 to 3.11 sec
Ratio: 45 to 0 to -22.5°
Ratio: 1:1 to Inf: 1 to -2.5:1
Ratio: 1:1 to 1:0 to 1:-0.4
Ratio: 1.0 to 0.0 to -0.4
Gain Makeup: 0.0 to +24.0 dB
Soft Knee: 0 / 5 / 10 / 15 / 20 dB | | Auto Tracking | Time Constant: 0.1 to 10.0 sec | | Listening Mode | Mix / Inside / Outside | | Processing | Trigger: Band / Wide
Audio: Band / Wide | | System Requirements | Pro Tools
Pro Tools 7, 8, 9 & 10, 11
Mac OS X 10.4 or later, Pro-Codec and Codec Toolbox compatible with Intel Mac only
Windows XP / Vista / Windows 7 / Windows 8
RAM 1 GB minimum
iLok key with updated drivers
iLok2 required for AAX plug-ins
SuprEsser DS compatible with ProTools 10 / 11 / S3L with approved ProTools CPU, OS and hardware configuration
Audio Units
Audio Units compatible application (Logic, Digital Performer etc.)
Mac OS X 10.4 or later
- Pro-Codec and Codec Toolbox compatible with Intel Mac only
RAM 1 GB minimum
iLok key with latest drivers
iLok2 required for 64-bit plug-ins
VST
VST compatible application (Cubase, Nuendo, Wavelab, Sequoia etc.)
Mac OSX 10.4 or later
- Pro-Codec and Codec Toolbox compatible with Intel Mac only
Windows XP / Vista / Windows 7 / Windows 8
RAM 1 GB minimum
iLok key with latest drivers
iLok2 required for 64-bit plug-ins |
