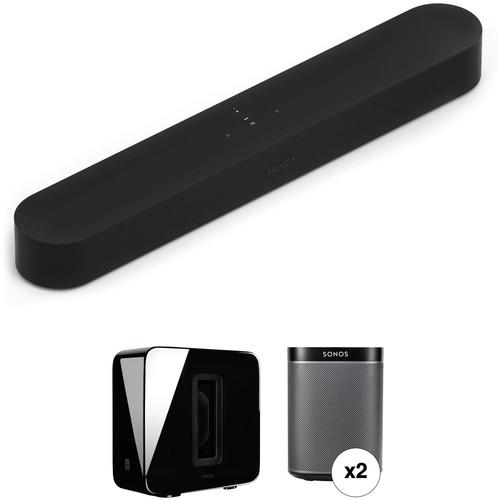

User Manual for Sonos Beam Soundbar and SUB Wireless Subwoofer Kit

• Product category: Soundbar Speakers Sonos
• Brand: Sonos
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sonos Soundbar Speakers

Product description

• Sonos Beam Soundbar (Black)
  • The Making of Sonos Beam: Sound Experience
  Enhance your display's audio, interact with Amazon Alexa or Siri, and expand your Sonos ecosystem with the black Sonos Beam Soundbar. It features a five-driver design powered by five discrete Class-D amplifiers, plus five far-field microphones that enable Amazon Alexa voice control and Siri compatibility when paired with compatible devices. The Beam connects to the Internet over Wi-Fi or through the Ethernet jack.

  The soundbar comes pre-loaded with thousands of free Internet radio stations that you can listen to without even turning on your computer. You can also stream audio from a variety of other sources including your smartphone, tablet, or other compatible mobile device. And, you can download the free Sonos Controller App and turn your iOS or Android mobile device into a convenient remote. The app will work with your computer as well.
  Designed for Easy Voice Control
  • Five far-field microphones detect your voice from any direction, anywhere in the room, even with loud music.
  TV, Movies, Video Games, and More
  • Upgrade your audio while streaming, watching TV, or playing video games. You can also stream from any of the music services supported by Sonos.
  Compact Size
  • At only 25.6" long, the Beam won't hang off most furniture or block your TV.
  Just Two Cords
  • Just plug the Beam into power, then connect it to your TV using the HDMI cable.
  Engineered for Balanced Sound
  • The four mid-woofers and one tweeter are designed to harmonize low and high frequencies. Three passive radiators help intensify and deepen bass, mitigating the need for an accompanying subwoofer.
  Privacy When You Want It
  • When the microphone LED is on, Alexa is ready for a voice command; when the light is off, the microphone is off.
  Listen in Any Room, or Every Room
  • Play a movie in the living room, a podcast in the kitchen, or the same song everywhere when you set up multiple additional speakers.
  Designed for Small to Medium Rooms
  • The Beam's compact design makes it well suited to rooms when you're short on space.
  On-Furniture or On-Wall Placement
  • Place the Beam on your TV stand or hang it from your wall with the optional wall mount.
  Expandable Design
  • Since the Beam is part of the Sonos ecosystem, you can add more speakers to fill every room in your home with sound.
  Speech Enhancement
  • Turn on the speech enhancement feature to hear clearer dialogue.
  Night Sound
  • Enjoy late-night TV without waking the whole house.
  HDMI ARC & CEC
  • Pair the Beam with your remote to control your compatible display with your voice.
  Versatile Control Options
  • Control the Beam with your voice, the Sonos app, AirPlay 2, or the app for your favorite music service.
  Add Surround Sound Without Wires
  • Create a full home theater system when you wirelessly connect an optional pair of rear speakers and a Sub.
  Engineered for Simple Setup
  • Plug the Beam into power and connect it to your display via HDMI. If your display isn't ARC-compatible, use the included optical audio adapter instead.
  Additional Features
  • • Designed to provide immersive, theater-quality sound
    • AirPlay 2 with iOS devices, Ask Siri
    • Amazon Alexa voice control
    • Connect your Alexa device to other Sonos speakers using an optional Amazon Echo product
  UPC: 878269004271
• Sonos SUB Wireless Subwoofer with Integrated SONOSNet 2.0 Extender (Gloss Black)
  • The Making of Sonos Beam: Sound Experience
  Add more bass to your existing Sonos setup with the gloss black Sonos SUB Wireless Subwoofer. It connects to your system via Wi-Fi or Ethernet and has a built-in extender for SONOSNet 2.0 connectivity. The SUB works will all Sonos amplified components and features two Class-D digital amplifiers that power two force-cancelling face-to-face-mounted drivers that are designed to reduce unwanted cabinet resonance.
  Class-D Amplifiers
  • The SUB's two Class-D digital amplifiers are tuned to match the acoustic architecture of the compatible Sonos speakers
  Force-Cancelling Design
  • The SUB's two force-cancelling speakers are positioned face-to-face for an enhanced sound with minimized cabinet buzz and rattle
  Dual Acoustic Ports
  • The two acoustic ports are tuned to enhance the SUB's performance
  All Digital Sound
  • All filter settings, active equalization, and time alignment are done digitally through DSP (Digital Signal Processing) circuitry for reduced low loss in audio quality
  Automatic Equalization
  • The system automatically adjusts audio settings across all connected components to ensure uniform sound quality
  Wireless Connectivity
  • Connects to your home Wi-Fi Network
  SONOSNet Extender
  • Extends and enhances the power of SONOSNet 2.0
  Multiple Orientations
  • The SUB can stand upright or lay flat for flexible placement
  Status Indicator LEDs
  • These LEDs indicate the status of your system
  Rubber and Felt Feet
  • Rubber feet are built-in, and optional felt feet are included
  UPC: 878269002338
• 2 x Sonos PLAY:1 Compact Wireless Speaker (Black)
  • The Making of Sonos Beam: Sound Experience
  The black Sonos PLAY:1 Compact Wireless Speaker has a graphite grille and lets you stream music from a variety of sources. It connects to your home network via Ethernet, or via built-in Wi-Fi. Once connected, you can stream music from iTunes or another personal music library. You can also stream music from thousands of free Internet Radio stations or from virtually any online music service including Pandora, Spotify, Rhapsody, and many more. You can also stream music from other network connected devices like your iPad or iPhone. The PLAY:1 works on its own as a single speaker, but it also supports left/right stereo separation when paired with another PLAY:1 speaker in the same room. If you're more ambitious, you can fill every room in your home with any combination of Sonos speakers. And since all Sonos products support SonosNet wireless mesh technology, they all work seamlessly with one another. For instance, if you have a PLAY:1 connected in your room and you add three other Sonos speakers in different rooms, the wireless SonosNet technology will link all four speakers together. Once they're all connected, you can simultaneously stream different music to each room/speaker or stream the same source on all four speakers and listen to one song in every room throughout your entire home. Whether you're playing music on a single PLAY:1 in your bedroom or streaming different music to multiple rooms, the free Sonos Controller App is what ties the entire system together. The app allows you to control your PLAY:1 and additional Sonos speakers from anywhere on your network. It also makes setup easy and it allows you to control multiple Sonos speakers in different rooms simultaneously. You can even adjust the volume for each speaker individually or collectively. The app is available for iOS, Android, Windows, and Mac. The PLAY:1 speaker employs a mid-woofer and a tweeter, which are powered by independent Class-D amplifiers. The result is warm, full-range sound with clear highs and powerful bass. The speaker also has a ¼"-20 standard thread on the back that makes it compatible with most wall-mounting brackets. The PLAY:1's other features include convenient top panel control buttons and a humidity-resistant enclosure that can withstand high humidity so you can keep the speaker in the bathroom - even while you shower.
  Full-Range Sound & Dedicated Class-D Digital Amplifiers
  • The PLAY:1's 3.5" mid-woofer and tweeter both feature dedicated Class-D digital amplifiers that afford warm and rich full-range Hi-Fi sound. The mid-woofer provides deep, powerful bass and mids, while the tweeter yields clear highs.
  Expand Wirelessly with Additional Sonos Speakers
  • The PLAY:1 is an independent speaker unit, but it is also a building block designed to connect seamlessly with any other Sonos product. Since all Sonos speakers work together, you can add more products over time to create a complete and totally wireless home audio system. If you do add additional speakers, you'll be able to stream the same song simultaneously throughout your home or different music to every room.
  Built-In SonosNet Wireless Mesh Network Capability
  • The PLAY:1 and all other Sonos products use built-in SonosNet technology to establish their own secure wireless mesh network that also works with your Sonos app-enabled iOS/Android/Windows/Mac controller devices. This network provides whole-house coverage, synchronous music playback and protection against wireless interference. The SonosNet system also incorporates sophisticated MIMO (multiple input, multiple output) technology that uses multiple antennas and radios to boost signal strength.
  Control Your PLAY:1 with the Sonos Controller App
  • The free Sonos Controller App makes it easy to setup and control you PLAY:1. It also supports additional Sonos speakers and multi-room control, so you can manage and operate a whole-house Sonos setup with just your smartphone. The app will work from anywhere on your network and it's available for iOS (iPad/iPhone), Android mobile devices, Windows computers, and Mac devices.
  Stream Music from Virtually Any Personal or Internet Music Source
  • With the Sonos Controller App and your PLAY:1 speaker, you can to wirelessly stream music from your iTunes library or Windows Media Player personal music library. You can also stream music from thousands of free Internet Radio stations or online music services (without turning on your computer) including Amazon Cloud Player, Deezer, iHeartRadio, Last.fm, Napster, Pandora, Rhapsody, SiriusXM Internet Radio, Slacker Radio, Spotify, Stitcher SmartRadio, TuneIn, and more (some services require subscriptions).
  Create True Stereo Separation by Linking Two PLAY:1 Speakers
  • If you want to listen to music and enjoy movies/TV with true 2-channel stereo separation, all you need is an additional PLAY:1 speaker. Linking two PLAY:1 speakers together in the same room will create a stereo pair with separate left and right channels. The result will be a richer, more immersive sound.
  Enjoy 5.1-Channel Surround Sound with Optional Sonos Speakers
  • Create a complete 5.1-channel surround sound system by pairing your PLAY:1 speaker with an additional PLAY:1 Speaker, a Sonos PLAYBAR, and a Sonos SUB, all sold separately. This optional setup supports true 5.1-channel surround sound for immersive entertainment that will transform your living room into a complete home theater. Plus, it all works together wirelessly and can be set up in a matter of minutes.
  Compact Size for Flexible Placement
  • The PLAY:1 will fit just about anywhere in your home thanks to its compact size, integrated ¼"-20 thread for wall mounting and custom designed power cord. The speaker's continuous curve grille supports a wide listening range as well, which affords even greater flexibility.
  Convenient Top Panel Controls
  • If you don't have your smartphone or tablet nearby, you can easily control the PLAY:1 by using the buttons located on the top panel of the device. Pressing the Play/Pause button once will start or stop the music and pressing it twice will skip to the next track. The top panel also has volume up/down controls.
  Easy to Wall-Mount
  • The PLAY:1 comes equipped with a standard ¼"-20 threaded insert for connecting to most standard wall-mounting brackets.
  Humidity Resistant
  • The PLAY:1 is designed to withstand humidity so it can survive in your bathroom - even while you're taking a shower. However, it is not waterproof or water-resistant.

  Designed for Simple & Fast Setup

  • To get started, just plug the PLAY:1 into the nearest power outlet
  • Connect your PLAY:1 to your home Internet router with the included Ethernet cable or via Wi-Fi
  • Download Sonos Controller App to finish connection and configuration of the PLAY:1 speaker
  UPC: 878269000327

• Beam Soundbar (Black) urrdeuveraaedd
• HDMI Cable
• Optical-to-HDMI Adapter
• Power Cord
• Limited 1-Year Warranty

• SUB Wireless Subwoofer with Integrated SONOSNet 2.0 Extender (Gloss Black)

• 2 x PLAY:1 Compact Wireless Speaker (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sonos Beam Soundbar (Black)

  Amplifier	5 x Class-D digital amplifiers
  Drivers	4 x elliptical mid-woofers 1 x tweeter
  Radiator	3 x passive radiators
  Channels	Not specified by manufacturer

  Wireless	AirPlay 2, 802.11b/g 2.4 GHz Wi-Fi 5 GHz Wi-Fi connection to optional Sub
  Wired	1 x HDMI ARC in 1 x RJ45 Ethernet LAN

  Power Requirements	100 to 240 VAC, 50/60 Hz
  Dimensions (WxHxD)	25.625 x 2.7 x 3.94" / 651 x 68.5 x 100 mm
  Weight	6.2 lb / 2.8 kg

  Box Dimensions (LxWxH)	31.0 x 10.5 x 6.5"

• Sonos SUB Wireless Subwoofer with Integrated SONOSNet 2.0 Extender (Gloss Black)

  Supported Devices	All Sonos amplified components CONNECT:AMP/ZP120/ZP100; PLAY:5/ZonePlayer S5; PLAY:3; PLAY:1; PLAYBAR
  Drivers	2 x Force-cancelling speakers positioned face-to-face
  Amplifier Type	2 x Class-D
  Frequency Response	As low as 25 Hz

  Wireless Technology	Wi-Fi
  Wired Connectivity	1 x Ethernet 10/100 Mbps

  Power Supply	100 to 240 VAC, 50/60 Hz
  Environmental Requirements	Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: 4 to 158°F (-20 to 70°C)
  Dimensions (W x H x D)	15 x 15.8 x 6.2" (380 x 402 x 158 mm)
  Weight	36.3 lb (16 kg)

  Box Dimensions (LxWxH)	20.5 x 20.4 x 11.0"

• 2 x Sonos PLAY:1 Compact Wireless Speaker (Black)

  Amplifiers	2 x Class-D
  Drivers	1 x 3.5" / 9 cm Mid-Woofer 1 x Tweeter

  Wi-Fi Standards	802.11b/g
  Ethernet	1 x 10/100 Mbps

  Supported Audio Formats	AAC, AIFF, Apple Lossless, FLAC, LC-AAC+, MP3, Vorbis, WAV, WMA
  Supported Sample Rates	Up to 44.1 kHz
  Mount Type	1/4"-20

  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	4 to 158°F / -20 to 70°C

  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  Status Monitoring	LED Indicator
  Dimensions	4.7 x 6.4 x 4.7" / 12.0 x 16.2 x 12.0 cm
  Weight	4.1 lb / 1.9 kg

  Box Dimensions (LxWxH)	9.5 x 6.9 x 6.8"
