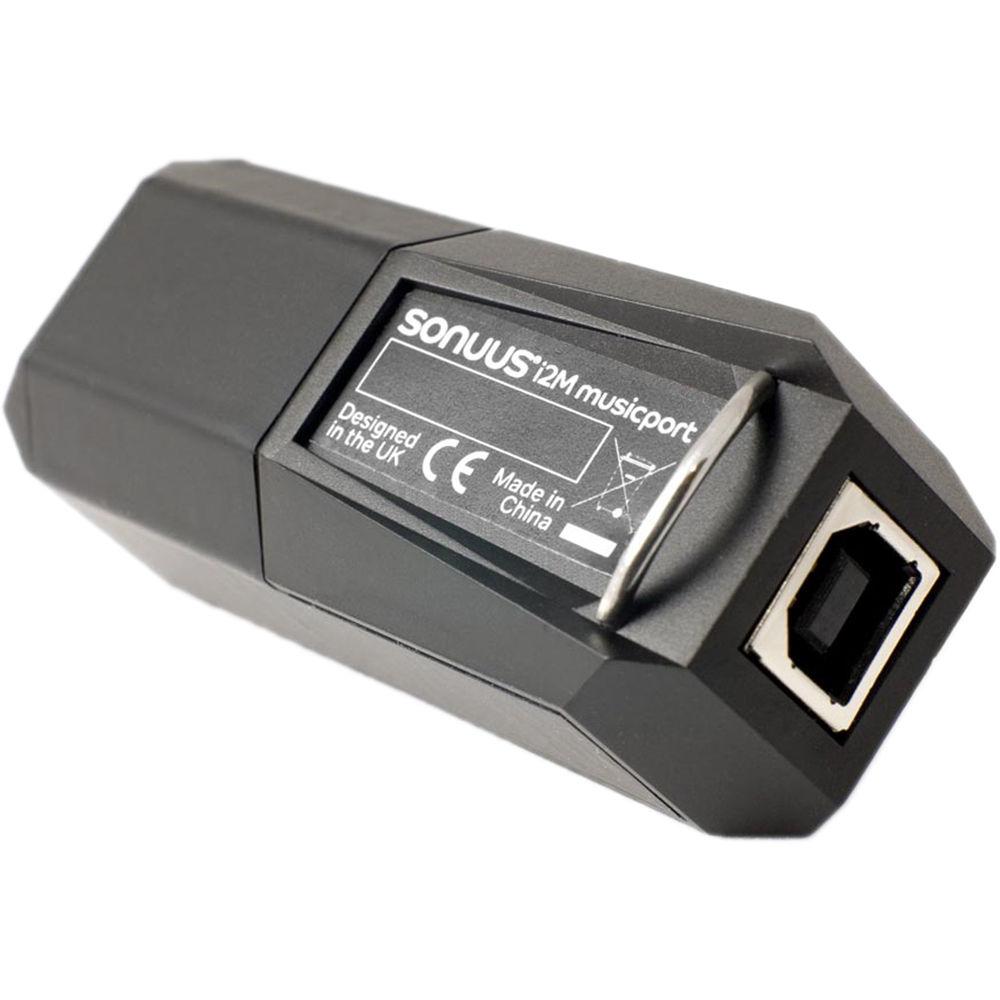

SONUUS i2M musicport - MIDI Converter

Search your instruction manual in PDF to download

User Manual for SONUUS i2M musicport - MIDI Converter and Hi-Z USB Audio Interface

Click to enlarge the picture
SONUUS i2M musicport - MIDI Converter and Hi-Z USB Audio Interface Contents of the user manual for the SONUUS i2M musicport - MIDI Converter
  • Product category: MIDI Interfaces SONUUS
  • Brand: SONUUS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for SONUUS MIDI Interfaces

SONUUS i2M musicport - MIDI Converter and Hi-Z USB Audio Interface SONUUS i2M musicport - MIDI Converter and Hi-Z USB Audio Interface
User manual for the SONUUS i2M musicport - MIDI Converter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SONUUS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SONUUS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SONUUS product will considerably shorten its lifespan!



Product description

The i2M musicport from SONUUS offers a versatile way to connect your instrument to your computer by combining a Hi-Z USB audio interface with a fast and accurate, monophonic audio-to-MIDI converter that doesn't require instrument modifications or special pickups. Optimized for guitar and bass, it allows musicians to capture their instrument in high-quality audio—and to access sounds previously available only to keyboard players—for recording or performing live using their preferred instrument. The i2M's audio interface features a Hi-Z input circuitry and a pre-amp with adjustable gain, designed to accommodate a wide variety of musical instruments without tone degradation. The interface captures audio at up to 16-bit /48 kHz resolution, which can then be recorded into your favorite DAW or used live through amp simulators. The fast-tracking, low-latency MIDI converter provides robust note detection that minimizes wrong notes and allows for accurate MIDI pitch-bend or chromatic mode. It features a flexible architecture with six zones, each with configurable pitch-bend, MIDI channel, transpose, and other parameters. Compact and lightweight (at 1.4 oz), the i2M musicport easily fits in your pocket. Quick to set up with plug-and-play functionality, the unit is USB bus-powered and compatible with Mac, Windows, iOS, or Linux systems.
    Key Features
    • Fast, accurate, monophonic audio-to-MIDI converter—optimized for guitar, 4-string bass, and 5-string bass—but also works with most musical instruments including wind instruments and the human voice
    • Hi-Z USB audio interface
    • Musical instruments can be used as a solo MIDI instrument
    • No instrument modifications or special pickups required
    • Robust note detection—minimizes wrong notes
    • Low latency and fast tracking
    • Accurate MIDI pitch-bend and chromatic mode
    • Compact, lightweight, and portable
    • USB bus-powered (no power supply required)
    • Plug-and-play
    • Mac, Windows, iOS, Linux
    • Future-proof upgradeable firmware
    • Includes USB cable (3.3')
    USB Audio Interface
    • High-impedance (Hi-Z) audio input circuit prevents degradation of instrument tone
    • Input pre-amp with adjustable gain accommodates a wide variety of musical instruments
    • High-quality 16-bit / 44·1 kHz (CD quality), 16-bit / 48 kHz (DVD quality) digital audio—can be recorded into your favorite audio application or used live through amp simulators
    • ASIO driver (Windows only) is available separately as a free download—provides low-latency audio and features the unique ability to use any other audio device (even other ASIO devices) as the output audio device, so you can hear everything you do in real time
    Flexible MIDI Architecture
    • Flexible and powerful MIDI-converter architecture with 6 zones (splits), each with configurable pitch bend, MIDI channel, transpose, and other parameters
    • MIDI can be sent on up to 6 MIDI channels simultaneously, with each zone independently configurable
    • 4 operating modes affect how the MIDI conversion behaves
    • Optimized to further minimize latency by intelligently managing data packets and avoiding the inherent delays in the traditional MIDI hardware protocol
    Desktop Editor Software
    • Customize each of the four MIDI operating modes to your specific needs, and exchange these settings with other i2M users
    • Four presets can be stored on the i2M, so you can switch between these without requiring the Desktop Editor software
    • Desktop Editor software is available separately as a free download
UPC: 812837010035 In the Box SONUUS i2M musicport - MIDI Converter and Hi-Z USB Audio Interface
  • USB Cable (3.3')
  • Carry Ring
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the SONUUS i2M musicport - MIDI Converter and Hi-Z USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    SONUUS I2M MUSICPORT Specs

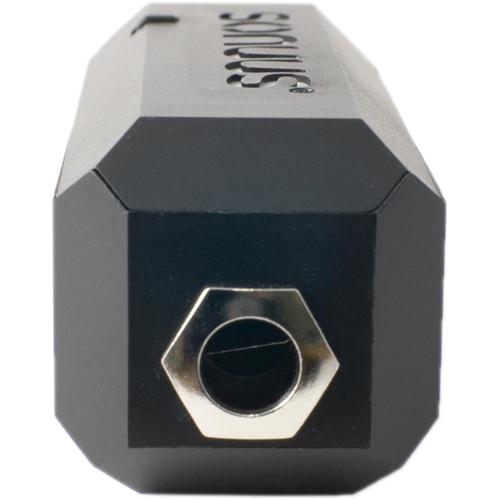

    Input Instrument: 1/4" / 6.35 mm, mono jack
    Input Impedance 10 MOhms
    Switches Mode button to select active preset
    USB Type-B socket
    Drivers Class-compliant (built into operating system)
    Preamp Gain: -12 dB (cut) to +15 dB (boost), in 3 dB steps
    Audio 16-bit / 44.1 kHz (CD quality)
    16-bit / 48 kHz (DVD quality)
    MIDI Note Range: A0 (21) to Bb6 (94)
    Latency: 5 ms (E5), 17 ms (E2), 32 ms (E1), 40 ms (B0)
    Zones: 6 independent zones (splits)
    Channels: 1 to 16 (on any zone)
    Pitch Bend Accuracy: <1 cent accuracy
    Range: 0 to 36 semitones (on any zone)
    Transpose -36 to +36 semitones (on any zone)
    Hold Pedal Any MIDI channel, any MIDI controller
    Power USB bus-powered
    System Requirements Audio/MIDI
    Windows XP, Vista, 7, and above
    Mac OS X 10.3.9 and above

    Desktop Editor
    Windows XP, Vista, 7, and above
    Mac OS X 10.5 and above
    Dimensions 3.0 x 1.1 x 1.1" / 75.0 x 28.0 x 28.0 mm
    Weight 1.4 oz / 40.0 g
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 4.6 x 2.6 x 1.4"
