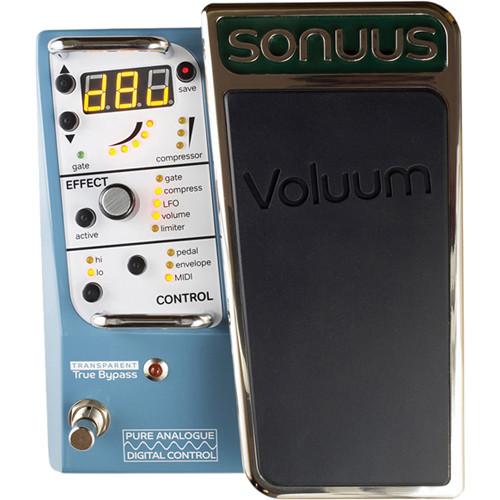

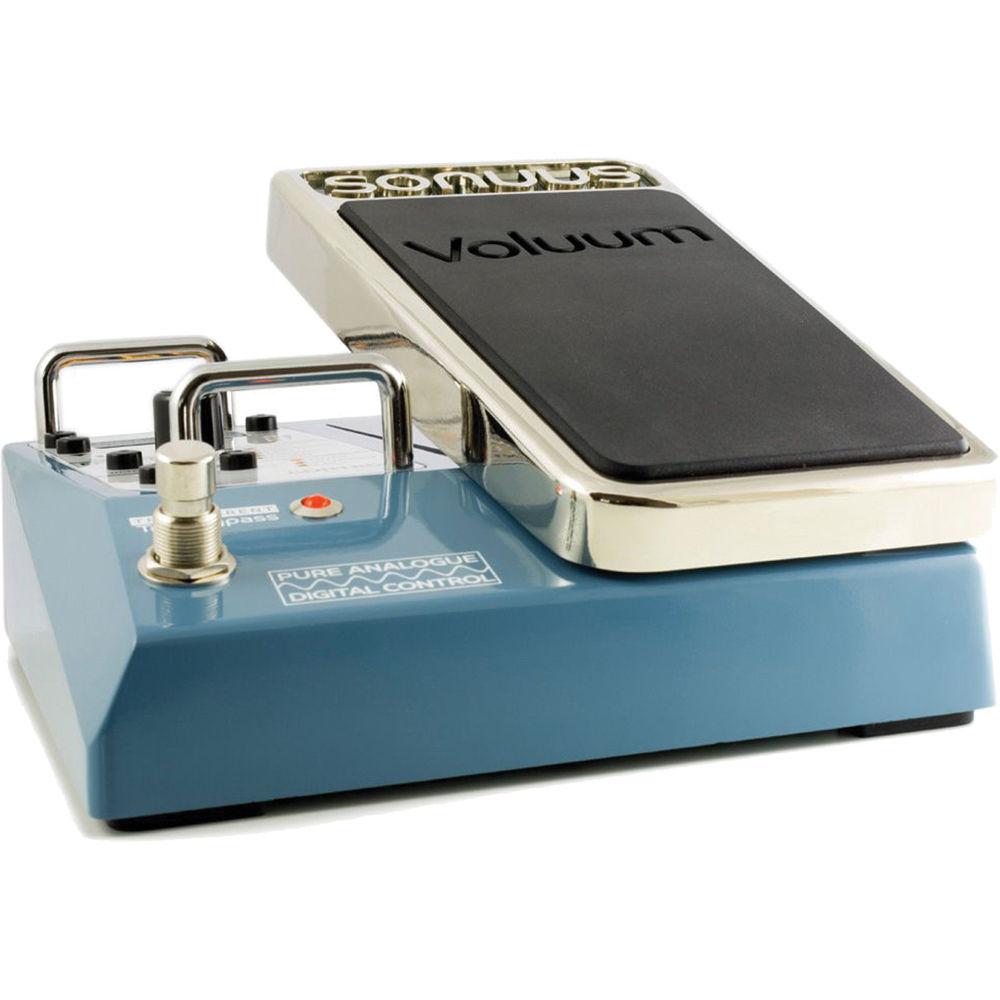

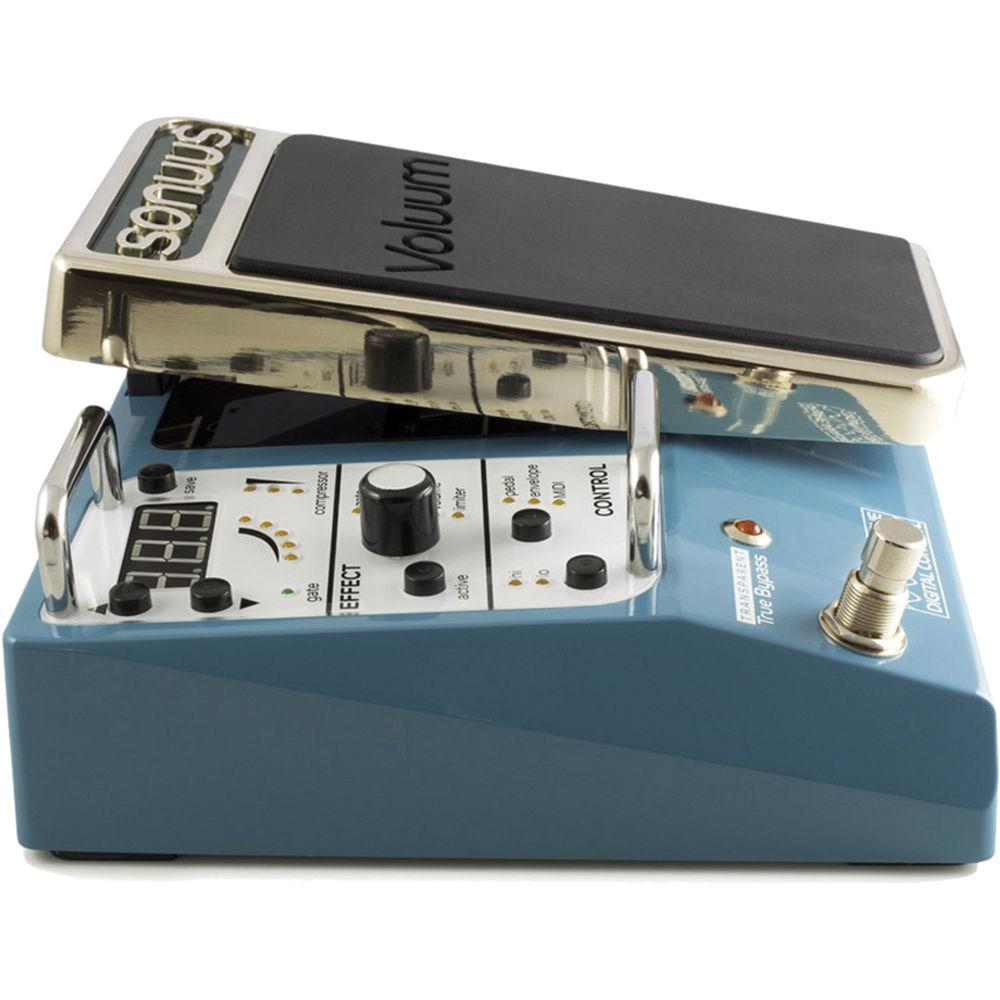

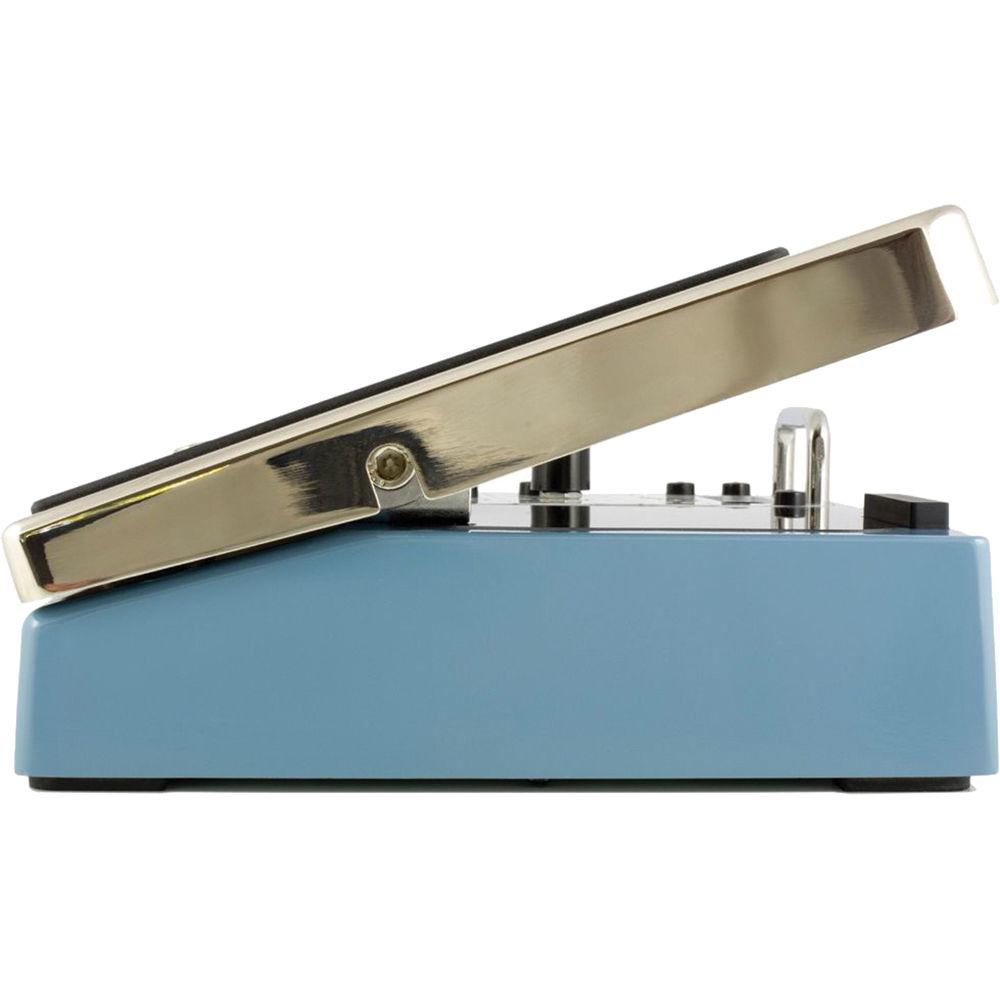

User Manual for SONUUS Voluum Analogue Volume Effects Pedal with Digital Control Click to enlarge the picture
Contents of the user manual for the SONUUS Voluum Analogue Volume Effects Pedal
- Product category: Effects Pedals SONUUS
- Brand: SONUUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SONUUS Effects Pedals
|
User manual for the SONUUS Voluum Analogue Volume Effects Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SONUUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SONUUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SONUUS product will considerably shorten its lifespan!
|
Product description The SONUUS Voluum is a volume-based multi-effect stomp box with a digitally controlled high-fidelity pure-analog signal chain. Constant high-voltage (>30V) analog power rails ensure high-headroom with low distortion and low noise for maximum signal clarity. A high-bandwidth fully-analog signal path ensures that there is no digital distortion to corrupt your signal, and allows high dynamic range signals to be processed flawlessly. Digital control gives you the ability to store presets and remotely control the effects via MIDI. The effects chain comprises five effects-noise gate, compressor, LFO (tremolo), volume control and limiter-which can be used in any combination. Voluum features 30 factory and 100 user presets, a transparent noise gate, a smooth pedal-controlled compressor, and a choice between transparent-true and buffered bypass. A custom-designed patent-pending pedal sensor that, unlike conventional potentiometers, is less susceptible to dirt with no mechanical couplings and provides precision control. The Voluum has a USB connection and standard 5-pin MIDI connections. Any effect that can be controlled by the pedal can also be controlled by MIDI messages, allowing you to automate effects or remotely control them in real-time. It's simple to tweak settings on the carefully designed control panel. Once you have created what you want, you can save it to one of 100 internal presets. - Analog Signal Path with Digital Control
- Voluum's fully analog signal path features a high-performance studio-grade voltage-controlled-amplifier (VCA) with low noise and low distortion characteristics. A constant high-voltage analog power supply gives maximum analog performance and high headroom to ensure that even loud signals can be processed without artifacts. Combining the analog signal path with digital control gives you precision and configurability
- Flexible Effects Chain
- The effects chain comprises five effects (noise gate, compressor, LFO (tremolo), volume control and limiter) which can be used in any combination
- Patent-Pending Pedal Sensor
- Unlike other volume pedals, the Voluum does not operate using a potentiometer with mechanical couplings or optical methods. Instead, it features a position sensor that allows fine precision control with no mechanical couplings that is not susceptible to dirt or wear
- Designed for Guitar and Bass
- The range of the Voluum parameters is designed to match both guitar and bass, as well as other instruments such as keyboards, so you can save settings and switch between instrument-specific set-ups
- Transparent True-Bypass Switching with the Option of Buffered-Bypass
- A silent-switching true-bypass circuit provides the benefits of true bypass without the associated switching noise. Additionally, if the power to the Wahoo is interrupted, the unit will automatically switch back to the bypassed state, so you don't lose your instrument's signal With the Voluum, you have control over whether you want to use true-bypass or buffered-bypass. Buffered-bypass keeps the Voluum in the signal path at all times, but passes the input signal without modification when the effect is bypassed. This can be useful when using long cables-the buffered output of the Voluum means these long cables won't affect your tone, even when the effect is bypassed
- Pedal-Controlled Compressor
- The compressor in Voluum features an intelligent make-up gain, which also allows dynamic modulation. For example, you can smoothly vary the amount of compression being applied without affecting your signal level. Variable attack and release times let you configure the effect to suit your performance and even these can be pedal-controlled. The Voluum compressor gives you glitch-free pedal-control to enhance the subtleties of your music
- LFO / Tremolo
- Tremolo is a classic effect where a low-frequency-oscillator (LFO) modulates the volume of your instrument. The Voluum LFO (tremolo) lets you recreate this effect, while giving you many more options. It provides smooth tremolo sounds with multiple waveforms, featuring envelope and pedal-controlled speed variation as well as MIDI-clock sync to keep the tremolo in time with your sequencer. Duo mode gives you two LFOs to let you get really creative
- Volume
- The volume effect on Voluum gives you basic control of your signal level by replicating the function of the volume knob on your instrument without compromising your tone. Voluum lets you cut or boost the signal level to any level you desire while providing fine control over the feel of the pedal. You can also configure fades where the pedal acts as a switch and the volume fades up or down smoothly over a preset time to give you smooth fades that are difficult to do just by using foot control In envelope mode, the level change is triggered when you play a new note or strum a new chord. Combined with built-in ADSR shaping, you can create synth-like tones from your instrument
- Limiter
- The high voltage analog power rails in Voluum ensure sonic quality, but it means that high output levels can overdrive other effects in your chain. The limiter effect can be engaged to limit the signal peaks to keep them within the range of your other effects to avoid nasty clipping distortion. It can also limit asymmetrically, which can add sweeter-sounding overdrive to limited signals
- Gate / Expander
- The Voluum noise gate not only gives you control over the threshold, but also enables fine control over how quickly it reacts and how much the signal should be reduced in level. With smooth transition from open to closed mode, Voluum gives you transparent gating that reduces the noise when you're not playing without introducing any audible artifacts
- Clear Metering
- Meters to let you instantly see what's happening with dedicated meters for the volume level, gate and compressor gain reduction
- Presets
- The Voluum comes ready-to-play with 30 factory presets that include traditional volume effects and pedal-controlled compressor effects. By tweaking the factory presets, you can explore different sounds and create your own effects-there are 100 user presets where you can store your own set-ups
- USB & MIDI Interface

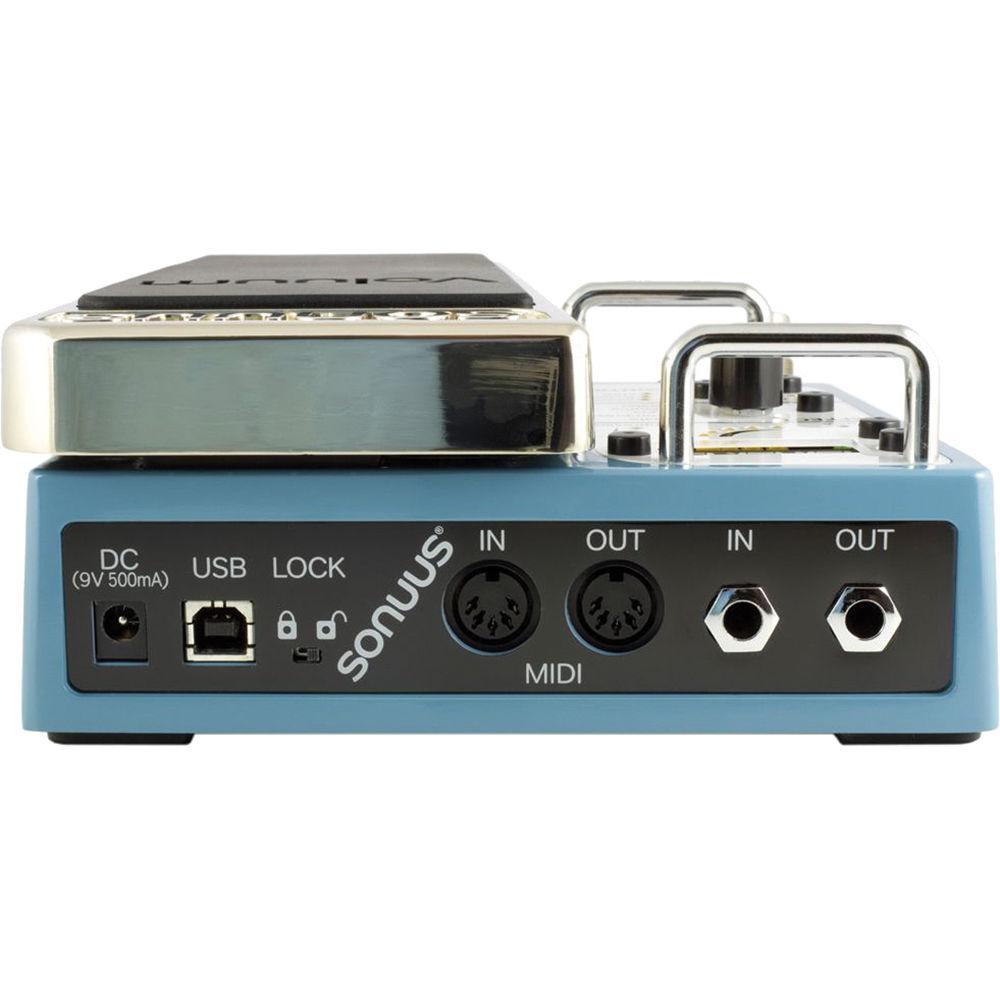

- The Voluum features both USB-MIDI and standard 5-pin MIDI connections. You can send MIDI to the Voluum to control effects, or send MIDI from the Voluum to control other MIDI devices. USB-MIDI allows MIDI messages to be sent straight to a computer, whereas the 5-pin MIDI connections make it easy to connect the Voluum to other MIDI equipment USB connection lets you connect Voluum to a computer where the Desktop Editor Software allows visual preset editing and manipulation. Presets can also be saved to and loaded from files for exchange with other Voluum users. Program change messages can also be sent to Voluum to select the effects you need for particular songs MIDI and USB-MIDI can be used to sync the internal LFO and to automate the effect parameters. The expression pedal also sends MIDI controller messages to drive software instruments and effects. You can also use Voluum as a standard USB-MIDI interface where MIDI data from your computer can be routed to/from the 5-pin MIDI ports
- Control
- The effects on the Voluum are not static, where you adjust the parameters to get the one sound you want. The Voluum allows control of many aspects of each effect so that effect parameters can smoothly go between the hi and lo values that you choose. This modulation can be controlled using the pedal, MIDI controllers, or the signal envelope
- Desktop Editor Software
- Although you can access all of the effect parameters from the Voluum's control panel, to make it faster and even more intuitive, the Desktop Editor Software application can be downloaded from the Sonuus website on registration. The software runs on both Microsoft Windows and Apple OSX
- Stage Ready
- The sturdy aluminum chassis ensures that the Voluum will stand up to the demands of the toughest gigs. The large bright display is readable outdoors but can also be dimmed when required in low-light environments. A lock switch ensures that settings cannot be changed accidentally in the heat of a performance, but still allows you to select which preset to use. Foot-operated selection of presets lets you access what you need with minimum hassle. Powered by 9 VDC, 4xAA batteries, or USB, you can be sure that Voluum will fit into your rig
- Firmware Upgradable
- To support new features and to make it future-proof, the firmware (internal software) of Voluum can be upgraded
UPC: 812837010059 In the Box SONUUS Voluum Analogue Volume Effects Pedal with Digital Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SONUUS Voluum Analogue Volume Effects Pedal with Digital Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSONUUS VOLUUM Specs | Switching | Signal Switching: Transparent true-bypass/buffered bypass | Effects | Noise gate, compressor, dual-LFO tremolo, volume pedal, volume fades, ADSR envelope, limiter | Presets | 30 factory, 100 user | LFO | Sine, square, triangle, saw-up, saw-down, trapezoid, random | Control Method | Pedal, envelope, MIDI, none (static) | | Interface | Standard Type B USB socket | Drivers | Class-compliant HID/USB Audio (built into operating system) | System Requirements | Desktop Editor: Windows XP, Vista, 7, and above Apple OS X 10.5 and above (Intel Mac only)
Audio/MIDI: Windows XP, Vista, 7, and above Apple OS X 10.3.9 and above | | Audio Input | 1/4" (6.35 mm) mono jack, 2 MOhm impedance, +18 dBu nominal maximum input level | Audio Output | 1/4" (6.35 mm) mono jack, 1 kOhm impedance, +21 dBu nominal maximum input level | Audio Bandwidth | @-3 dB: 17 Hz to 121 kHz (0 dB gain) 17 Hz to 22 kHz (40 dB gain) 17 Hz to 35 kHz (40 dB attenuation) | MIDI Input | Standard 5-pin MIDI DIN | MIDI Output | Standard 5-pin MIDI DIN Pin 1 and pin 3 allow external footswitch connection | Footswitch | Two external footswitches can be connected to MIDI out, used as up and down buttons | Power Supply | 9 VDC (any polarity), 4 x AA batteries, USB (500 mA maximum) | Battery Life | Typically >10 hours with 2,000 mAh NiMH rechargeable batteries | | Approvals | CE, FCC, RoHS | Dimensions | 6.73 x 7.56 x 3.0" (171 x 192 x 76 mm) | Weight | 2.9 lb (1.3 kg) without batteries | | Package Weight | 3.6 lb | Box Dimensions (LxWxH) | 8.0 x 7.6 x 3.6" |
