User Manual for Sony 128GB NW-WM1A Walkman - High-Resolution Digital Music Player Click to enlarge the picture
Contents of the user manual for the Sony 128GB NW-WM1A Walkman - High-Resolution
- Product category: DACs Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony DACs
 |
User manual for the Sony 128GB NW-WM1A Walkman - High-Resolution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

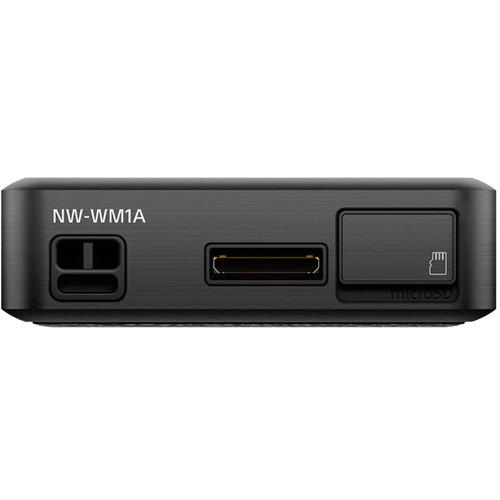

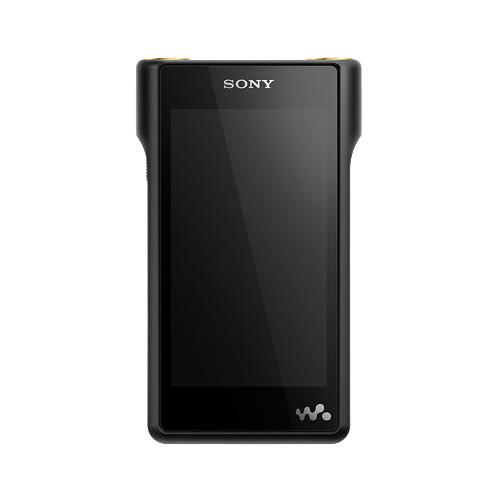

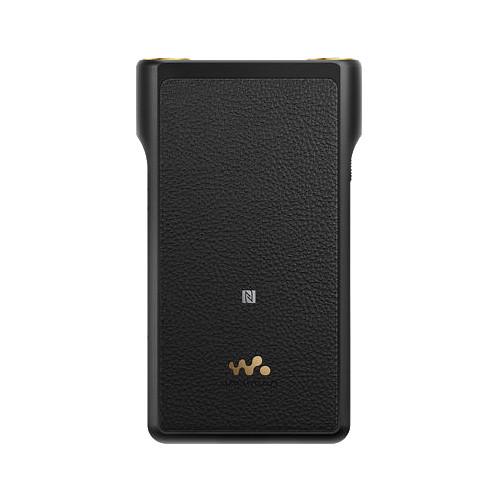

Product description The black NW-WM1A Walkman from Sony is a high-resolution digital music player featuring audiophile-quality playback with Bluetooth compatibility, a 4.0" capacitive touchscreen, 128GB of internal storage, and an aluminum alloy frame that's resistive to electrical noise and other interference for stable, high-quality sound.
The Walkman uses S-Master HX digital amplifier technology, which was developed to provide high-resolution playback utilizing a mastering-quality digital amplifier for a wide frequency response, while minimizing distortion and noise, as well as the DSEE HX, which is an upscaling technology that uses an algorithm that analyzes your music and replaces any lost information. Other enhancements include an upgraded audio pathway, oxygen-free cables, MELF resistors, and a high-polymer capacitor that works to regulate the power flow, optimizing it for instant clean power when needed.The player supports music files up to 32-bit/384 kHz and is compatible with the following formats; MP3, WMA, FLAC, WAV, AIFF, AAC, Apple Lossless, and DVD. Additional storage is available via the microSD card. The battery fully charges in 7 hours, while the playback time boasts up to 33 hours for MP3s and 30 hours for high resolution file formats. The Walkman ships with a USB cable and a wrist strap. -
- Aluminum chassis with oxygen-free copper cabling
- Enjoy pure sound from high-quality parts. An aluminum alloy frame provides a highly rigid case that’s resistive to electrical noise and other interference for stable, high-quality sound. A low-resistance oxygen-free copper cable offers low distortion and superior channel separation
- 32-bit/384kHz PCM playback and Native DSD support (up to 11.2MHz)
- The NW-WM1A Walkman supports the very latest 384 kHz / 32-bit rate and DSD Native Playback2 to help retain all the authentic detail of the original recording
- Unbalanced and balanced connector for maximum sound quality and output
- Enjoy clear, precise, dynamic sound with balanced audio. With a 4.4mm balanced standard plug, noise picked up from the wire to the amplifier is reduced, resulting in superior sound, delivered with clarity
- Enjoy 128GB built-in memory, plus Micro SD
- The NW-WM1A packs in 128GB of built-in file memory, so that you never run out of music. Plus, never run out of space for your music library and store files in the highest quality with the Micro SD slot
- Make compressed audio sound brilliant by restoring lost audio fidelity with DSEE HX
- The DSEE HX builds on our proprietary DSEE technology, upscaling compressed audio files to a level that’s closer to high-resolution audio. By restoring the subtleties of the original recording that are lost during the compression process, DSEE HX delivers a rich, studio-quality audio experience for all your music
- Enjoy near Hi-Res quality wireless sound via Bluetooth with LDAC
- The Sony Bluetooth LDAC codec takes your music streaming to a new level1. With 3x that data transmitted, LDAC provides and enhanced wireless listening experience with near hi-res quality
- Up to 30 hours of hi-res music playback
- Keep the music playing as long as you are, with up to 30 hours of non-stop high-resolution audio playback.

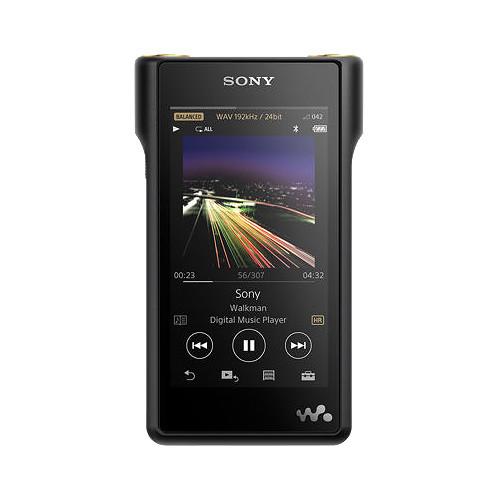

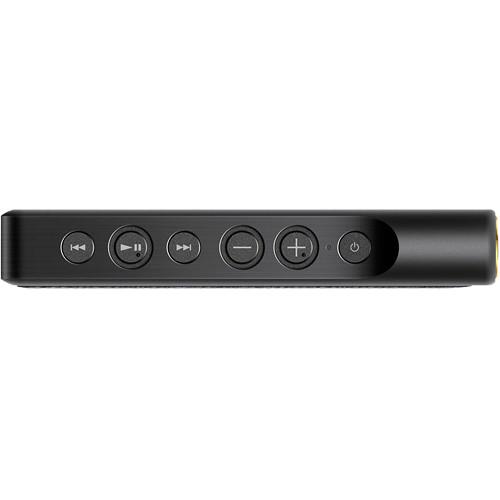

- 4.0” touchscreen with simple, intuitive navigation and side key controls
- The fully responsive touchscreen and classic interface design have been tailored to meet the needs of the most passionate audiophiles
- Advanced S-Master HX digital amplifier with higher headphone output
- A groundbreaking, new full-digital S-Master HX digital amplifier helps bring out the best of your high-resolution audio with Native DSD format, balanced output and high-output power compatibility
UPC: 027242898233 In the Box Sony 128GB NW-WM1A Walkman - High-Resolution Digital Music Player (Black) USB Cable Wrist Strap Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 128GB NW-WM1A Walkman - High-Resolution Digital Music Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony NWWM1A Specs | | | Power Output | Stereo Mini-Jack: 60 mW + 60 mW (non CEW, High Gain) 1.6 to 4.2 mW (CEW)
Balanced Standard-Jack: 250 mW + 250 mW (non CEW, High Gain) 1.6 to 4.2 mW (CEW) | | Supported Audio Formats | MP3 (MPEG-1 Layer3): 32 to 320 kbps (Supports variable bit rate (VBR) at 32, 44.1 and 48 kHz
WMA: ASF file format, 32 to 192 kbps (Supports variable bit rate (VBR) at 44.1 kHz
FLAC: 16-, 24-bit at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz, 352.8, 384 kHz
Linear PCM: Wave-Riff file format, wav file extension, 16-, 24-, 32-bit (Float/Integer) at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
AAC: MP4, mp4,.m4a,.3gp file extension, 16 to 320 kbps (Supports variable bit rate (VBR) at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz
HE-AAC: MP4, mp4,.m4a,.3gp file extension, 32 to 144 kbps at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1 and 48 kHz
Apple Lossless: MP4, m4a, .mp4 file extension, 16- to 24-bit at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
AIFF: 16-, 24-, 32-bit at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
DSD: 1-bit at 2.8224 MHz, 5.6448, 11.2896 MHz | | Frequency Response | 20 Hz to 40 kHz (when playing data file, single signal measurement) | | | | Play Mode | Normal / Repeat / Shuffle / Shuffle & Repeat / Repeat 1 Song
Playback Range (All Range / Selected Range) | | | | Bluetooth | Frequency Range: 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation Method: FHSS
BT Specification
Version: 4.2
Profile
A2DP: Yes
AVRCP: Yes | | | | Multiple Languages Support | German/ English/ Spanish/ French/ Italian/ Polish/ Portuguese/ Russian/ Turkish/ Japanese/ Korean/ Simplified Chinese/ Traditional Chinese | | | | Display Technology | TFT color display with white LED-backlight, capacitive touchscreen | | Screen Size | 4.0" / 10.2 cm, FWVGA (854 x 480 pixels) | | | | Interface | Stereo mini-jack, Balanced standard-jack
Hi-Speed USB (USB 2.0 compliant)
WM-PORT (multiple connecting terminal): 22 pins | | | | Memory Size | 128 GB | | User Memory | User Memory Capacity (Approx.): 122,573,127,680 byte (114.15 GB) | | | | Operating System | Sony original OS | | System Requirements | Mac OS X 10.8 to 10.11
Microsoft Windows 10, Windows Vista (SP2 or later), Windows 7 (SP1 or later), Windows 8.1 | | | | Supported Video Formats | AVC(H.264/AVC): MP4 file format, 20 Mbps bitrate, 30 fps frame rate, 1920x1080 max
MPEG4: 20 Mbps bitrate, 30 fps frame rate, 1920x1080 max
WMV9: ASF file format, 20 Mbps bitrate, 30 fps frame rate, 1920x1080 max | | | | Operating Temperature | 41 'F to 95 'F (5 'C to 35 'C) | | | | Power Type | Built-In rechargeable lithium-ion battery USB power (from a computer via a USB connector of the player) | | Battery Life | High-Resolution Audio Playback: 30+ hours of continuous playback (approximately)
MP3: 33 hours of continuous playback (approximately) | | Dimensions (W x H x D) | 2.9 x 4.9 x 0.8" / 72.9 x 124.2 x 20.1 mm | | Weight | 9.5 oz / 269.3 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.0 x 4.8 x 3.3" |
