Sony 16-35mm f 2.8 GM Lens

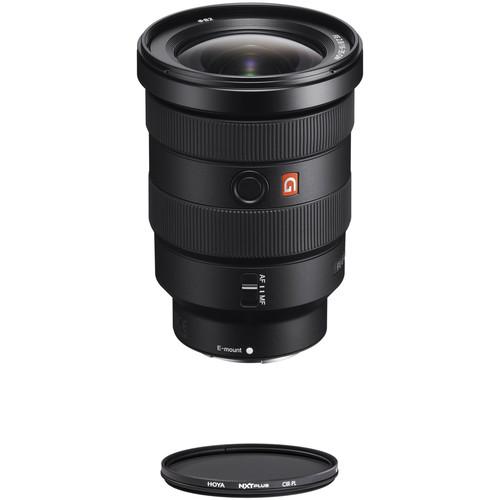

User Manual for Sony 16-35mm f 2.8 GM Lens and 82mm Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony FE 16-35mm f/2.8 GM Lens A fast and flexible wide-angle zoom, the FE 16-35mm f/2.8 GM Lens from Sony is a wide-angle zoom designed for full-frame E-mount mirrorless cameras. Distinguished by its constant f/2.8 maximum aperture, this lens offers consistent performance throughout the zoom range and benefits working in low-light conditions. The optical design incorporates two extra-low dispersion elements to reduce chromatic aberrations along with two XA elements and three aspherical elements, which significantly controls spherical aberrations for a high degree of image sharpness and clarity. Additionally, a Nano AR coating has been applied to limit ghosting and lens flare for increased contrast and color fidelity when working in strong lighting conditions.

  Complementing the optical assets, this lens is also notable for its inclusion of an 11-blade circular diaphragm to produce smooth, soft-edged bokeh with selective focus imagery. For controlling focus, two Direct Drive SSM AF groups are employed that are quick and quiet, and also lend more responsive control for manual focus operation. The lens also sports a dust- and moisture-sealed design to support shooting in inclement conditions and a dedicated focus hold button and AF/MF switch.
  • As part of Sony's esteemed G Master series, this lens is designed to achieve notably high resolution and sharpness through the correction of a wide variety of spherical and chromatic aberrations. Additionally, these lenses feature robust and intuitive-to-handle physical designs to benefit both photography and cine applications.
  • Wide-angle zoom designed for full-frame E-mount mirrorless cameras, this lens is also compatible with APS-C models where it provides a 24-52.5mm equivalent focal length range.
  • Constant f/2.8 maximum aperture offers consistent performance throughout the zoom range for working in difficult lighting conditions.
  • Two XA (extreme aspherical) elements and three aspherical elements are incorporated into the optical design, which feature superior surface precision for effective control over astigmatism, field curvature, coma, and other spherical aberrations.
  • Two extra-low dispersion elements are featured in the lens design and help to reduce chromatic aberrations and color fringing for improved clarity and color neutrality.
  • A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.
  • Two Direct Drive SSM (DDSSM) autofocus groups offer quick, quiet, and precise focusing performance that is ideal for both stills and video applications.
  • Dust- and moisture-sealed design better permits working in inclement conditions and rubberized control rings benefit handling in colder temperatures. Additionally, the front element has a fluorine coating to guard against fingerprints and dust from adhering to it.
  • Rounded 11-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  UPC: 027242899995
• Hoya 82mm NXT Plus Circular Polarizer Filter The 82mm NXT Plus Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • 1.7x filter factor reduces exposure by 0.8 stop.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • Filter ring can be rotated to adjust the intensity of the polarization effect.
  • 82mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from optical glass for clarity and color fidelity.
  • Plastic filter case for storage and transport.
  UPC: 024066068149

• FE 16-35mm f/2.8 GM Lens yvffdwrezzryuarufutyztyzx
• ALC-SH149 Lens Hood
• ALC-F82S 82mm Front Lens Cap
• ALC-R1EM Rear Lens Cap
• Lens Case
• Limited 1-Year Warranty

• Hoya - 82mm NXT Plus Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony FE 16-35mm f/2.8 GM Lens

  Focal Length	16 to 35mm
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	107 Rating 96% users recommend this product to others. And what about you? This product has already been rated by 16 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
