User Manual for Sony 2000-Lumen 4K SXRD Projector Click to enlarge the picture
Contents of the user manual for the Sony 2000-Lumen 4K SXRD Projector
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony 2000-Lumen 4K SXRD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The 2000-Lumen 4K SXRD Projector from Sony delivers high-contrast 4K images with 2000 lumens light output. The long-lasting laser light source is combined with 4K SXRD panel technology to deliver bright, crisply detailed native 4K images with a resolution of 4096 x 2160. Picture quality is further enhanced by Reality Creation upscaling, plus configurable support for HDR (High Dynamic Range). A high-speed 4K 120Hz signal processor and three types of black frame insertion modes reduce motion blur and smear.
The projector is suitable for demanding multi projection applications in 2D or 3D, with consistently homogeneous brightness. It can also be readily configured (with optional license) for IR night vision simulation applications. The laser light source is rated for a nominal 20,000 hours or up to 40,000 hours in constant brightness mode. Long term reliability is assured further by dust-sealed optics. The projector features auto calibration compatibility with leading AV room automation systems and a robust chassis which can be installed at any angle for maximum flexibility. - Multi-projection blending
- Long-life optics up to 40,000 hours
- Sealed optics for dust-resistance
- One-way air flow and liquid cooling system with low noise operation
- Quick start enhances operation
- Four inputs (2 x HDCP 1.3, 2 x HDCP 1.3 for V Split), Digital (RGB)
- Color bit depth up to 10-bit
- Accepted Digital Signals: VGA, SVGA, XGA, WXGA (1280 x 768), Quad-VGA, SXGA, 720 x 480/60p, 720 x 576/50p, 1280 x 720/50p, 1280 x 720/60p, 1920 x 1080/24p, 1920 x 1080/50p, 1920 x 1080/60p, 3840 x 2160/24p, 3840 x 2160/50p, 3840 x 2160/60p, 3840 x 2160/100p, 3840 x 2160/120p, 4096 x 2160/24p, 4096 x 2160/50p, 4096 x 2160/60p, 4096 x 2160/100p, 4096 x 2160/120p
In the Box Sony 2000-Lumen 4K SXRD Projector (No Lens) RM-PJ29 Remote Control 2 x AA Manganese Batteries (R6) AC Power Cord Limited 3-Year or 12,000-Hours Warranty (Whichever Occurs First) Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 2000-Lumen 4K SXRD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPLGTZ280 Specs | | | Display System | 3-Chip 0.74" LCD | | Native Chip Resolution | 4096 x 2160 (DCI 4K) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
SXGA | | Max Brightness | White: 2000 Lumens
Color: 2000 Lumens | | Contrast Ratio | 20000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Inputs/Outputs | 4 x DisplayPort Video (Input)
2 x 12 V Trigger Video
1 x RS-232C (DE-9) Remote
1 x USB Type-A Female | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN | | Memory Card Slot | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 35 dB | | Supported Languages | Arabic
Dutch
English
French
German
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 6 to 12 A | | Heat Dissipation | 4092 BTU | | Power Consumption | Medium Brightness: <1200 W
Standby Mode (Lamp Off): 0.4 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)

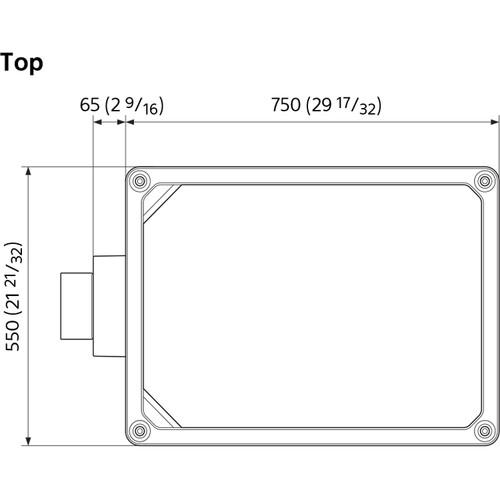

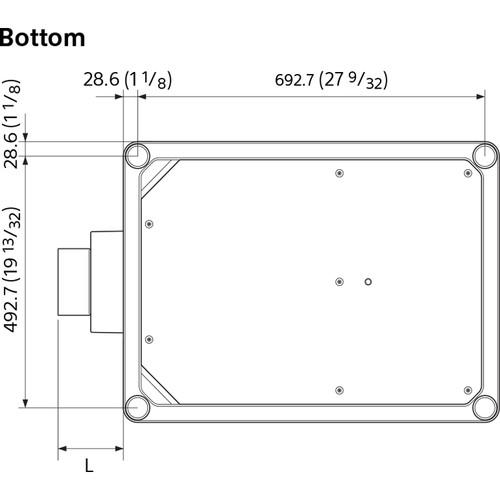

Humidity: 20 - 80% | | Dimensions (W x H x D) | 21.7 x 9.0 x 29.5" / 550.0 x 228.0 x 750.0 mm without protrusions
21.7 x 10.3 x 29.5" / 550.0 x 262.0 x 750.0 mm with protrusions | | Weight | 88.00 lb / 39.92 kg excluding lens |
