User Manual for Sony 2500-Lumen Ultra-Short-Throw 4K SXRD Projector Click to enlarge the picture
Contents of the user manual for the Sony 2500-Lumen Ultra-Short-Throw 4K SXRD Projector
- Product category: Home Theater Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Home Theater Projectors
 |
User manual for the Sony 2500-Lumen Ultra-Short-Throw 4K SXRD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

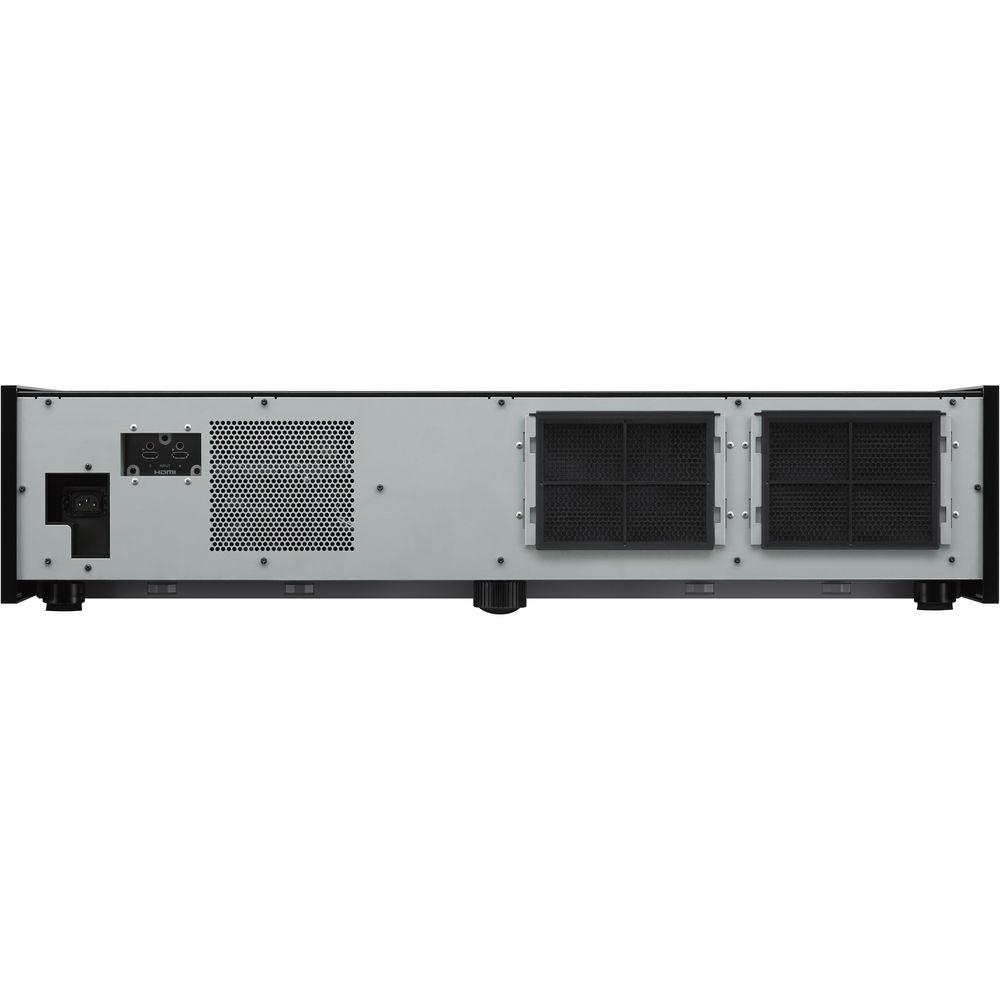

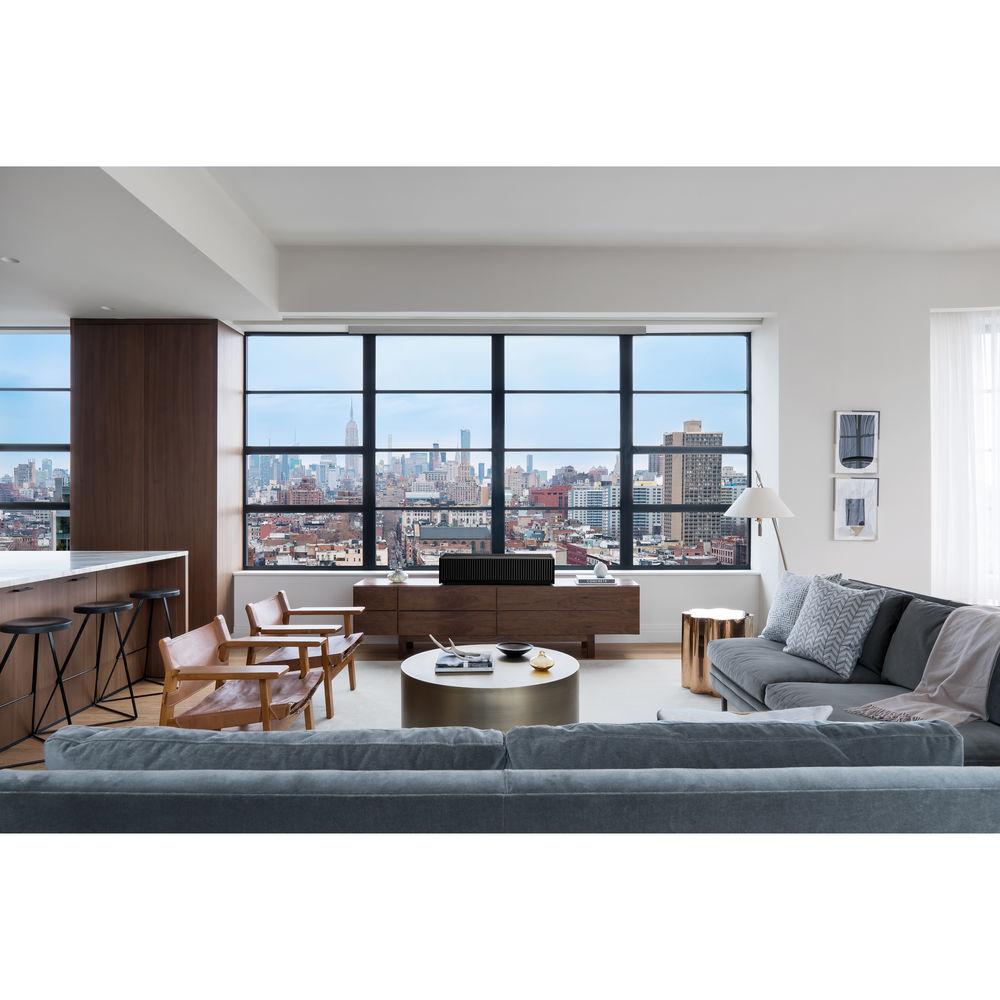

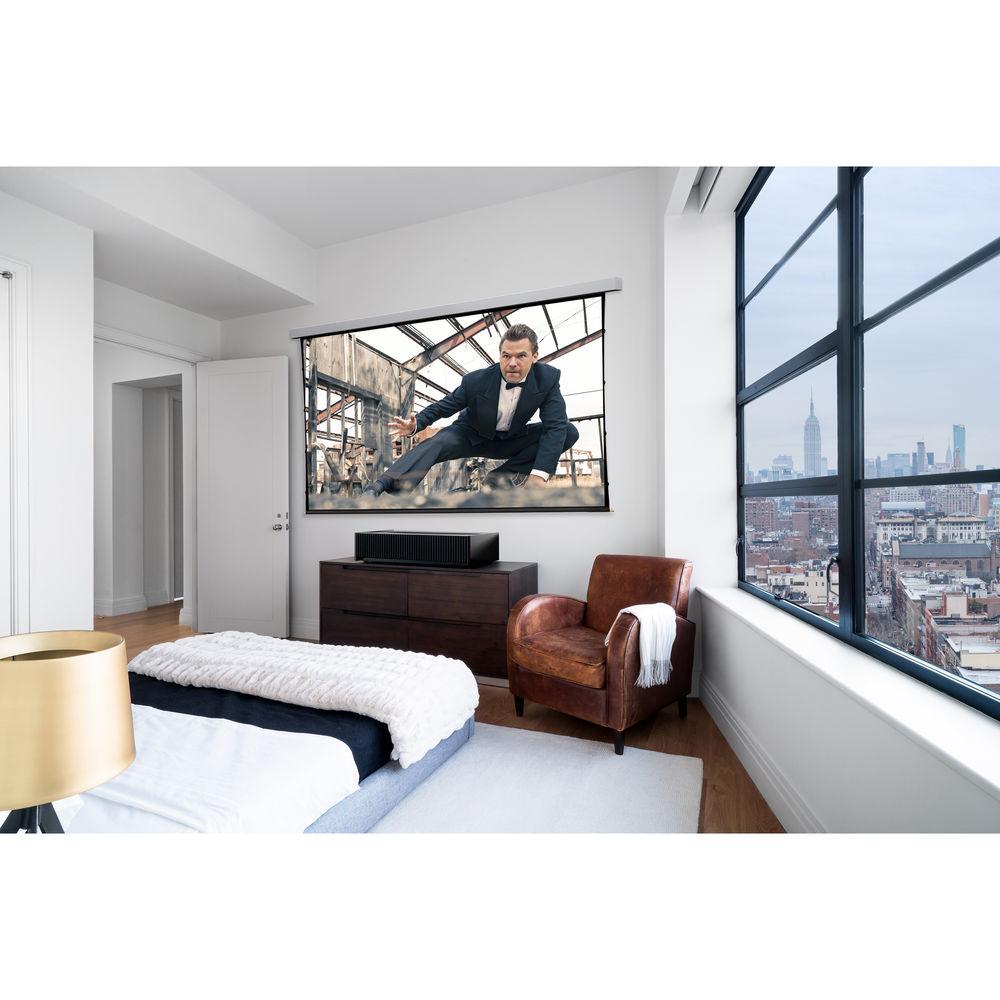

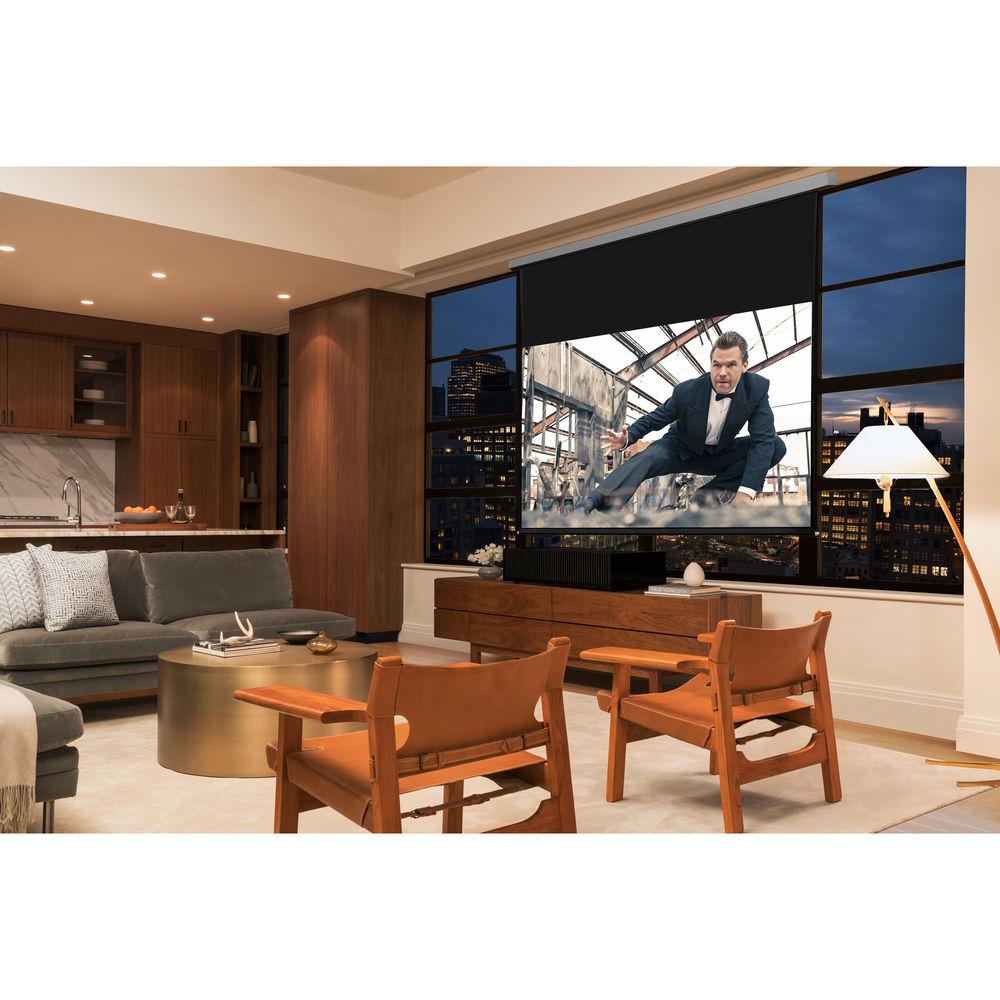

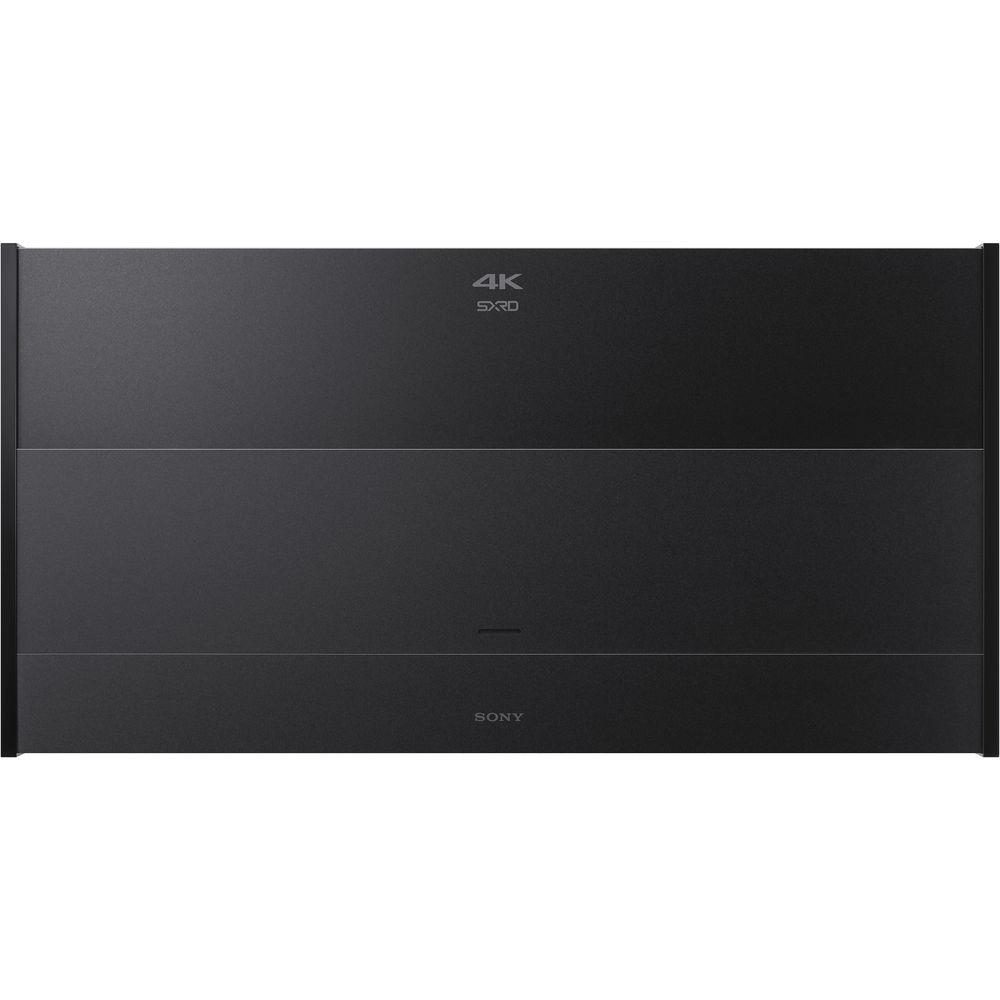

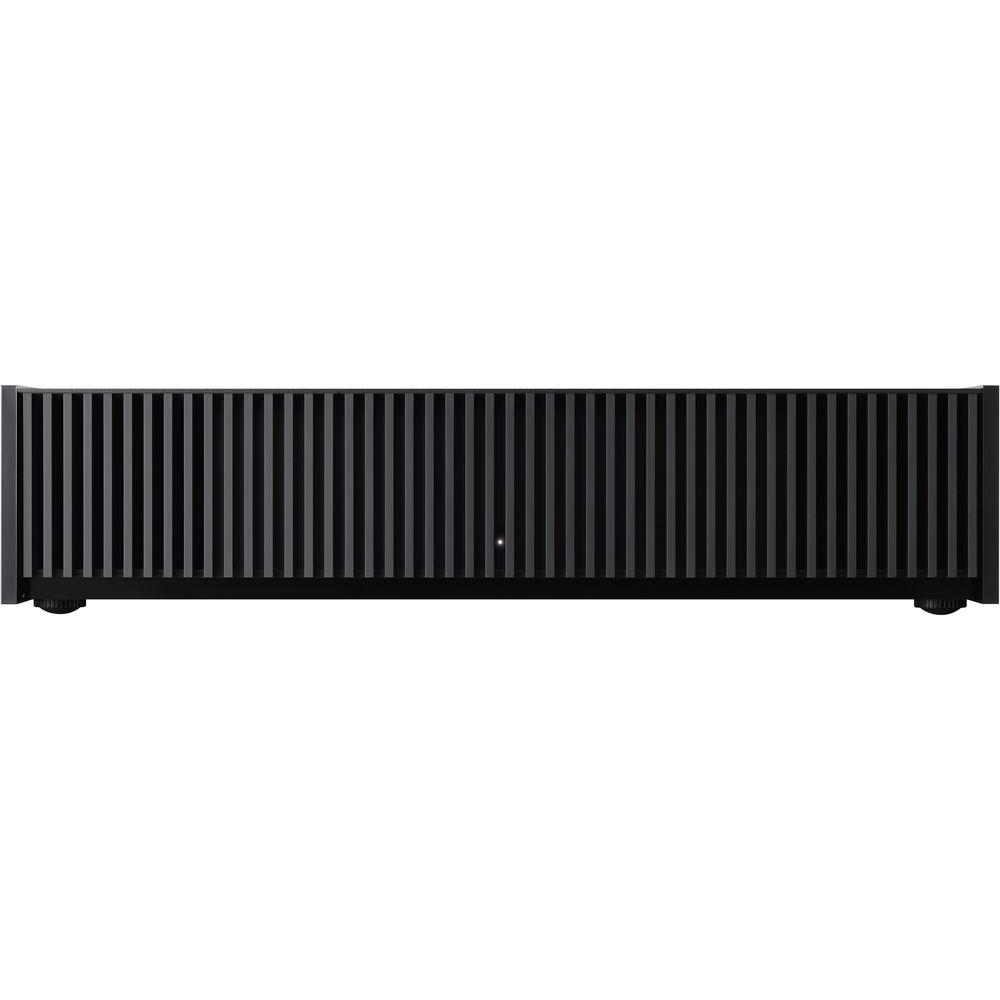

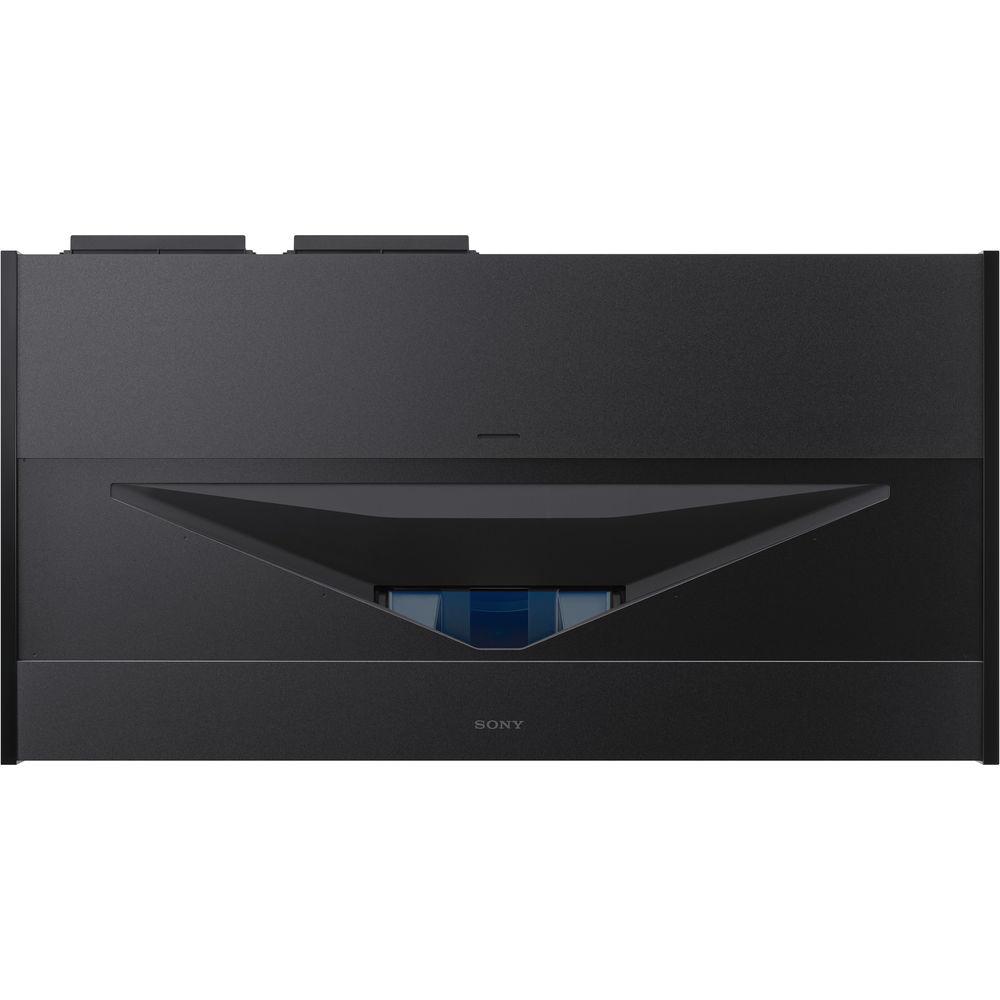

Product description Buying Guide to Projectors Read More The 2500-Lumen Ultra-Short-Throw 4K SXRD Projector from Sony combines SXRD imaging technology with a long-lasting laser light source for high-detailed, high-contrast native 4K images with HDR compatibility. The energy-efficient Z-Phosphor laser source allows quick start and maintenance-free operation with no need for lamp exchanges. The Ultra-Short Throw Projector can be situated up close to a screen, allowing viewers to enjoy the realistic sensation of 4K images at a closer distance of up to 120" without producing shading of the image. A convenient lens shift function, easily adjustable feet, and ventilation system simplifies installation in any home theatre or living room space. The compact device occupies even less space on your AV cabinet, suitable for any home entertainment set-up, even in limited space. -
- SXRD panel delivers native 4K resolution images
- High Dynamic Range (HDR) both for 4K 24p and 4K 60p for high contrast and a wide range of brightness levels, from searing highlights to richly detailed dark scenes
- TRILUMINOS display for wide, cinema-like color gamut
- Project large 4K images up to 120" diagonal onto a screen
- Distracting glare and shadows are reduced, with no danger of your audience breaking the projector beam
- Project in 3D with 2K resolution (up to 1920 x 1080)
- Can project Ultra HD content at up to 60 frames per second (4K 60p YCbCr 4:4:4 8-bit/YCbCr 4:2:2 12-bit) for even smoother images with better color and realism
- Supports rear-projection and can be operated floor-standing or ceiling mounted
- Set-up is quick and easy with auto-calibration (adjusts the white balance only)
- Whisper-quiet fan noise minimises disturbance for your audience
- With quick start, the laser light source means you're all ready to start projection right after initial power-on
- Thanks to Ultra Short Throw (UST) projection and its blended in design, with side covers to conceal cabling, the display equipment fits perfectly into any room interior
UPC: 027242901759 In the Box Sony 2500-Lumen Ultra-Short-Throw 4K SXRD Projector Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 2500-Lumen Ultra-Short-Throw 4K SXRD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-VZ1000ES Specs | Display System | 4K SXRD panel projection system | | Effective Display Area | 1 x 0.74" / 1.88 cm SXRD | | Number of Pixels | 26,542,080 (3 x 4096 x 2160) pixels | | Focus | Powered | | Zoom | Powered (approximately x1.02) | | Lens Shift | Powered
Vertical: ±6%

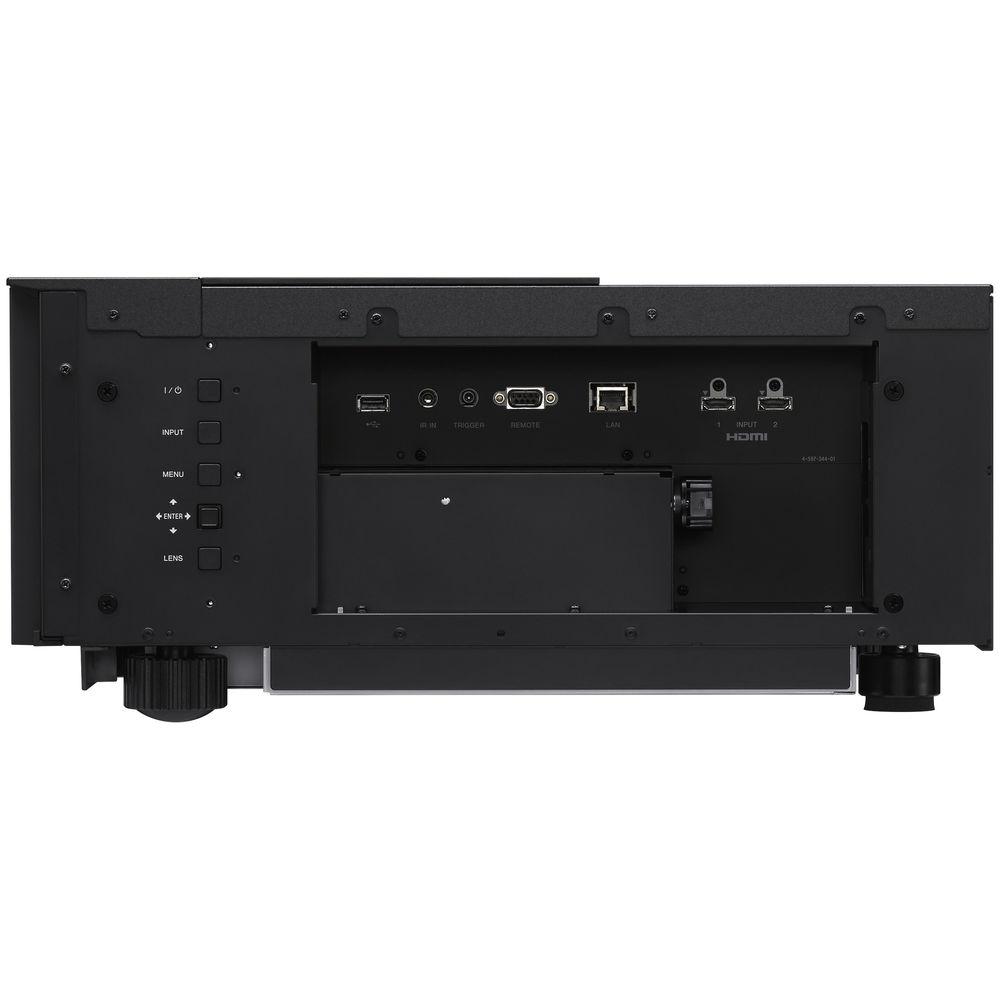

Horizontal: ±3% | | Light Source | Laser diode | | Screen Size | 80 to 120" / 203 to 305 cm | | Brightness | 2500 lumen (Lamp mode set to High) | | Dynamic Contrast Ratio | ∞:1 | | Digital Signal | VGA, SVGA, XGA, WXGA (1280 x 768), quad-VGA, SXGA, 720 x 480/60p, 720 x 576/50p, 1280 x 720/50p, 1280 x 720/60p, 1920 x 1080/50i, 1920 x 1080/60i, 1920 x 1080/24p, 1920 x 1080/50p, 1920 x 1080/60p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/50p, 3840 x 2160/60p, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096 x 2160/50p, 4096 x 2160/60p | | Color Depth | Up to 12-bit via HDMI | | Input Output Interface | 4 x HDMI (HDCP 2.2)
Remote: RS-232C, D-sub 9-pin
LAN: RJ-45, 10Base-T/100Base-TX
IR In: Mini Jack
USB: Type A, 5 VDC, maximum 500 mA
Trigger: Mini Jack, 12 VDC, maximum 100 mA | | Acoustic Noise | Maximum 24 dB | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% (non-condensing) | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Storage Humidity | 20 to 80% (non-condensing) | | Power Requirements | 100 to 240 VAC, 4.4 to 1.9 A, 50 / 60 Hz | | Power Consumption | Normal: 435 W
Standby: 0.5 W (when "Remote Start" is set to "Off")
Networked Standby: 0.6 W (LAN) (when "Remote Start" is set to "On")
When a LAN terminal is not connected, it becomes a low power consumption mode (0.5 W) | | Standby Mode | Activated after about 10 minutes | | Dimensions | 36.41 x 8.59 x 19.44" / 92.50 x 21.85 x 49.38 cm with side covers | | Weight | Approximately 77 lb / 35 kg without side and top covers | | | | Package Weight | 96.15 lb | | Box Dimensions (LxWxH) | 39.0 x 22.4 x 17.5" |
