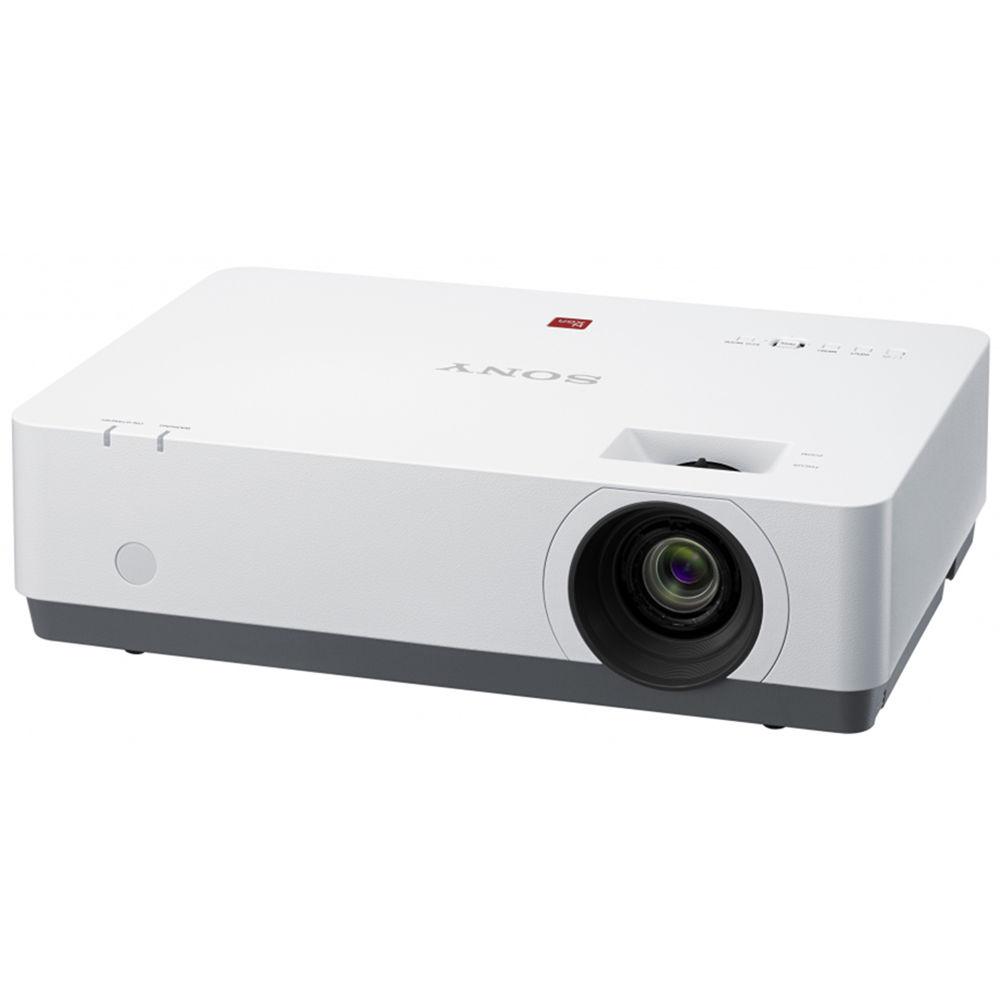

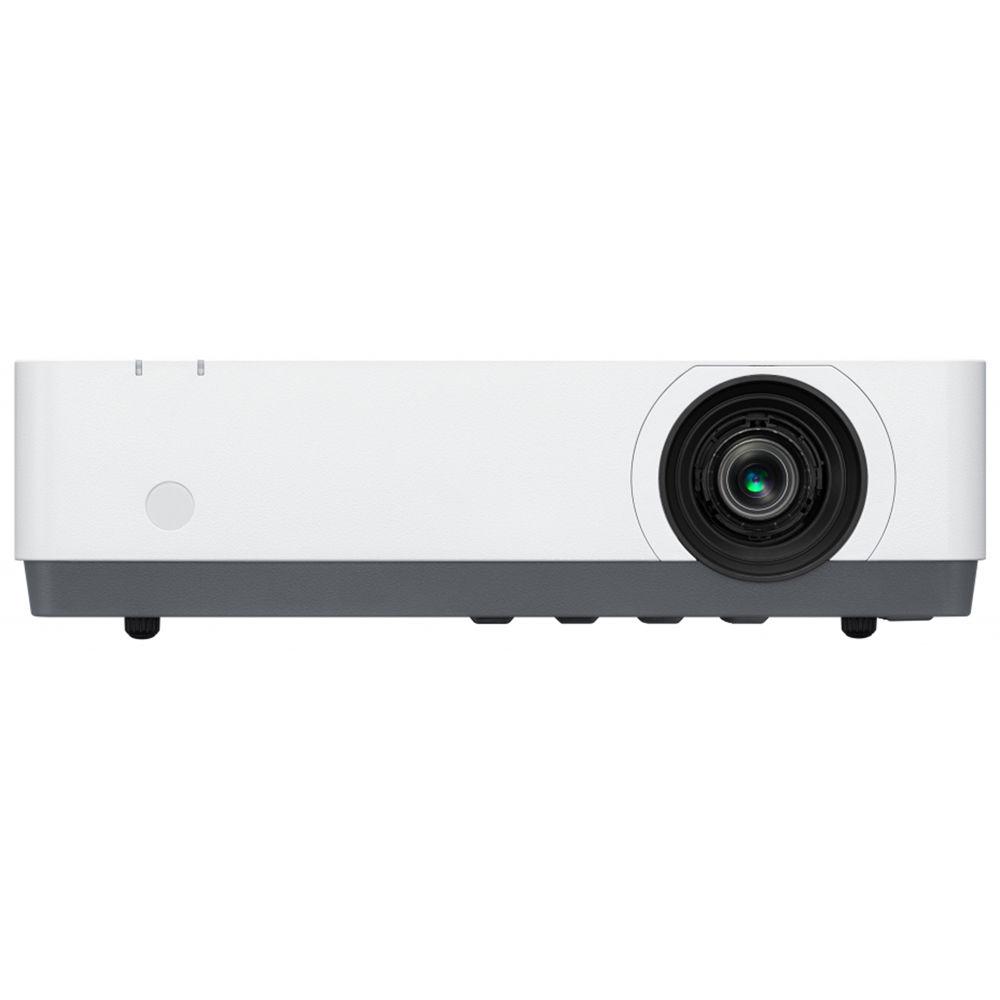

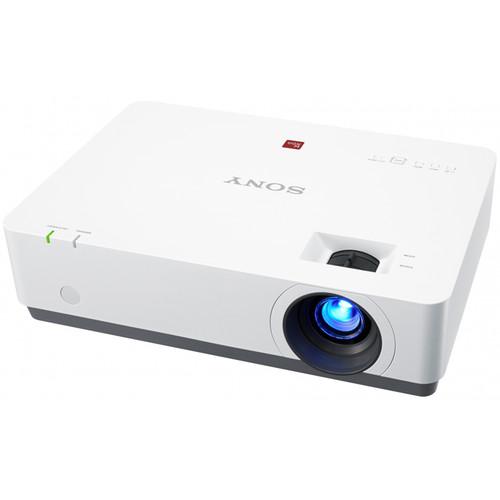

User Manual for Sony 3100-Lumen WXGA Compact Projector Click to enlarge the picture
Contents of the user manual for the Sony 3100-Lumen WXGA Compact Projector
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony 3100-Lumen WXGA Compact Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The 3100-Lumen WXGA Compact Projector from Sony features 3100 lumens of brightness and a 20,000:1 contrast ratio for detailed images in rooms with ambient light. It supports a WXGA (1280 x 800) native resolution for clear data at most viewing distances. The projector is powered by a 3LCD display system, and its lamp features a life of up to 4000 hours at max brightness. You can use the projector to display images with up to a 300" diagonal screen size, making it suitable for large venues. This projector also features a 1.37 to 1.80:1 throw ratio with a 16:10 aspect ratio.

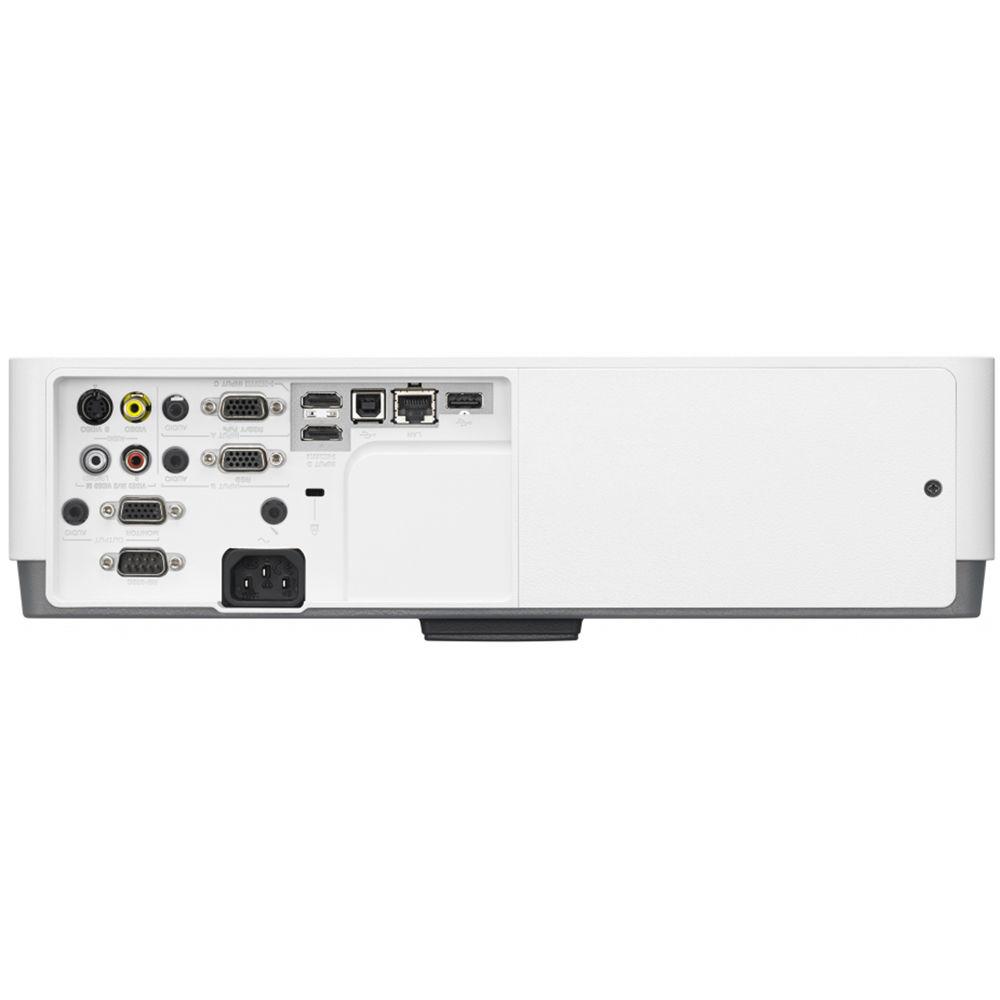

With S-video, composite video, USB Type-A, USB Type-B, two VGA, and two HDMI inputs, this projector is well-equipped for external control and source connections. The projector also features an Ethernet port for LAN control and is shipped with a remote control. - WXGA Resolution
- WXGA (1280 x 800) 16:10 display resolution provides crisp detail, ideal for making presentations direct from a laptop, mobile device, or DVD player.
- Bright, Clear Images
- A choice of three brightness modes suits any environment, from bright daylight to darkened rooms.
- Powerful 16W Audio
- The powerful built-in 16W speaker (mono) lets your audience hear video soundtracks with no need for additional amplification.
- Advanced Energy-Saving Features
- Advanced lamp technology enables a range of energy-saving features. Auto Light Dimming mode saves energy when the projector is left on without being used. Auto Picture Mode automatically adjusts light output to suit the projected scene. Touching a button on the remote mutes the picture temporarily, dramatically reducing power consumption.
- Auto Power On
- The projector automatically turns on when signals are detected from a connected PC.
- Networked and Wireless Presentations
- Up to four users can project images simultaneously from PC or Mac via network and wireless, while up to eight users can connect to one projector.
- Remote Control App for iOS/Android
- The free Projector Remote app controls the projector from anywhere in the room with a handheld device.
- Dual HDMI Inputs
- Two HDMI input terminals make it easy to connect HDMI-equipped devices like PCs and media streaming devices.
- USB Display Function for Easy One-Cable PC Connection
- Pictures and audio can be presented from a connected PC or Mac with a single USB cable. No need to install a software driver.
- 3LCD BrightEra Technology
- The 3LCD panel system is enhanced by advanced BrightEra technology for impressively bright, consistent, high-resolution images.
- Energy Efficient with Long-Lasting Lamp Life
- High-performance lamp technology offers reduced costs and maintenance, with a recommended lamp replacement time of approx. 10,000 hours (with brightness in low mode).
- Quiet Operation
- Near-silent projector fan ensures discreet, unobtrusive operation in classrooms and meeting rooms.
- Control and Management from Any Networked PC
- Projector functions and status can be managed and monitored remotely from any networked PC, using the included Projector Station for Network Control application.
- USB Media Viewer
- Slipping in a USB drive allows to display photos, images, and graphics with no PC needed.
- IP Control Sync for Easy System Expansion
- Controlling signals (power on/off, input select) from a master projector can be distributed over an IP network to additional 'sub' projectors.
- Customized Input Naming Labels
- Defining input labels like 'BD Player', 'PC', and 'Document Camera', makes it easier to see on screen what devices are connected and being used.
- Easy Maintenance
- Convenient lamp access at the rear of the projector body makes lamp swaps simpler when the projector is hanging from a ceiling mount.
UPC: 027242900103 In the Box Sony 3100-Lumen WXGA Compact Projector RM-PJ8 Remote Controller Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 3100-Lumen WXGA Compact Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-EW435 Specs | | | Display System | 3-Chip 0.59" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 @ 60 Hz | | Max Brightness | 3100 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 20000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.3x | | Throw Ratio | 1.37 - 1.80:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 20° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
2 x HDMI Audio, Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x Composite (RCA) Audio (Input)
1 x RS-232C (DE-9) Remote (Input)
1 x USB Type-A Female
1 x USB Type-B Female
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 225 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 35 dB
Medium Brightness: 33 dB
Low Brightness: 29 dB | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.4 to 3.2 A | | Heat Dissipation | 1085 BTU (AC 100 to 120V)
1044 BTU (AC 220 to 240V) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 14.4 x 3.8 x 9.9" / 365.0 x 96.2 x 252.0 mm without protrusions | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 17.5 x 13.2 x 7.7" |
