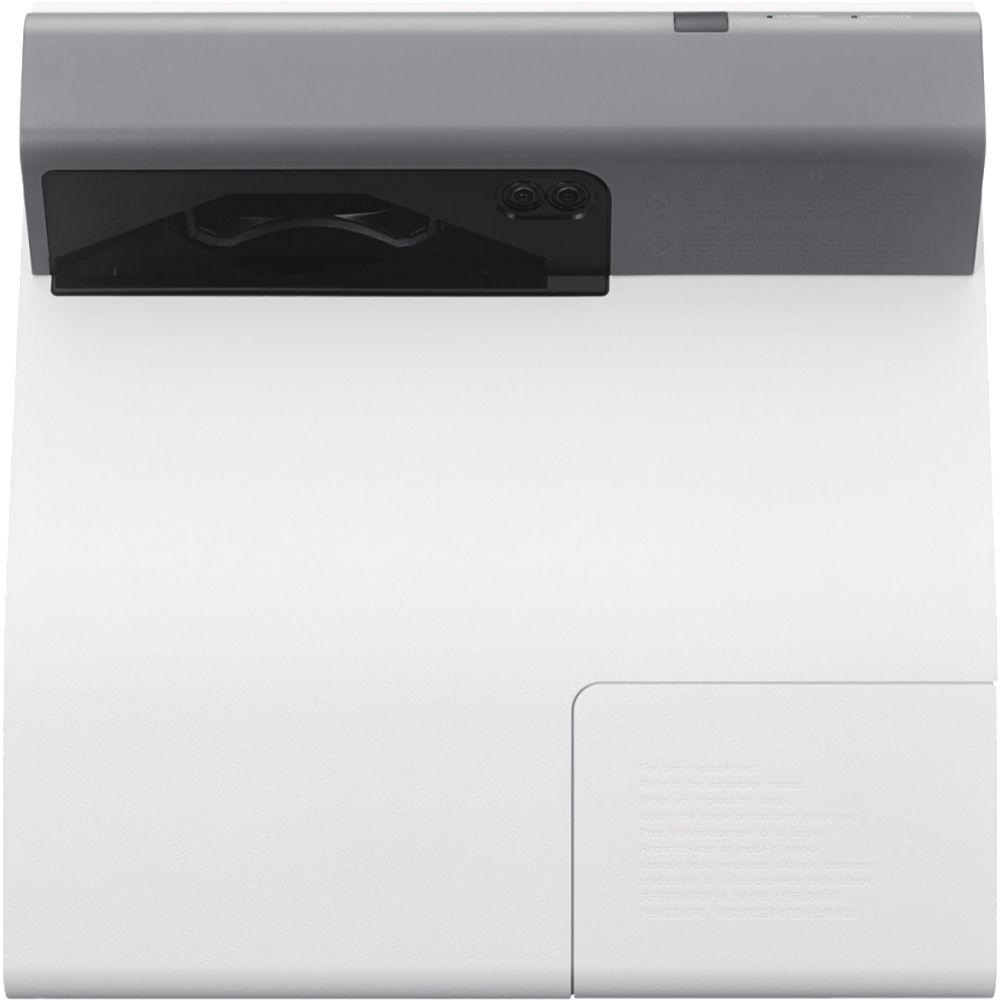

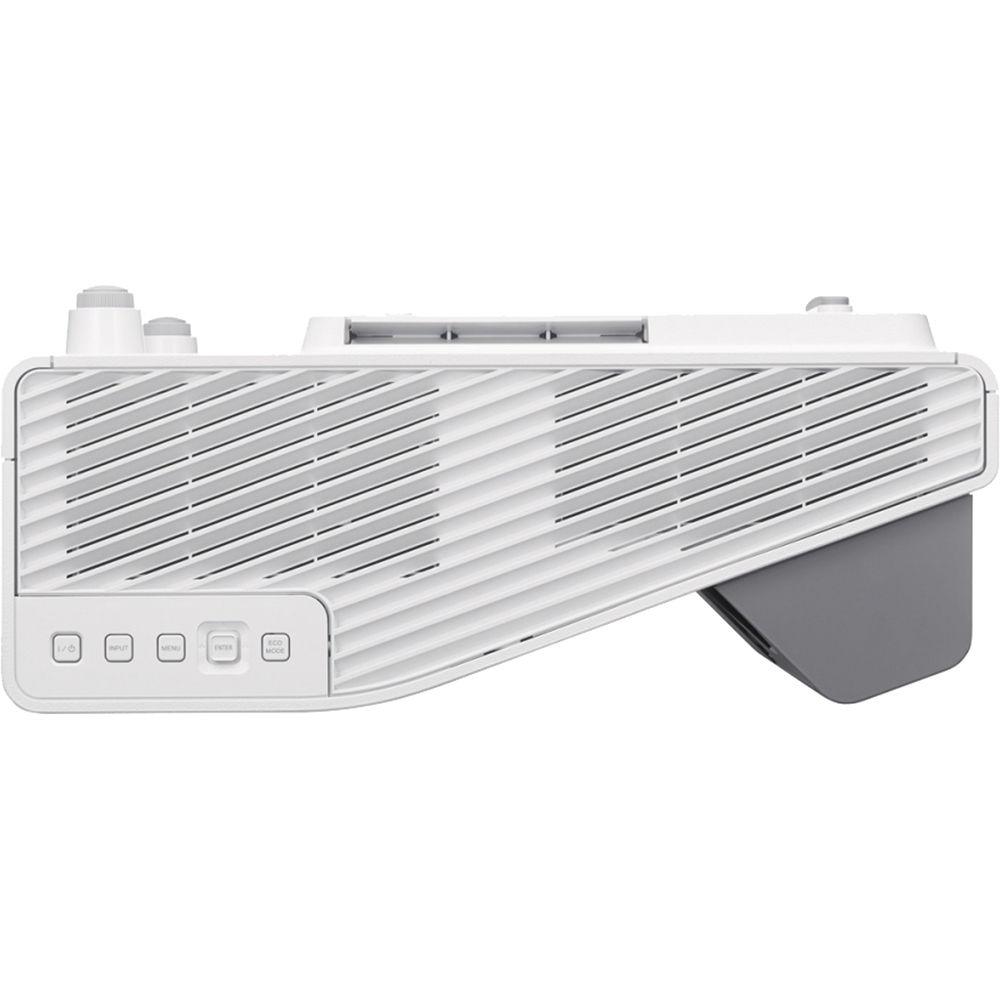

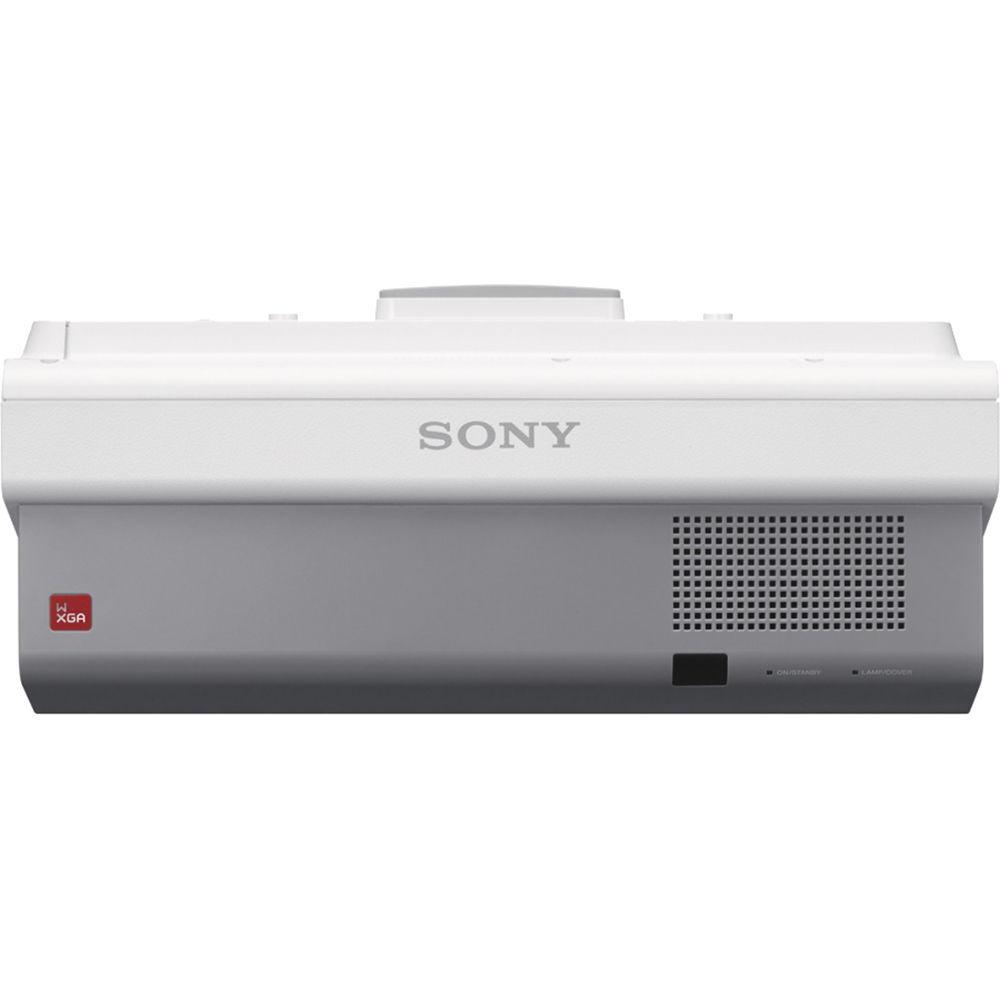

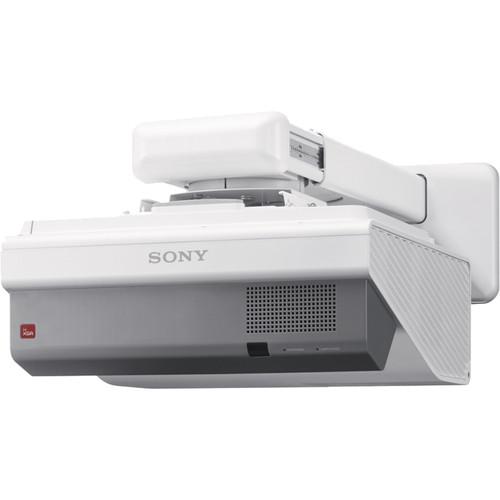

User Manual for Sony 3300-Lumen WXGA Interactive Ultra Short Throw Projector with Mount Click to enlarge the picture
Contents of the user manual for the Sony 3300-Lumen WXGA Interactive Ultra Short
- Product category: Multimedia Projectors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Multimedia Projectors
 |
User manual for the Sony 3300-Lumen WXGA Interactive Ultra Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The 3300-Lumen WXGA Ultra Short Throw Projector from Sony features a throw ratio of 0.27:1 and is capable of projecting onto an 80" wide screen from 17.5". This makes the projector suitable for areas with limited projection space, such as teaching and training environments. Presenters can move about freely without disrupting the projected image.The VPL-SW631CM offers simultaneous dual-touch interactive annotation on the projection screen with the use of supplied pen devices and drawing software. The interactive pen works as a computer mouse or writing device during virtual whiteboard mode. In a classroom environment, it allows users to easily incorporate many third party curriculum software products and launch interactive lessons. In a corporate environment, instant communication space can be established using virtual whiteboard mode. The automatic pen calibration feature allows for easy setup. - Good Image Quality & Rich Color Reproduction
- BrightEra 3LCD panel technology creates high contrast and a 3300-lumen color light output. The projector also features a 12-bit 3D Digital Gamma Correction circuit that helps in reproducing smooth gradations.
- Long-Lasting Lamp
- With Sony's lamp-driving technology, the expected lamp life can go up to 10,000 hours, depending on the lamp mode selected.
- Auto Lamp Dimming
- The lamp works intelligently to reduce energy consumption. In the event the projector is left powered while not in use, the lamp automatically detects no change of signal input and will dim the lamp, as low as 30% of original brightness, to significantly reduce energy consumption.
- Network Presentation
- Project images over a wired LAN or a wireless network using supplied Network Presentation software. The projector can simultaneously display computer images from up to four different sources. Optional USB dongle (IFU-WLM3) is required for wireless projection.
- Tablet & Smart Phone Presentation
- Allows for quick and easy presentation directly from one's tablet or phone. Users of PC's and iOS or Android devices can present at the same time (software not included).
UPC: 027242285422 In the Box Sony 3300-Lumen WXGA Interactive Ultra Short Throw Projector with Mount Interactive Pens Wall Mount Kit RM-PJ8 Remote Commander CR2025 Battery AC Power Cord Limited 3-Year Warranty, First Year Includes On-Time Support Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 3300-Lumen WXGA Interactive Ultra Short Throw Projector with Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-SW631CM Specs | | | Display System | 0.59" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: 1600 x 1200 @ 60 Hz | | Max Brightness | 3300 Lumens
2300 Lumens
1900 Lumens | | Contrast Ratio | 3000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Lens Shift | Vertical: ± 3.7%

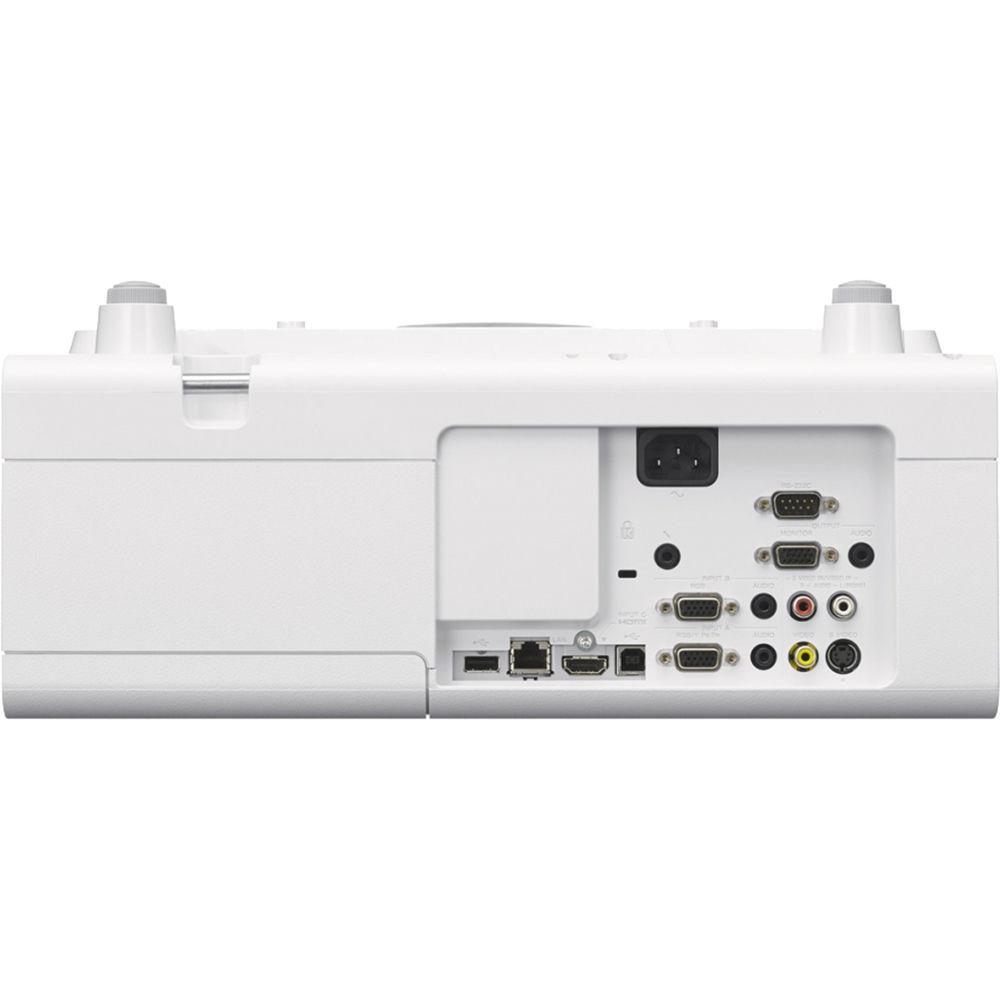

Horizontal: ± 2.3% | | Throw Ratio | 0.27:1 | | Projection Size | 65 - 110" / 165.10 - 279.40 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x Composite (RCA) Video
1 x Mini-VGA port Video
1 x HDMI Audio/Video
1 x USB Type-A Female
1 x USB Type-B Female | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 225 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Dimensions (W x H x D) | 14.6 x 8.6 x 15.0" / 37.1 x 21.8 x 38.1 cm | | Weight | 14.00 lb / 6.35 kg | | | | Package Weight | 32.5 lb | | Box Dimensions (LxWxH) | 21.2 x 20.5 x 19.0" |
