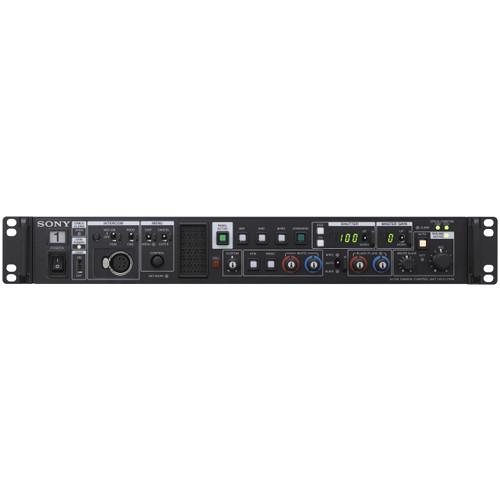

User Manual for Sony 4K HD Camera Control Unit for HXC-FB80N Camera Click to enlarge the picture
Contents of the user manual for the Sony 4K HD Camera Control Unit
- Product category: CCUs & Base Stations Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony CCUs & Base Stations
 |
User manual for the Sony 4K HD Camera Control Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Combine your Sony HXC-FB80N with the 4K/HD Camera Control Unit to make your camera's output 4K upscalable and HD HDR-capable supporting HLG (Hybrid Log-Gamma). For 4K signal output, the HXCU-FB80N is equipped with a 12G-SDI interface with quad 3G-SDI. - 3G-SDI Platform Capable of 1080p59.94/50
- The camera head (available separately) and CCU can comfortably output 3G-SDI signals including 1080p50 and 1080p59.94.
- MCS (Multicamera System) Capabilities
- The HXCU-FB80 Camera Control Unit provides support for up to 24 cameras, enabling you to set up a complete MCS system.

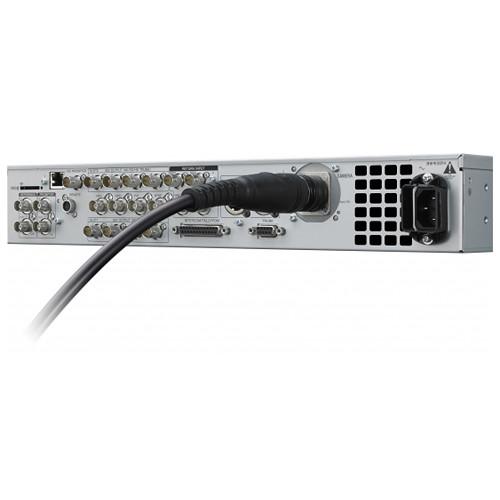

- Long Cable Extension and Choice of Fiber Interface
- The distance between the camera head and CCU can be extended up to 1968.5' using a hybrid cable with a power supply. When connected with a single-mode fiber cable, transmission can be extended to up to 6.2 miles using a local power supply. Combined with the HXC-P70, the control unit supports extension up to 3280.8'.
- HD Video Trunk and HD Prompter
- In addition to the 1080i59.94/50 video signal captured by the camera, another video signal can be passed through the same fiber connection line to the CCU side because of the 3G-SDI platform. Further to the traditional analog composite prompter support, the HD-SDI signal can be supplied from the CCU side.
- Compatibility

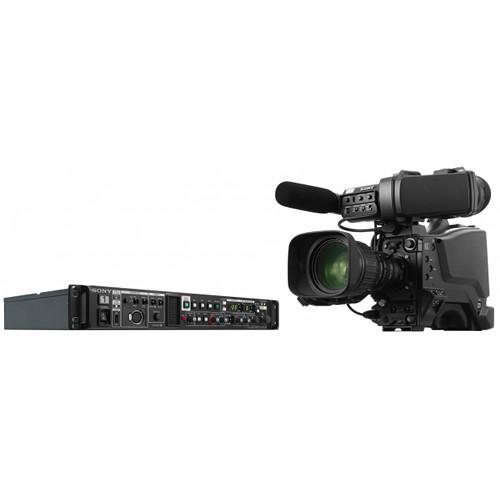

- The camera control unit is designed to be used with the HXC-FB80N HD portable camera, and is also compatible with the HXC-P70 Exmor C-MOS camera.
In the Box Sony 4K/HD Camera Control Unit for HXC-FB80N Camera (Neutrik) Tally Number Plate Set (0-9) Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 4K HD Camera Control Unit for HXC-FB80N Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

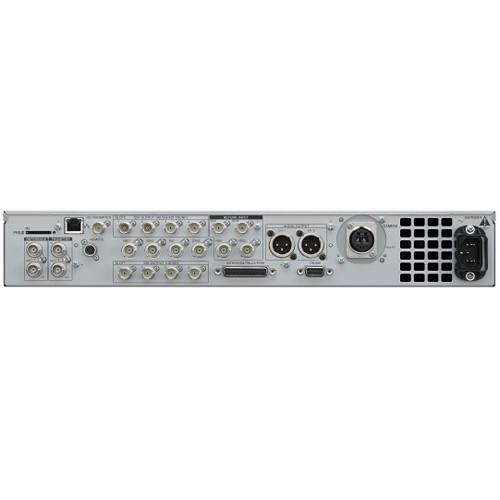

Technical parametersSony HXCU-FB80N Specs | | | Format | 4K 2160: 59.94p, 50p (2SI, SQD, level-A/B)
1080p 59.94/50
1080i 59.94/50
1080PsF 29.97/25/23.98
720p 59.94/50
576i 50
480i 59.94 | | | | Camera | 1 x Optical fiber
CCFN Sony hybrid cable or single-mode fiber cable (LC type) | | Cable Extension Length | Distance of Power Supply:
1968.5' / 600 m (max.) by CCFN Sony hybrid-type fiber cable (with portable lens & HXC-FB80, available separately)
3280.8' / 1000 m (max.) by CCFN Sony hybrid-type fiber cable (with portable lens and HXC-P70, available separately)
Distance of Fiber Cable by Local Power Supply:
6.2 miles / 10 km (max.) by single-mode fiber cable, LC type (with HXC-FB80) | | Intercom | 1 x 5-pin XLR, female (front panel) | | D-SUB | Intercom/Tally/Program:
D-Sub 25-pin, female
Intercom (Prod, ENG), 4Wire/RTS/ClearCom, 0 dBu
PGM 1 system, -20/0/+4 dBu
Tally (R, G)
Preview | | Remote | 1 x 8-pin | | Trunk | 1 x 9-pin D-Sub, female
RS-232C / RS-422A
1 x System | | LAN | 1 x 8-pin | | Reference | 2 x BNC
In:
HD: SMPTE 274M, tri-level sync, 0.6 Vpp, 75 Ohms
SD: Black burst (NTSC: 0.286 Vpp, 75 Ohms / PAL: 0.3 Vpp, 75 Ohms)
Out: Loop-through output | | Prompter | 2 x BNC
In: VBS, 1.0 Vpp, 75 Ohms, 1 system
Out: Loop-through output | | | | AC Input | 1 x 100-240 VAC | | Return In | VBS 1 and VBS 2: 2 x BNC, 1.0 Vpp, 75 Ohms, 2 systems
SDI 1 and SDI 2: 2 x BNC, HD-SDI, SMPTE ST292-1
1080PsF 29.97/25/23.98
1080i 59.94/50
720 59.94/50
576i 50
480i 59.94 | | Prompter Input | 1 x BNC
HD-SDI: SMTPE ST292-1, 0.8 Vpp, 75 Ohms | | | | SDI Out | Slot 1 (HD/SD): 4 x BNC
HD-SDI: SMPTE ST292-1, 0.8 Vpp, 75 Ohms
SD-SDI: SMPTE 259M, 0.8 Vpp, 75 Ohms
HD-SDI/SD-SDI selectable
Slot 2 (3G/4K/HD Trunk): 4 x BNC
4K/3G-SDI 1 to 4: 2160p59.94/50, 1080p59.94/50
4K/12G-SDI 1, 2: 2160p59.94/50
HD 3G-SDI: 1080p59.94/50
HD-SDI 3, 4: HD trunk 1080i59.94/50
4K/3G/HD Trunk: Selectable | | VBS Interface | 2 x BNC, VBS 1.0 Vpp, 75 Ohms | | Pix | 1 x BNC, VBS/R/G/B (VBS 1.0 Vpp, 75 Ohms) | | Sync | 1 x BNC, SMPTE 274-1
HD: Tri-level sync, 0.6 Vpp, 75 Ohms
SD: Composite sync, 0.3 Vpp, 75 Ohms
HD/SD sync selectable | | Audio Out | 2 x 3-pin XLR, male, 0/-20 dBu | | | | Power Requirements | 100-240 VAC, 2.2 A (max.), 50/60 Hz | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 19.0 x 2.6 x 14.5" / 48.2 x 6.6 x 36.6 cm
Without Handles: 16.75 x 2.6 x 14.5" / 42.4 x 6.6 x 36.6 cm | | Weight | 13.7 lb / 6.2 kg | | | | Package Weight | 18.6 lb | | Box Dimensions (LxWxH) | 21.6 x 21.0 x 8.6" |
