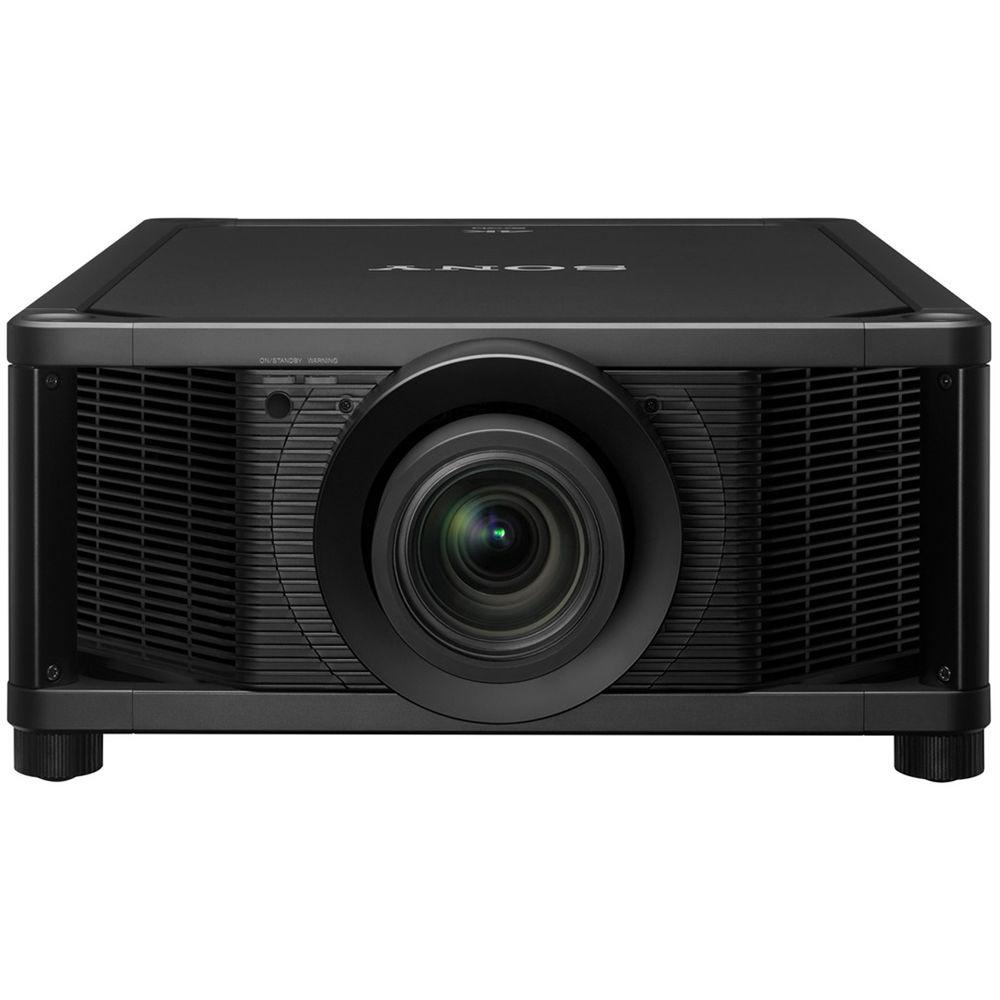

Product description The 5000-Lumen 4K SXRD Projector from Sony delivers 4K images with 5000-lumen light output. The long-lasting laser light source is combined with 4K SXRD panel technology to deliver bright, crisply detailed native 4K images with a resolution of 4096 x 2160. Picture quality is further enhanced by Reality Creation upscaling, plus configurable support for HDR (High Dynamic Range). Whisper-quiet fan noise makes this projector fitting for museums, galleries, planetariums, and other visitor attractions.
The projector is suitable for demanding multi projection applications in 2D or 3D, with consistently homogeneous brightness. It can also be readily configured (with optional license) for IR night vision simulation applications. The laser light source is rated for a nominal 20,000 hours or up to 40,000 hours in constant brightness mode. Long term reliability is assured further by dust-sealed optics. The projector features auto calibration compatibility with leading AV room automation systems and a robust chassis which can be installed at any angle for maximum flexibility. - Wide color space BT.2020 emulated
- Multi-projection blending
- Long-life optics up to 40,000 hours
- Sealed optics for dust-resistance
- One-way air flow and liquid cooling system with low noise operation
- Quick start enhances operation
- HDMI two inputs (HDCP 2.2 x 2), Digital (RGB/Y Pb/Cb Pr/Cr)
DisplayPort two inputs (HDCP 1.3 x 1, HDCP 1.3 for V Split x 1), Digital (RGB) - Up to 12-bit via HDMI / Up to 10-bit via DisplayPort
- Accepted Digital Signals: VGA, SVGA, XGA, WXGA (1280 x 768), Quad-VGA, SXGA, 720 x 480/60p, 720 x 576/50p, 1280 x 720/50p, 1280 x 720/60p, 1920 x 1080/50i, 1920 x 1080/60i, 1920 x 1080/24p, 1920 x 1080/50p, 1920 x 1080/60p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/50p, 3840 x 2160/60p, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096 x 2160/50p, 4096 x 2160/60p
In the Box Sony 5000-Lumen 4K SXRD Projector (No Lens) RM-PJ29 Remote Control 2 x AA Manganese Batteries (R6) AC Power Cord Limited 3-Year or 12,000-Hours Warranty (Whichever Occurs First) More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 5000-Lumen 4K SXRD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPLGTZ270 Specs | | | Display System | 3-Chip 0.74" LCD | | Native Chip Resolution | 4096 x 2160 (DCI 4K) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
SXGA | | Max Brightness | White: 5000 Lumens
Color: 5000 Lumens | | Contrast Ratio | 20000:1 | | Dynamic Contrast Ratio | 30,000:1 | | Color Depth | 12-Bit (68 Billion Colors) | | | | Inputs/Outputs | 2 x HDMI Video (Input)
2 x DisplayPort Video (Input)
2 x 12 V Trigger Video
1 x RS-232C (DE-9) Remote
1 x USB Type-A Female | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN | | Memory Card Slot | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 35 dB | | Supported Languages | Arabic
Dutch
English
French
German
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 6 to 12 A | | Heat Dissipation | 4092 BTU | | Power Consumption | Medium Brightness: <1200 W
Standby Mode (Lamp Off): 0.4 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)

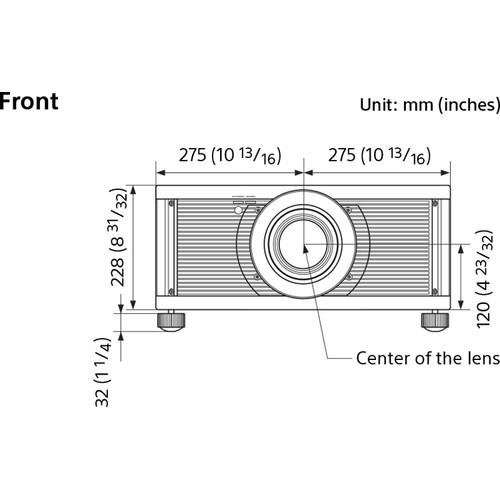

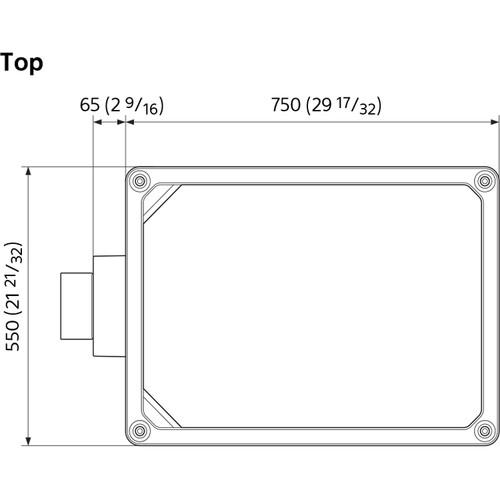

Humidity: 20 - 80% | | Dimensions (W x H x D) | 21.7 x 9.0 x 29.5" / 55.0 x 22.8 x 75.0 cm without protrusions
21.7 x 10.3 x 29.5" / 55.0 x 26.2 x 75.0 cm with protrusions | | Weight | 88.00 lb / 39.92 kg excluding lens |
