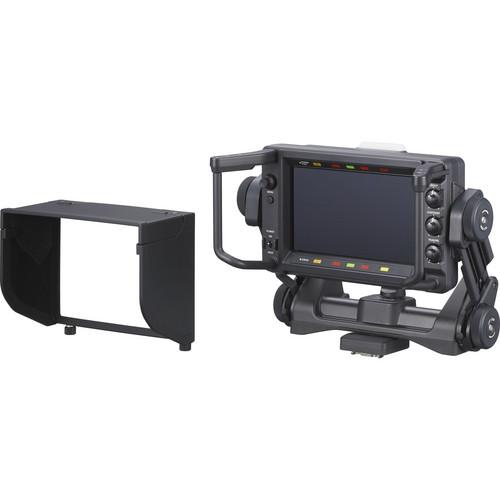

User Manual for Sony 7.4" OLED HD ViewFinder for Portable Cameras Click to enlarge the picture
Contents of the user manual for the Sony 7.4" OLED HD ViewFinder for
- Product category: Viewfinders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Viewfinders
|
User manual for the Sony 7.4" OLED HD ViewFinder for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony 7.4" OLED HD ViewFinder for Portable Cameras is designed for use with HDC Series Cameras and helps to quickly track and focus on moving object, making it ideal for applications such as sports coverage, and focus assist function helps for accurate focusing. It uses organic Light Emitting Diode technology that draws less energy (19.5 W) and offers light emission from zero (deep blacks) to peak brightness (350 cd/m2) with a contrast ratio of more than 1,000,000:1.
A 10-bit panel driver ensures a smooth gradation from dark to bright portions of the image and allows you to precisely see contrast and color levels while framing a shot. The image magnification function can magnify the image displayed on the viewfinder. You can use the peaking plus function to improve the edge of an object by color, area selected, or both.
The 7.4" HD ViewFinder includes other user-friendly features such as four assignable switches, waveform monitor function, and stable and long-term color reproduction with Sony's feedback circuit. Flexible position adjustment mechanism offers various viewing positions – from high to low and left to right. - 7.4" HD (960 x 540) OLED panel with OLED display technology
- For use with HDC Series Cameras
- Consumes less power (19.5 W)
- Quick response for tracking and focusing on moving object making suitable for applications such as sports coverage
- Offers light emission from zero (deep blacks) to peak brightness (350 cd/m2) with a contrast ration of more than 1,000,000:1
- Focus assist function supports accurate focusing
- Image magnification function magnifies only the portion of the image displayed on the viewfinder
- Peaking plus function to improve the edge of an object by color, area selected, or both
- Waveform monitor function
- Stable and long-term color reproduction with Sony's feedback circuit
- OLED panel creates smoother-than-ever gradation from dark to bright portions
- Flexible position adjustment mechanism offers various viewing positions - from high to low and left to right
- Easy to place the viewfinder to suit your requirements or even fold downwards when not in use
In the Box Sony 7.4" OLED HD ViewFinder for Portable Cameras Indoor Hood Number Plate V-wedge Shoe Attachment Hexagonal Wrench 4 x Socket Head Cap Screws Cleaning Cloth Connecting Cable Operation Manual 1-Year Parts/90-Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony 7.4" OLED HD ViewFinder for Portable Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDVFEL75 Specs | Panel | 7.4" (188 mm) color OLED panel | | Effective Picture Size (H x V) | 16:9 aspect ratio: 6.5 x 3.62" (164 x 92 mm) | | Effective Pixels | 960 (H) × 540 (V) × 3 (RGB) | | Brightness | 350 cd/m² (peak brightness, typical) | | Resolution | 500 or more lines | | Color Temperature | D65 | | Camera Connector | Round 20-pin (x1) | | Power Requirements | 10.5 V to 17.0 V DC (supplied by the camera) | | Power Consumption | 19.5 W | | Operating Temperature | -4 to 113° F (-20 to 45° C) | | Weight | 7 lb (3.5 kg) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 22.7 x 16.8 x 12.1" |
