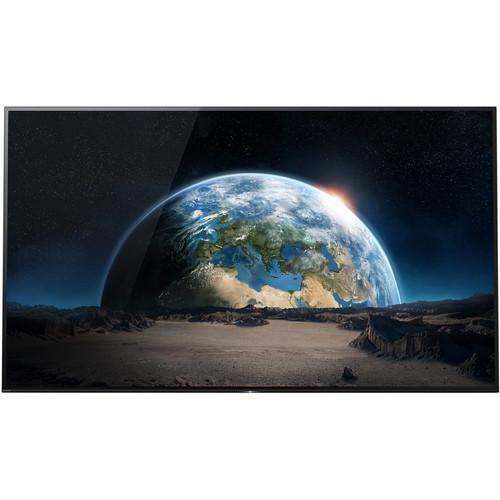

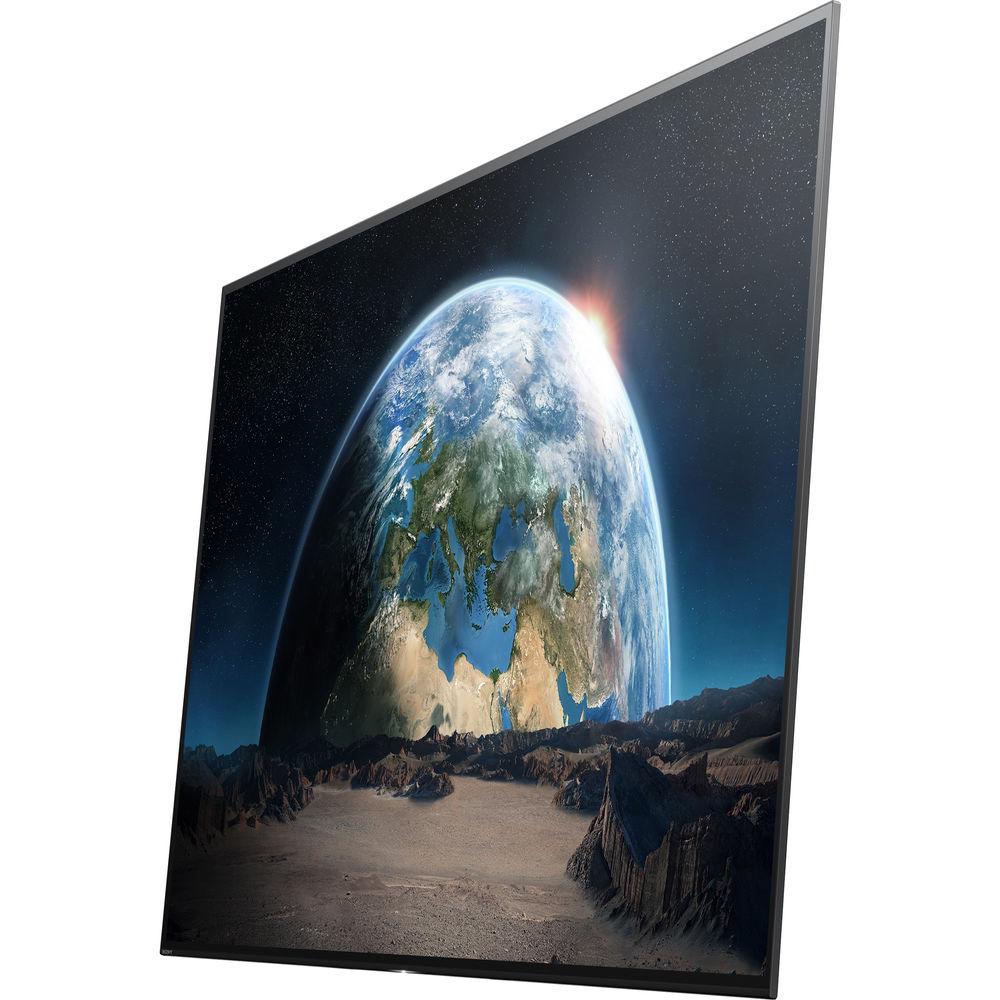

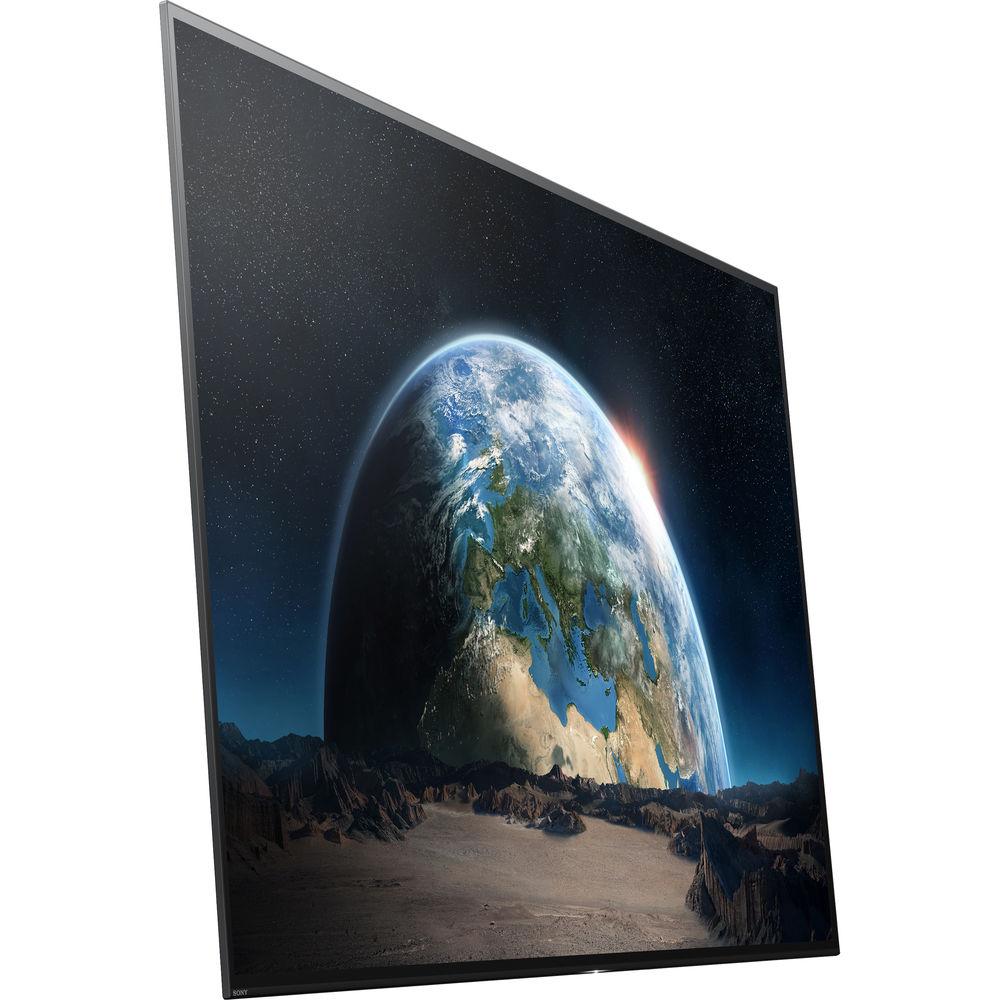

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony A1E 77" Class HDR UHD Smart OLED TV. It has a 76.7" OLED display, and incorporates Sony's Motionflow XR technology to digitally enhance fast-moving images to reduce blur. The A1E-series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and Internet-based content via its Android TV operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Opera web browser is also available for download through the Google Play store.
With four HDMI inputs, there are multiple options for connecting high-definition video sources. A composite video input is also available for connecting legacy equipment, while three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - Enhanced Contrast and Black Levels
- Sony's OLED TV is designed to produce enhanced black, shadow, and color. Over 8 million self-illuminating pixels are individually controlled by the X1 Extreme processor, helping to create an exquisite, unprecedented contrast.
- Designed for Pure Black
- OLED pixels work individually and can be turned off completely to deliver absolute black levels, helping to reveal enhanced detail, depth, textures, and colors.
- Enhanced Detail with 4K HDR
- Combined with 4K Ultra HD resolution, HDR video content delivers enhanced detail, color, and contrast, with a wider range of brightness than other video formats.
- 4K HDR Processor X1 Extreme
- Sony's 4K HDR Processor X1 Extreme is designed to outperform their 4K Processor X1 with 40% more real-time image processing power. It takes everything you watch and upscales it to near-4K HDR quality. Object-based HDR Remaster technology can detect, analyze, and optimize each object in the picture individually to adjust the overall contrast for a more natural and realistic picture.
- Dual Actuators for a Unique Acoustic Experience
- Rather than traditional speaker drivers, the A1E-series uses dual actuators that vibrate the OLED screen itself to produce sound.
- Vibrant Colors and Smooth Gradations
- Colors are designed to be as rich and vivid as nature's own with TRILUMINOS Display technology, with more shades of red, green, and blue. Also, 4K HDR Super Bit Mapping reveals thousands of shades and gradations of light, for sunsets as bright and clear as real life.

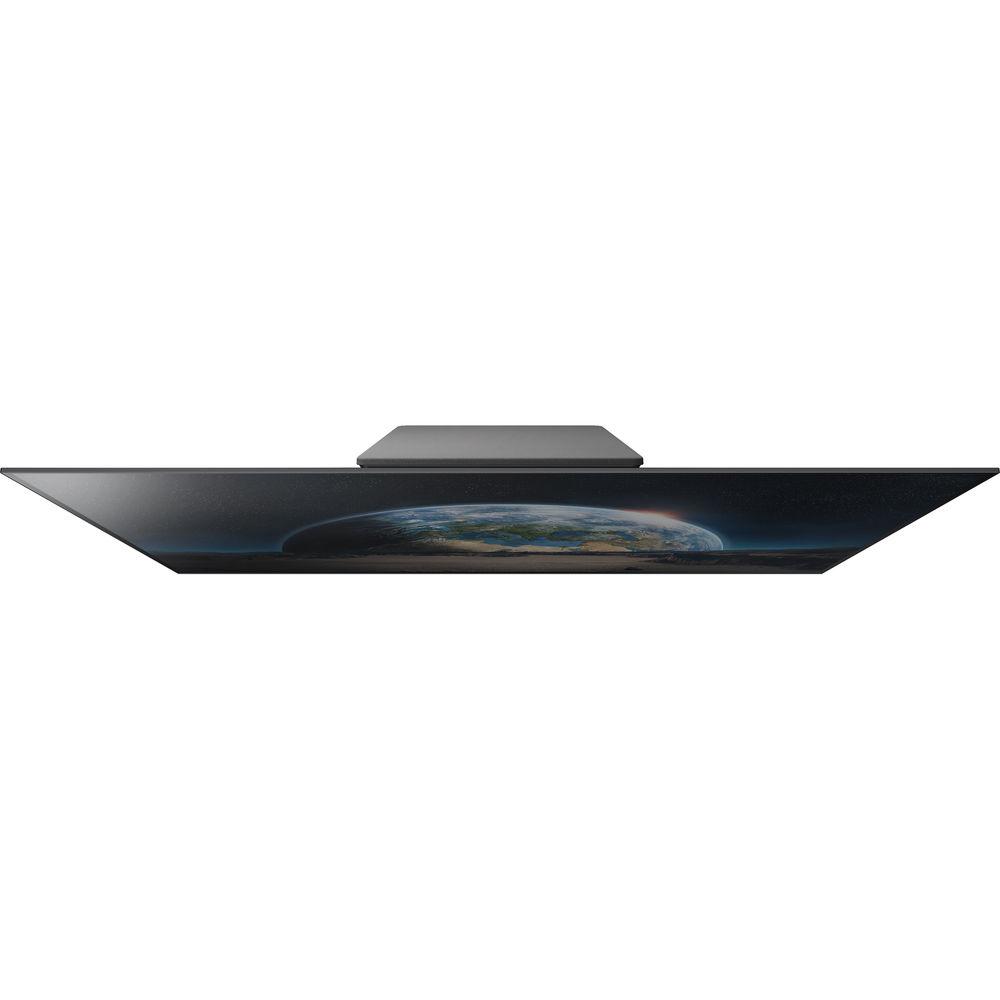

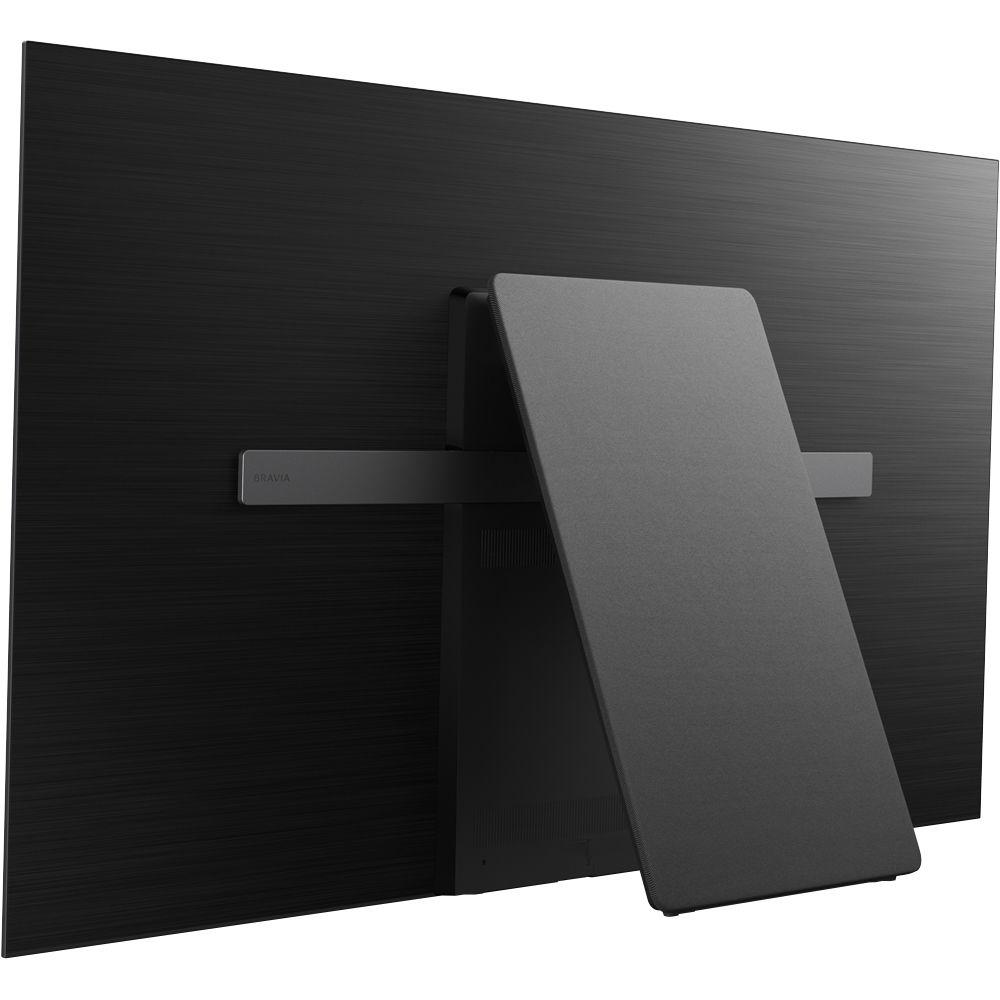

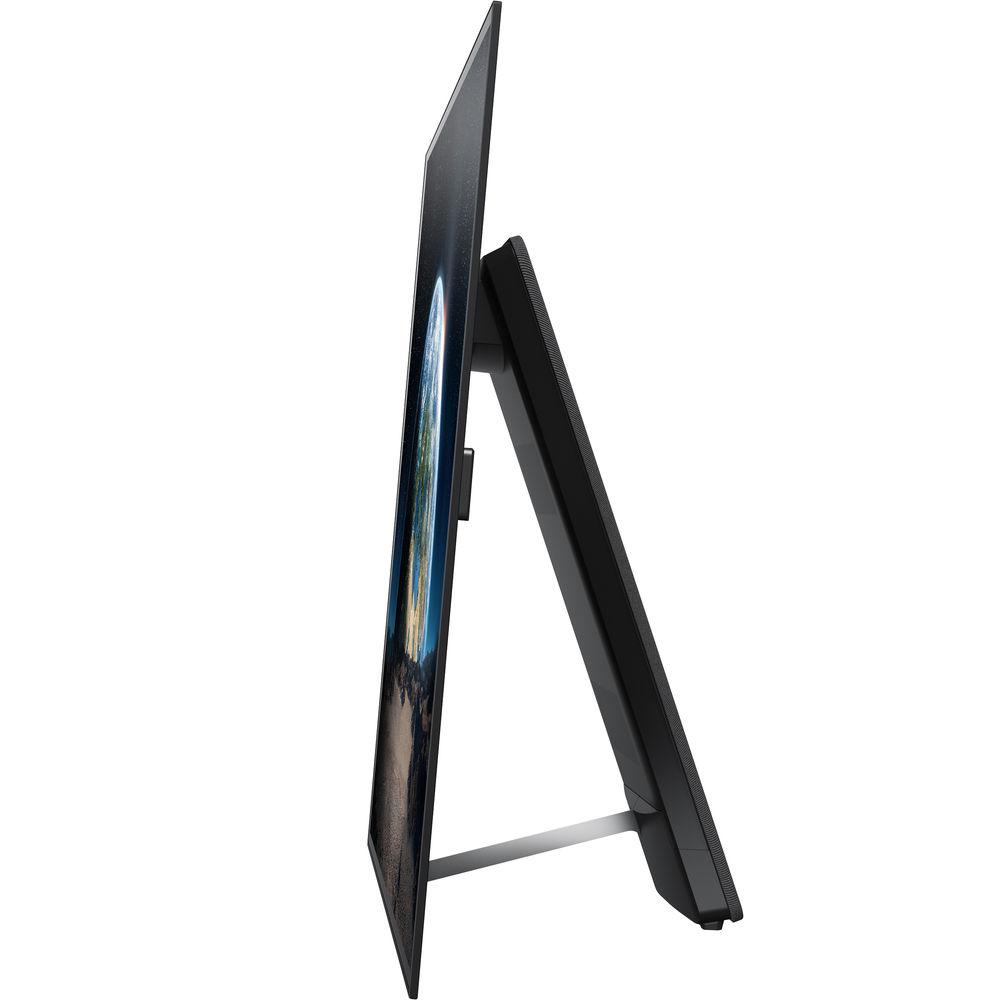

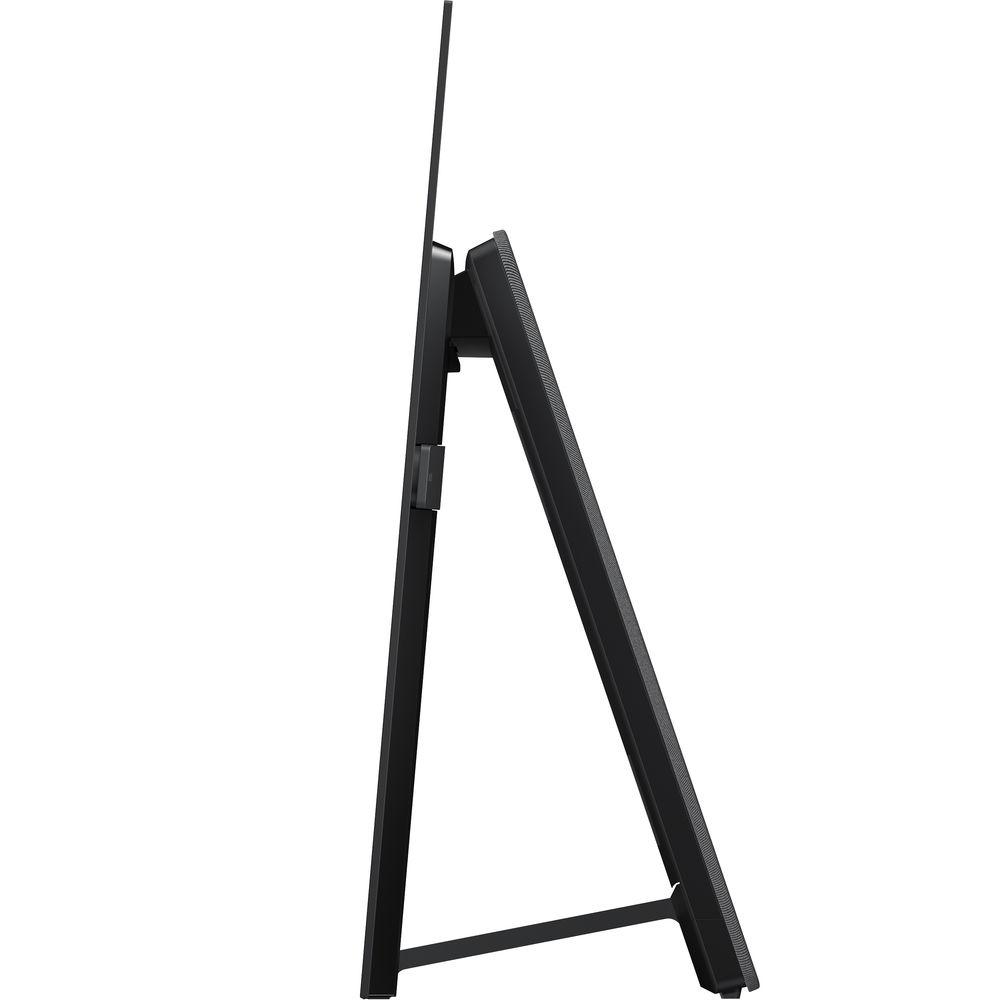

- 360° of Design
- This OLED TV is designed so that the stand and speakers virtually disappear.
- Powered by Android TV OS
- From movies and TV shows to thousands of apps, the Android TV OS (Android 6.0 Marshmallow) is designed to brings you your favorite content in an instant. Cast your favorite apps with Google Cast, and Voice Search helps you find the entertainment you want. And with Google Home compatibility, simply voice-control your TV and ask it to do things, like play your favorite YouTube videos.
- Near-4K Upscaling
- Two image improvement databases work together to dynamically improve images in real time; 4K X-Reality PRO upscales images to near-4K clarity, while a second database is designed to clean the picture and reduce on-screen noise. Every pixel is enhanced by the 4K HDR Processor X1 Extreme.
- Live TV with No Annual Contract
- PlayStation Vue allows you to enjoy live TV streaming, including sports, news and more, from your favorite networks, with no annual contract and no surprise fees.
- Motionflow XR Helps Keep the Action Smooth
- Sony's Motionflow XR refresh rate technology enhances the OLED's panel speed to allow fast-moving action sequences in sports and movies to be seen with enhanced clarity.
- Just Say What You Want
- Spend less time browsing, and more time watching. Voice search on Android TV provides you with the power of Google search in 42 languages, allowing you to find content across different services without the hassle of time-consuming text entry.
- Send to a Bigger Screen with Chromecast built-in
- Send movies and music from your smartphone to your TV with Chromecast built-in, plus you can use your phone as a remote control.
- Your Favorite Apps on Your TV
- Enjoy a range of apps from Google Play, including YouTube, Netflix, Amazon Video, Hulu, Pandora, and more. You can also play your favorite Android games on the big screen.
- Integrated Cable Management
- Keep wires out of sight, thanks to a hidden cable panel structure, for a clean look.
- Additional Features
-
- Audio balance adjustment
- DSEE
- Four 0.98" actuators with one 3.15" woofer
- Advanced Auto Volume
- Digital Alternate Audio
- 2-channel linear PCM at 48 kHz, 16-bits Dolby Digital, Dolby Digital Plus, DTS output via ARC
- Auto mute on no signal
- Auto surround
- Clear Audio+
- Clear Phase
- 2-channel linear PCM at 48 kHz, 16-bits Dolby Digital, DTS output via optical
- Supports Dolby Digital, Dolby Digital Plus, Dolby Pulse, and DTS Digital Surround
- HDMI audio input formats include 5.1-channel linear PCM at 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz; 16-, 20-, and 24-bits; plus Dolby Digital, Dolby Digital Plus, and DTS
- Headphone/speaker link
- S-Force Front Surround
- S-Master Digital Amplifier
- Auto Picture Mode
- Auto shut-off
- Parental controls, including analog & digital channel password protection and channel hiding
- HDMI CEC and RS-232 control
- On/off timer, on-screen clock, and sleep timer
- USB support for FAT16, FAT32, exFAT, and NTFS
- Power saving modes
- Analog & digital closed captioning
- Demo & Hotel modes
- 4K 60p supported up to 18 Gbps, 4:4:4 (8-bit); 4:2:2 (8-, 10-, and 12-bit); 4:2:0 (8- and 10-bit)
- Hybrid headphone output, audio output, and subwoofer output
- HDCP 2.2 on all inputs
- Content Bar with genre categories and related info
- Home Network Client / Home Network Renderer
- Live Football Mode
- Photo Share / Photo Sharing Plus
- Miracast-capable
- Social Viewing
- Trending on Twitter (in US)
- TV SideView
- Integrated dual-band Wi-Fi 802.11a/b/g/n/ac
- Wi-Fi Direct
- LightSensor Technology
- sRGB color space
- 16 GB onboard storage
- 24p True Cinema Mode
- Auto Wide and 4:3 Default modes
- Frame Blinking
- Dynamic Contrast Enhancer
- Face Area Detection
- Live Color Technology
- Mastered in 4K
- Object-based HDR remaster
- PhotoTV HD
- Precision Color Mapping

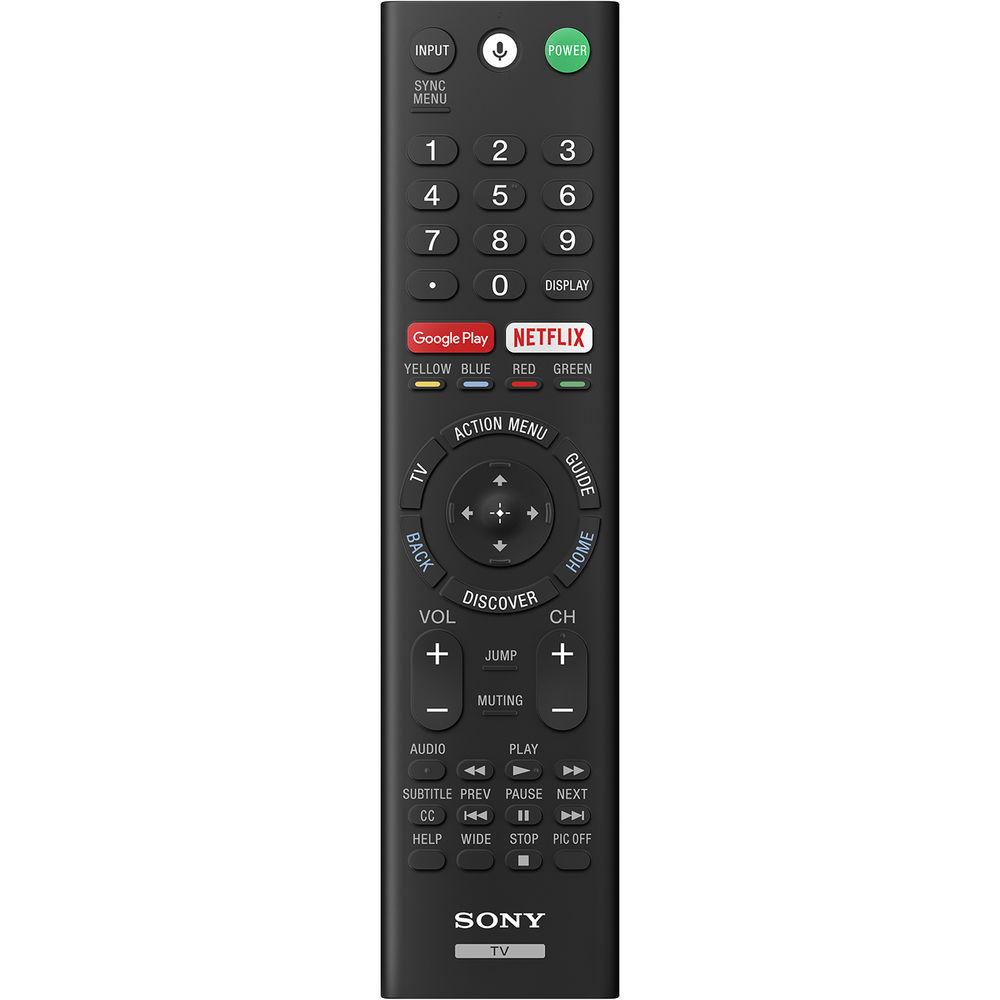

UPC: 027242906853 In the Box Sony A1E 77" Class HDR UHD Smart OLED TV Voice Remote Control with Batteries 6.6' Power Cord IR Blaster Stand Assembly Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony A1E 77" Class HDR UHD Smart OLED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony A1E Specs | | | Screen Size (Diagonal) | 76.7" | | Panel Type | OLED | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10 | | Refresh Rate | 120 Hz | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 4 x HDMI – Audio, Video (Bottom)
1 x RF Antenna – Audio, Video (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom)
1 x RCA Composite – Video (Bottom) | | Output Ports | 1 x 1/8" / 3.5 mm – Audio, Headphone (Bottom)
1 x TOSLINK Optical – Audio (Bottom) | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video (Bottom)
1 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | Control | 1/8" (3.5 mm) Mini | | | | Sound | Stereo | | Subwoofer | No | | Power | 50 W | | Dolby Digital | Yes | | | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | ASF
AVCHD
AVI
FLAC
JPEG
LPCM
MOV
MP3
MP4
MPEG1
MPEG2
MPEG2PS
MPEG2TS
MPEG4
MPEG4/AVC
WAV
WMA
WMV
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | | | Power Requirements | 120 VAC, 60 Hz | | | | Package Weight | 115.0 lb | | Box Dimensions (LxWxH) | 72.5 x 46.0 x 9.5" |
