Sony a6300 Mirrorless Digital Camera with

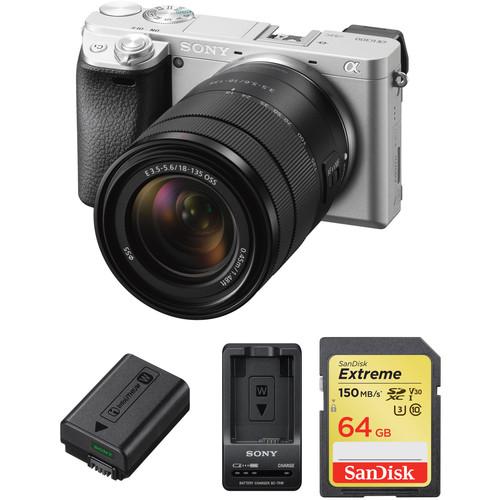

User Manual for Sony a6300 Mirrorless Digital Camera with 18-135mm Lens Premium Kit

• Product category: Mirrorless System Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Cameras

Product description

• Sony Alpha a6300 Mirrorless Digital Camera with 18-135mm Lens (Silver)
  • a6300 -Advanced 4D FOCUS | a | Sony
  • Sony | a | a6300 -Ultimate resolution 4K movie in Super 35mm
  • a6300 -Fast Hybrid AF in 4K movies | a | Sony
  • a6300 -5x Slow Motion in Full HD | a | Sony
  • a6300 -AF Performance Test | a | Sony
  Fast-focusing and 4K-shooting, the silver Alpha a6300 from Sony is a versatile APS-C-format mirrorless digital camera designed for multimedia image-makers. Revolving around a redeveloped 24.2MP Exmor CMOS sensor and BIONZ X image processor, clean image quality is provided with a wide expandable sensitivity range to ISO 51200, along with accelerated readout speeds for internal 4K30 and Full HD 1080p120 video recording with full pixel readout. Stills shooters also benefit from the apt processing speed, which enables continuous shooting at 11 fps for up to 21 raw frames in a burst, as well as 14-bit raw file output. Complementing both stills and video, the sensor and processor combination also avails 4D FOCUS, which combines a wide-coverage 425-point phase-detection system with a 169-area contrast detection system for quick and precise focusing performance. This focusing system also enables High-density Tracking AF for more efficient and accurate tracking of moving subjects across the image frame. A well-rounded camera for both photographers and videographers, the a6300 is characterized by its speed and further qualified by its refined image and video quality.

  Complementing the imaging assets, the a6300 also sports a robust magnesium alloy body that is dust- and moisture-resistant to permit working in harsh environments. The compact profile incorporates a high-resolution XGA Tru-Finder 2.36m-dot OLED electronic viewfinder for bright, clear, eye-level viewing, and this EVF features a 120 fps viewing mode for smooth tracking of fast-moving subjects. A rear 3.0" 921.6k-dot LCD monitor is also available and has a tilting design to benefit shooting from high and low working angles. Additionally, for wireless remote control over the camera, or for just sharing imagery online, built-in Wi-Fi with NFC permits linking with a mobile device for intuitive wireless control.
  24.2MP Exmor CMOS Sensor and BIONZ X Processor
  • The APS-C-format 24.2MP Exmor CMOS sensor pairs with the BIONZ X image processor to realize smooth, nuanced image quality with minimal noise and high sensitivity from ISO 100-25600, which can further be expanded to ISO 51200 for working in low-light conditions. The sensor features a unique design that utilizes thin copper wiring and enhanced circuit processing to boost light-gathering abilities, reduce noise, and increase readout speeds to benefit video recording. The sensor and processor combination also avails a top continuous shooting rate of 11 fps for up to 21 raw frames in a single burst with AF and AE, 8 fps shooting in live view, and permits 14-bit raw file output for a wider tonal and color scale.
  4D FOCUS
  • Covering nearly the entire sensor area, a powerful 4D FOCUS system incorporates 425 on-chip phase-detection points along with 169 contrast-detection areas for precise focusing in as little as 0.05 seconds. The density of focusing points from this hybrid AF system also enables High-density Tracking AF Technology, which is adept at tracking moving subjects in a variety of lighting conditions. The use of phase-detection points also enables the use of A-mount lenses via the optional LA-EA3 or LA-EA1 lens mount adapters with full AF compatibility.

    The apt 4D FOCUS system also lends itself to a variety of focusing functions for refined accuracy, including Lock-on AF, which maintains focus on moving subjects throughout the use of a configurable frame that is set over the desired moving subject, and Expand Flexible Spot, which employs neighboring focus points to retain focus on moving subjects even if the originally selected point loses focus. Additionally, Eye AF can be used to base focus on recognized subjects' eyes for portraits and is available in both AF-S and AF-C modes. Autofocus can also be used in conjunction with the Focus Magnifier function for critical focus when homing in on minute subject details.

    In addition to autofocus, the a6300 also features a Peaking MF function to benefit manual focus control by highlighted sharp edges of contrast for a more objective means of acquiring sharp focus.
  UHD 4K Video Recording
  • Internal recording of UHD 4K movies is possible in multiple frame rates up to 30 fps and, based on the Super35mm recording area and effective 20MP (6000 x 3376) resolution, 2.4x oversampling renders greater detail and full pixel readout is possible, that is void of pixel binning, for higher quality imagery with reduced moiré and aliasing. Full HD 1080p recording is also supported in frame rates up to 120 fps, and both resolutions utilize the 100 Mbps XAVC S format contained within an MP4 wrapper with 4:2:0 sampling. The high-speed, 120 fps recording also enables 4x and 5x slow-motion movie recording with the frame rate set to either 30p or 24p. In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling.
  Custom Color Profiles and S-Log3 Gamma
  • Support is available for the S-Gamut3.Cine/S-Log-3 and S-Gamut3/S-Log3 profiles that enable up to a 1300% wider dynamic range for smoother tonal and color gradations, along with enhanced sensitivity and clarity in shadows and mid-tones. These profiles also lend themselves to greater compatibility within a professional workflow and are well-paired to the Cineon Log gamma curve for versatile post-production grading and color control. The S-Log3 gamma setting also offers an impressive 14-stop wide dynamic range for greater control over the highlights and shadows, while the S-Gamut3.Cine profile can be used to mimic the qualities of scanned negative film with a wide gamut comparable to the DCI-P3 color space. Additionally, the popular S-Log2 setting is also available.
  Zebra and Gamma Display Assist
  • An enhanced Zebra function is ideally suited to working with S-Log gamma profiles and aids in monitoring exposure values in high-contrast scenes. Video signal level targets can be set from 0 to 109, and specific ranges can be set to make exposure level adjustments easier.

    In contrast, a Gamma Display Assist function is also available that displays scenes with natural contrast when recording with S-Log settings. This function converts imagery to the ITU709 profile for easier on-camera monitoring.
  Time Code and User Bit Settings
  • A time code can be used to record hours, minutes, seconds, frames on image data for more precise editing while the User Bit function can record date, time, and scene number to aid in editing together footage from multiple cameras.
  Body Design and Built-In Wi-Fi
  • • A robust magnesium alloy body offers a durable profile, and also incorporates dust and moisture seals to protect against harsh environments.
    • The XGA Tru-Finder 2.36m-dot OLED electronic viewfinder offers a bright, high-resolution means for eye-level monitoring, and also sports a dedicated 120 fps mode for smoother viewing when tracking moving subjects.
    • A 3.0" 921.6k-dot LCD screen can be tilted 90° upward or 45° downward to suit working from high and low angles. The screen also incorporates White Magic technology with an RGBW pixel structure for increased brightness to support use in daylight conditions.
    • Nine customizable buttons can be set to control more than 64 functions for more intuitive handling.
    • The included NP-FW50 rechargeable lithium-ion is rated for 350 shots per charge when working with the viewfinder, or 400 shots per charge with the LCD screen.
    • In addition to the battery, the a6300 can also be powered via a USB connection to a computer or mobile battery. This connection can also be used to charge the battery.
    • A rigid metal lens mount better supports working with larger, heavier lens designs.
    • An ergonomic grip structure is ideal for long shooting sessions and facilitates easy access to the main control buttons and dials.
    • Built-in Wi-Fi enables the a6300 to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.
    • PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.
  E 18-135mm f/3.5-5.6 OSS Lens
  • Included with the camera is the E 18-135mm f/3.5-5.6 OSS lens, which offers a wide-angle to telephoto 27-202.5mm equivalent focal length range. Benefitting the reach of the lens is an Optical SteadyShot image stabilization system, which minimizes the appearance of camera shake for sharper handheld shooting. Also helping to produce sharper imagery is a linear autofocus motor, which delivers quick and accurate focusing performance that is also quiet to suit video recording applications. Balancing with the handling attributes, this lens also sports an intelligent optical design that uses both extra-low dispersion glass and aspherical elements to control spherical and chromatic aberrations for high sharpness and clarity throughout the zoom range.
  Other Camera Features
  • • A Silent Shooting mode makes use of an electronic shutter function for completely silent performance that is ideal for photographing in noise-sensitive areas. When using this mode, up to 3 fps continuous shooting is available with autofocus and auto-exposure.
    • Multi Frame NR records consecutive images at a reduced ISO sensitivity and then composites them into a single image to realize higher effective sensitivity with minimal image noise.
    • Dynamic Range Optimizer (DRO) works to improve images featuring backlit subjects or scenes with high contrast where details can be lost in the shadows or highlights. This mode can be controlled automatically or fine-tuned using five settings.
    • Auto HDR automatically records three sequential frames of an image and composites them into a single frame to realize greater shadow and highlight detail with an extended range of mid-tones.
    • An advanced 1200-zone evaluative exposure metering sensor delivers consistent and accurate results using multi-segment, center-weighted, or spot metering modes.
    • When working with ISO Auto settings, you can configure a minimum shutter speed setting to better ensure sharp imagery.
    • Clear Image Zoom can be used to magnify the center of scenes by 2x to effectively extend the reach of any focal length lens. This digital zoom technology uses an intelligent interpolation process to minimize the amount of image degradation in order to produce realistic, high-quality images.
    • Picture Effect: Posterization (Color, B/W), Pop Color, Retro Photo, Partial Color (R, G, B, Y), High Contrast Monochrome, Toy Camera, Soft High-key, Soft Focus, HDR Painting, Rich-tone Monochrome, Miniature, Watercolor, and Illustration.
    • Creative Style: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, and Sepia; contrast, saturation, and sharpness can be adjusted across +/- 3 steps.
  UPC: 027242911741
• Sony NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
  • a6300 -Advanced 4D FOCUS | a | Sony
  • Sony | a | a6300 -Ultimate resolution 4K movie in Super 35mm
  • a6300 -Fast Hybrid AF in 4K movies | a | Sony
  • a6300 -5x Slow Motion in Full HD | a | Sony
  • a6300 -AF Performance Test | a | Sony
  The Sony NP-FW50 Lithium-Ion Rechargeable Battery is unique in its design since it not only supplies power to your camera but will display the remaining battery capacity. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects. UPC: 027242797062
• Sony BC-TRW W Series Battery Charger (Black)
  • a6300 -Advanced 4D FOCUS | a | Sony
  • Sony | a | a6300 -Ultimate resolution 4K movie in Super 35mm
  • a6300 -Fast Hybrid AF in 4K movies | a | Sony
  • a6300 -5x Slow Motion in Full HD | a | Sony
  • a6300 -AF Performance Test | a | Sony
  The black BC-TRW W Series Battery Charger from Sony is compatible with the InfoLITHIUM NP-FW50 battery that powers select digital cameras. It features a retractable plug for easy storage and travel. The charger runs on 100-240VAC power to enable use all over the world. The BC-TRW also has an indicator light that displays charging status.
  Compatible Batteries
  • InfoLITHIUM NP-FW50
  Compatible Cameras
  • a7, a7R, NEX-3D, NEX-3K, NEX-3NL, NEX-5K, NEX-5N, NEX-5NK, NEX-5R, NEX-6, NEX-6L, NEX-7, NEX-C3A, NEX-C3K, NEX-F3K, SLT-A33, SLT-A33L, SLT-A35, SLT-A37, SLT-A55V
  UPC: 027242872387
• SanDisk 64GB Extreme UHS-I SDXC Memory Card
  • a6300 -Advanced 4D FOCUS | a | Sony
  • Sony | a | a6300 -Ultimate resolution 4K movie in Super 35mm
  • a6300 -Fast Hybrid AF in 4K movies | a | Sony
  • a6300 -5x Slow Motion in Full HD | a | Sony
  • a6300 -AF Performance Test | a | Sony
  Designed for SD devices that can capture Full HD, 3D, and 4K video, as well as raw and burst photography, the 64GB Extreme UHS-I SDXC Memory Card from SanDisk has a capacity of 64GB, is compatible with the UHS-I bus, and features a speed class rating of V30, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 standard, this card also supports the U3 standard, which likewise guarantees minimum write speeds of 30 MB/s. Read speeds are supported up to 150 MB/s and write speeds max out at 60 MB/s. A built-in write-protect switch helps to safeguard against the accidental erasure of card data.

  While this card has been designed for cameras that are UHS-I / V30 / U3 compatible, it may be used in devices that do not support UHS-I / V30 / U3. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U1, which supports minimum write speeds of 10 MB/s, or Class 10, which also supports minimum write speeds of 10 MB/s. UPC: 619659170684

• Alpha a6300 Mirrorless Digital Camera with 18-135mm Lens (Silver) wyyysaxbtxvrbxdvydcrtcaxfdwcasux
• E 18-135mm f/3.5-5.6 OSS Lens
• NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
• Shoulder Strap
• Accessory Shoe Cap
• Eyepiece Cup
• Micro-USB Cable
• Limited 1-Year Warranty

• NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)

• BC-TRW W Series Battery Charger (Black)

• SanDisk - 64GB Extreme UHS-I SDXC Memory Card

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Alpha a6300 Mirrorless Digital Camera with 18-135mm Lens (Silver)

  Lens Mount	Sony E
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	Actual: 25 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	23.5 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 100 to 51200)
  Shutter Speed	Electronic Front Curtain Shutter 1/4000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-2 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 11 fps at 24.2 MP for up to 21 Exposures (Raw Format) Up to 11 fps at 24.2 MP for up to 44 Exposures (JPEG Format) Up to 8 fps Up to 6 fps Up to 3 fps
  Self Timer	2/5/10-Second Delay

  Recording Modes	XAVC S UHD 4K (3840 x 2160) at 24p/25p/29.97p [60 to 100 Mb/s] Full HD (1920 x 1080) at 100p/120p [60 to 100 Mb/s] Full HD (1920 x 1080) at 24p/25p/29.97p/50p/59.94p [50 Mb/s] AVCHD Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s] Full HD (1920 x 1080) at 24p/25p [17 to 24 Mb/s] Full HD (1920 x 1080) at 50i/59.94i [17 to 24 Mb/s] MP4 Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s] Full HD (1920 x 1080) at 25p/29.97p [16 Mb/s] HD (1280 x 720) at 25p/29.97p [6 Mb/s]
  External Recording Modes	4:2:2 8-Bit UHD 4K (3840 x 2160) at 24.00p/25p/29.97p Full HD (1920 x 1080) at 24.00p/50i/50p/59.94i/59.94p
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 425 Contrast Detection: 169
  Autofocus Sensitivity	-1 to +20 EV

  Viewfinder Type	Electronic
  Viewfinder Size	0.39"
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 1.07x
  Diopter Adjustment	-4.0 to +3.0 m
  Monitor Size	3"
  Monitor Resolution	921,600 Dot
  Monitor Type	Tilting LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync, Wireless
  Guide Number	19.69' / 6 m at ISO 100
  Maximum Sync Speed	1/160 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe, Wireless

  Memory Card Slot	1 x SD/SDHC/SDXC/Memory Stick PRO HG-Duo/Memory Stick Pro Duo
  Connectivity	3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C

  Battery	1 x NP-FW50 Rechargeable Lithium-Ion, 7.2 VDC, 1080 mAh
  Dimensions (W x H x D)	4.7 x 2.6 x 1.9" / 120.0 x 66.9 x 48.8 mm (Excluding Protrusions)
  Weight	14.25 oz / 404 g (Body with Battery and Memory)

  Focal Length	18 to 135mm (35mm Equivalent Focal Length: 27 to 202.5mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22 to 36
  Angle of View	76 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 83 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
