User Manual for Sony A8F 55" Class HDR UHD Smart OLED TV Click to enlarge the picture
Contents of the user manual for the Sony A8F 55" Class HDR UHD
- Product category: Televisions Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Televisions
 |
User manual for the Sony A8F 55" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

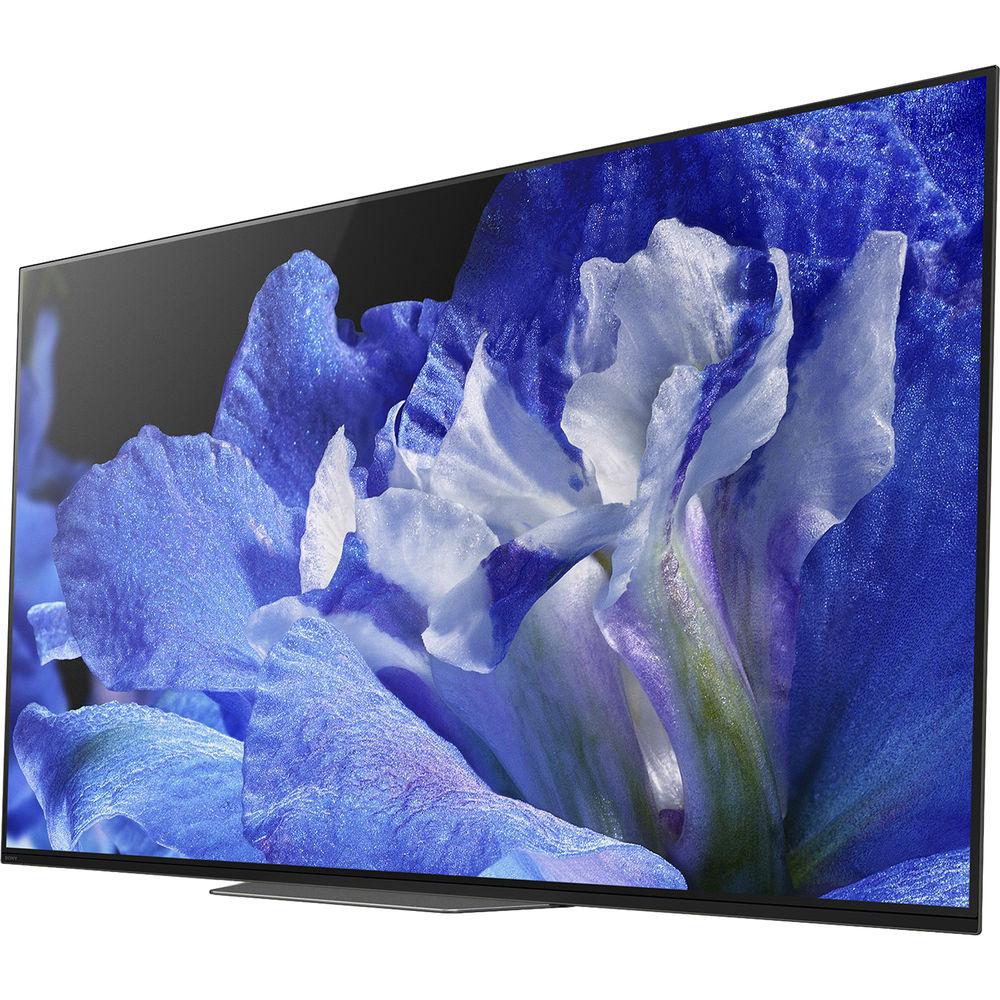

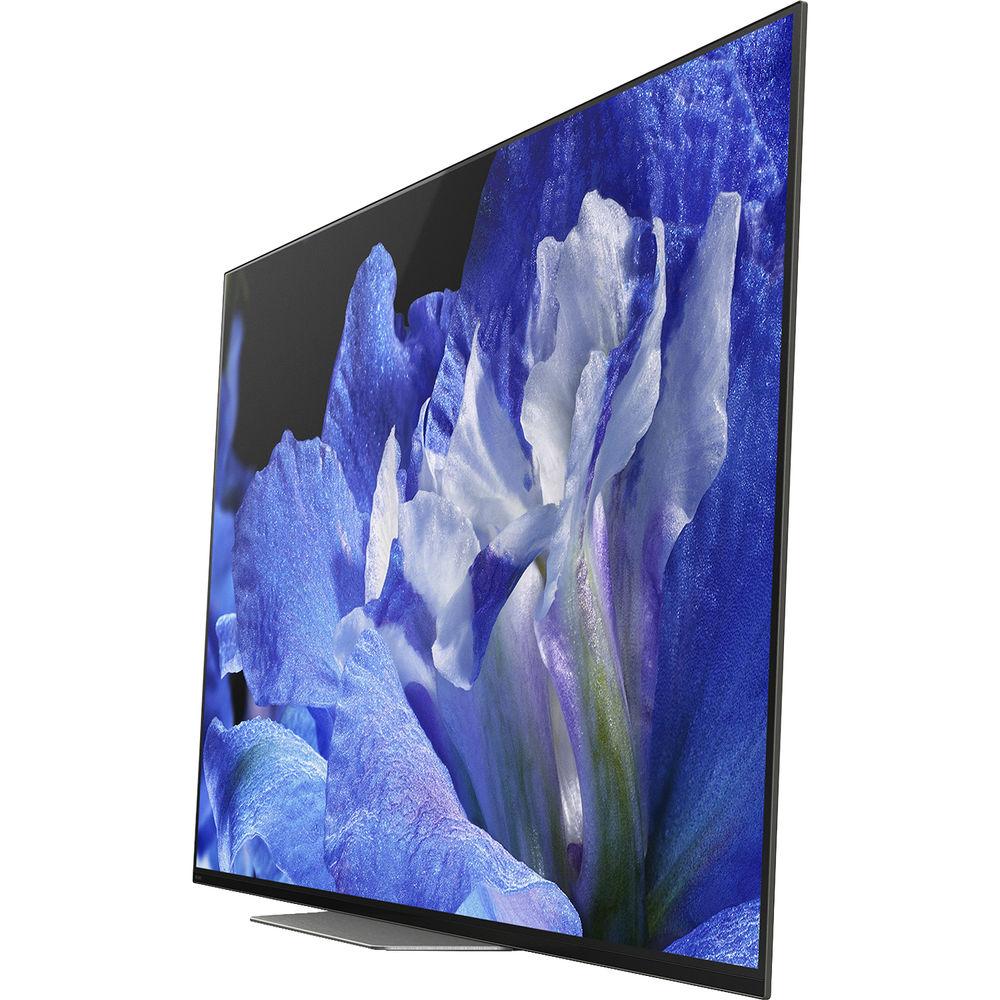

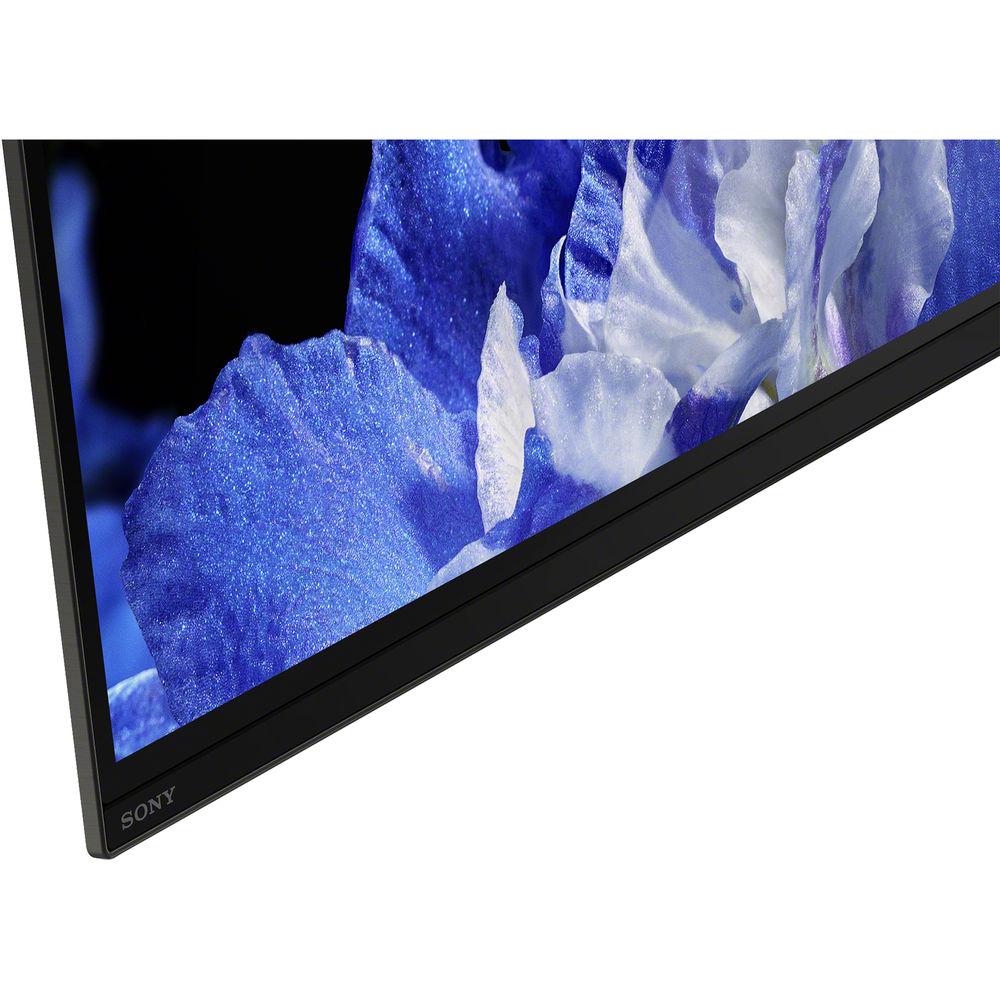

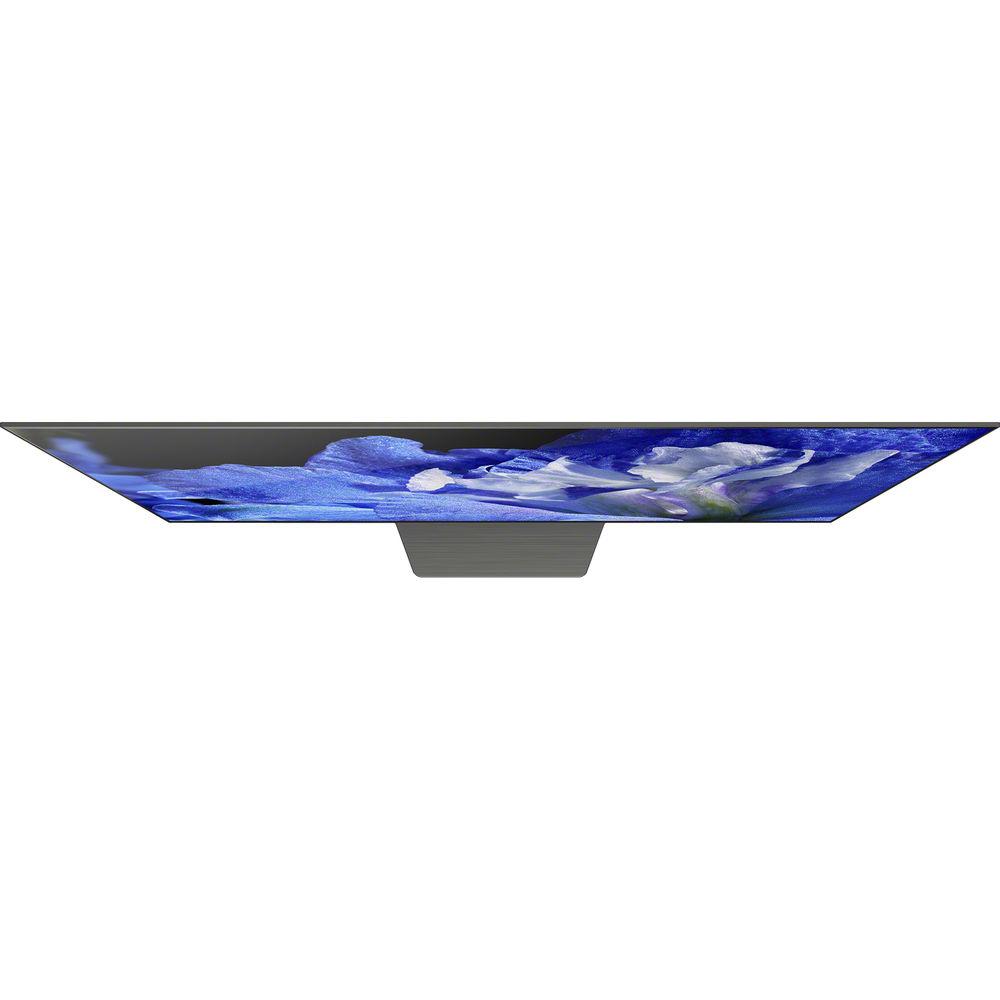

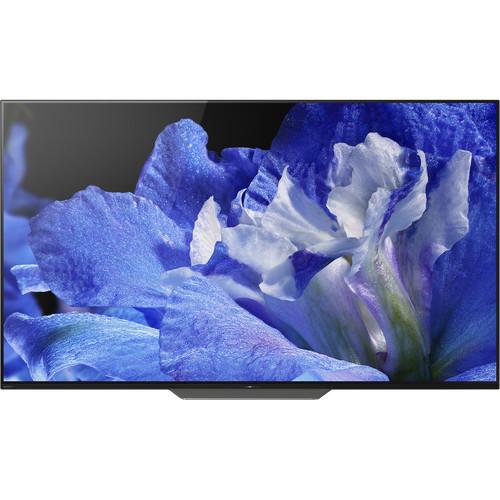

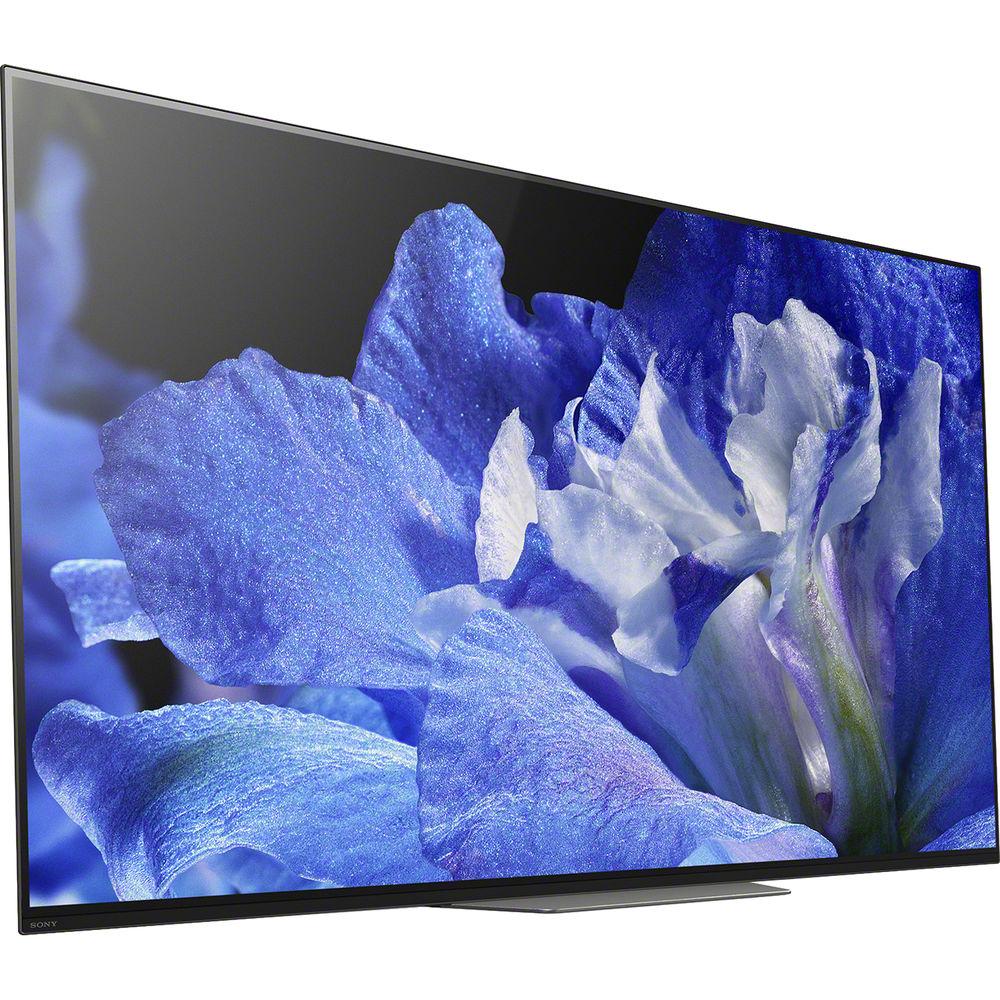

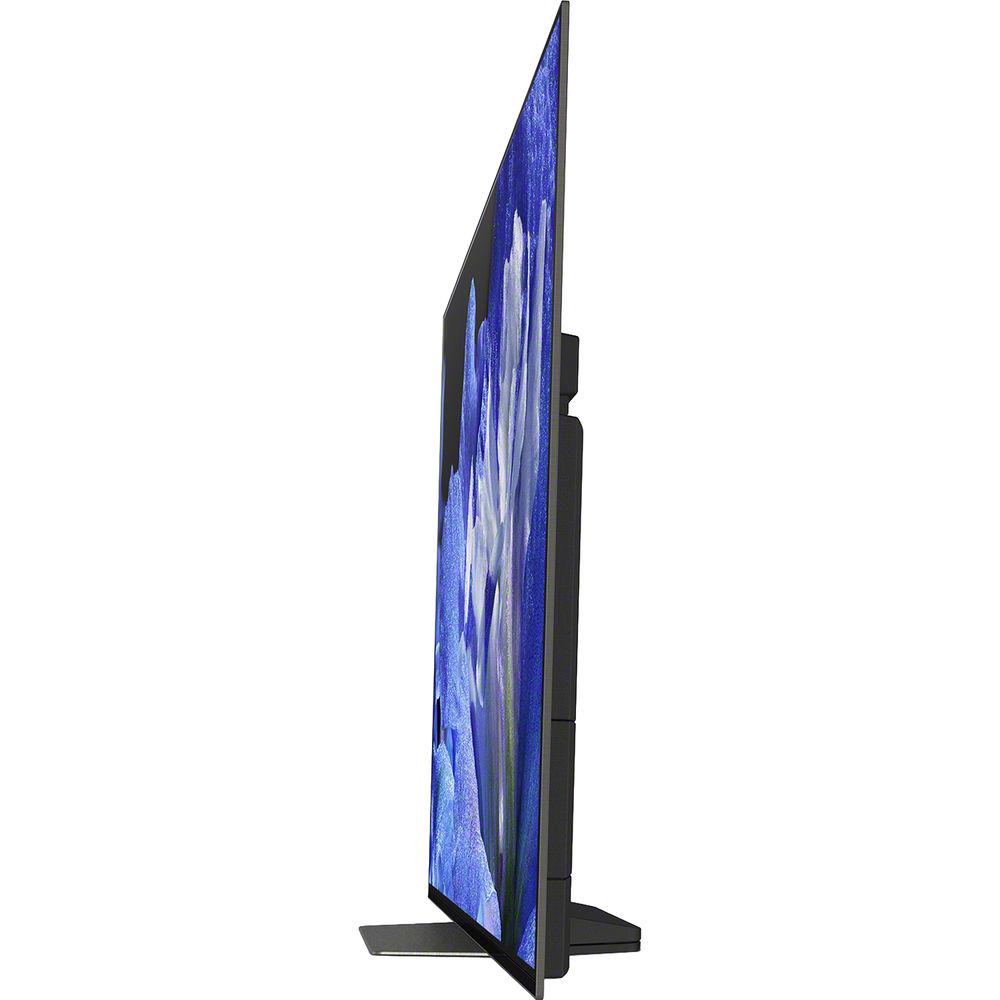

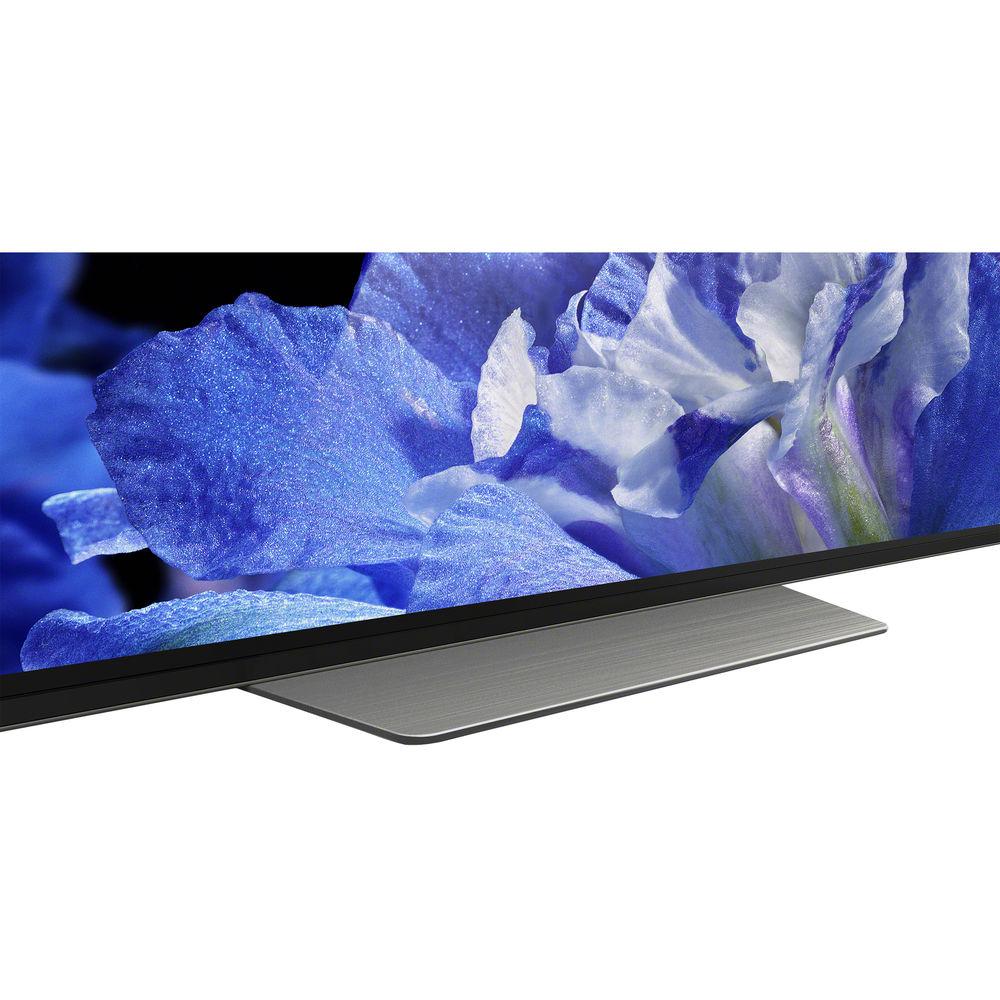

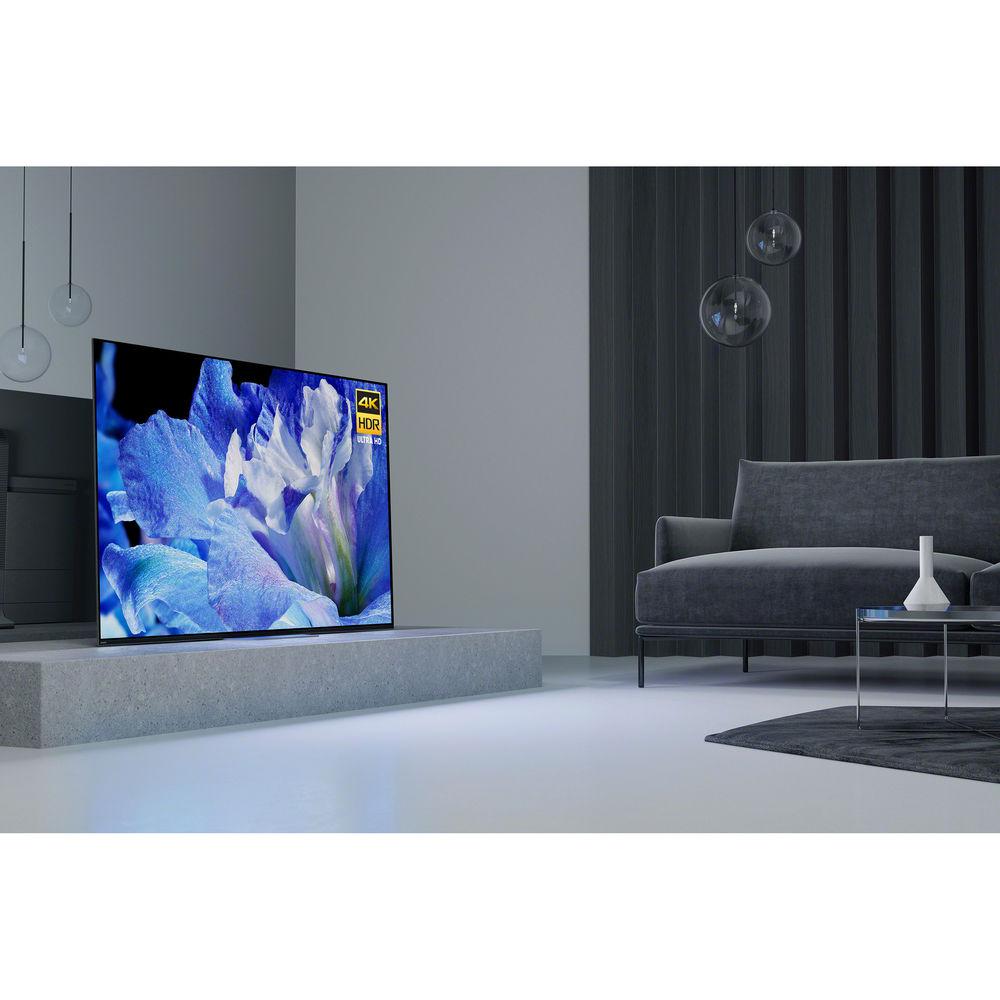

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony A8F 55" Class HDR UHD Smart OLED TV. It has a 54.6" OLED display, and incorporates Sony's Motionflow XR technology to digitally enhance fast-moving images to reduce blur. HDR10 and HLG compatibility provide a wide color gamut for compatible content, and Dolby Vision HDR support is scheduled to be made available via a future firmware update.
The A8F-series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and Internet-based content via its Android operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Vewd web browser is also available for download through the Google Play store. With four HDMI inputs, there are multiple options for connecting high-definition video sources. A composite video input is also available for connecting legacy equipment, while three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - 4K HDR Processor X1 Extreme
- The 4K HDR Processor X1 Extreme features real-time image processing for detailed images and upscaling everything you watch to near-4K HDR quality.
- Acoustic Surface Audio
- Thanks to two built-in actuators, audio emanates from the screen itself, helping to immerse you in your movies and TV shows.
- TRILUMINOS Display
- TRILUMINOS Display technology is designed to map colors from a wide palette to faithfully reproduce every shade and hue.
- HDR Compatibility
- The A8F-series can handle a variety of HDR formats, including HDR10 and Hybrid Log-Gamma (HLG). Dolby Vision support is scheduled to be made available via a future firmware update.
- Google Assistant Built-In
- You can ask the Google Assistant to find your favorites or control the TV or other connected compatible devices using just your voice.
- Works with Amazon Alexa
- Connect your Amazon Alexa-enabled devices for seamless hands-free control of the TV. With Amazon Alexa, you can power on the TV, change channels, control the volume, and more.

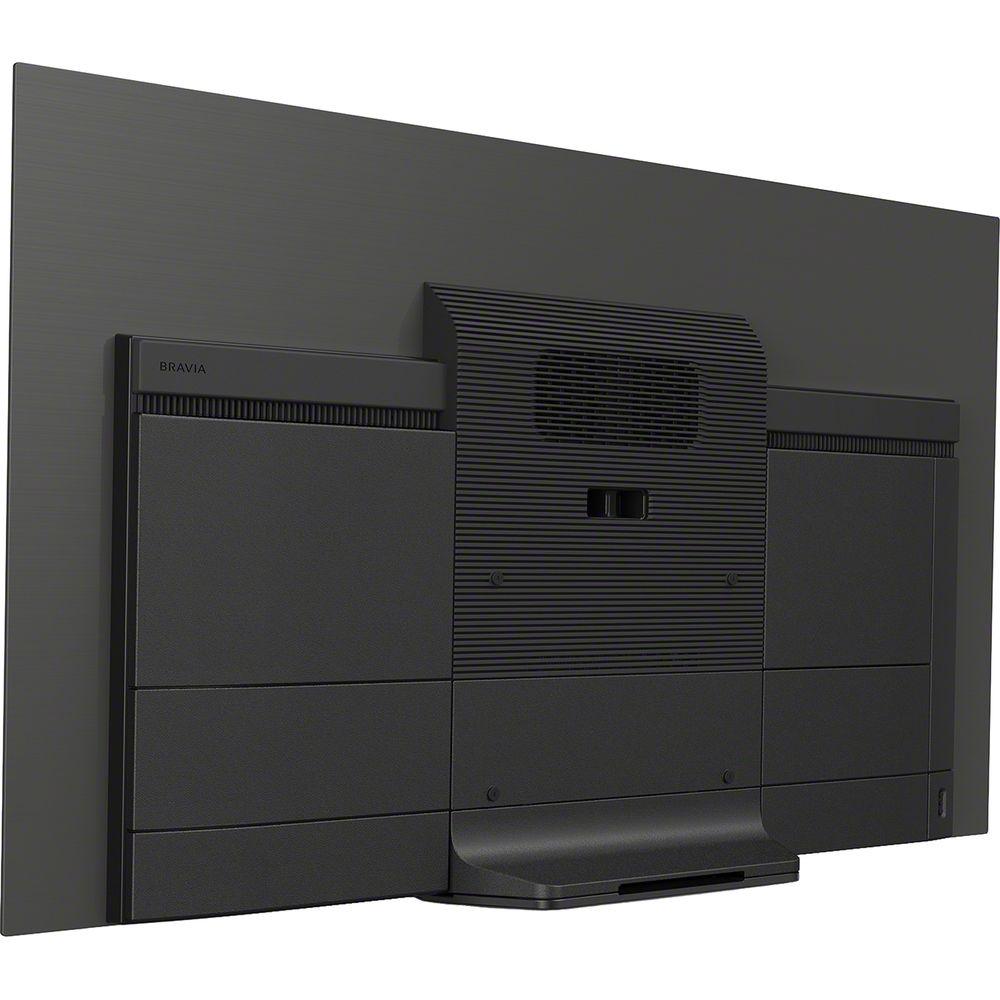

- Cable-Free Front & a Clean Rear Look
- Hide your cables from set-top boxes and other components within the stand.
- Enhanced Bass from the Integrated Woofer
- The woofer behind the TV is designed to provide deep, powerful bass.
- Audio Features
-
- Audio balance control
- DSEE
- Linear PCM ARC output – 48 kHz, 16-bit, Dolby Digital, Dolby Digital Plus, DTS
- Advanced Auto Volume
- Alternate digital audio
- Auto Surround
- Clear Audio+
- Clear Phase
- Supports DTS Digital Surround, Dolby Digital, Dolby Digital Plus, Dolby Pulse
- 5.1-channel linear PCM input via HDMI – 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz; 16-, 20-, 24-bit; Dolby Digital, Dolby Digital Plus, DTS
- Headphone/Speaker Link
- S-Master Digital Amplifier
- S-Force Front Surround
- Convenience Features
-
- Google Play store
- Auto Picture Mode
- Auto shut-off
- Analog & digital channel block (with password)
- Chromecast built-in
- HDMI-CEC
- On-screen lock
- On/off timer
- Parental control
- Show/hide channels (digital & analog)
- Sleep timer
- USB drive format support for FAT16, FAT32, exFAT, & NTFS
- Voice search
- i-Manual
- Android 730 Nougat OS
- 16GB built-in storage
- Analog & digital closed captioning
- Hotel Mode menu
- Connectivity Features
-
- HDMI inputs 1, 2, & 3 support UHD 4K up to 6 Gbps
- Bluetooth version 4.1 with support for HID, HOGP, SPP, A2DP, & AVRCP
- HDCP 2.2 support
- Subwoofer output shared with headphone/audio output
- LightSensor technology
- Network Features
-
- Electronic program guide (EPG)
- Content bar
- Home Network Client, Home Network Renderer
- Compatible with Vewd web browser, available separately
- Screen mirroring via Miracast
- Wi-Fi certified
- Wi-Fi Direct
- Dual-band 2.4/5 GHz Wi-Fi 802.11a/b/g/n/ac
- Video Features
-
- sRGB, BT.709, BT.2020, AdobeRGB, DCI color space compatibility
- 24p True Cinema
- 4:3 default
- Auto Wide
- Frame Blinking
- Dual database processing
- Dynamic Contrast Enhancer
- Face area detection
- Live Color technology
- Mastered in 4K
- Motionflow XR
- Object-based HDR remaster
- Precision color mapping
- Super Bit Mapping 4K HDR
- 4K X-Reality PRO video processing
- CineMotion/Film Mode/Cinema Drive
UPC: 027242910034 In the Box Sony A8F 55" Class HDR UHD Smart OLED TV Voice Remote Control with Batteries IR Blaster Stand Assembly AC Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 zdyrvabwdtxwvs The B&H Television Buying Guide Lawrence Neves 01/31/2018 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony A8F 55" Class HDR UHD Smart OLED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony A8F Specs | | | Screen Size (Diagonal) | 54.6" | | Panel Type | OLED | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Hybrid Log Gamma | | Refresh Rate | 120 Hz | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Bottom)
1 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video (Bottom)
1 x RCA Composite – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x TOSLINK Optical – Audio (Bottom)
1 x 1/8" / 3.5 mm – Audio, Headphone (Side) | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video (Side)
1 x USB (Version Unspecified) – Audio, Photo, Video (Bottom) | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | None | | Power | 50 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | 3GPP
ASF
AVCHD
AVI
FLAC
JPEG
MKV
MOV
MP3
MP4
MPEG1
MPEG2
MPEG2PS
MPEG2TS
MPEG4
VP8
WAV
WEBM
WMA
WMV
Xvid | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukrainian
Vietnamese | | Remote Control | Yes | | Wall Mounting | 300 x 200mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 371.0 W
Standby: 0.5 W | | Dimensions (W x H x D) | 48.3 x 28.0 x 2.2" / 1226.0 x 712.0 x 55.0 mm Without stand
48.3 x 28.2 x 10.0" / 1226.0 x 717.0 x 255.0 mm With stand | | Weight | 41.2 lb / 18.7 kg Without stand
48.9 lb / 22.2 kg With stand | | | | Package Weight | 62.6 lb | | Box Dimensions (LxWxH) | 53.0 x 33.0 x 7.0" |
