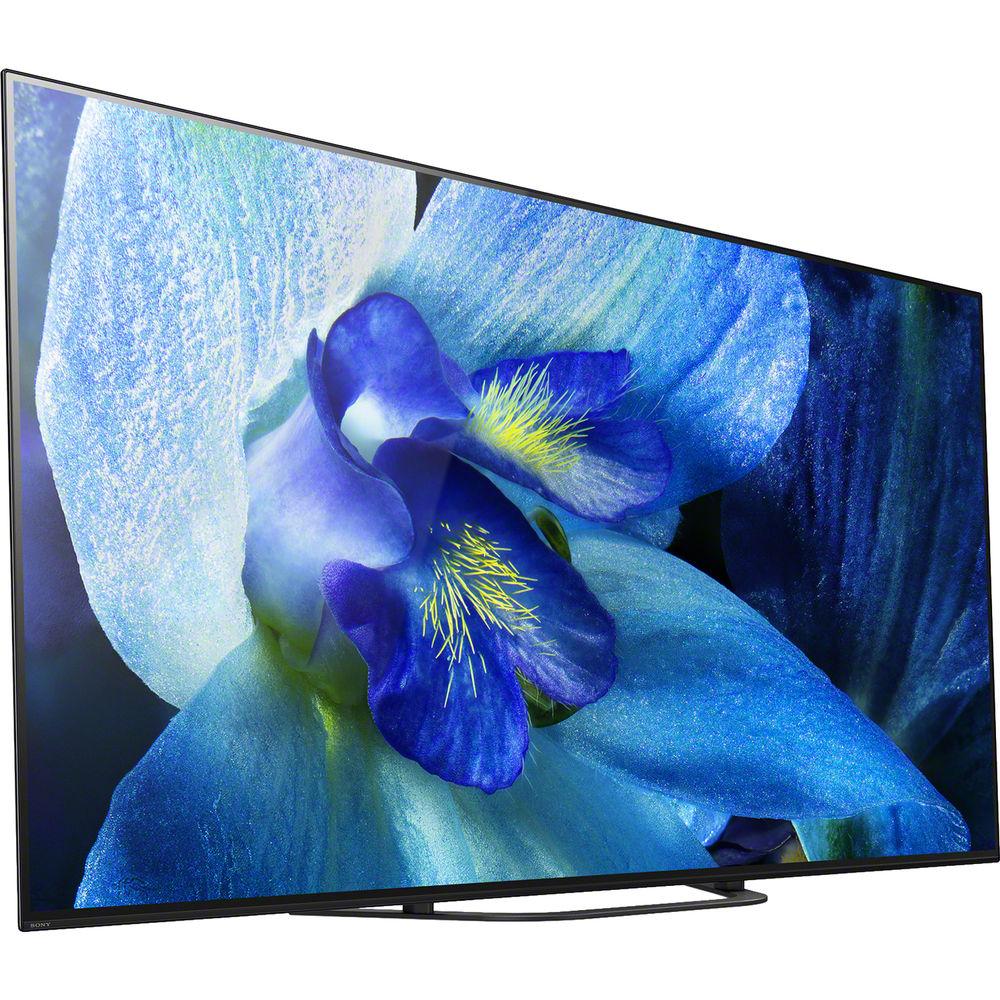

User Manual for Sony A8G 65" Class HDR 4K UHD Smart OLED TV Click to enlarge the picture
Contents of the user manual for the Sony A8G 65" Class HDR 4K
- Product category: Televisions Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Televisions
 |
User manual for the Sony A8G 65" Class HDR 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Big March TV Tournament Read More - Sony - AG8 Product Introduction

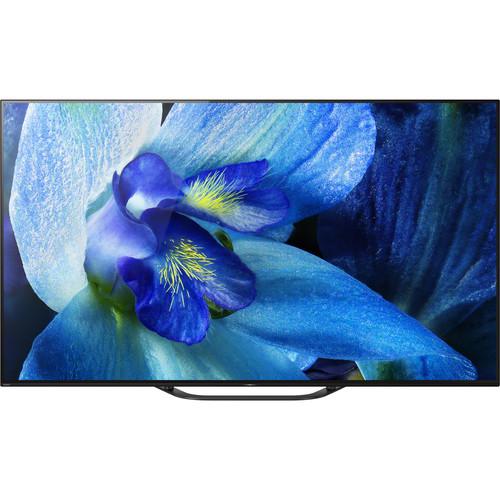

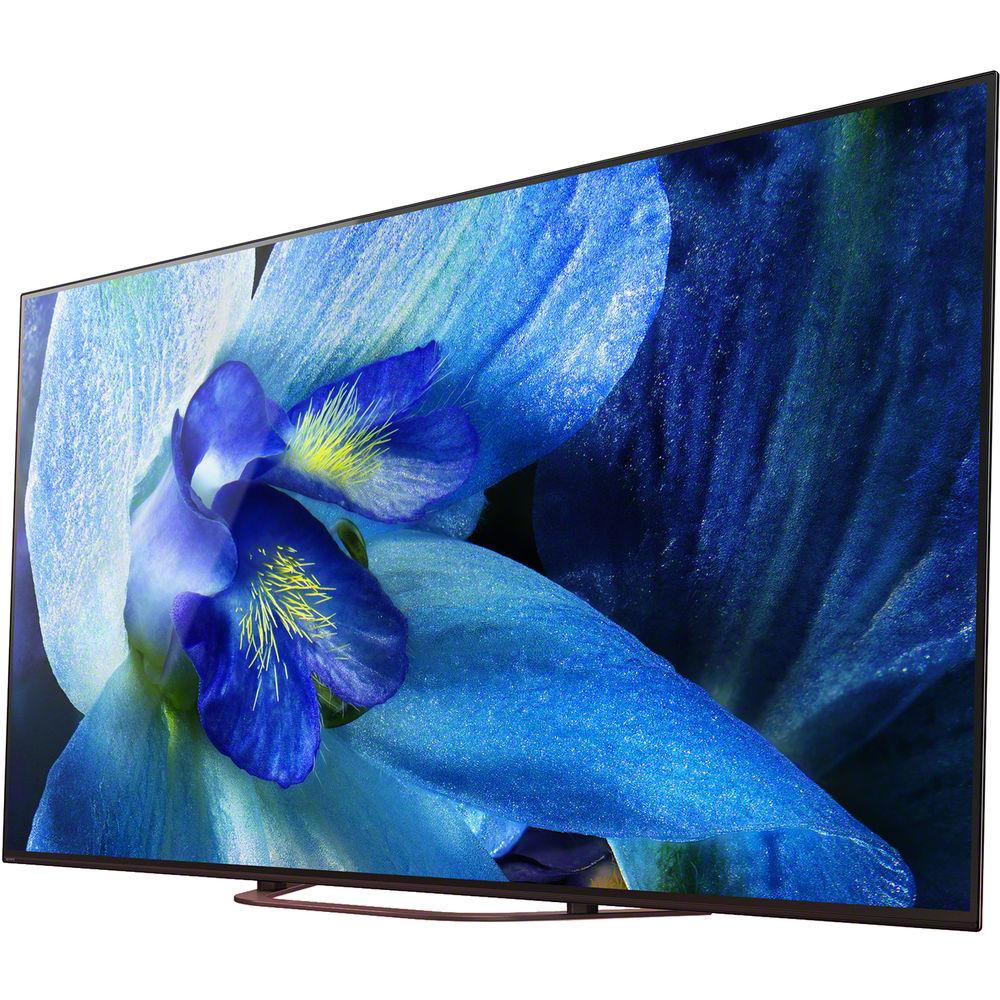

View content at four times the resolution of 1080p with the Sony A8G 65" Class HDR 4K UHD Smart OLED TV. It has a 64.5" OLED display and incorporates Sony's Motionflow XR technology to digitally enhance fast-moving images to reduce blur. HDR10, HLG, and Dolby Vision compatibility provide a wide color gamut for compatible content.
The A8G series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and internet-based content via its Android operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Vewd web browser is also available for download through the Google Play store. With four HDMI inputs, there are multiple options for connecting high-definition video sources. A composite video input is also available for connecting legacy equipment, while three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - Acoustic Surface Audio
- Thanks to two built-in actuators, audio emanates from the screen itself, helping to immerse you in your movies and TV shows.
- 4K HDR Processor X1 Extreme
- The 4K HDR Processor X1 Extreme features real-time image processing for detailed images and upscaling everything you watch to near-4K HDR quality.
- OLED Technology
- Each pixel is its own light source, which creates the potential for the display to produce true black levels, helping to enhance contrast and overall color accuracy.
- IMAX Enhanced
- IMAX Enhanced certification designates that the A8G meets certain audio and video performance criteria set by a committee of IMAX and DTS engineers and A/V technical specialists. These criteria include image, sound, scale, and content quality. Onboard IMAX calibrated modes are set and approved by Hollywood colorists to help provide enhanced picture and sound for HDR UHD content.
- Dolby Vision Compatibility
- Dolby Vision is an HDR solution designed to create an immersive cinematic experience with deep black levels and vibrant colors.
- TRILUMINOS Display
- TRILUMINOS Display technology is engineered to map colors from a wide palette to faithfully reproduce every shade and hue.
- Simple Soundbar Placement
- Installing the stand backwards adds extra height, allowing you to place your soundbar without compromising your viewing experience.
- Google Assistant Built-In
- You can ask the Google Assistant to find your favorites or control the TV or other connected compatible devices using just your voice.
- Works with Amazon Alexa
- Connect your Amazon Alexa-enabled devices for seamless hands-free control of the TV. With Amazon Alexa, you can power on the TV, change channels, control the volume, and more.
- Integrated Cable Management
- Hide your cables from set-top boxes and other components within the stand.
- Object-Based HDR Remaster
- This feature analyzes the color in individual objects on the screen and adjusts the contrast to help enhance depth, textures, and image realism.
- Connect with Google Home
- Your Google Home ecosystem can provide hands-free control of the TV, allowing you to find and cast your favorite videos to the TV with just your voice.
- Super Bit Mapping HDR
- Super Bit Mapping HDR is designed to create a smooth, natural image while you watch, without color banding.
- 4K X-Reality PRO
- This feature helps sharpen and refine images in real time to reveal additional detail.
- Dual Database Processing
- One database is used to clean the picture, reducing on-screen noise, while the other is used to upscale the resolution for enhanced clarity. These databases work together to dynamically enhance pixels in real time.
- Motionflow XR
- Motionflow XR technology is designed to create and insert extra frames between the original frames by comparing key visual factors on successive frames and calculating the instant of missing action.
- Chromecast built-in
- The A8G has Chromecast built-in, allowing you to cast your favorite entertainment from your compatible device onto the TV. It supports Android, iOS, and other operating systems.
- Clear Phase for Balanced Frequencies
- The A8G uses a computer model to analyze and compensate for inaccuracies in speaker response by sampling the speaker frequency with high precision. This information is fed back to cancel out any peaks or dips in the speaker's natural response to help produce pure, natural audio with smooth, even reproduction of all frequencies.
- Bluetooth Connectivity
- Pair your compatible Bluetooth headphones with the TV to enjoy TV shows and music without disturbances or interruptions.
- S-Force Front Surround
- This technology is designed to mimic the way the brain correlates sound sources to create proper volume, time lag, and sound wave spectrum, using only the TVs left and right speakers, to help provide rich, high-fidelity audio across a wide listening area.
- Additional Features
-
- Wi-Fi 5 (802.11a/b/g/n/ac)
- Bluetooth 4.1 HID, HOGP, SPP, A2DP, AVRCP
- Video & TV SideView (iOS/Android)
- HDCP 2.3 compatibility for all HDMI inputs
- HDMI with CEC and ARC
- Shared audio/headphone/subwoofer output
- FAT16, FAT32, exFAT, NTFS USB support
- Live Color technology
- Precision Color Mapping
- Dynamic Contrast Enhancer
- Dual-actuator & dual-woofer design
- Supports Dolby Digital, Dolby Digital Plus, and DTS Digital Surround
- ClearAudio+
- 16GB of storage
- Accepts English, French, German, Hebrew, Italian, Russian, Spanish, Vietnamese, and Japanese text input
- Electronic program guide
- Vewd internet browser-capable
- Google Play Store for app downloads
- On/Off and sleep timers
- Analog & digital closed captioning
- Power saving mode / backlight off mode
- Dynamic backlight control
- Light sensor
- Accessibility features include screen reader, video description, closed captioning, text magnification, accessibility shortcut, switch access, and voice search
In the Box Sony A8G 65" Class HDR 4K UHD Smart OLED TV Voice Remote Control with Batteries IR Blaster Stand Assembly AC Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony A8G 65" Class HDR 4K UHD Smart OLED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

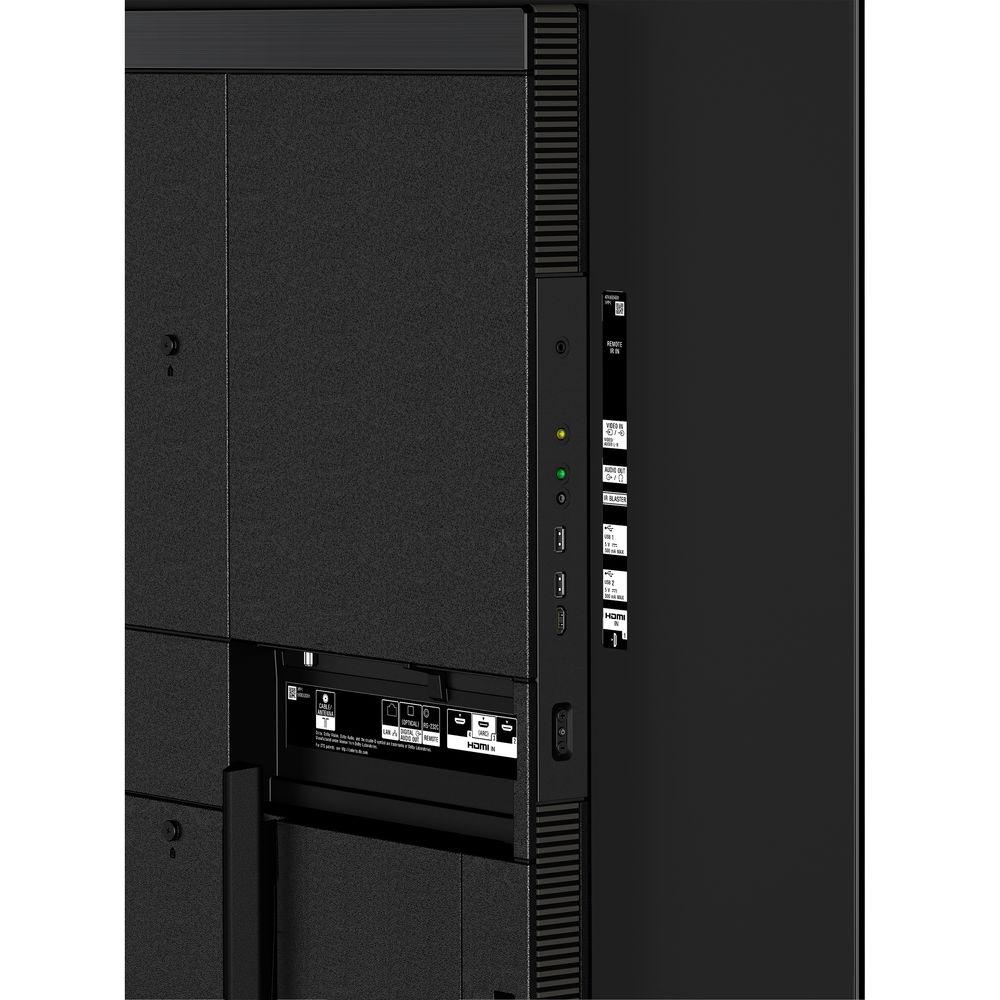

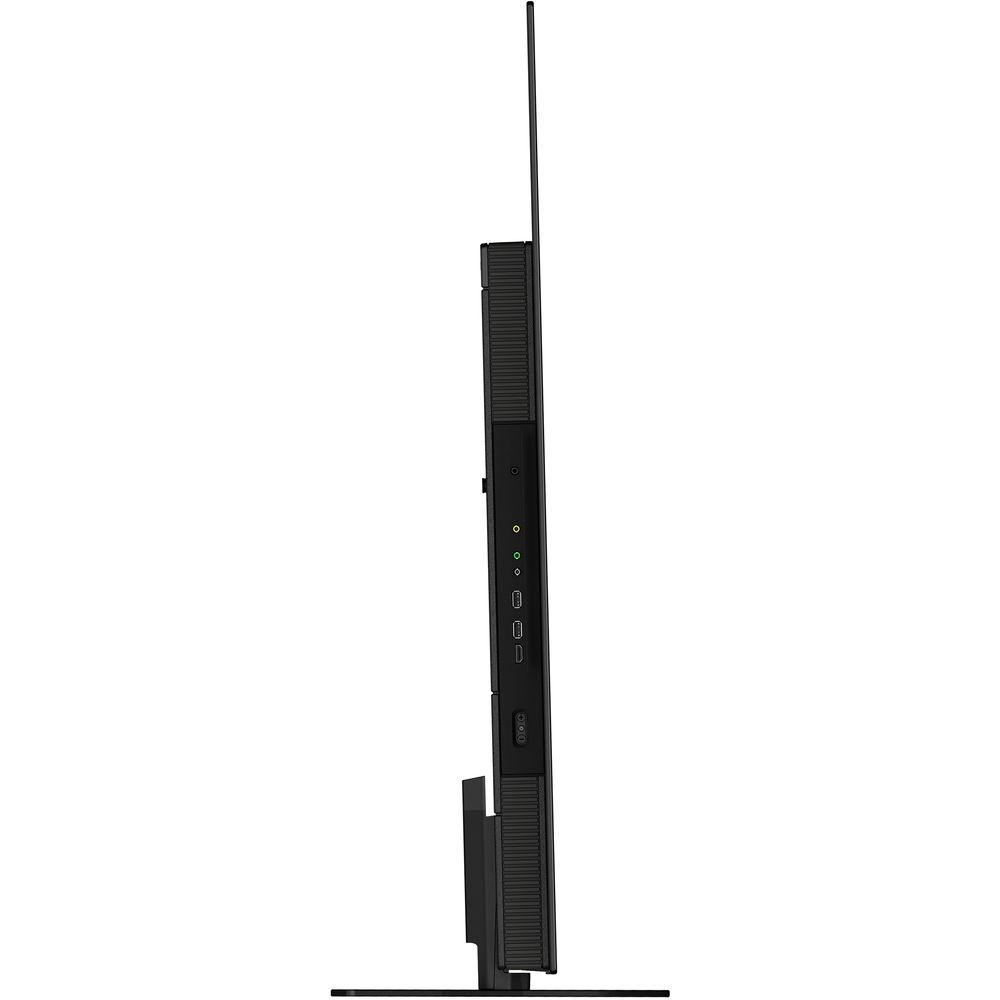

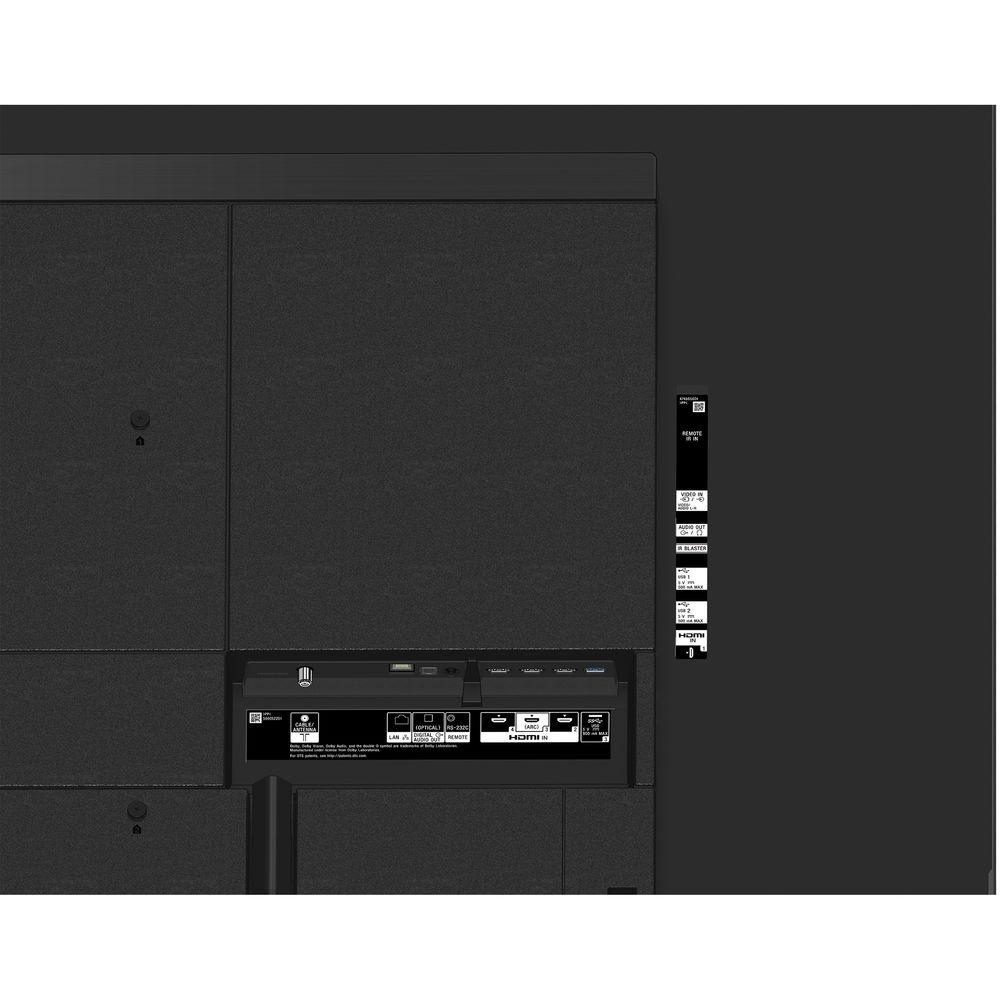

Technical parametersSony A8G Specs | | | Screen Size (Diagonal) | 64.5" | | Panel Type | OLED | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma | | | | Video System | NTSC | | TV Tuner | Yes - ATSC, Clear QAM | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Bottom)
1 x HDMI – Audio, Video (Side)
1 x RCA Composite – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x 1/8" / 3.5 mm – Audio, Headphone (Side) | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video (Side)
1 x USB (Version Unspecified) – Audio, Photo, Video (Bottom) | | Ethernet | LAN | | Control | RS-232C via DE9 | | | | Sound | Stereo | | Subwoofer | None | | Power | 40 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | 3GPP
ASF
AVCHD
AVI
FLAC
MOV
MP3
MP4
MPEG1
MPEG2PS
MPEG2TS
MPEG4
VP8
WAV
WEBM
WMA
WMV
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 300 x 300mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 466.0 W
Standby: 0.5 W | | Dimensions (W x H x D) | 57.1 x 32.8 x 2.0" / 1450.0 x 834.0 x 51.0 mm Without stand
57.1 x 33.6 x 11.4" / 1450.0 x 854.0 x 290.0 mm With stand | | Stand Dimensions | 25.87" / 657 mm (Width) | | Weight | 44.8 lb / 20.32 kg Without stand
49.6 lb / 22.50 kg With stand |
