User Manual for Sony A9F Master 65" Class HDR UHD Smart OLED TV Click to enlarge the picture
Contents of the user manual for the Sony A9F Master 65" Class HDR
- Product category: Televisions Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Televisions
 |
User manual for the Sony A9F Master 65" Class HDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

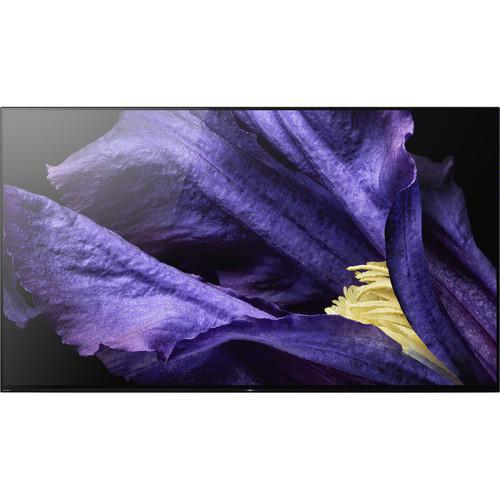

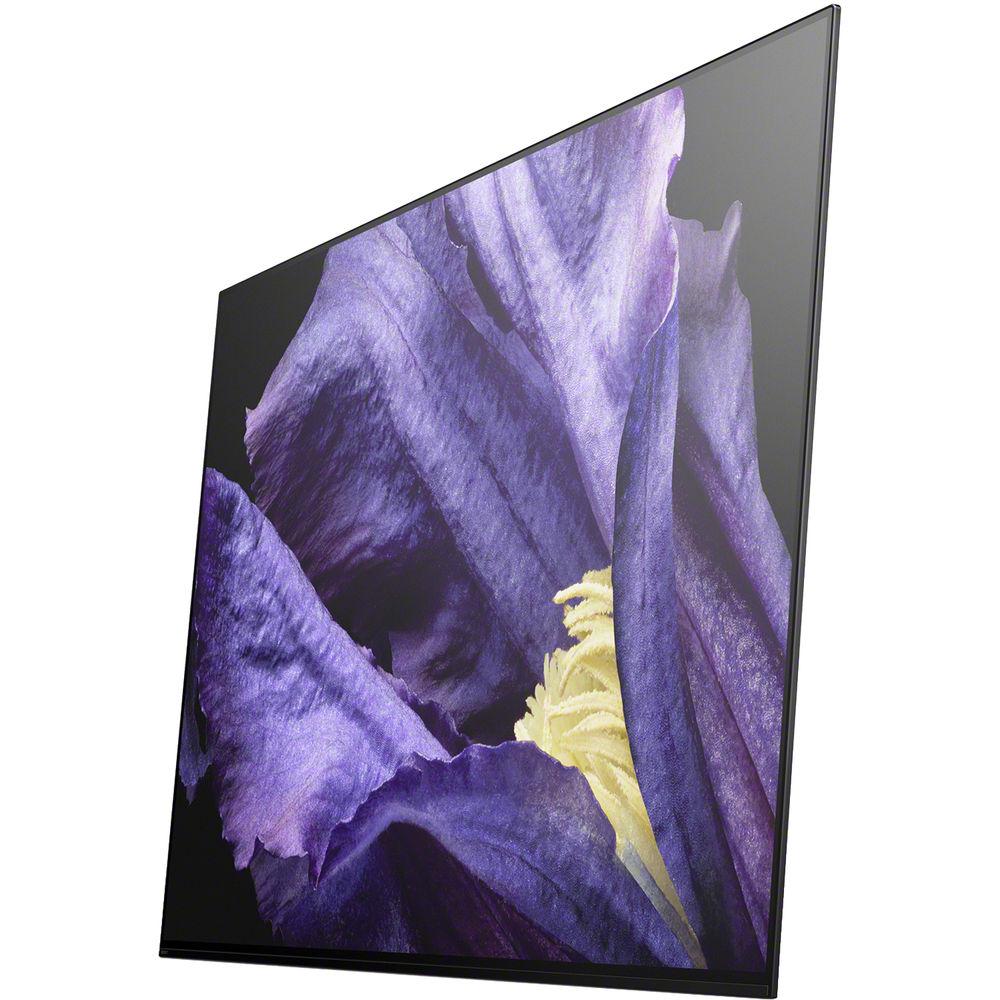

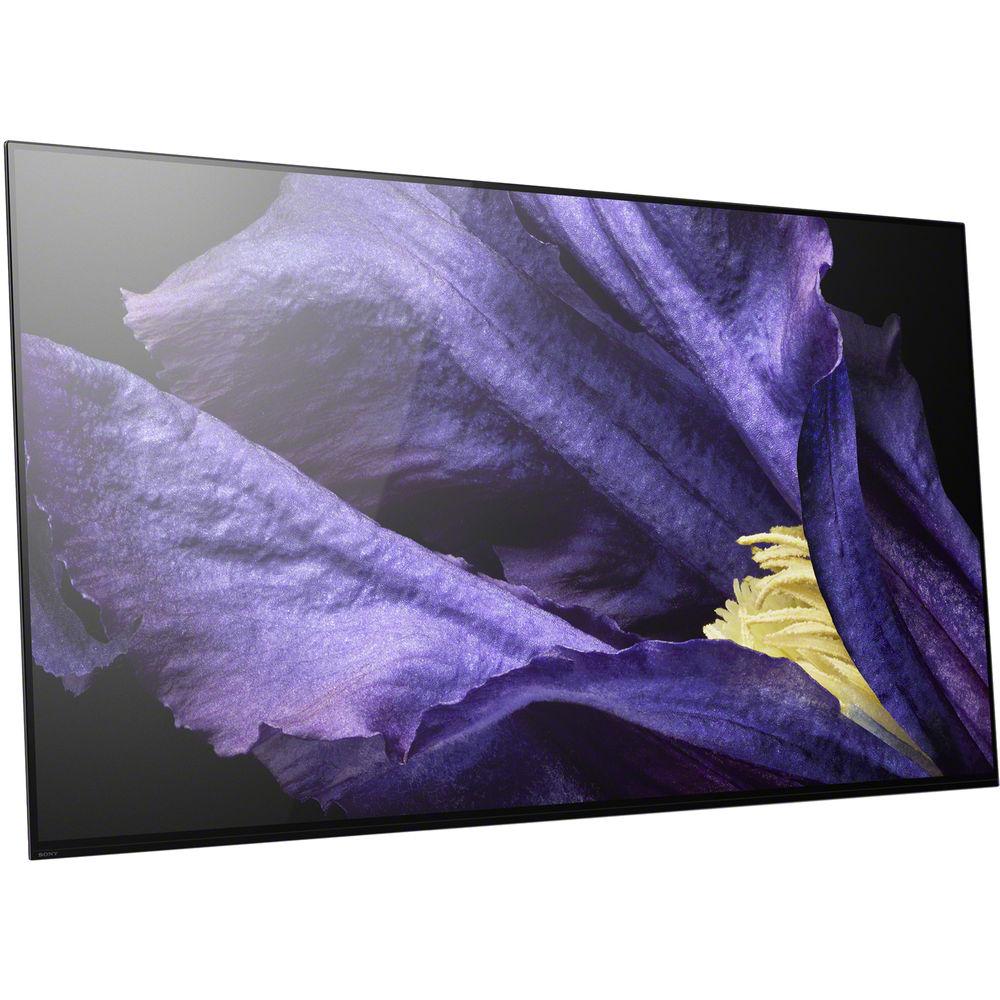

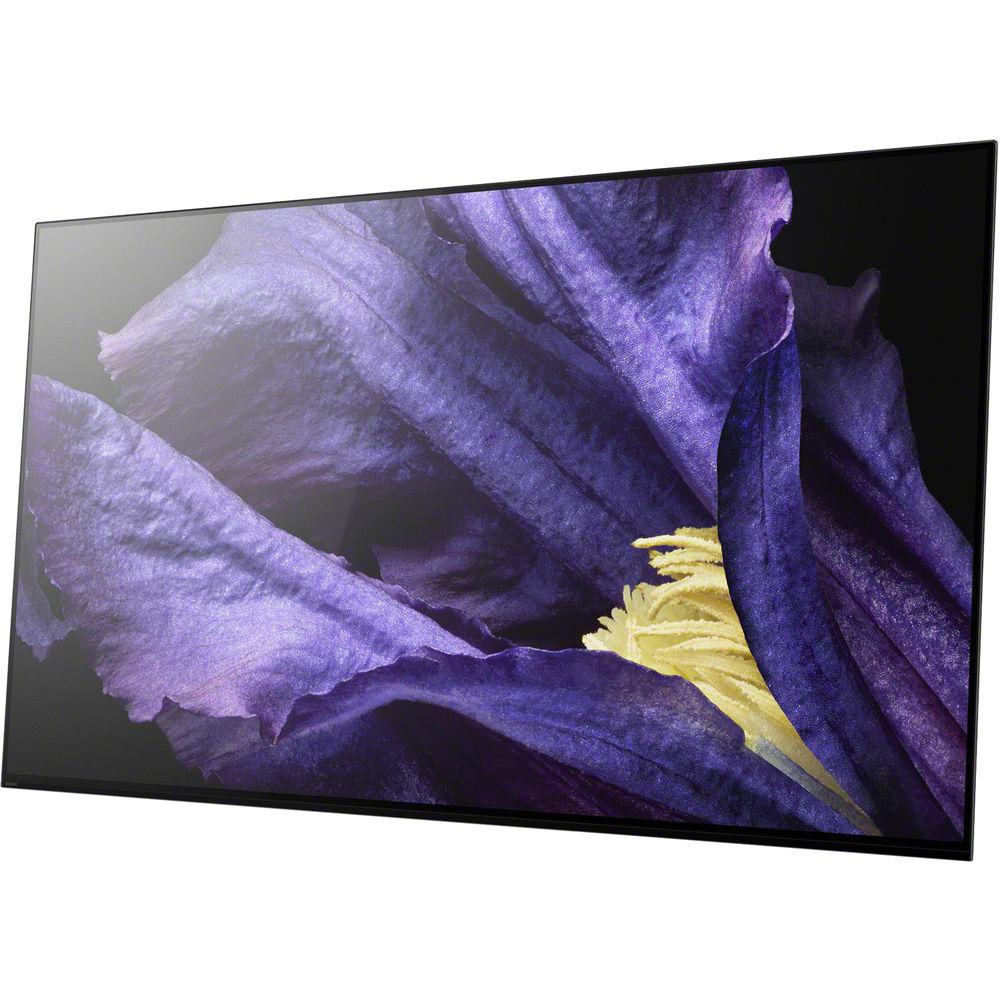

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony A9F Master 65" Class HDR UHD Smart OLED TV. It has a 64.5" OLED display, and incorporates Sony's Motionflow XR technology to digitally enhance fast-moving images to reduce blur. HDR10, HLG, and Dolby Vision compatibility provide a wide color gamut for compatible content.
The A9F Master series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and Internet-based content via its Android operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Vewd web browser is also available for download through the Google Play store. With four HDMI inputs, there are multiple options for connecting high-definition video sources. A composite video input is also available for connecting legacy equipment, while three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - Picture Processor X1 Ultimate with the Pixel Contrast Booster
- The Picture Processor X1 Ultimate is designed to pair the deep black levels and natural color of OLED with the Pixel Contrast Booster for enhanced color contrast at high brightness to help augment detail. Additionally, the Picture Processor X1 Ultimate detects hundreds of different on-screen objects and intelligently enhances brightness, detail, and color for added realism.
- Acoustic Surface Audio+
- With the three actuators and two woofers, sound seems to come at you from multiple directions for a multi-dimensional sound experience to help immerse you in your content.
- TV Center Speaker Mode
- Use the A9F Master series TV as a center speaker to hear dialogue, vocals, and instruments with enhanced quality. Simply connect your home theater system and activate the function.
- TRILUMINOS Display
- TRILUMINOS Display technology is designed to map colors from a wide palette to faithfully reproduce every shade and hue.
- 4K HDR Compatibility
- The A9F Master series can handle a variety of HDR formats, including HDR10, Hybrid Log-Gamma, and Dolby Vision.
- Google Assistant Built-In
- You can ask the Google Assistant to find your favorites or control the TV or other connected compatible devices using just your voice. And if you have a Google Home device, you can enjoy hands-free control of the TV and cast your favorite videos directly to it.
- Works with Amazon Alexa
- Connect your Amazon Alexa-enabled devices for seamless hands-free control of the TV. With Amazon Alexa, you can power on the TV, change channels, control the volume, and more.
- Netflix Calibrated Mode
- This mode is designed to let you enjoy Netflix originals with virtually the same picture quality as on a studio evaluation master.
- Netflix Button
- The remote included with the A9F Master series TV has a dedicated Netflix button, so you can start streaming with just one click.
- Voice Control
- The remote has a built-in microphone, so you can tell it what you want to see and it will engage the search.
- S-Force Front Surround
- This feature is designed to mimic the way the brain correlates sound source to create proper volume, time lag, and sound wave spectrum for high-fidelity audio across a wide listening area.
- Clear Phase
- Clear Phase technology uses a computer model to analyze and compensate for inaccuracies in speaker response by sampling the speaker frequency. This information is fed back to cancel out any peaks or dips in the speaker's natural response for natural-sounding audio with smooth reproduction of all frequencies.
- IR Blaster
- The included IR blaster lets you control other devices in your home, such as your cable/satellite box, with the TV remote.

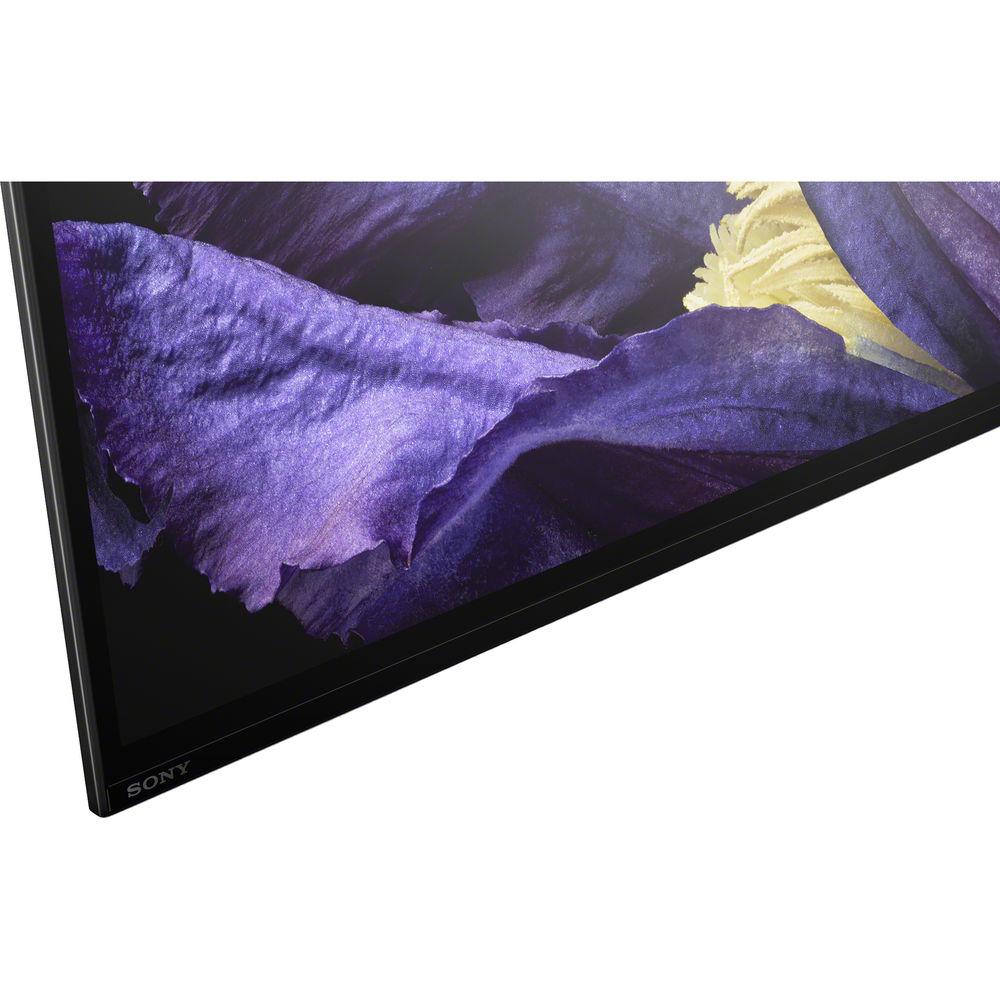

- Minimalist Design

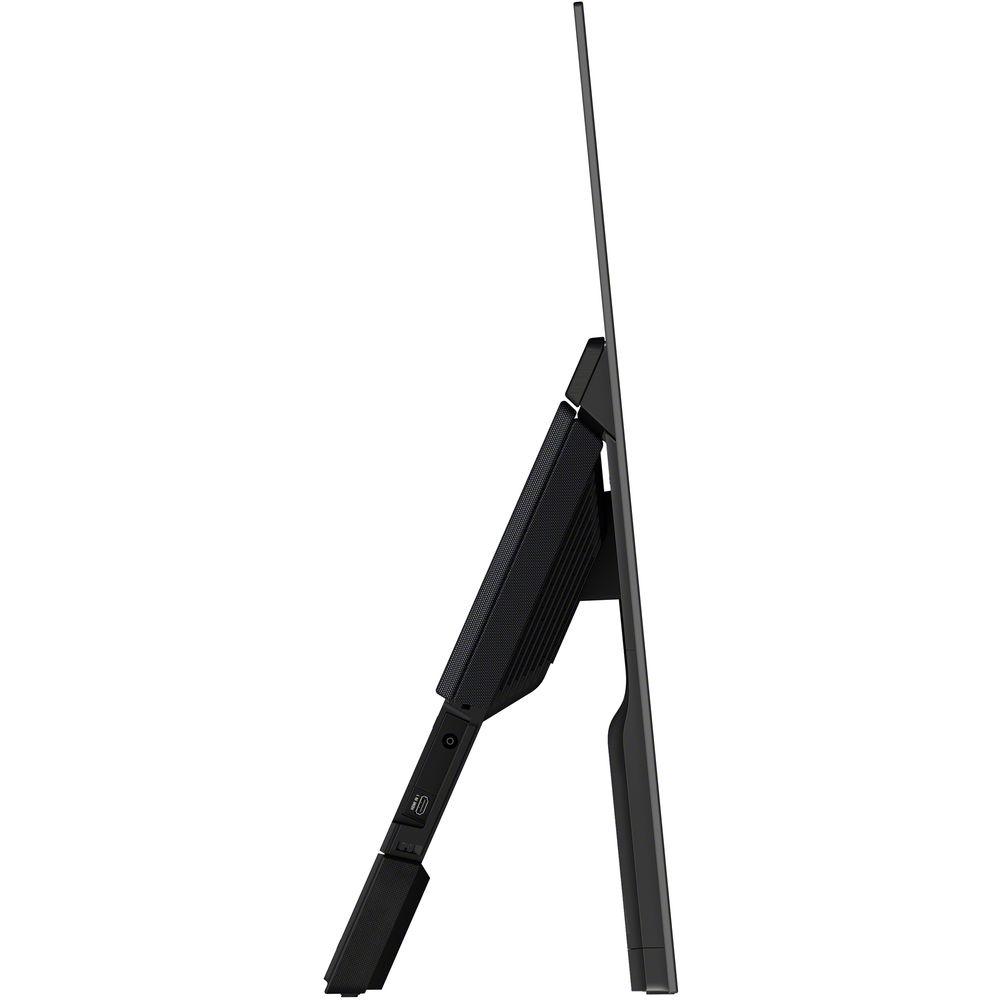

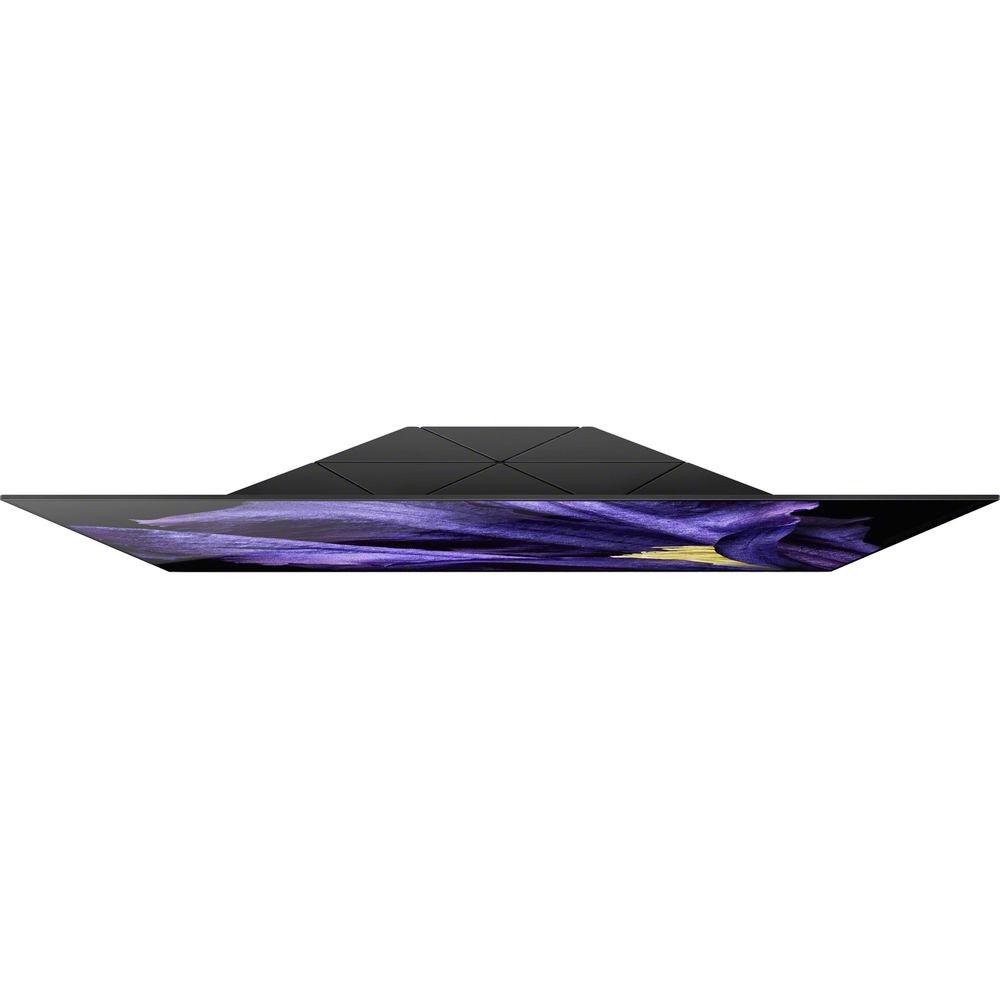

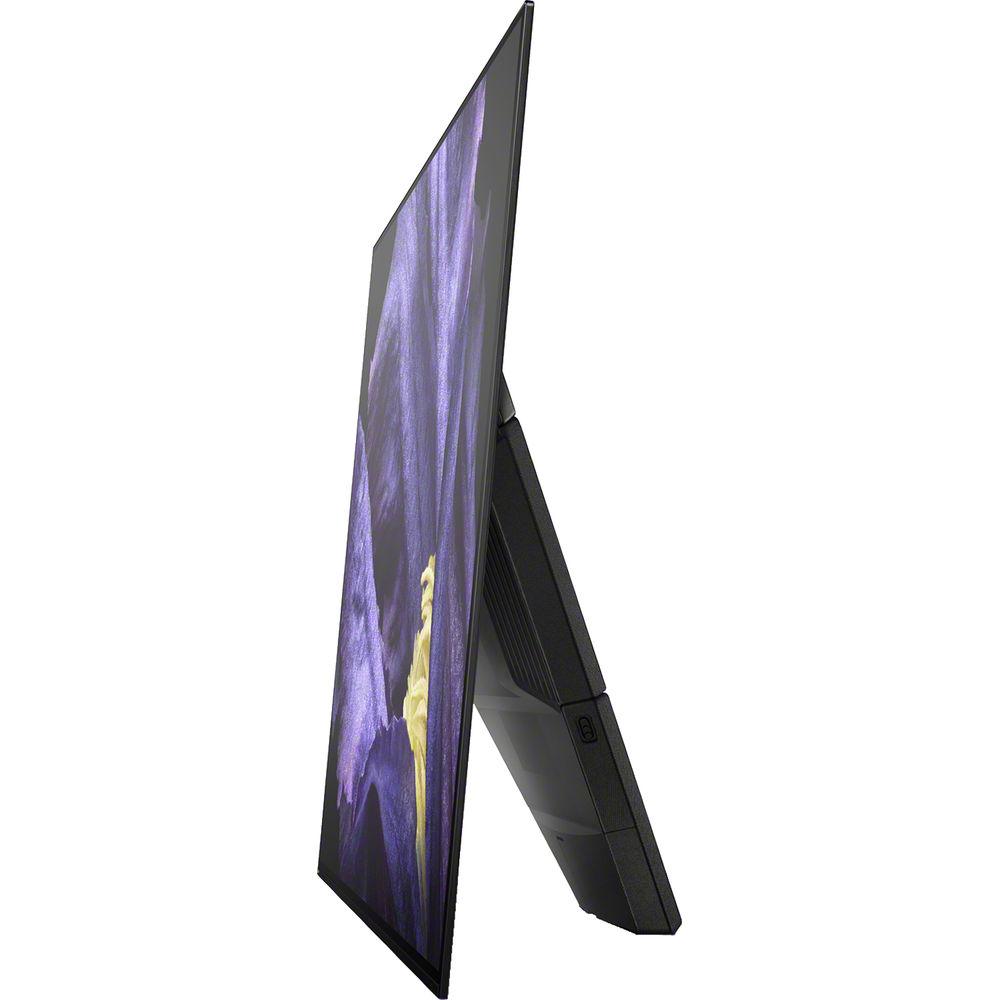

- The slim design of the A9F Master series helps keep you focused on the picture rather than the TV itself. This design also helps simplify the wall mounting process.

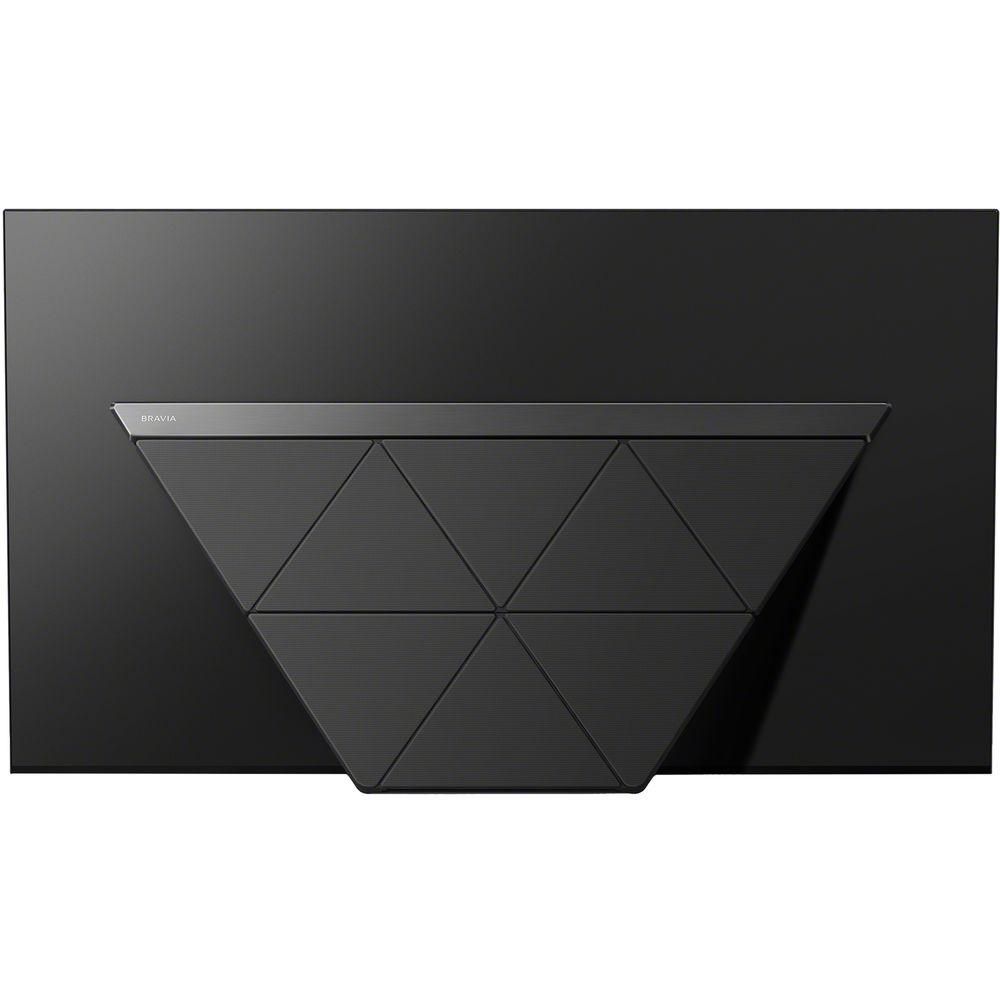

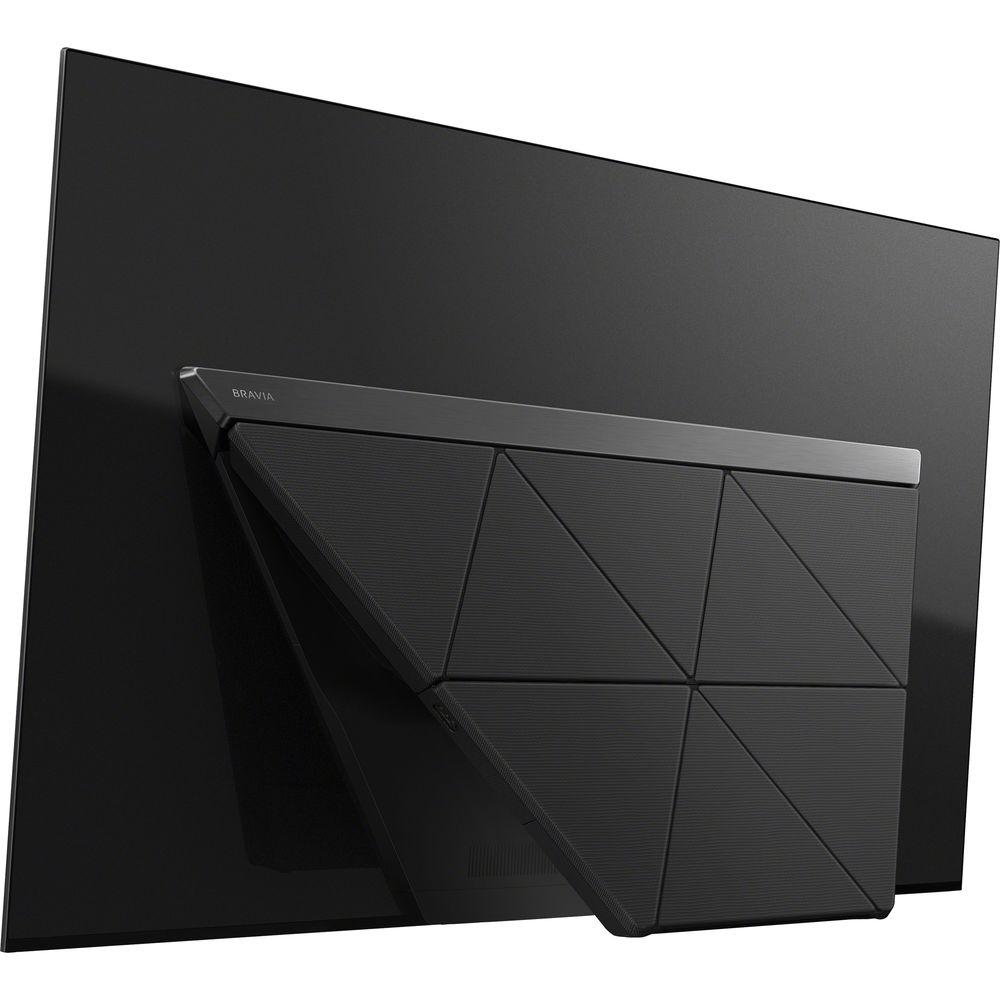

- Clean Rear Look
- Hide your cables from set-top boxes and other components within the rear cover.
- Additional Features
-
- Stand width of 15.63"
- 802.11a/b/g/n/ac Wi-Fi
- Bluetooth version 4.2 with HID (mouse/keyboard connectivity), HOGP (Low Energy device connectivity), SPP (Serial Port Profile), A2DP (stereo audio), and AVRCP (A/V remote control) support
- Bluetooth audio output
- HDCP version 2.3 on all HDMI ports
- ARC support
- USB support of FAT16, FAT32, exFAT, and NTFS drives
- 4K X-Reality PRO video processing
- Dual database processing
- Object-based Super Resolution
- Live Color technology
- Precision Color Mapping
- Super Bit Mapping 4K HDR
- Dynamic Contrast Enhancer
- Object-based HDR remaster
- Motionflow XR
- DTS Digital Surround, Dolby Digital, Dolby Digital Plus, Dolby Pulse, and Dolby AC-4 support
- 16GB of onboard storage
- Content Bar
- Electronic program guide
- Google Play Store for app downloads
- Compatible with the Vewd web browser
- On/off and sleep timers
- Auto Calibration with CalMAN
- Analog & digital closed captioning
- Power saving mode
- Light sensor
UPC: 027242910041 In the Box Sony A9F Master 65" Class HDR UHD Smart OLED TV Voice Remote Control with Batteries IR Blaster Tabletop Stand Assembly Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony A9F Master 65" Class HDR UHD Smart OLED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony A9F Master 65" Class HDR UHD Smart OLED TV can be downloaded in PDF format at the link stated below.
Technical parametersSony A9F Specs | | | Screen Size (Diagonal) | 64.5" | | Panel Type | OLED | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma | | | | Video System | NTSC | | TV Tuner | Yes - ATSC, Clear QAM | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Bottom)
1 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video (Bottom)
1 x RCA Composite – Video (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom) | | Output Ports | 1 x TOSLINK Optical – Audio (Bottom) | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video (Bottom)
1 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | None | | Power | 98 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | 3GPP
AAC
ASF
AVCHD
AVI
FLAC
JPEG
MKV
MOV
MP3
MP4
MPEG1
MPEG2
MPEG2PS
MPEG2TS
MPEG4
OGG
VP8
WAV
WEBM
WMA
WMV
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 200mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 500.0 W
Standby: 0.5 W | | Dimensions (W x H x D) | 57.0 x 32.9 x 3.4" / 1449.0 x 835.0 x 86.0 mm Without stand
57.0 x 32.8 x 12.6" / 1449.0 x 832.0 x 320.0 mm With stand | | Weight | 60.00 lb / 27.22 kg Without stand
78.5 lb / 35.61 kg With stand | | | | Package Weight | 101.5 lb | | Box Dimensions (LxWxH) | 62.0 x 37.5 x 7.85" |
