Product description

• Sony - Alpha a5100 Mirrorless Digital Camera Demo
• Alpha a5100

24.3MP Exmor APS HD CMOS Sensor and BIONZ X Image Processor
• The 24.3MP APS-C-sized Exmor APS HD CMOS sensor and BIONZ X image processor work together to produce high resolution, well-detailed imagery with minimal noise and notable low-light quality and sensitivity to ISO 25600. The sensor utilizes a gapless on-chip lens design, which fills the gaps between neighboring pixels with optimized lenses that match the angle of incidence to increase light gathering ability and produce edge-to-edge sharpness and quality. The processor also contributes to providing a wealth of speed throughout the camera system, including Fast Hybrid AF, a top continuous shooting rate of 6 fps, and full HD video recording in multiple frame rates and formats.

Fast Hybrid AF System
• The Fast Hybrid AF system utilizes both a 179-point phase-detection system and 25-point contrast-detection system to achieve precise focus in as little as 0.07 sec. Utilizing a Spatial Object Detection algorithm, this fast focusing system first employs the phase-detection AF points to quickly bring the subject into focus and then uses the contrast-detection AF points, with wide AF coverage, to fine-tune the sharpness for ensured accuracy. Beyond supporting single shot modes, this system also provides AF tracking when shooting up to 6 fps in continuous high mode and functions seamlessly when recording full HD movies. This hybrid focusing mode is further accentuated by the incorporation of a touchscreen LCD, which avails touch-to-focus control for critical accuracy in both still and video recording.

  For further refinement, a series of distinct AF modes can be selected from depending on the subject. Eye AF is a detail-oriented focusing function that can prioritize a subject's pupil and dedicate focusing performance on that for sharply-rendered portraits; Lock-on AF is a dedicated focusing method for use with moving subjects and adjusts the target frame size as the subject moves throughout the image frame; AF area settings allow you to prioritize specific regions within the frame for increased accuracy; and AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), and Manual Focus modes can also be chosen.

Full HD Video Recording
• Full HD 1080p video recording is supported at 60, 30, and 24 fps in the high-quality 50 Mbps XAVC S codec. Other recording options include the ability to utilize the AVCHD and MP4 codecs, with support for recording up to 1080p60 video at 28 Mbps. Dual video recording is supported, as well, with the ability to select either XAVC S or AVCHD codecs plus a duplicate MP4 file to be recorded at the same time for greater efficiency when sharing videos online. Additionally, using the integrated HDMI type D output, both 1080i60 and 1080p60 uncompressed 8-bit 4:2:2 video can be recorded to an optional external recorder.

  Complementing the video capabilities of the a5100, a built-in stereo microphone is incorporated into the design and records audio in the Linear PCM 2-channel format for XAVC S movies, the AC-3 Dolby Digital format for AVCHD movies, and the MPEG-4 AAC-LC format for web-quality MP4 videos.

  Manual focus peaking and a zebra function are also available, to benefit working in manual focus and to assure highlight detail is retained, respectively. A marker setting can be shown on the rear LCD as well, in order to display a center marker, guide frame, aspect marker, safety zone, and other pertinent features for video recording.

Body Design

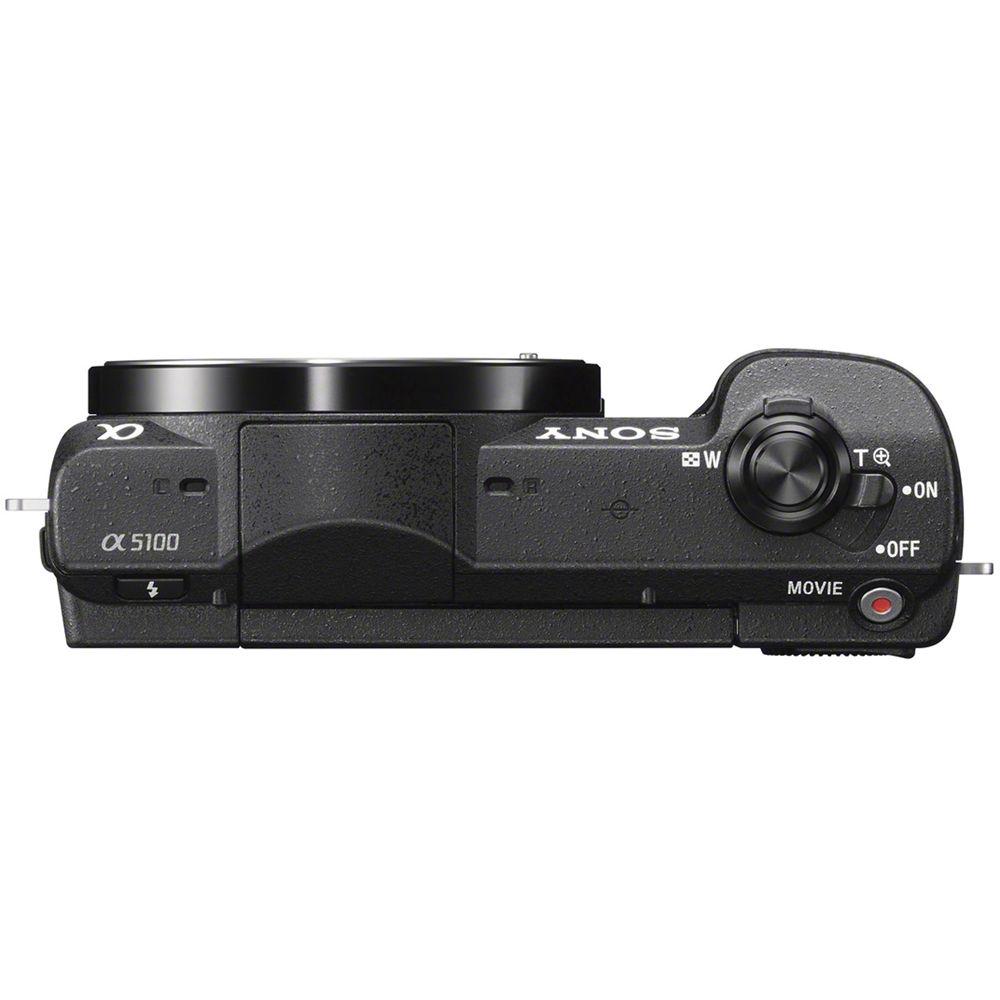

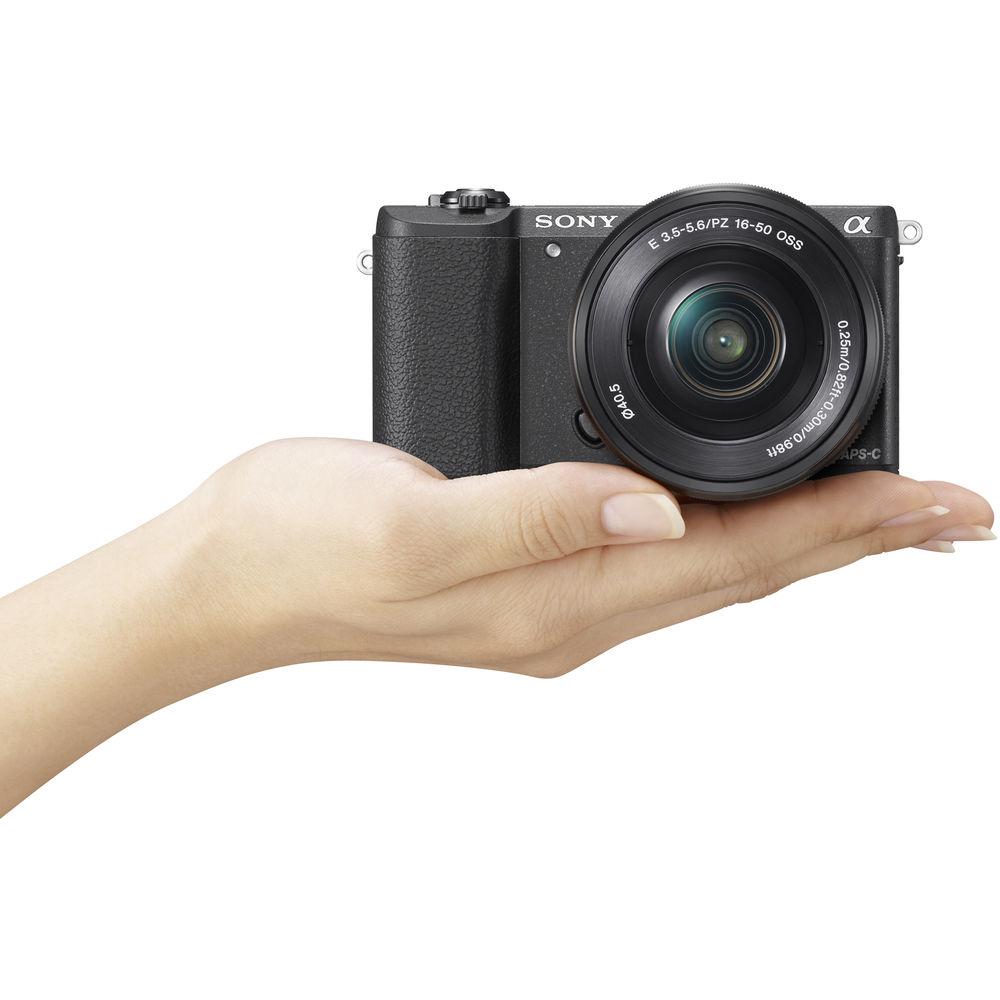

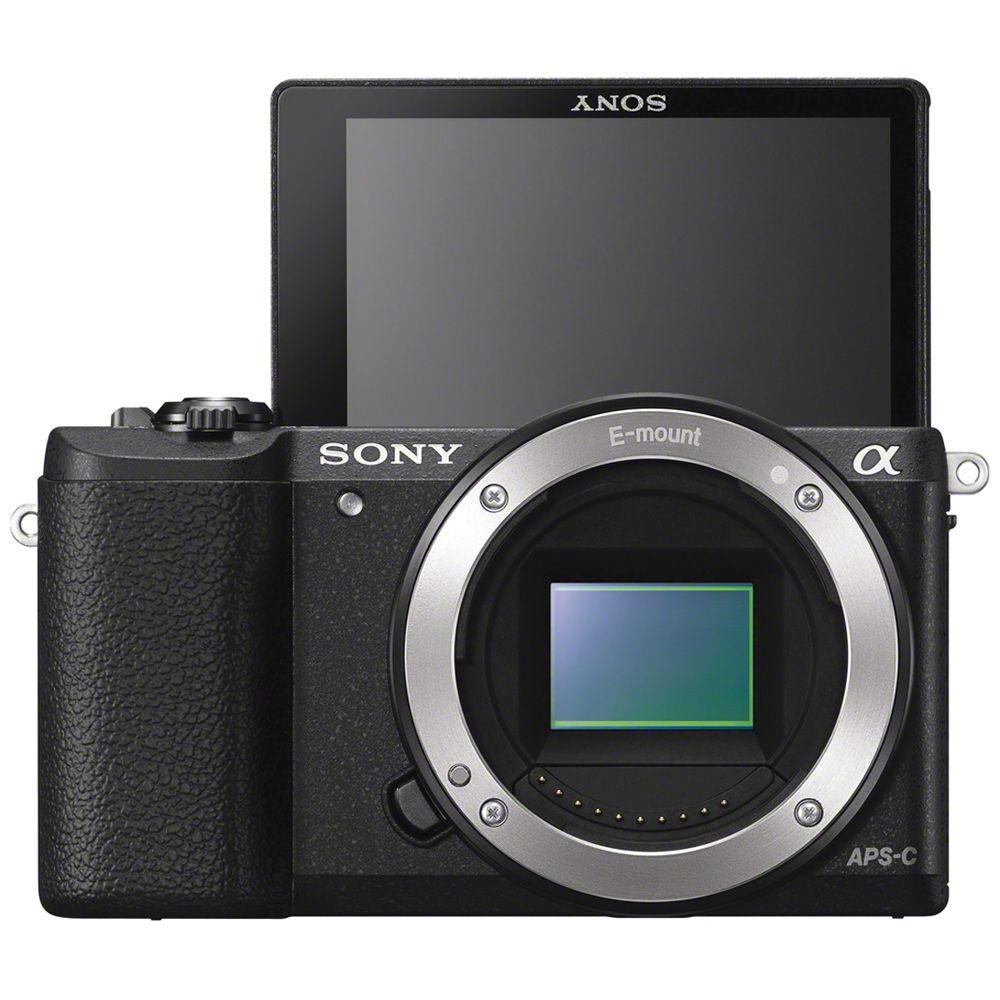

• Sporting a compact form factor and using the versatile Sony E lens mount, this mirrorless camera is designed for convenience and intuitiveness. A large 3.0" 921.6k-dot LCD monitor features a 180° upward tilting design to better facilitate taking self-portraits and a zoom lever surrounding the shutter release button helps to easily fine tune compositions when used in conjunction with a compatible power zoom lens. Additionally, this LCD is also a touchscreen, which offers efficient control over camera settings and navigation throughout playback and menu systems. In regard to physical controls about the body, two top dials and a rear-mounted control give direct access to different shooting modes and camera settings. A dedicated Fn (Function) button, along with seven other customizable buttons, can also be assigned to control any of 47 different settings.

  The body also incorporates a pop-up flash, which features a guide number of 13.1' at ISO 100 for additional illumination in difficult lighting conditions.

Built-In Wi-Fi Connectivity

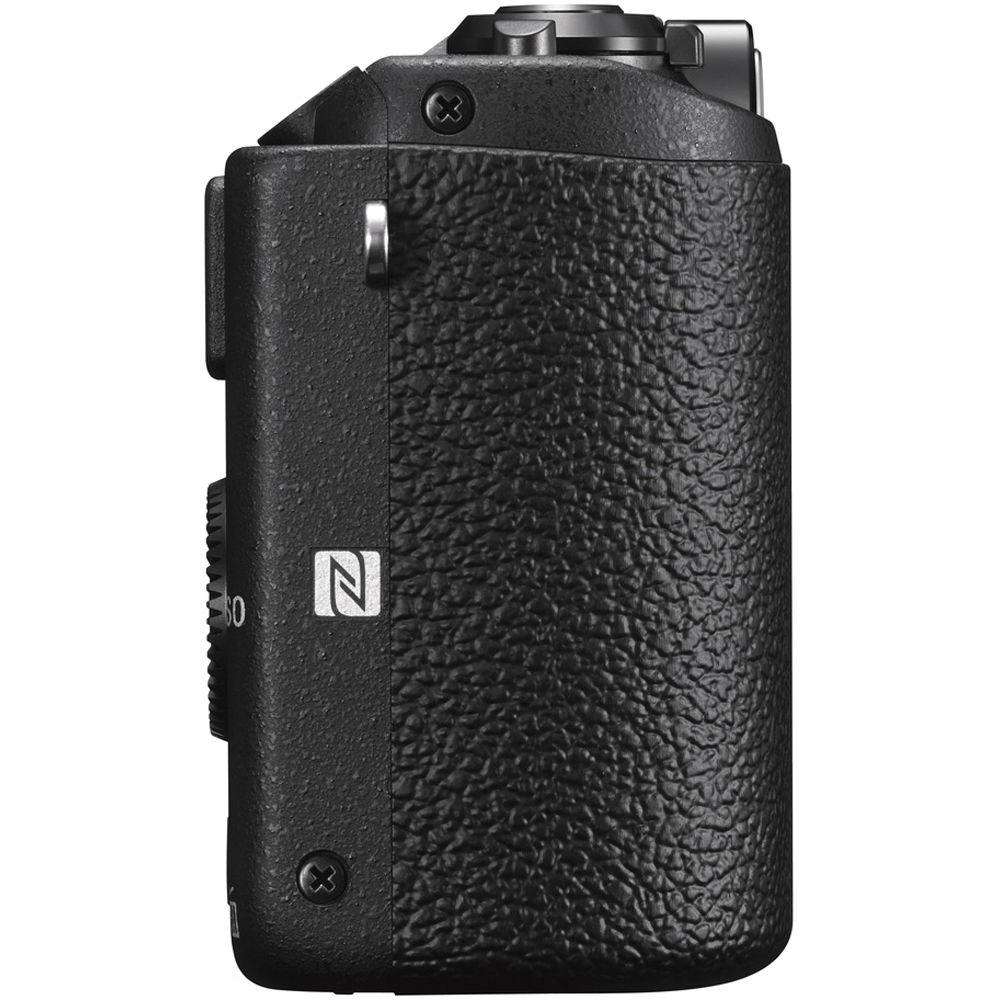

• Built-in Wi-Fi connectivity enables the a5100 to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.

  Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.

Other Camera Features

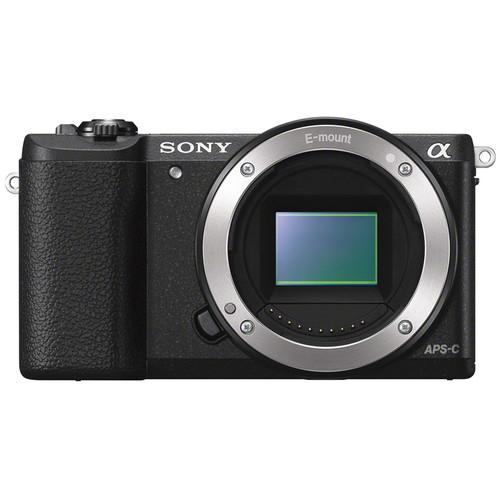

• • The Sony E-mount affords compatibility with an extensive number of lenses and lens adapters.
  • An advanced 1200-zone evaluative exposure metering sensor delivers consistent and accurate results using multi-segment, center-weighted, or spot metering modes.
  • Auto Object Framing is an intelligent shooting mode that can automatically analyze the scene and subjects within it and determine an aesthetically pleasing composition. The subsequent imagery will be cropped according to subject matter, resulting in a well-balanced composition that utilizes Face Detection and Tracking Focus to ensure high image quality and sharpness.
  • Clear Image Zoom can be used to magnify the center of scenes by 2x to effectively extend the reach of any focal length lens. This digital zoom technology uses an intelligent interpolation process to minimize the amount of image degradation in order to produce realistic, high-quality images.
  • Picture Effect modes allow you to apply creative settings and emphasize certain facets of individual images for a richer, more aesthetic picture quality. Posterization (Color/B&W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera (Normal/Cool/Warm/Green/Magenta), and Soft High-Key, Soft Focus (High/Mid/Low), HDR Painting (High/Mid/Low), Rich-Tone Monochrome, Miniature (Auto/Top/Middle(H)/Bottom/Right/Middle(V)/Left), Watercolor, and Illustration (High/Mid/Low) modes are available.
  • Superior Auto mode is an intelligent automated setting that can quickly identify the current shooting environment and adjust crucial camera settings to deliver optimized results. This mode also utilizes Auto HDR and Hand-held Twilight modes, which employ image compositing techniques to better handle difficult lighting conditions.
  • Anti-Motion Blur automatically corrects for subject movement in order to deliver clean, sharp imagery in low-light conditions. This is accomplished by recording six sequential frames and compositing portions of each image to ensure overall sharpness.
  • Hand-held Twilight Mode automatically composites details from six sequentially-recorded images in order to attain higher overall image sharpness when working in low-light conditions.
  • Dynamic Range Optimizer (DRO) works to improve images featuring backlit subjects or scenes with high contrast where details can be lost in the shadows or highlights. This mode can be controlled automatically or fine-tuned using five settings.
  • Creative Style settings provide control over how the camera processes images based on six different predetermined styles: Standard, Vivid, Portrait, Landscape, Sunset, Black & White, and Sepia. Within these settings, contrast, saturation, and sharpness can also be adjusted depending on personal preference.
  • A Soft Skin Effect helps to minimize the appearance of wrinkles or blemishes in portraits

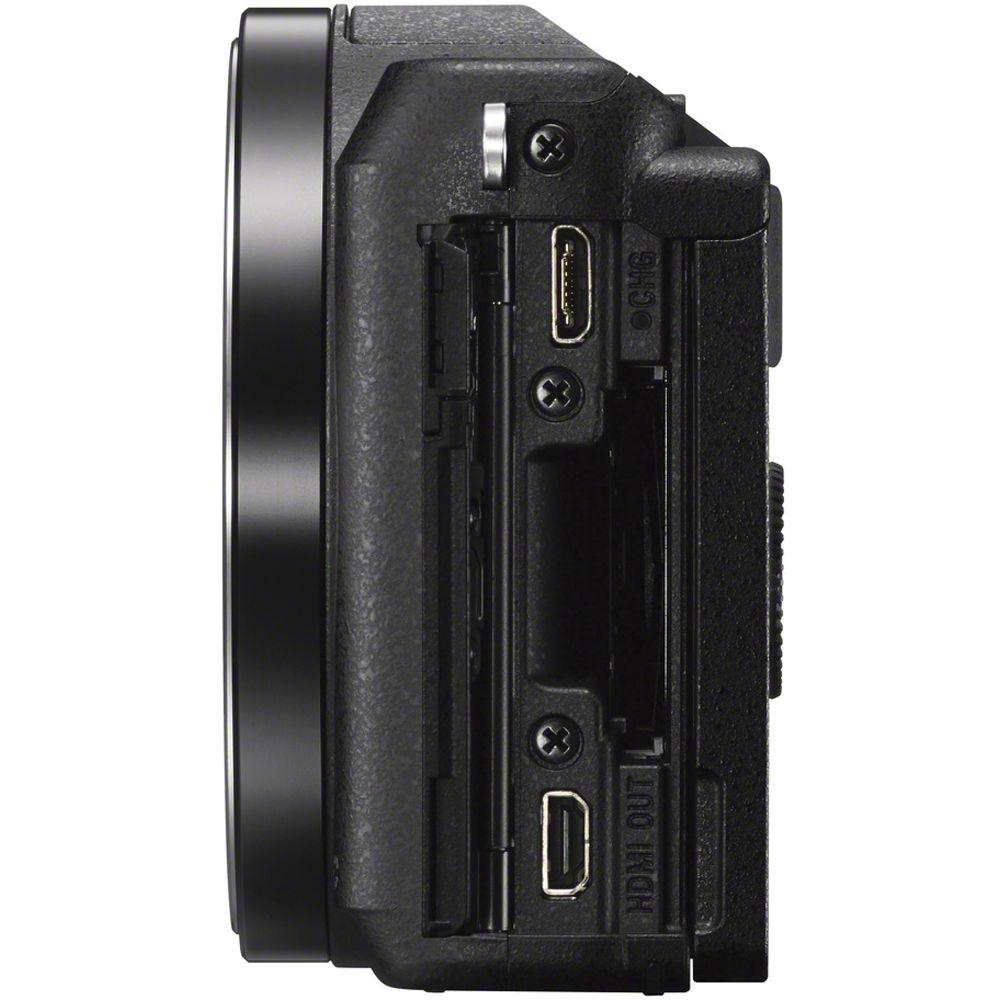

  • In-camera creation of 4K slide shows is possible for rich playback to ultra high definition televisions. An HDMI port is incorporated into the camera's design too, to enable direct connection to HDTVs.
  • TRILUMINOS Color support is afforded by the a5100 to produce rich, natural colors when imagery is viewed on a TRILUMINOS Display.
  • Convenient USB charging allows you to charge the included lithium-ion battery in-camera via USB connection from either an AC outlet or PC source.
