User manual
Sony Alpha a5100 Mirrorless Digital Camera

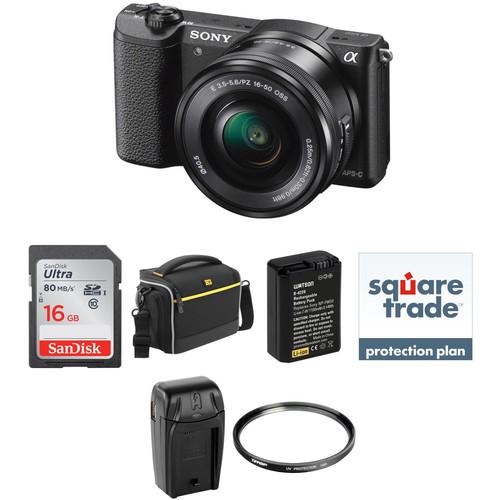

User Manual for Sony Alpha a5100 Mirrorless Digital Camera with 16-50mm Lens Deluxe Kit

• Product category: Mirrorless System Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Cameras

Product description

• Sony Alpha a5100 Mirrorless Digital Camera with 16-50mm Lens (Black)
  • Sony A5100 Demo
  • Alpha a5100
  Offering the speed and versatility required by multimedia photographers, the black Alpha a5100 Mirrorless Digital Camera from Sony combines a high-resolution sensor, hybrid AF system, and apt video recording capabilities, all within a compact and convenient form factor. Pairing a 24.3MP APS-C-sized Exmor HD CMOS sensor and BIONZ X image processor, this camera is able to record up to 6 fps continuous shooting with notable sensitivity to ISO 25600. Full HD video recording is supported in the high-quality XAVC S codec, with the ability to shoot at 1080p in 60, 30, or 24 fps frame rates. Complementing the multimedia imaging capabilities is the Fast Hybrid AF system, which pairs 179 phase-detection points with 25 contrast-detection points to deliver fast, accurate, and consistent focusing abilities. The a5100 is poised to deliver the all-around performance desired by contemporary photographers while still maintaining the convenience needed for everyday shooting.

  In regard to handling, the a5100 sports a sleek design that is characterized by a large 3.0" 921.6k-dot LCD monitor, which features a 180° upward tilting design to permit easier viewing from both front-facing and above angles. Furthermore, the LCD is also a touchscreen, which permits intuitive control over image playback and menu navigation, as well as the ability to release the shutter and touch-to-focus for pinpoint accuracy. Seven customizable function buttons facilitate efficient control over a variety of settings and modes. Built-in Wi-Fi connectivity, with support for NFC-enabled devices, is also integrated into the a5100 to support remote camera control and image sharing to linked mobile devices.

  Included with the camera body is a Sony E-mount 16-50mm f/3.5-5.6 OSS Retractable Zoom Lens, which provides a 35mm-equivalent focal length range of 24-75mm. This range of perspectives is well suited to everyday shooting and is further enhanced through the inclusion of Optical SteadyShot image stabilization for minimizing the appearance of camera shake. Power Zoom technology allows for electronic control over the zoom position and the inclusion of one extra-low dispersion element and four aspherical elements helps to reduce chromatic aberrations throughout the zoom range as well as contribute to high overall sharpness.
  24.3MP Exmor APS HD CMOS Sensor and BIONZ X Image Processor
  • The 24.3MP APS-C-sized Exmor HD CMOS sensor and BIONZ X image processor work together to produce high resolution, well-detailed imagery with minimal noise and notable low-light quality and sensitivity to ISO 25600. The sensor utilizes a gapless on-chip lens design, which fills the gaps between neighboring pixels with optimized lenses that match the angle of incidence to increase light gathering ability and produce edge-to-edge sharpness and quality. The processor also contributes to providing a wealth of speed throughout the camera system, including Fast Hybrid AF, a top continuous shooting rate of 6 fps, and full HD video recording in multiple frame rates and formats.
  Fast Hybrid AF System
  • The Fast Hybrid AF system utilizes both a 179-point phase-detection system and 25-point contrast-detection system to achieve precise focus in as little as 0.07 sec. Utilizing a Spatial Object Detection algorithm, this fast focusing system first employs the phase-detection AF points to quickly bring the subject into focus and then uses the contrast-detection AF points, with wide AF coverage, to fine-tune the sharpness for ensured accuracy. Beyond supporting single shot modes, this system also provides AF tracking when shooting up to 6 fps in continuous high mode and functions seamlessly when recording full HD movies. This hybrid focusing mode is further accentuated by the incorporation of a touchscreen LCD, which avails touch-to-focus control for critical accuracy in both still and video recording.

    For further refinement, a series of distinct AF modes can be selected from depending on the subject. Eye AF is a detail-oriented focusing function that can prioritize a subject's pupil and dedicate focusing performance on that for sharply-rendered portraits; Lock-on AF is a dedicated focusing method for use with moving subjects and adjusts the target frame size as the subject moves throughout the image frame; AF area settings allow you to prioritize specific regions within the frame for increased accuracy; and AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), and Manual Focus modes can also be chosen.
  Full HD Video Recording
  • Full HD 1080p video recording is supported at 60, 30, and 24 fps in the high-quality 50 Mbps XAVC S codec. Other recording options include the ability to utilize the AVCHD and MP4 codecs, with support for recording up to 1080p60 video at 28 Mbps. Dual video recording is supported, as well, with the ability to select either XAVC S or AVCHD codecs plus a duplicate MP4 file to be recorded at the same time for greater efficiency when sharing videos online. Additionally, using the integrated HDMI type D output, both 1080i60 and 1080p60 uncompressed 8-bit 4:2:2 video can be recorded to an optional external recorder.

    Complementing the video capabilities of the a5100, a built-in stereo microphone is incorporated into the design and records audio in the Linear PCM 2-channel format for XAVC S movies, the AC-3 Dolby Digital format for AVCHD movies, and the MPEG-4 AAC-LC format for web-quality MP4 videos.

    Manual focus peaking and a zebra function are also available, to benefit working in manual focus and to assure highlight detail is retained, respectively. A marker setting can be shown on the rear LCD as well, in order to display a center marker, guide frame, aspect marker, safety zone, and other pertinent features for video recording.
  Body Design
  • Sporting a compact form factor and using the versatile Sony E lens mount, this mirrorless camera is designed for convenience and intuitiveness. A large 3.0" 921.6k-dot LCD monitor features a 180° upward tilting design to better facilitate taking self-portraits and a zoom lever surrounding the shutter release button helps to easily fine tune compositions when used in conjunction with a compatible power zoom lens. Additionally, this LCD is also a touchscreen, which offers efficient control over camera settings and navigation throughout playback and menu systems. In regard to physical controls about the body, rear-mounted controls give direct access to different shooting modes and camera settings. A dedicated Fn (Function) button, along with seven other customizable buttons, can also be assigned to control any of 47 different settings.

    The body also incorporates a pop-up flash, which features a guide number of 13.1' at ISO 100 for additional illumination in difficult lighting conditions.
  Built-In Wi-Fi Connectivity
  • Built-in Wi-Fi connectivity enables the a5100 to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.

    Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.
  Sony 16-50mm f/3.5-5.6 OSS Retractable Zoom Lens
  • The included 16-50mm f/3.5-5.6 OSS Retractable Zoom Lens provides a 35mm-equivalent focal length range of 24-75mm, covering wide-angle to portrait-length perspectives to suit working in a wide variety of situations. It features Optical SteadyShot image stabilization to help minimize the appearance of camera shake by up to four shutter speed steps to greatly benefit working in low-light conditions and with greater zoom magnifications. One extra-low dispersion element and four aspherical elements are integrated into the optical construction to help reduce chromatic aberrations as well as increase clarity, sharpness, and contrast and the Power Zoom electronically-driven zoom mechanism brings greater efficiency to controlling the zoom position of the lens.
  Other Camera Features
  • • The Sony E-mount affords compatibility with an extensive number of lenses and lens adapters.
    • An advanced 1200-zone evaluative exposure metering sensor delivers consistent and accurate results using multi-segment, center-weighted, or spot metering modes.
    • Auto Object Framing is an intelligent shooting mode that can automatically analyze the scene and subjects within it and determine an aesthetically pleasing composition. The subsequent imagery will be cropped according to subject matter, resulting in a well-balanced composition that utilizes Face Detection and Tracking Focus to ensure high image quality and sharpness.
    • Clear Image Zoom can be used to magnify the center of scenes by 2x to effectively extend the reach of any focal length lens. This digital zoom technology uses an intelligent interpolation process to minimize the amount of image degradation in order to produce realistic, high-quality images.
    • Picture Effect modes allow you to apply creative settings and emphasize certain facets of individual images for a richer, more aesthetic picture quality. Posterization (Color/B&W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera (Normal/Cool/Warm/Green/Magenta), and Soft High-Key, Soft Focus (High/Mid/Low), HDR Painting (High/Mid/Low), Rich-Tone Monochrome, Miniature (Auto/Top/Middle(H)/Bottom/Right/Middle(V)/Left), Watercolor, and Illustration (High/Mid/Low) modes are available.
    • Superior Auto mode is an intelligent automated setting that can quickly identify the current shooting environment and adjust crucial camera settings to deliver optimized results. This mode also utilizes Auto HDR and Hand-held Twilight modes, which employ image compositing techniques to better handle difficult lighting conditions.
    • Anti-Motion Blur automatically corrects for subject movement in order to deliver clean, sharp imagery in low-light conditions. This is accomplished by recording six sequential frames and compositing portions of each image to ensure overall sharpness.
    • Hand-held Twilight Mode automatically composites details from six sequentially-recorded images in order to attain higher overall image sharpness when working in low-light conditions.
    • Dynamic Range Optimizer (DRO) works to improve images featuring backlit subjects or scenes with high contrast where details can be lost in the shadows or highlights. This mode can be controlled automatically or fine-tuned using five settings.
    • Creative Style settings provide control over how the camera processes images based on six different predetermined styles: Standard, Vivid, Portrait, Landscape, Sunset, Black & White, and Sepia. Within these settings, contrast, saturation, and sharpness can also be adjusted depending on personal preference.
    • A Soft Skin Effect helps to minimize the appearance of wrinkles or blemishes in portraits
    • In-camera creation of 4K slide shows is possible for rich playback to ultra high definition televisions. An HDMI port is incorporated into the camera's design too, to enable direct connection to HDTVs.
    • TRILUMINOS Color support is afforded by the a5100 to produce rich, natural colors when imagery is viewed on a TRILUMINOS Display.
    • Convenient USB charging allows you to charge the included lithium-ion battery in-camera via USB connection from either an AC outlet or PC source.
  UPC: 027242882379
• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)
  • Sony A5100 Demo
  • Alpha a5100
  Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
  • Class 10 performance for Full HD Video (1080p)
  • Read speeds up to 80 MB/s
  • Writable label for easy identification and organization
  • Engineered with UHS-I bus architecture
  • This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
  UPC: 619659136451
• Ruggard Onyx 25 Camera/Camcorder Shoulder Bag
  • Sony A5100 Demo
  • Alpha a5100
  Designed for the photographer and videographer alike, the black with yellow trim Onyx 25 Camera/Camcorder Shoulder Bag from Ruggard is designed to hold a compact camcorder with an attached battery or a mirrorless camera up to 6.75" in length. A durable, weather-resistant nylon shell protects your gear from unwanted elements while high-density foam padding helps prevent damage from accidental impact. For added protection and organization, an included touch-connect divider securely holds your camera in place.

  Small accessories like a spare battery or cleaning cloth can be slipped into either of the two zippered side pockets or the front slip pocket. In addition, three memory card pockets and an another slip pocket are conveniently located under the opening flap of the bag. Carry your gear by way of the top padded grab handle with an integrated mesh underside for added comfort when carrying by hand. Alternatively, a double-touch built-in loop securely wraps around your belt for hands-free carrying. Or, take advantage of the removable 1" wide shoulder strap that can be adjusted from 28" at its shortest length to 53" at its longest length to accommodate a variety of heights and carrying preferences. UPC: 847628571686
• Watson NP-FW50 Lithium-Ion Battery Pack (7.4V, 1100mAh)
  • Sony A5100 Demo
  • Alpha a5100
  The Watson NP-FW50 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-FW50. This replacement battery pack features a capacity of 1100mAh, 7.4V of output power and 8.14 watt-hours. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effect.
  Compatible Cameras
  • Alpha a3000
  • Alpha a5000
  • Alpha a5100
  • Alpha a6000
  • Alpha a6500
  • Alpha a7
  • Alpha a7R
  • Alpha a7S
  • Alpha A560
  • Alpha A580
  • Alpha DSC-RX10
  • Alpha ILCE-QX1
  • Alpha NEX-3
  • Alpha NEX-3N
  • Alpha NEX-5
  • Alpha NEX-5N
  • Alpha NEX-5R
  • Alpha NEX-5T
  • Alpha NEX-6
  • Alpha NEX-7
  • Alpha NEX-C3
  • Alpha NEX-F3
  • Alpha SLT-A33
  • Alpha SLT-A35
  • DSC-RX10
  • ILCE-QX1
  UPC: 847628544314
• Watson Compact AC/DC Charger for NP-FW50 Battery
  • Sony A5100 Demo
  • Alpha a5100
  This versatile Compact AC/DC Charger from Watson charges any NP-FW50 lithium-ion battery via the included, dedicated battery plate. The charger runs on 100-240 VAC power, allowing for worldwide use. It features a fold-out, 2-prong US plug and is supplied with a European plug adapter, as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes it ideal for use both at home and on the road. The Compact AC/DC Charger features a USB output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input - even while charging your camera or camcorder batteries. As the adapter plates are easily interchangeable, the charger can also be used with other batteries via the purchase of the required plates.
  Compatibility
  • Compatible with any Sony NP-FW50 type battery.
  Compact
  • Charger features a fold-out AC plug for easy storage and travel.
  Versatile
  • Includes a Euro plug adapter for charging in Europe, as well as a DC adapter with a cigarette lighter plug that lets you charge while on the road.
  USB Output
  • Charge or supply power to MP3 players, mobile phones, digital cameras, and other related devices with a USB power input.
  Safety Features
  • Offers protection against overcharging and overheating.
  UPC: 847628545564
• Tiffen 40.5mm UV Protector Filter
  • Sony A5100 Demo
  • Alpha a5100
  The Tiffen 40.5mm UV Protector Filter is a general use, clear filter that helps to absorb ultraviolet light and reduce the bluish cast of daylight. This filter is especially useful when photographing at high altitudes or around bodies of water. No additional coloration or contrast is provided, allowing you to pair this filter with others.

  The UV filter is also useful as a general protective filter to leave on lenses at all times. Filters help to reduce dust and moisture from reaching your lens element and provide additional protection in case of drops or situations where scratching could occur.

  Tiffen filters are made using ColorCore technology; a process that involves laminating the filter substrate between 2 pieces of optical glass, grinding flat to a tolerance of 1/10,000th of an inch, then mounting to precision metal rings.
  • Absorbs some ultraviolet light and reduces bluish cast of daylight.
  • Clear filter provides no additional coloration or contrast, allowing you to pair this filter with others.
  • General protection filter reduces dust, moisture, and scratches from reaching lens elements.
  UPC: 049383186000

• Alpha a5100 Mirrorless Digital Camera with 16-50mm Lens (Black) vbruquvfzezyzfexedaw
• E PZ 16-50mm f/3.5-5.6 OSS Lens
• NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
• AC-UB10 AC Adapter
• Shoulder Strap
• Micro USB Cable
• Limited 1-Year Warranty

• SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10) vbruquvfzezyzfexedaw

• Ruggard - Onyx 25 Camera/Camcorder Shoulder Bag

• Watson - NP-FW50 Lithium-Ion Battery Pack (7.4V, 1100mAh)

• SquareTrade - 2 Year Drops & Spills Warranty

• Watson - Compact AC/DC Charger for NP-FW50 Battery

• Tiffen - 40.5mm UV Protector Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Alpha a5100 Mirrorless Digital Camera with 16-50mm Lens (Black)

  Lens Mount	Sony E
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	Actual: 24.7 Megapixel Effective: 24.3 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	23.5 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 25600
  Shutter Speed	Electronic Front Curtain Shutter 1/4000 to 30 Seconds 1/4000 to 1/4 Second in Movie Mode Bulb Mode
  Metering Method	Center-Weighted Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  Metering Range	-1 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 6 fps at 24 MP for up to 75 Exposures Up to 3 fps at 24 MP for up to 75 Exposures
  Self Timer	2/10-Second Delay

  Recording Modes	XAVC S Full HD (1920 x 1080) at 24p/29.97p/59.94p [50 Mb/s] AVCHD Full HD (1920 x 1080) at 59.94p [28 Mb/s] Full HD (1920 x 1080) at 24p/59.94i [17 to 24 Mb/s] MP4 HDV (1440 x 1080) at 29.97p [12 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s]
  Recording Limit	Up to 29 Minutes
  Video Encoding	NTSC
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 179 Contrast Detection: 25
  Autofocus Sensitivity	-1 to +20 EV

  Monitor Size	3"
  Monitor Resolution	921,600 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Fill Flash, Off, Rear Sync, Red-Eye Reduction, Slow Sync
  Guide Number	13.12' / 4 m at ISO 100
  Maximum Sync Speed	1/160 Second
  Flash Compensation	-2 to +2 EV (1/3 EV Steps)
  Dedicated Flash System	TTL

  Memory Card Slot	1 x SD/SDHC/SDXC/Memory Stick PRO HG-Duo/Memory Stick Pro Duo/Memory Stick XC-HG Duo
  Connectivity	HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Battery	1 x NP-FW50 Rechargeable Lithium-Ion, 7.7 VDC, 1080 mAh
  Dimensions (W x H x D)	4.3 x 2.5 x 1.4" / 109.6 x 62.8 x 35.7 mm (Excluding Protrusions)
  Weight	9.98 oz / 283 g (Body with Battery and Memory)

  Focal Length	16 to 50mm (35mm Equivalent Focal Length: 24 to 75mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22 to 36
  Angle of View	83 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 03 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
