User manual
Sony Alpha a7 II Mirrorless Digital

User Manual for Sony Alpha a7 II Mirrorless Digital Camera Body Deluxe Kit

• Product category: Mirrorless System Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Cameras

Product description

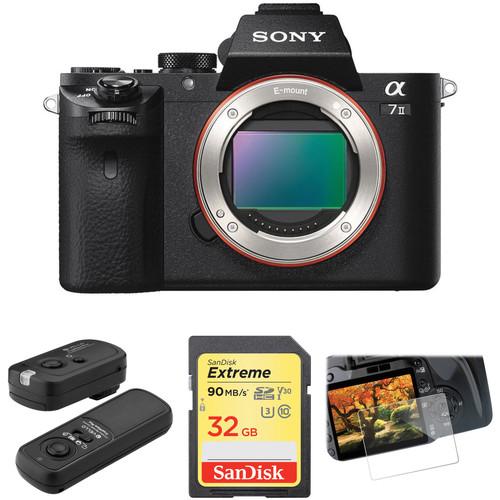

• Sony Alpha a7 II Mirrorless Digital Camera (Body Only)
  • Hands on Review: Sony A7 II
  • SONY Alpha a7 II
  • SONY Alpha a7 II 5axis image stabilization
  Sony has taken their line of full-frame cameras to the next level with the Alpha a7 II Mirrorless Digital Camera, which features 5-axis SteadyShot INSIDE image stabilization with 4.5 stops of compensation for pitch, yaw, horizontal shift, vertical shift, and roll. Operation of the 24.3-megapixel series has been streamlined with a redesigned grip, shutter release button, and customizable controls. The a7 II also features a moisture- and dust-resistant design with a magnesium alloy body and a more robust lens mount. And, with refined algorithms and better utilization of the BIONZ X image processor, the a7 II has an enhanced Fast Hybrid AF system that is about 30% faster than the previous model along with a 5 fps burst rate with continuous autofocus as well as a 40% faster start time.

  The 24.3-megapixel sensor enables high resolution images and low light effectiveness with its standard ISO sensitivity range of 100-25600. The BIONZ X image processor offers fast processing and operation speeds and front-end LSI (large-scale integration) improves the early stages of image processing resulting in more natural details and richer tones. And, 16-bit image processing and 14-bit RAW output preserves the detail provided by the sensor.

  In addition to highly detailed stills with smooth gradations, the a7 II now has access to the high-bit-rate XAVC S format with 60p, 30p, and 24p recording options, all at 50 Mbps. The look of movies can also be adjusted with picture profiles, including the addition of the S-Log2 gamma setting with a dynamic range approximately 1,300% of the standard sRGB spectrum. Timecode and user bit settings are available as well as clean HDMI output for a variety of recording options.

  The advanced Sony Multi-Interface Shoe expands compatibility options for flash, microphone, and other accessories and, as an E-mount full-frame camera, the a7 II is compatible with all present APS-C E-mount lenses in APS-C crop mode as well as new E-mount full-frame Zeiss and Sony G-series lenses. Lens mount adapters with a tripod mount are also available to use A-mount lenses on E-mount cameras, and an optional dedicated battery grip enables stable extended shooting and vertical orientation stability.

  Rounding out the a7 II's imaging capabilities, both a 3.0" 1,228.8k-dot tilting LCD monitor and 2.36 million-dot OLED electronic viewfinder are available for image monitoring and review. Built-in Wi-Fi connectivity, with support for NFC, is available, too, for instant sharing of imagery from the camera as well as remote camera control from a linked mobile device.
  24.3MP Exmor CMOS Image Sensor and BIONZ X Image Processor
  • Incorporated into the a7 II's redesigned body are a 24.3-megapixel Exmor CMOS image sensor and BIONZ X image processor, which work together to enable a wide dynamic range with minimal noise and rich, subtle gradations. The camera features an ISO range of 100-51,200 which can be expanded down to ISO 50. Also, this combination allows the a7 II to reproduce details with excellent clarity.

    Benefitting image quality is the use of detail reproduction technology and diffraction-reducing technology which suppresses the effects of diffraction to reproduce fine details at small aperture settings. Add to this area-specific noise reduction to selectively apply different noise reduction to each area for clear imagery. Also, the sensor features 16-bit image processing with a 14-bit RAW output to preserve detail and ensure optimal quality for later adjustment.

    Further improved in this generation is metering performance, which is now possible down to a rated -1 EV. Also, the a7 II will start up approximately 40% faster than the previous generation for almost instant on.
  5-Axis SteadyShot INSIDE Image Stabilization
  • Packed into the svelte a7 II is a remarkable 5-axis SteadyShot INSIDE image stabilization system. This compensates for five types of camera shake encountered during handheld shooting of still images and video. This allows users to confidently use any lens, even adapted lenses, for critical imaging without encountering blur from camera shake. This system will compensate for approximately 4.5 stops of shutter speed for working with a huge variety of subjects.

    For long focal lengths, the system will correct for pitch and yaw adjustments. Macro and high magnification imagery on the other hand will benefit from the inclusion of horizontal and vertical shift compensation. And, all shooting styles will get usage out of the roll compensation. All 5 axes of stabilization will function at all times, even when used with third-party lenses and adapters or lenses with built-in optical stabilization.

    When using lenses that do not transmit imaging data to the camera, manual settings can be used to input the correct focal length and ensure proper stabilization. Also, the viewfinder can be used to preview the amount of compensation by pressing the shutter release button halfway or magnifying the image.
  Enhanced Fast Hybrid AF
  • Utilizing 117 phase-detection and 25 contrast-detection autofocus points with a wide area of coverage, the a7 II can smoothly and quickly track fast-moving subjects throughout the frame. It optimizes for both speed and accuracy with an enhanced algorithm that improves performance by about 30% when compared to previous generations. This just developed algorithm will also more accurately predict subject movement for tracking that is 1.5x more accurate. Additionally, it can capture images at a rate of 5 fps while using continuous autofocus and automatic exposure. This can be captured in a burst of up to 77 frames when shooting in JPEG Fine L format and a continuous AF Display allows users to view the active AF points.

    Another feature available with this AF system is a Lock-on AF tracking that will analyze more information from the scene to provide dramatically improved accuracy and stability. Eye AF is also available which will prioritize a subject's pupil for excellent portraits even with a shallow depth of field.
  Full HD Video Recording and XAVC S Format
  • Shoot full HD 1920 x 1080 video at frame rates of 60p, 30p, and 24p with the high-bit-rate 50Mbps XAVC S format. This results in excellent image quality with minimal noise and artifacts without requiring a large amount of disk space. Additionally, the system using linear PCM sound for high quality audio.

    When recording internally, users will record video with a 4:2:0 sampling at 8-bit, however, to even further improve image quality the a7 II has clean HDMI output for use with an external recorder. This allows users to capture 4:2:2 uncompressed video and save in an edit-ready format.
  Timecode and User Bit Settings
  • The a7 II has multiple timecode recording options to meet different workflows. It has the standard 'Record Run" mode that only advances the timecode when recording, as well as "Free Run" timecode that advances the timecode even when not recording, which can be great for syncing multiple cameras at live events. It can also record timecode in both drop frame and non-drop frame modes. When recording internally the a7 II is also able to output timecode via HDMI.
  Customizable Color Profiles and S-Log2 Gamma
  • To make sure the a7 II is able to use its extensive dynamic range while recording video it incorporates extensive customizable color and gamma controls. Users can adjust the gamma, black level, knee, color level, and more. Also users can use the same S-Log2 Gamma Curve that is found on high end Sony Cinema cameras that squeezes up to 1300% more dynamic range into the video signal then traditional REC709, for increased post-production flexibility.
  3.0" 1,228.8k-Dot Tilting LCD Monitor
  • With a higher 1,228.8k-dot resolution, the LCD screen will provide shooters with an excellent screen for composing images, adjusting settings, and reviewing video and photos. It also tilts upward 107° and downward 41° for working with multiple shooting angles. Use in sunlight is improved with the implementation of WhiteMagic technology which doubles the brightness of the display through a RGBW pixel structure.
  0.5" 2.36M-Dot XGA OLED Tru-Finder Electronic Viewfinder
  • With its 3-lens optical system the viewfinder faithfully displays what will appear in your recording, including the effects of your camera settings. You'll enjoy rich tonal gradations and improved contrast. High-end features like 100% frame coverage and a wide viewing angle enable comfortable and stable eye-level composition.
  Redesigned Grip, Shutter Release Button, and Controls
  • With a larger, more refined shape to the grip, users will find the a7 II to have a more secure feel and grasp even when large lenses are mounted. Also, the shutter release button has been reshaped and moved forward for a more natural shooting position and a decrease in camera shake. The controls also have been refined with new position for easier handling and improved operation. Button customization is available with the ability to assign any of 56 functions to any of the 10 customizable buttons for a more personalized setup.
  Magnesium Alloy Construction and Robust Lens Mount
  • The compact form is well-built with a magnesium alloy top cover, front cover, and internal structure. The lens mount has been redesigned with a greater strength and rigidity for extra security when using larger or longer lenses. The body itself also features greater sealing for dust and moisture resistance, providing more protection when shooting out in the elements. Additionally, the optical filter on the sensor has an anti-static coating and there is an anti-dust mechanism to prevent dust from adhering to the sensor.
  Audio Input & Headphone Jack
  • The a7 II features a 3.5mm microphone input jack for compatibility with external microphones. And for users needing more the a7 II is also compatible with the Sony XLR-K2M XLR Adapter for recording professional balanced XLR audio signals with phantom power and adjustable mic/line inputs. For monitoring audio the a7 II features a 3.5mm headphone jack as well as real time audio levels for a visual reference.
  Built-In Wi-Fi Connectivity with NFC
  • Built-in Wi-Fi connectivity enables the a7 II to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.

    Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.
  Other Camera Features
  • • Picture Effect modes: Posterization (Color, B&W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera, Soft High-Key, Soft Focus, HDR Painting, Rich-Tone Monochrome, Miniature, Watercolor, and Illustration.
    • Creative Style settings: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, and Sepia (all with +/- 3 step contrast, saturation, and sharpness adjustment).
    • Color space: sRGB standard (with sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS Color.
    • Picture Profile parameters: Black Level, Gamma (Movie, Still, Cine 1-4, ITU709, ITU709 [800%], S-Log2), Black Gamma, Knee, Color Mode, Color Level, Color Phase, Color Depth, Detail, Copy, and Reset.
    • Scene Selection modes: Portrait, Landscape, Macro, Sports Action, Sunset, Night Portrait, Night Scene, Hand-held Twilight, and Anti Motion Blur.
    • Face Detection is available to base exposure and focus on up to eight recognized faces. Furthermore, Eye AF can be used for even greater precision by maintaining critical focus on a subject's eye.
    • 2x Clear Image Zoom can be used to effectively double the magnification afforded by any lens in use with minimal image degradation. For even greater magnification, 1.5x and 2x Smart zoom is available, as well as 4x digital zoom.
    • Pre-flash TTL control with flash bracketing available and a variety of flash modes, including: Flash off, auto, fill-flash, rear sync, slow sync, red-eye reduction, hi-speed sync, and wireless control
    UPC: 027242888722
  • Vello FreeWave Plus Wireless Remote Shutter Release for Sony Multi Terminal
    • Hands on Review: Sony A7 II
    • SONY Alpha a7 II
    • SONY Alpha a7 II 5axis image stabilization
    Trigger your camera's shutter wirelessly with the FreeWave Plus Wireless Remote Shutter Release from Vello, a lightweight remote control system that will help you avoid unwanted camera movement. This 2.4 GHz model is compatible with Sony Multi Terminal cameras and will work both wired and wirelessly up to 320', depending on your own needs and setup. This makes it useful for photographing wildlife or for macro and long exposures where it is necessary to eliminate any chance of camera shake.

    The FreeWave system also has access to 16 channels for triggering multiple receivers and has an internal antenna that will be protected from any accidental damage. Multiple features are available for shooting, such as a four-second delay as well as multi-exposure and long exposure modes. The device also has a dual function release, enabling focus on half press and triggering the shutter release on a full press. Additionally, it has LED indicators to confirm pre-focus and exposure while in wireless mode and the receiver and transmitter each run on two AAA batteries.
    Compatible Cameras
    • Sony: Alpha a9, a7, a7 II, a7 III, a7R, a7R II, a7R III, a7S, a7S II, a6500, a6400, a6300, a6000, a5100, a5000, a3000, a99 II, a77 II, a68, a58
      Cyber-shot RX1R II, RX10 IV, RX10 III, RX10 II, RX10, RX100 VI, RX100 VA, RX100 V, RX100 IV, RX100 III, RX100 II, HX90V, HX50V, HX400V, HX400, HX300
    UPC: 847628582583
  • SanDisk 32GB Extreme UHS-I SDHC Memory Card
    • Hands on Review: Sony A7 II
    • SONY Alpha a7 II
    • SONY Alpha a7 II 5axis image stabilization
    Built to meet the demands of photographers and passionate shutterbugs who are using advanced cameras and HD camcorders, the 32GB Extreme UHS-I SDHC Memory Card from SanDisk allows users to take advantage of functions such as fast action shots, continuous burst mode, and multiple frames per second. It features a capacity of 32GB, is compatible with the UHS-I bus, and delivers maximum read speeds of up to 90 MB/s and maximum write speeds of up to 40 MB/s. This Extreme UHS-I SDHC card supports the V30 speed class, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 speed class, this card also supports the U3 speed class, which likewise guarantees minimum write speeds of 30 MB/s. If your device only supports the Class 10 standard, minimum write speeds are guaranteed not to drop below 10 MB/s.

    Built for extreme conditions, SanDisk's 32GB Extreme UHS-I SDHC Memory Card is water, shock, and x-ray proof, while also being able to withstand temperatures from -13 to 185°F, allowing for use in environments such as snow and deserts. A built-in write protect switch further helps to safeguard your content, while advanced Error Correction Code engine offers improved data integrity and card reliability during read and write operations. Downloadable RescuePRO data recovery software helps you restore accidentally deleted images. The card also has a writable label on its surface and the included jewel case makes for easy storage and organization. This card is backed by a limited lifetime warranty.

    General Features

    Faster Performance and Downloads
    • With write speeds up to 40 MB/s, this card unleashes the full shooting potential of your advanced camera or DSLR. Take advantage of advanced functions such as fast action shots, continuous burst mode, and multiple frames per second. Photos are written to your card almost instantly so you'll get your best shot, and you'll save time moving it all from your camera to your computer.
    Capacity for High-Resolution Photos and Videos
    • With a capacity of 32GB to capture it all, this SanDisk Extreme UHS-I Card offers enough room for thousands of high-resolution photos. The card can accommodate high-volume image formats, such as RAW and JPEG, and also provides plenty of room for Full HD videos.
    4K and Full HD Video Recording
    • With Class 10, UHS Speed Class 3 (U3), and V30 video ratings, you'll be ready to capture 4K Ultra HD, cinema quality 3D, and Full HD video (1080p), which require more performance than ordinary cards can handle. This memory card's accelerated minimum sustained write speeds help ensure that video data isn't lost during recording, by reducing dropouts and stuttering.
    Error Correction for Enhanced Relability
    • Thanks to its Advanced Error Correction Code engine, this SanDisk Extreme UHS-I SDHC card helps reduce the chance for errors during data storage and retrieval. It prevents potential data corruption, providing high data integrity.
    Fast Transfer Speeds Reduce Upload Times
    • SanDisk Extreme UHS-I SDHC cards boast a read speed of up to 90 MB/s, so you can transfer photos and videos to your computer quickly. You'll spend less time uploading photos and more time editing, storing, and sharing.
    Durable Design
    • Designed and tested to withstand the tough conditions, this card has a capacity of 32GB and is waterproof, shockproof, and X-ray proof. It can operate in temperatures ranging from -13 to 185°F, so you can work in almost any climate.
    RescuePRO Software
    • SanDisk RescuePRO and RescuePRO Deluxe software are file and data recovery products for recovering deleted files from all types of digital media.
    UPC: 619659147037
  • Vello LCD Screen Protector Ultra for Sony A7 II, A7 III, A9, RX10 & RX100 Series Camera
    • Hands on Review: Sony A7 II
    • SONY Alpha a7 II
    • SONY Alpha a7 II 5axis image stabilization
    This LCD Screen Protector Ultra from Vello is a sheet of ultra-thin (0.02") optical glass used to safeguard the LCD monitor of the Sony A7 II, A7R II, A7S II, A7 III, A7R III, A9, RX10 II, RX10 III, RX10 IV, RX100 II, RX100 IV, RX100 V, and RX100 VI. It easily adheres to the screen via static, without trapping air bubbles, and if removed, won't leave a sticky residue behind. Multiple layers of protective material shield your display from dirt, scratches, sweat, smears, and light impact. The shatter-proof glass blocks UV rays while allowing visible light in. It can be easily cleaned using the supplied microfiber cloth and wet wipe.
    Camera Compatibility
    • Sony Alpha:
      • a7 II
      • a7R II
      • a7S II
      • a7 III
      • a7R III
      • a9
      Sony Cyber-shot:
      • RX1
      • RX1R
      • RX1R II
      • RX10
      • RX10 II
      • RX10 III
      • RX10 IV
      • RX100
      • RX100 II
      • RX100 III
      • RX100 IV
      • RX100 V
      • RX100 VI
      • HX99
    UPC: 847628594838
  In the Box
  • Alpha a7 II Mirrorless Digital Camera (Body Only) aveexevqddbrbebvrvat
  • NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
  • AC-UUD11 AC Battery Charging Adaptor
  • Shoulder Strap
  • Body Cap
  • Multi-Interface Shoe Cover
  • Eyepiece Cup
  • Micro-USB Cable
  • Limited 1-Year Warranty
  • Vello - FreeWave Plus Wireless Remote Shutter Release for Sony Multi Terminal
  • SanDisk - 32GB Extreme UHS-I SDHC Memory Card
  • Vello - LCD Screen Protector Ultra for Sony A7 II, A7 III, A9, RX10 & RX100 Series Camera
  More from Manufacturer Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Alpha a7 II Mirrorless Digital Camera (Body Only)

  Lens Mount	Sony E
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 24.7 Megapixel Effective: 24.3 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	35.8 x 23.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	100 to 25600 (Extended: 50 to 25600)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-1 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 5 fps at 24 MP for up to 50 Exposures
  Interval Recording	None
  Self Timer	2/10-Second Delay

  Recording Modes	XAVC S Full HD (1920 x 1080) at 24p/29.97p/59.94p [50 Mb/s] AVCHD Full HD (1920 x 1080) at 59.94p [28 Mb/s] Full HD (1920 x 1080) at 24p/59.94i [17 to 24 Mb/s] MP4 HDV (1440 x 1080) at 29.97p [12 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s]
  External Recording Modes	Full HD (1920 x 1080)
  Recording Limit	Up to 29 Minutes
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	AAC LC, Dolby Digital 2ch, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 117 Contrast Detection: 25
  Autofocus Sensitivity	-1 to +20 EV

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	2,359,296 Dot
  Viewfinder Eye Point	27 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.71x
  Diopter Adjustment	-4 to +3 m
  Monitor Size	3"
  Monitor Resolution	1,228,800 Dot
  Monitor Type	Tilting LCD

  Built-in Flash	None
  Flash Modes	Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync, Wireless
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	P-TTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC/Memory Stick PRO Duo (High Speed)/Memory Stick PRO HG-Duo/Memory Stick XC-HG Duo
  Internal Memory	None
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B, Multi Interface Terminal
  Wireless	Wi-Fi
  GPS	None

  Battery	1 x NP-FW50 Rechargeable Lithium-Ion, 1020 VDC
  Dimensions (W x H x D)	5.0 x 3.8 x 2.4" / 126.9 x 95.7 x 59.7 mm
  Weight	1.22 lb / 556 g

  Box Dimensions (LxWxH)	8.268 x 6.221 x 5.433"

• Vello FreeWave Plus Wireless Remote Shutter Release for Sony Multi Terminal

  Release Type	Wireless: RF (Radio Frequency)
  Camera Connection	Sony Multi-Terminal
  Channels	16
  Wireless Frequency	2.4 GHz
  Interval Timer/Programmable	No
  Live View	No
  Mobile Device/App-enabled	No
  Shutter Modes	Bulb, Continuous, Single Shot, 4-Second Delay, 1-Second Continuous
  Wireless Range	328' / 100 m
  Receiver Power Source	Battery
  Receiver Battery Requirements	2 x AAA
  Transmitter Power Source	Battery
  Transmitter Battery Requirements	2 x AAA

  Box Dimensions (LxWxH)	8.661 x 3.858 x 1.575"

• SanDisk 32GB Extreme UHS-I SDHC Memory Card

  Card Type	SDHC
  Storage Capacity	32 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 90 MB/s Maximum (Burst) Write Speed: 40 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Durability	Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Error Correction	Yes
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.5 x 4.0 x 0.1"

• Vello LCD Screen Protector Ultra for Sony A7 II, A7 III, A9, RX10 & RX100 Series Camera

  Material	Glass
  Thickness	19.69 mil / 0.5 mm

  Box Dimensions (LxWxH)	3.8 x 3.8 x 0.9"
