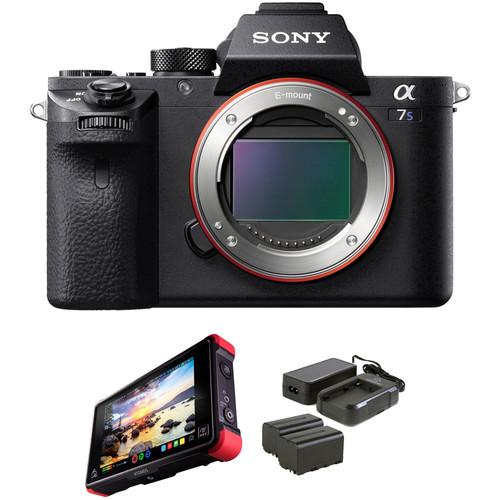

Product description Take your video-making skills up a few notches with this Kit, which pairs the 4K-shooting and full-frame Sony Alpha a7S II Mirrorless Digital Camera with an Atomos Ninja Flame 7" 4K HDMI Recording Monitor. The a7S II is known for its ability to record UHD 4K video, even in extremely low light, and this capability is only made better through the use of the Atomos monitor. This setup allows you to record uncompressed video directly to an edit-ready format while simultaneously enjoying the bright display of HDR (log) footage with a variety of shooting assist tools. - Sony Alpha a7S II Mirrorless Digital Camera (Body Only)
- Head-To-Head: Sony a7 Series vs. Sony FS7
- Sony a7S II - 4K low-light ISO comparison movie
- Sony a7S II - 5-axis optical image stabilization
- Sony | a | a7S II into Outer Space | U.S. east coast by night
Making strides in the video arena, the a7S II Mirrorless Digital Camera from Sony offers an impressive blend of sensitivity, dynamic range, resolution, and speed to benefit a versatile multimedia workflow. Revolving around a full-frame 12.2MP Exmor CMOS sensor, the a7S II is capable of internal UHD 4K recording at 30 fps with full pixel readout as well as 1080p recording at up to 120 fps, all in the XAVC S format. For both stills and video recording, the BIONZ X image processor also pairs with the sensor to enable expanded sensitivity to ISO 409600, continuous shooting to 5 fps, and fast intelligent autofocus with low-light sensitivity to -4 EV. Further enabling working in difficult lighting conditions, 5-axis SteadyShot INSIDE image stabilization compensates for vertical, horizontal, pitch, yaw, and roll camera movements for sharper, smoother handheld recording.
Complementing the 4K recording capabilities is a redeveloped recording setup, including the ability to utilize S-Log3 Gamma and S-Gamut3 in addition to S-Log2, for increasing dynamic range values by up to 1300% to better match high-end post-production workflows. For clearer monitoring potential, an enhanced Zebra function better supports working with S-Log gamma settings and a Gamma Display Assist helps to preview imagery with natural contrast by converting S-Log2 and S-Log3 settings to the ITU709 gamma for easier on-camera viewing.
The a7S II is also characterized by a compact, yet robust, magnesium alloy body design that incorporates a high 0.78x-magnification Tru-Finder OLED electronic viewfinder. With a resolution of 2.36-million dots and a Zeiss T* anti-reflective coating, this finder benefits working in a variety of lighting conditions and is capable of previewing exposure and settings adjustments prior to recording. A rear 3.0" 1,228,800-dot LCD screen is also available, and features a tilting design to support working from high and low angles. Additionally, built-in Wi-Fi connectivity with NFC allows you to pair mobile devices to the camera for wireless sharing and remote camera control. - Full-Frame Exmor Sensor and BIONZ X Image Processor
- A 12.2MP full-frame Exmor CMOS sensor and BIONZ X image processor work together to enable an expansive dynamic range with minimal noise and notable sensitivity from ISO 100-102400, which is further expandable to ISO 50-409600. Coupled with the large individual pixel size the 12.2MP sensor affords, this camera is well-suited to use in low-light conditions.
The sensor's design also features a new-generation RGB color filter array, as well as a gapless on-chip lens design. Together, these two technologies enable truly efficient light-gathering abilities that further reinforce the low noise, high-sensitivity design. Furthermore, an anti-reflective coating has also been applied to the seal glass of the image sensor to minimize surface reflections, glare, and ghosting for contrast-rich, color-neutral imagery.
The sensor and processor combination also avail a wealth of performance-related benefits to still shooting, including a Speed Priority continuous shooting rate of 5 fps, or a 2.5 fps shooting rate with continuous AF. The Fast Intelligent AF system employs 169 AF points, which is comprised of 25 contrast-detection points and nine central AF points that have been split into 16 segments each, in order to provide both speed and accuracy in low-light conditions down to -4 EV. - Internal UHD 4K Recording and Full Pixel Readout
- Internal recording of UHD 4K movies is possible in multiple frame rates up to 30 fps and, based on the 12.2MP resolution, full pixel readout is possible that is void of pixel binning for higher quality imagery with reduced moiré and aliasing. Full HD 1080p recording is also supported in frame rates up to 120 fps, and both resolutions utilize the 100 Mbps XAVC S format contained within an MP4 wrapper with 4:2:0 sampling. The high-speed, 120 fps recording also enables 4x and 5x slow-motion movie recording with the frame rate set to either 30p or 24p.
In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling. - 5-Axis SteadyShot INSIDE Image Stabilization
- Packed into the svelte a7S II is a 4.5-stop effective 5-axis SteadyShot INSIDE image stabilization system that compensates for five different types of camera shake encountered during handheld shooting of stills and video. This allows users to confidently use any lens, even adapted lenses, for critical imaging without encountering blur from camera shake.
For long focal lengths, the system will correct for pitch and yaw adjustments. Macro and high-magnification imagery, on the other hand, will benefit from the inclusion of horizontal and vertical shift compensation. All shooting styles will get usage out of the roll compensation. All 5 axes of stabilization will function at all times, even when used with third-party lenses and adapters or lenses with built-in optical stabilization. - Custom Color Profiles and S-Log3 Gamma
- Support is available for the S-Gamut3.Cine/S-Log-3 and S-Gamut3/S-Log3 profiles that enable up to a 1300% wider dynamic range for smoother tonal and color gradations, along with enhanced sensitivity and clarity in shadows and mid-tones. These profiles also lend themselves to greater compatibility within a professional workflow and are well-paired to the Cineon Log gamma curve for versatile post-production grading and color control. The S-Log3 gamma setting also offers an impressive 14-stop wide dynamic range for greater control over the highlights and shadows, while the S-Gamut3.Cine profile can be used to mimic the qualities of scanned negative film with a wide gamut comparable to the DCI-P3 color space.
In addition to the S-Log3 gamma, the popular S-Log2 settings are also available. - Zebra and Gamma Display Assist
- An enhanced Zebra function is ideally suited to working with S-Log gamma profiles and aids in monitoring exposure values in high-contrast scenes. Video signal level targets can be set from 0 to 109, and specific ranges can be set to make exposure level adjustments easier.
In contrast, a Gamma Display Assist function is also available that displays scenes with natural contrast when recording with S-Log settings. This function converts imagery to the ITU709 profile for easier on-camera monitoring. - Timecode and User Bit Settings
- The a7S II has multiple timecode recording options to meet different workflows. It has the standard 'Record Run" mode that only advances the timecode when recording, as well as "Free Run" timecode that advances the timecode even when not recording, which can be great for syncing multiple cameras at live events. It can also record timecode in both drop frame and non-drop frame modes. When recording internally the a7S II is also able to output timecode via HDMI.
- 0.5" 2.36m-Dot XGA OLED Tru-Finder Electronic Viewfinder
- With its 4-lens optical system using double-sided aspherical elements the viewfinder faithfully displays what will appear in your recording, including the effects of your camera settings. You'll enjoy rich tonal gradations and improved contrast. High-end features like 100% frame coverage and a 0.78x magnification enable comfortable and stable eye-level composition.
In addition to the electronic viewfinder, a rear 3.0" 1,228.8k-dot LCD monitor has also been incorporated into the design and can tilt 107° upward or 41° downward to better enable working from high and low angles. - Built-In Wi-Fi Connectivity with NFC
- Built-in Wi-Fi connectivity enables the a7S II to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.
Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery. - Other Camera Features
-
- Cutting down on mechanical vibrations by 50% is the durable reduced-vibration shutter, which has been tested to 500,000 cycles. An electronic front curtain can be used to reduce vibrations further.
- A Silent Shutter mode can be used to mute the sound of the shutter for working in quiet environments. Up to 5 fps shooting is possible with the silent shutter and the mode can be assigned to a function button for quick on/off switching.
- The top, front, and rear covers of the body have all been made from magnesium alloy for long-lasting durability.
- Enhanced Eye AF can be used with AF-S and AF-C focusing modes, and automatically detects and tracks a subject's eye for critical focus.
- The Expand Flexible Spot function can be used with AF Area selections to intelligently expand the size of your selected focusing spot if it is not positioned on your subject.
- Focus Magnifier and Peaking functions benefit working with manual focus and allow you to quickly confirm in-focus portions of an image when shooting stills or recording video.
- White Balance settings can be fine-tuned for greater personal control over how a scene's colors are represented.
- In addition to the included battery charger, the NP-FW50 battery can also be charged inside the camera via USB.
- Adjustable Picture Profile parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3), Black Gamma, Knee, Color Mode (Movie, Still, Cinema, Pro, ITU709 Matrix, White & Black, S-Gamut, S-Gamut3.Cine, S-Gamut3), Saturation, Color Phase, Color Depth, Detail, Copy, and Reset
- Scene Selection modes: Portrait, Landscape, Macro, Sports Action, Sunset, Night Portrait, Night Scene, Handheld Twilight, and Anti Motion Blur.
- Picture Effects: Posterization (Color, B/W), Pop Color, Retro Photo, Partial Color (R, G, B, Y), High Contrast Monochrome, Toy Camera, Soft High-key, Soft Focus, HDR Painting, Rich-tone Monochrome, Miniature, Watercolor, and Illustration.
- Creative Styles: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia (Contrast -3 to +3 steps, Saturation -3 to +3 steps, Sharpness -3 to +3 steps)
UPC: 027242894273 - Atomos Ninja Flame 7" 4K HDMI Recording Monitor
- Head-To-Head: Sony a7 Series vs. Sony FS7
- Sony a7S II - 4K low-light ISO comparison movie
- Sony a7S II - 5-axis optical image stabilization
- Sony | a | a7S II into Outer Space | U.S. east coast by night
The Atomos Ninja Flame is a 7", 1920 x 1200 on-camera recording monitor combining 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage, as well as high-brightness viewing of Rec. 709 footage. It utilizes an HDMI input to support clean output signals at resolutions up to UHD 4K, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs.
The 10-bit panel and AtomHDR display technology support a brightness range of over 10 stops, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images, or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of a separately available sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Ninja Flame features built-in protective armor with silicone-covered corners and chamfered edges. Compared to the original Ninja, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor features a 3.5mm microphone input, with on-screen audio level display. Additionally, the monitor features a variety of on-screen exposure analysis, framing, and focus assist tools. Included with the basic kit are a Master Caddy II 2.5" drive enclosure and an AC adapter power supply. A travel case for storing the monitor is also included to protect it during storage and transport. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- 4K HDMI input/output
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- UHD 4K downscale for HD monitoring
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- Recording
-
- UHD 4K recording at 24/25/30 fps
- 1080p recording up to 120 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
- Additional Features
-
- 3.5mm microphone input
- Audio level meters and mic level adjustment
- Dual Sony L-Series type battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
UPC: 814164020671 - Atomos Power Kit for Shogun/Ninja Inferno & Flame
- Head-To-Head: Sony a7 Series vs. Sony FS7
- Sony a7S II - 4K low-light ISO comparison movie
- Sony a7S II - 5-axis optical image stabilization
- Sony | a | a7S II into Outer Space | U.S. east coast by night
The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756 In the Box - Alpha a7S II Mirrorless Digital Camera (Body Only) wtcrrxxfubaawfqsdedsfud
- 2 x NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
- BC-VW1 AC Charger for W Series Battery
- AC-UUD11 AC Adapter
- Cable Protector
- Body Cap
- Shoulder Strap
- Accessory Shoe Cap
- Eyepiece Cup
- Limited 1-Year Warranty
- Atomos - Ninja Flame 7" 4K HDMI Recording Monitor
- Atomos - Power Kit for Shogun/Ninja Inferno & Flame
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Alpha a7S II Mirrorless Digital Camera with Atomos Ninja Flame Monitor Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony Alpha a7S II Mirrorless Digital Camera (Body Only)
| | | Lens Mount | Sony E | | Camera Format | Full-Frame (1x Crop Factor) | | Pixels | Actual: 12.4 Megapixel
Effective: 12.2 Megapixel | | Maximum Resolution | 4240 x 2832 | | Aspect Ratio | 3:2, 16:9 | | Sensor Type | CMOS | | Sensor Size | 35.8 x 23.9 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | Sensor-Shift, 5-Axis | | | | ISO Sensitivity | Auto, 100 to 102400 (Extended: 50 to 409600) | | Shutter Speed | Electronic Front Curtain Shutter
1/8000 to 30 Seconds | | Metering Method | Center-Weighted Average, Multiple, Spot | | Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) | | Metering Range | -3 to 20 EV | | White Balance | Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | | Continuous Shooting | Up to 5 fps at 12.2 MP for up to 200 Exposures
Up to 2.5 fps at 12.2 MP for up to 200 Exposures | | Self Timer | 2/5/10-Second Delay | | | | Recording Modes | XAVC S
UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [60 to 100 Mb/s]
Full HD (1920 x 1080) at 100p/120p [60 to 100 Mb/s]
Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [50 Mb/s]
AVCHD
Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
Full HD (1920 x 1080) at 23.976p/25p/50i/59.94i [17 to 24 Mb/s]
MP4
Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
Full HD (1920 x 1080) at 25p/29.97p [16 Mb/s]
HD (1280 x 720) at 25p/29.97p [6 Mb/s] | | External Recording Modes | 4:2:2 8-Bit
UHD 4K (3840 x 2160) at 24.00p/25p/29.97p
Full HD (1920 x 1080) at 24.00p/50i/50p/59.94i/59.94p | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo) | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Contrast Detection: 169 | | Autofocus Sensitivity | -4 to +20 EV | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.5" | | Viewfinder Resolution | 2,359,296 Dot | | Viewfinder Eye Point | 23 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.78x | | Diopter Adjustment | -4 to +3 m | | Monitor Size | 3" | | Monitor Resolution | 1,228,800 Dot | | Monitor Type | LCD | | | | Built-in Flash | None | | Flash Modes | Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync, Wireless | | Maximum Sync Speed | 1/250 Second | | Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC/Memory Stick PRO Duo (High Speed)/Memory Stick PRO HG-Duo | | Connectivity | 3.5mm Headphone, 3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B | | Wireless | Wi-Fi | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Battery | 1 x NP-FW50 Rechargeable Lithium-Ion, 7.4 VDC, 1020 mAh | | Dimensions (W x H x D) | 4.6 x 2.7 x 1.5" / 116.8 x 68.6 x 38.1 mm | | Weight | 22.12 oz / 627.10 g (Body with Battery and Memory) | | | | Box Dimensions (LxWxH) | 9.6 x 6.1 x 5.8" | - Atomos Ninja Flame 7" 4K HDMI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Output
1 x HDMI Type A (HDMI 1.4b) Input | | Audio | 1 x 3.5 mm Mic/Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | HDMI | | Encoding Formats | 3840 x 2160
ProRes 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
1920 x 1080
ProRes 422, LT, HQ
DNxHD 220x, 145, 36 | | Recording Media | 1 x 2.5" SSD (SATA III) | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 11.6 x 7.05 x 4.0" | - Atomos Power Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 7.2 x 4.35 x 3.8" |
