User manual for the Sony Alpha a7S Mirrorless Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

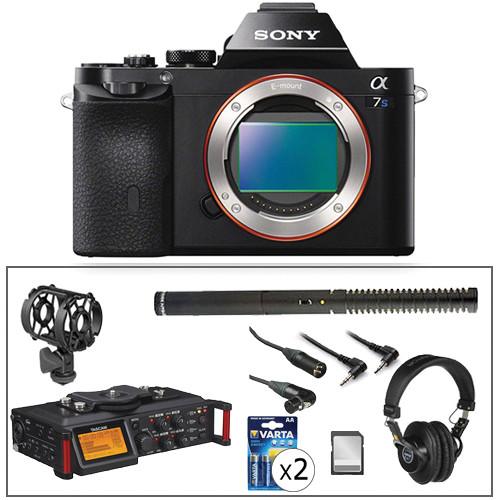

Product description Pairing a video-optimized camera with a host of accessories to enhance your audio recording, the Sony Alpha a7S Mirrorless Digital Camera with Portable Recorder and Microphone Audio Solutions Kit from includes the 4K-capable full-frame mirrorless body along with the Tascam DR-70D 4-Channel Portable Recorder, a Rode NTG-2 Condenser Shotgun Microphone, a microphone shock mount, two 4-packs of AA batteries, an 8GB SDHC memory card, an XLR M to angled XLR F 1.5'-long microphone cable, a right-angle 3.5mm to right-angle 3.5mm 10'-long stereo cable, and closed-back, over-the-ear studio monitoring headphones.
The a7S features a full-frame 12.2MP Exmor CMOS sensor and BIONZ X image processor to enable notable video and still image quality with an expansive dynamic range, low noise, and extended sensitivity to ISO 409600. At the sensor level, this full-frame sensor features a unique on-chip gapless lens design, which incorporates small lenses between neighboring pixels in order to increase light-gathering efficiency and promote greater image quality across the entirety of the sensor plane. Additionally, the a7S is able to output uncompressed 4:2:2 UHD 4K video to an optional external recorder over HDMI, as well as record full HD 1080p video in-camera in the high-quality XAVC S format at 50 Mbps in multiple frame rates. Extending the video recording capabilities is support for S-Log2 gamma, which helps to expand the effective dynamic range during recording, as well as picture profile options, time code, and zebra marker display aids.
Enhancing the audio recording capabilities of the a7S, the included DR-70D is capable of recording four channels of audio simultaneously in the WAV/BWF format. High Definition Discrete Architecture preamps deliver accurate and crisp recording quality, which can be adjusted using dedicated hardware-based controls for more intuitive handling. The design of the recorder can be attached directly to the camera body's tripod socket, the included 8GB SDHC memory card can be used for recording audio files to, and the four AA batteries are used to power the device.
Also included in the kit, the Rode NTG-2 condenser shotgun microphone uses a super-cardioid polar pattern and line plus gradient acoustic principle to minimize audio and noise to the sides of the mic for more efficient recording in noisy areas. It is powered by an internal AA battery or using +48V phantom power afforded by the Tascam recorder, and the included microphone shock mount can be used to attach the microphone to the a7S' hot shoe. - Sony Alpha a7S Mirrorless Digital Camera The Sony Alpha a7S Mirrorless Digital Camera features a full-frame 12.2MP Exmor CMOS sensor and BIONZ X image processor to enable notable video and still image quality with an expansive dynamic range, low noise, and extended sensitivity to ISO 409600. At the sensor level, this full-frame sensor features a unique on-chip gapless lens design, which incorporates small lenses between neighboring pixels in order to increase light-gathering efficiency and promote greater image quality across the entirety of the sensor plane. The sensor and processor combination also avails a wealth of speed throughout the camera system, including a top continuous shooting rate of 5 fps, support for 4K video recording, and a fast 25-point contrast-detection AF system with sensitivity to -4 EV.
Beyond its still image performance, the a7S is also quite adept in regard to recording video. It is able to output uncompressed 4:2:2 UHD 4K video to an optional external recorder over HDMI, as well as record full HD 1080p video in the high-quality XAVC S format at 50 Mbps in multiple frame rates. Extending the video recording capabilities is support for S-Log2 gamma, which helps to expand the effective dynamic range during recording, as well as picture profile options, time code, and zebra marker display aids. Sound can be recorded in the AAC/Linear PCM format via the internal stereo microphone, with a built-in headphone jack for on-board monitoring, or via an external microphone.
Rounding out the a7S's imaging capabilities, both a 3.0" 921.6k-dot tilting LCD monitor and 2.36 million-dot OLED electronic viewfinder are available for image monitoring and review. Built-in Wi-Fi connectivity, with support for NFC, is available, too, for instant sharing of imagery from the camera as well as remote camera control from a linked mobile device. - Full-Frame Exmor Sensor and BIONZ X Image Processor
- Incorporated within the sleek body design is a 12.2MP full-frame Exmor CMOS sensor and BIONZ X image processor, which work together to enable an expansive dynamic range with minimal noise and notable sensitivity. The a7S features a native sensitivity range from ISO 100-102400, which is further expandable to ISO 50-409600. Coupled with the large individual pixel size the 12.2MP sensor affords, this camera is well-suited to use in low-light conditions.
The sensor's design also features a new-generation RGB color filter array, as well as a gapless on-chip lens design. Together, these two technologies enable truly efficient light-gathering abilities that further reinforce the low noise, high-sensitivity design. Furthermore, an anti-reflective coating has also been applied to the seal glass of the image sensor to minimize surface reflections, glare, and ghosting for contrast-rich, color-neutral imagery.
The sensor and processor combination also avail a wealth of performance-related benefits to still shooting, including a Speed Priority continuous shooting rate of 5 fps, or a 2.5 fps shooting rate with continuous AF. The contrast-detection AF system employs 25 distinct points to quickly and precisely acquire focus in light levels as low as -4 EV to support working in a wide variety of shooting conditions. - Full Pixel Read-Out with Clean HDMI Out for 4K Recording
- Line-Skipping has been the Achilles Heel of video recording DSLR and Mirrorless cameras since video recording was first introduced. Most full-frame and APS-C still cameras have extremely high pixel counts, which is great for still photography, but makes utilizing the whole sensor technically infeasible when recording video since scaling down, say a 36 megapixel image in real time would require a much more expensive image processor and generate more heat than such a compact body could handle. So traditionally these cameras skip lines when recording video, leading to major aliasing and moiré from the large sample gaps as well as decreased resolution and increased noise. However, the lower resolution sensor of the a7S is designed for video recording and features a full sensor readout without any line skipping. This means you will see a sharp image devoid of major aliasing and moiré whether recording internally at 1080p or externally in UHD 4K.
For times when the high quality 50 Mbps XAVC S Codec is not enough the a7S is able to output uncompressed UHD 4K (3840 x 2160) at a 4:2:2 color depth over HDMI to compatible third party recorders. Or, if recording internally to a memory card the HDMI can output 1080p at 4:2:2 for external recorders or HD monitors that don't support 4K inputs. The full list of supported HDMI output signals is:
- 3840 x 2160 (30p/24p)
- 1920 x 1080 (60p/24p)
- 1920 x 1080 (60i), YCbCr 4:2:2 8-bit/RGB 8-bit
- Up to 120 fps High Speed Video Recording
- In addition to the standard 24p/30p/60i recording formats the a7S is also able to record at much higher frame rates for slow motion playback, albeit at lower resolutions. 1080p video can be recorded in up to 60p using the entire sensor. And 120 fps is possible at 720p using an approximately APS-C sized center crop of the sensor. 120 fps recording allows for about 5x slow motion when played back in 24p.
- Customizable Color Profiles and S-Log2 Gamma
- To make sure the a7S is able to use its extensive dynamic range while recording video it incorporates extensive customizable color and gamma controls. Users can adjust the gamma, black level, knee, color level, and more. Also users can use the same S-Log2 Gamma Curve that is found on high end Sony Cinema cameras that squeezes up to 1300% more dynamic range into the video signal then traditional REC709, for increased post-production flexibility.
- Flexible Timecode Options
- The a7S has multiple timecode recording options to meet different workflows. It has the standard 'Record Run" mode that only advances the timecode when recording, as well as "Free Run" timecode that advances the timecode even when not recording, which can be great for syncing multiple cameras at live events. It can also record timecode in both drop frame and non-drop frame modes. When recording internally the a7S is also able to output timecode via HDMI, and timecode output is also supported when outputting 4K over HDMI.
- Live Video Overlays
- The a7S features many of the same real-time visual overlays and aids that professional video users have come to rely on. These include focus peaking to aid in manual focusing, zebra markers to help judge overexposure, and an audio level overlay for mixing audio. Also focus magnification is available for checking critical focus. These are available in both viewfinder and LCD display.
- Audio Input & Headphone Jack
- The a7S features a 3.5mm microphone input jack for compatibility with external microphones. And for users needing more the a7S is also compatible with the Sony XLR-k1M XLR Adapter for recording professional balanced XLR audio signals with phantom power and adjustable mic/line inputs.
For monitoring audio the a7S features a 3.5mm headphone jack as well as real time audio levels for a visual reference. - Body Design
- Revolving around a compact, sleek body design, the a7S features both a large rear LCD monitor as well as a bright electronic viewfinder. The rear 3.0" 921.6k-dot Xtra Fine LCD features a tilting design (up 90° and down 45°) to benefit working from both high and low angles. Also benefitting visibility with the rear monitor is the incorporation of WhiteMagic technology, which noticeably increases brightness for easier viewing in sunlit conditions. When shooting at eye-level, the 0.5" XGA OLED electronic viewfinder features a high 0.71x magnification and a 2.36 million-dot resolution for precise monitoring capabilities.
- Built-In Wi-Fi Connectivity with NFC
- Built-in Wi-Fi connectivity enables the a7S to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.
Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery. - Other Camera Features
-
- Picture Effect modes: Posterization (Color, B&W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera, Soft High-Key, Soft Focus, HDR Painting, Rich-Tone Monochrome, Miniature, Watercolor, and Illustration.
- Create Style settings: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, and Sepia (all with +/- 3 step contrast, saturation, and sharpness adjustment).
- Color space: sRGB standard (with sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS Color.
- Picture Profile parameters: Black Level, Gamma (Movie, Still, Cine 1-4, ITU709, ITU709 [800%], S-Log2), Black Gamma, Knee, Color Mode, Color Level, Color Phase, Color Depth, Detail, Copy, and Reset.
- Scene Selection modes: Portrait, Landscape, Macro, Sports Action, Sunset, Night Portrait, Night Scene, Hand-held Twilight, and Anti Motion Blur.
- Face Detection is available to base exposure and focus on up to eight recognized faces. Furthermore, Eye AF can be used for even greater precision by maintaining critical focus on a subject's eye.
- Auto Object Framing automatically creates compositions revolving around portrait and still life subjects and aesthetically crops imagery based on the rule of thirds, where the subject is located within the frame, exposure on your subject, and, in the case of portraiture, the direction he or she is looking.
- 2x Clear Image Zoom can be used to effectively double the magnification afforded by any lens in use with minimal image degradation. For even greater magnification, 1.5x and 2x Smart zoom is available, as well as 4x digital zoom.
- Playback modes: Single (with or without shooting information, Y RGB histogram & highlight/shadow warning), 9/25-frame index view, Enlarged display mode (Maximum magnification L: 13.3x, M: 8.7x, S: 6.7x), Auto Review (10/5/2 sec., off), Image orientation (Auto/Manual/Off selectable), Slideshow, Panorama scrolling, Folder selection (Still/Date/MP4/AVCHD/XAVC S), Forward/Rewind (Movie), Delete, and Protect.
UPC: 027242881730 - Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras Designed as an audio recording solution for filmmakers, the DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras from Tascam features dual built-in omnidirectional microphones and is capable of recording up to 4 tracks simultaneously. It has tripod mounts on both the top and bottom of the unit and can be mounted above or below your DSLR or video camera as well as on a follow-focus cage.
Recording to SD, SDHC, or SDXC cards up to 128GB, the DR-70D tracks in BWAV format for NLE compatibility. All integral parameters feature dedicated hardware controls, so you never have to go searching through menus to quickly change a setting. A dedicated camera output lets you send a mic-level signal to your camera's audio input to create a reference track for easier synching in post, while the dedicated headphone output allows you to monitor your audio. - Designed for use with video and DSLR cameras and can be screwed to the bottom of a DSLR camera with jacks and controls that stay out of the way
- Simplified interface with controls on hardware switches and knobs instead of menus, for quick adjustment during a take
- Dual record function captures a safety track to have a backup in case of distortion
- Tascam's HDDA microphone preamps which are designed for low noise, low distortion, and full-bandwidth
- BWAV format capture for NLE compatibility
- Limiter and high-pass filter prevent wind or mic bumps from overdriving the recording
- Microphone level camera output allows you to record the same audio to the camera for easy synchronization in your editor
- Records to SD/SDHC/SDXC media
- Individual headphone and camera outputs allows you to monitor recording with headphones while sending another output to the camera
- Slate function records a tone for precise synchronization between DR-70D and camera audio in post
- 4-track recording records from four XLR microphone inputs
- Built-in omnidirectional microphones allow you to record without packing mics
UPC: 043774031139 - 2 x Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack) Power any device that accepts AA cells with this 4-pack of standard, all-purpose High-Energy 1.5V AA LR6 Alkaline Batteries from Varta. These German-made cells are non-rechargeable and feature an output of 1.5V. Additionally, they offer up to 80% more power in digital cameras than Varta Simply Alkaline batteries. The "Single Press Out" type packaging enables easy opening, allowing you to extract one at a time and providing storage for unused cells.
- Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone The Rode NTG2 is a condenser shotgun microphone designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low-noise output electronics and wide frequency bandwidth, both of which attribute to the NTG2's broadcast sound quality.The supercardioid polar pattern and line-plus-gradient acoustic design effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio when using the NTG2 in noisy environments.The NTG2 is powered with an internal 1.5V AA battery or an external +48V phantom power source. The output is a standard 3-pin XLR male connector.The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting, yet durable enough to withstand the rigors of heavy road use. The Rode NTG2 is packaged with a microphone stand mount and windscreen.
- Battery Or Phantom Powered
- The Rode NTG2 can be powered with an internal 1.5V AA battery or external +48V phantom power source.
- Supercardioid Polar Pattern
- The supercardioid polar pattern and line-gradient acoustic principle allow for a narrow pick up pattern at the front of the capsule while minimizing noise at the off-axis sections.
- Lightweight Durable Construction
- The NTG2 features a lightweight metal housing that is ideal for camera mounting.
- Low Handling Noise
- Low-noise output electronics provide high signal-to-noise ratio. The NTG2 is designed to also reduce noise caused by handling, rigid mounting hardware, loose cabling, etc.
UPC: 698813000470 - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
- Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.
Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Caged type contact and improved ground contact.
UPC: 847628558229 - Hosa Technology CMM-110RR Right-Angle 3.5mm to Right-Angle 3.5mm Stereo Cable (10') The CMM-110RR from Hosa Technology is a stereo audio cable ideal for professional applications, such as connecting a shotgun mic to a DV camera. The cable has oxygen-free copper conductors for excellent signal clarity, and nickel-plated plugs for efficient signal transfer and lasting durability. The cable has an OFC spiral shield for EMI and RFI rejection and flexibility. The cable is 10' long and has a right-angle 3.5mm male TRS connector on each end. UPC: 728736049987
- Senal SMH-1000 Professional Field and Studio Monitor Headphones The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.
Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical. The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility. Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device. The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening. - An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
- Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
- Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
- Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
- Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
- Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
- Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
- Easy storage via collapsible folding mechanism.
UPC: 847628015821 In the Box - Alpha a7S Mirrorless Digital Camera vetxtbqfzxfuwzbdvzyydvdbxvazbrbbsaz
- 2 x NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
- BC-TRW W Series Battery Charger (Black)
- AC Adapter
- Micro USB Cable
- Body Cap
- Shoulder Strap
- Cable Protector
- Limited 1-Year Warranty
- Tascam - DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
- 2 x Varta - High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)
- Rode - NTG2 Battery or Phantom Powered Condenser Shotgun Microphone
- Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
- Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
- Hosa Technology - CMM-110RR Right-Angle 3.5mm to Right-Angle 3.5mm Stereo Cable (10')
- Senal - SMH-1000 Professional Field and Studio Monitor Headphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Alpha a7S Mirrorless Digital Camera with Portable Recorder and Microphone Audio Solutions Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony Alpha a7S Mirrorless Digital Camera
| Lens Mount | Sony E | Camera Format | Full-Frame (1x Crop Factor) | Pixels | Actual: 12.4 Megapixel Effective: 12.2 Megapixel | Maximum Resolution | 4240 x 2832 | Aspect Ratio | 3:2, 4:3 | Sensor Type | CMOS | Sensor Size | 35.8 x 23.9 mm | Image File Format | JPEG, RAW | Bit Depth | 14-Bit | Image Stabilization | None | | ISO Sensitivity | Auto, 100 to 102400 (Extended: 50 to 409600) | Shutter Speed | Electronic Front Curtain Shutter 1/8000 to 30 Seconds 1/8000 to 1/4 Second in Movie Mode Bulb Mode | Metering Method | Center-Weighted Average, Multi-Zone, Spot | Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority | Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) | Metering Range | 3 to 20 EV | White Balance | Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | Continuous Shooting | Up to 5 fps at 12.2 MP for up to 200 Exposures Up to 2.5 fps at 12.2 MP for up to 200 Exposures | Self Timer | 2/10-Second Delay | | Recording Modes | XAVC S Full HD (1920 x 1080) at 24p/29.97p/59.94p [50 Mb/s] HD (1280 x 720) at 120p [50 Mb/s] AVCHD Full HD (1920 x 1080) at 59.94p [28 Mb/s] Full HD (1920 x 1080) at 24p/59.94p [17 to 24 Mb/s] MP4 HDV (1440 x 1080) at 29.97p [12 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s] | External Recording Modes | Full HD (1920 x 1080) | Video Encoding | NTSC | Audio Recording | Built-In Microphone (Stereo) External Microphone Input | Audio File Format | AAC LC, AC3, Dolby Digital 2ch, Linear PCM | | Focus Type | Auto and Manual Focus | Focus Mode | Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S) | Autofocus Points | Contrast Detection: 25 | Autofocus Sensitivity | -4 to +20 EV | | Viewfinder Type | Electronic | Viewfinder Size | 0.5" | Viewfinder Resolution | 2,359,296 Dot | Viewfinder Eye Point | 27 mm | Viewfinder Coverage | 100% | Viewfinder Magnification | Approx. 0.71x | Diopter Adjustment | -4 to +3 m | Monitor Size | 3" | Monitor Resolution | 921,600 Dot | Monitor Type | Tilting LCD | | Built-in Flash | None | Flash Modes | Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync, Wireless | Maximum Sync Speed | 1/250 Second | Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) | External Flash Connection | Hot Shoe, Proprietary | | Memory Card Slot | 1 x SD/SDHC/SDXC/Memory Stick PRO Duo (High Speed)/Memory Stick PRO HG-Duo/Memory Stick XC-HG Duo | Connectivity | 3.5mm Headphone, 3.5mm Microphone, DC Input, HDMI D (Micro), USB 2.0 Micro-B | Wireless | Wi-Fi | GPS | None | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Battery | 1 x NP-FW50 Rechargeable Lithium-Ion, 7.2 VDC, 1080 mAh | Dimensions (W x H x D) | 5.0 x 3.7 x 1.9" / 127.0 x 94.0 x 48.3 mm | Weight | 1.08 lb / 489.88 g (Body with Battery and Memory) | | Box Dimensions (LxWxH) | 8.976 x 6.299 x 5.984" | - Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
| Number of Tracks | 4 | Max Sample Rate/Resolution | 96 kHz / 24-Bit | Microphone | Built-In Omnidirectional Stereo Pair | Built-In Speaker | No | Memory Card Support | SD (64 MB to 2 GB) SDHC (4 to 32 GB) SDXC (48 to 128 GB) | | Audio File Formats | BWF, WAV | Sample Rates | 44.1 kHz | Bit Depth | 16/24-Bit | Timecode | No | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Camera Input 1 x 1/8" / 3.5 mm TRS Headphone Output 1 x 1/8" / 3.5 mm TRS Input 1 x 1/8" / 3.5 mm TRS Line Output 4 x Combo XLR / 1/4" TRS Input 1 x 2.5 mm TRS Remote Input 1 x 1/8" / 3.5 mm TRS Camera Output | Phantom Power | +24 / 48 V ± 4 V | Phantom Power Current | 10 mA per Channel | Plug-In Power | Yes | Host Connection | 1 x Micro-USB (USB 2.0) | | Frequency Response | Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-2 dB (At 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (At 96 kHz, JEITA) | Gain Range | Mic Inputs: +11 to +64 dB 1/8" Inputs: +3 dB to +38 dB | Max Input Level | Mic Inputs: -72 dBu Line Inputs: +20 dBu 1/8" Inputs: +10 dBV Camera Inputs: +6 dBV | Max Output Level | -24 dBV | Headphone Output Power | 20 mW per Channel | Impedance | Camera Inputs: 10 kOhms Mic Inputs: 2 kOhms Line Inputs: ≥10 kOhms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms | SNR | ≥92 dB | THD | <0.02% | EIN | ≤-120 dBu | | Power Options | Batteries, USB Bus Power, AC/DC Power Adapter | Battery Type | 4 x AA 4 x AA | | Operating Temperature | 32 to 104°F / 0 to 40°C | Dimensions | 6.7 x 2.2 x 4.2" / 169.0 x 55.2 x 106.5 mm (With Adapter Attached) | Weight | 1.4 lb / 625.0 g (With Batteries) 1.2 lb / 530.0 g (Without Batteries) | | Box Dimensions (LxWxH) | 10.6 x 8.1 x 4.3" | - 2 x Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)
| Battery Type | 4 x AA | Battery Chemistry | Alkaline | Battery Voltage | 1.5 V | | Box Dimensions (LxWxH) | 4.75 x 3.1 x 0.65" | - Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone
Transducer | Condenser | Polar Pattern | Supercardioid | Frequency Response | 20 Hz to 20 kHz | Sensitivity | -36.0 dB re 1 Volt/Pascal (15.00 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz | Signal-to-Noise Ratio | 76 dB (1 kHz rel, 1Pa; per IEC651, IEC268-15) | Maximum Input Sound Level | 131 dB SPL (@ 1 kHz, 1% THD into 1 kOhms load) | Power Requirements | 1.5 V AA battery or +48 V phantom power | Output Impedance | 250 Ohms | Output Connectors | 3-pin XLR balanced | Pad | No | Low Frequency Roll-Off | Selectable HPF @ 80 Hz/12 dB octave | Dimensions | 10.94 x 0.87" / 278 x 22 mm (Length x Diameter) | Weight | 5 oz / 161 g | | Box Dimensions (LxWxH) | 13.15 x 6.05 x 2.15" | - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
| Box Dimensions (LxWxH) | 4.65 x 3.2 x 2.65" | - Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
Connector 1 | 3-Pin XLR Male | Connector 2 | 3-Pin XLR Female Right-Angle | Cable Length | 1.5' / 0.45 m | Shielding | 95% Spiral | Conductor Material | Oxygen-Free Copper (OFC) | Number of Conductors | 2 | Wire Gauge | 24 AWG | Contact Plating | Silver | Jacket Type | Polyvinyl Chloride (PVC) | Insulation Type | Polyethylene | | Box Dimensions (LxWxH) | 4.8 x 3.1 x 0.9" | - Hosa Technology CMM-110RR Right-Angle 3.5mm to Right-Angle 3.5mm Stereo Cable (10')
Cable Diameter | 0.157" / 4 mm | Conductor Type | PCOCC-A | Insulator | Perfluoroalkoxy (PFA) | Connector Plating | Nickel | Sheath Material | TPE | Number of Conductors | 2.0 | Temperature Rating | 176°F / 80°C | Weight | 0.35 oz / 9.9 g | | Box Dimensions (LxWxH) | 6.9 x 3.0 x 1.2" | - Senal SMH-1000 Professional Field and Studio Monitor Headphones
| Driver Size | 1.6" / 40 mm | Magnet Type | Neodymium | Design | Over-Ear (Circumaural) | Earcup Style | Closed-Back | | Frequency Response | 10 Hz to 20 kHz | Sensitivity | 102 dB at 1 kHz / 1 mW | Impedance | 58 Ohms | Maximum Power Handling | 1000 mW | Total Harmonic Distortion (THD) | 1% | | Audio Connector | 1/8" (3.5 mm) | Adapter (Included) | 1/4" (6.3 mm) | | Box Dimensions (LxWxH) | 9.1 x 8.8 x 3.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
