Sony Alpha a7S Mirrorless Digital Camera

Search your instruction manual in PDF to download

User Manual for Sony Alpha a7S Mirrorless Digital Camera with Portable Recorder Audio Solutions Kit

Click to enlarge the picture

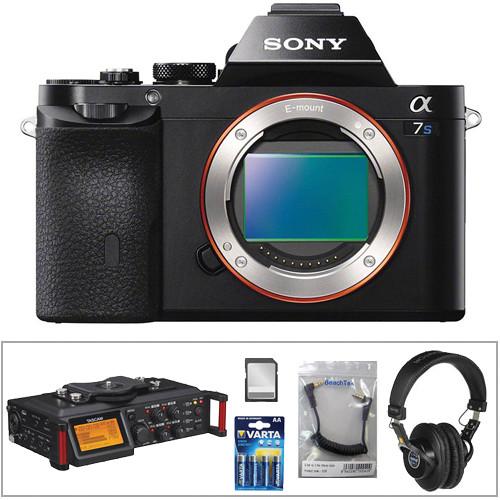

Sony Alpha a7S Mirrorless Digital Camera with Portable Recorder Audio Solutions Kit Contents of the user manual for the Sony Alpha a7S Mirrorless Digital Camera
  • Product category: Uncategorized Sony
  • Brand: Sony
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sony Uncategorized

User manual for the Sony Alpha a7S Mirrorless Digital Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sony product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!



Product description

Pairing a video-optimized camera with a host of accessories to enhance your audio recording, the Sony Alpha a7S Mirrorless Digital Camera with Portable Recorder Audio Solutions Kit from includes the 4K-capable full-frame mirrorless body along with the Tascam DR-70D 4-Channel Portable Recorder, a 4-pack of AA batteries, an 8GB SDHC memory card, a coiled stereo mini to stereo mini cable, and closed-back, over-the-ear studio monitoring headphones.

The a7S features a full-frame 12.2MP Exmor CMOS sensor and BIONZ X image processor to enable notable video and still image quality with an expansive dynamic range, low noise, and extended sensitivity to ISO 409600. At the sensor level, this full-frame sensor features a unique on-chip gapless lens design, which incorporates small lenses between neighboring pixels in order to increase light-gathering efficiency and promote greater image quality across the entirety of the sensor plane. Additionally, the a7S is able to output uncompressed 4:2:2 UHD 4K video to an optional external recorder over HDMI, as well as record full HD 1080p video in-camera in the high-quality XAVC S format at 50 Mbps in multiple frame rates. Extending the video recording capabilities is support for S-Log2 gamma, which helps to expand the effective dynamic range during recording, as well as picture profile options, time code, and zebra marker display aids.

Enhancing the audio recording capabilities of the a7S, the included DR-70D is capable of recording four channels of audio simultaneously in the WAV/BWF format. High Definition Discrete Architecture preamps deliver accurate and crisp recording quality, which can be adjusted using dedicated hardware-based controls for more intuitive handling. The design of the recorder can be attached directly to the camera body's tripod socket, the included 8GB SDHC memory card can be used for recording audio files to, and the four AA batteries are used to power the device.
  • Sony Alpha a7S Mirrorless Digital Camera
    • Sony a7S Demo
    The Sony Alpha a7S Mirrorless Digital Camera features a full-frame 12.2MP Exmor CMOS sensor and BIONZ X image processor to enable notable video and still image quality with an expansive dynamic range, low noise, and extended sensitivity to ISO 409600. At the sensor level, this full-frame sensor features a unique on-chip gapless lens design, which incorporates small lenses between neighboring pixels in order to increase light-gathering efficiency and promote greater image quality across the entirety of the sensor plane. The sensor and processor combination also avails a wealth of speed throughout the camera system, including a top continuous shooting rate of 5 fps, support for 4K video recording, and a fast 25-point contrast-detection AF system with sensitivity to -4 EV.

    Beyond its still image performance, the a7S is also quite adept in regard to recording video. It is able to output uncompressed 4:2:2 UHD 4K video to an optional external recorder over HDMI, as well as record full HD 1080p video in the high-quality XAVC S format at 50 Mbps in multiple frame rates. Extending the video recording capabilities is support for S-Log2 gamma, which helps to expand the effective dynamic range during recording, as well as picture profile options, time code, and zebra marker display aids. Sound can be recorded in the AAC/Linear PCM format via the internal stereo microphone, with a built-in headphone jack for on-board monitoring, or via an external microphone.

    Rounding out the a7S's imaging capabilities, both a 3.0" 921.6k-dot tilting LCD monitor and 2.36 million-dot OLED electronic viewfinder are available for image monitoring and review. Built-in Wi-Fi connectivity, with support for NFC, is available, too, for instant sharing of imagery from the camera as well as remote camera control from a linked mobile device.
      Full-Frame Exmor Sensor and BIONZ X Image Processor
    • Incorporated within the sleek body design is a 12.2MP full-frame Exmor CMOS sensor and BIONZ X image processor, which work together to enable an expansive dynamic range with minimal noise and notable sensitivity. The a7S features a native sensitivity range from ISO 100-102400, which is further expandable to ISO 50-409600. Coupled with the large individual pixel size the 12.2MP sensor affords, this camera is well-suited to use in low-light conditions.

      The sensor's design also features a new-generation RGB color filter array, as well as a gapless on-chip lens design. Together, these two technologies enable truly efficient light-gathering abilities that further reinforce the low noise, high-sensitivity design. Furthermore, an anti-reflective coating has also been applied to the seal glass of the image sensor to minimize surface reflections, glare, and ghosting for contrast-rich, color-neutral imagery.

      The sensor and processor combination also avail a wealth of performance-related benefits to still shooting, including a Speed Priority continuous shooting rate of 5 fps, or a 2.5 fps shooting rate with continuous AF. The contrast-detection AF system employs 25 distinct points to quickly and precisely acquire focus in light levels as low as -4 EV to support working in a wide variety of shooting conditions.
      Full Pixel Read-Out with Clean HDMI Out for 4K Recording
    • Line-Skipping has been the Achilles Heel of video recording DSLR and Mirrorless cameras since video recording was first introduced. Most full-frame and APS-C still cameras have extremely high pixel counts, which is great for still photography, but makes utilizing the whole sensor technically infeasible when recording video since scaling down, say a 36 megapixel image in real time would require a much more expensive image processor and generate more heat than such a compact body could handle. So traditionally these cameras skip lines when recording video, leading to major aliasing and moiré from the large sample gaps as well as decreased resolution and increased noise. However, the lower resolution sensor of the a7S is designed for video recording and features a full sensor readout without any line skipping. This means you will see a sharp image devoid of major aliasing and moiré whether recording internally at 1080p or externally in UHD 4K.

      For times when the high quality 50 Mbps XAVC S Codec is not enough the a7S is able to output uncompressed UHD 4K (3840 x 2160) at a 4:2:2 color depth over HDMI to compatible third party recorders. Or, if recording internally to a memory card the HDMI can output 1080p at 4:2:2 for external recorders or HD monitors that don't support 4K inputs. The full list of supported HDMI output signals is:

      • 3840 x 2160 (30p/24p)
      • 1920 x 1080 (60p/24p)
      • 1920 x 1080 (60i), YCbCr 4:2:2 8-bit/RGB 8-bit
      Up to 120 fps High Speed Video Recording
    • In addition to the standard 24p/30p/60i recording formats the a7S is also able to record at much higher frame rates for slow motion playback, albeit at lower resolutions. 1080p video can be recorded in up to 60p using the entire sensor. And 120 fps is possible at 720p using an approximately APS-C sized center crop of the sensor. 120 fps recording allows for about 5x slow motion when played back in 24p.
      Customizable Color Profiles and S-Log2 Gamma
    • To make sure the a7S is able to use its extensive dynamic range while recording video it incorporates extensive customizable color and gamma controls. Users can adjust the gamma, black level, knee, color level, and more. Also users can use the same S-Log2 Gamma Curve that is found on high end Sony Cinema cameras that squeezes up to 1300% more dynamic range into the video signal then traditional REC709, for increased post-production flexibility.
      Flexible Timecode Options
    • The a7S has multiple timecode recording options to meet different workflows. It has the standard 'Record Run" mode that only advances the timecode when recording, as well as "Free Run" timecode that advances the timecode even when not recording, which can be great for syncing multiple cameras at live events. It can also record timecode in both drop frame and non-drop frame modes. When recording internally the a7S is also able to output timecode via HDMI, and timecode output is also supported when outputting 4K over HDMI.
      Live Video Overlays
    • The a7S features many of the same real-time visual overlays and aids that professional video users have come to rely on. These include focus peaking to aid in manual focusing, zebra markers to help judge overexposure, and an audio level overlay for mixing audio. Also focus magnification is available for checking critical focus. These are available in both viewfinder and LCD display.
      Audio Input & Headphone Jack
    • The a7S features a 3.5mm microphone input jack for compatibility with external microphones. And for users needing more the a7S is also compatible with the Sony XLR-k1M XLR Adapter for recording professional balanced XLR audio signals with phantom power and adjustable mic/line inputs.
      For monitoring audio the a7S features a 3.5mm headphone jack as well as real time audio levels for a visual reference.
      Body Design
    • Revolving around a compact, sleek body design, the a7S features both a large rear LCD monitor as well as a bright electronic viewfinder. The rear 3.0" 921.6k-dot Xtra Fine LCD features a tilting design (up 90° and down 45°) to benefit working from both high and low angles. Also benefitting visibility with the rear monitor is the incorporation of WhiteMagic technology, which noticeably increases brightness for easier viewing in sunlit conditions. When shooting at eye-level, the 0.5" XGA OLED electronic viewfinder features a high 0.71x magnification and a 2.36 million-dot resolution for precise monitoring capabilities.
      Built-In Wi-Fi Connectivity with NFC
    • Built-in Wi-Fi connectivity enables the a7S to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.

      Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.
      Other Camera Features
      • Picture Effect modes: Posterization (Color, B&W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera, Soft High-Key, Soft Focus, HDR Painting, Rich-Tone Monochrome, Miniature, Watercolor, and Illustration.
      • Create Style settings: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, and Sepia (all with +/- 3 step contrast, saturation, and sharpness adjustment).
      • Color space: sRGB standard (with sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS Color.
      • Picture Profile parameters: Black Level, Gamma (Movie, Still, Cine 1-4, ITU709, ITU709 [800%], S-Log2), Black Gamma, Knee, Color Mode, Color Level, Color Phase, Color Depth, Detail, Copy, and Reset.
      • Scene Selection modes: Portrait, Landscape, Macro, Sports Action, Sunset, Night Portrait, Night Scene, Hand-held Twilight, and Anti Motion Blur.
      • Face Detection is available to base exposure and focus on up to eight recognized faces. Furthermore, Eye AF can be used for even greater precision by maintaining critical focus on a subject's eye.
      • Auto Object Framing automatically creates compositions revolving around portrait and still life subjects and aesthetically crops imagery based on the rule of thirds, where the subject is located within the frame, exposure on your subject, and, in the case of portraiture, the direction he or she is looking.
      • 2x Clear Image Zoom can be used to effectively double the magnification afforded by any lens in use with minimal image degradation. For even greater magnification, 1.5x and 2x Smart zoom is available, as well as 4x digital zoom.
      • Playback modes: Single (with or without shooting information, Y RGB histogram & highlight/shadow warning), 9/25-frame index view, Enlarged display mode (Maximum magnification L: 13.3x, M: 8.7x, S: 6.7x), Auto Review (10/5/2 sec., off), Image orientation (Auto/Manual/Off selectable), Slideshow, Panorama scrolling, Folder selection (Still/Date/MP4/AVCHD/XAVC S), Forward/Rewind (Movie), Delete, and Protect.
    UPC: 027242881730
  • Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
    • Sony a7S Demo
    Designed as an audio recording solution for filmmakers, the DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras from Tascam features dual built-in omnidirectional microphones and is capable of recording up to 4 tracks simultaneously. It has tripod mounts on both the top and bottom of the unit and can be mounted above or below your DSLR or video camera as well as on a follow-focus cage.

    Recording to SD, SDHC, or SDXC cards up to 128GB, the DR-70D tracks in BWAV format for NLE compatibility. All integral parameters feature dedicated hardware controls, so you never have to go searching through menus to quickly change a setting. A dedicated camera output lets you send a mic-level signal to your camera's audio input to create a reference track for easier synching in post, while the dedicated headphone output allows you to monitor your audio.
    • Designed for use with video and DSLR cameras and can be screwed to the bottom of a DSLR camera with jacks and controls that stay out of the way
    • Simplified interface with controls on hardware switches and knobs instead of menus, for quick adjustment during a take
    • Dual record function captures a safety track to have a backup in case of distortion
    • Tascam's HDDA microphone preamps which are designed for low noise, low distortion, and full-bandwidth
    • BWAV format capture for NLE compatibility
    • Limiter and high-pass filter prevent wind or mic bumps from overdriving the recording
    • Microphone level camera output allows you to record the same audio to the camera for easy synchronization in your editor
    • Records to SD/SDHC/SDXC media
    • Individual headphone and camera outputs allows you to monitor recording with headphones while sending another output to the camera
    • Slate function records a tone for precise synchronization between DR-70D and camera audio in post
    • 4-track recording records from four XLR microphone inputs
    • Built-in omnidirectional microphones allow you to record without packing mics
    • Runs on 4 AA batteries
    UPC: 043774031139
  • Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)
    • Sony a7S Demo
    Power any device that accepts AA cells with this 4-pack of standard, all-purpose High-Energy 1.5V AA LR6 Alkaline Batteries from Varta. These German-made cells are non-rechargeable and feature an output of 1.5V. Additionally, they offer up to 80% more power in digital cameras than Varta Simply Alkaline batteries. The "Single Press Out" type packaging enables easy opening, allowing you to extract one at a time and providing storage for unused cells.
  • Beachtek SC35 Replacement Cable
    • Sony a7S Demo
    The Beachtek SC35 Replacement Cable is coiled, features 1/8" (3.5mm) stereo mini connectors, and replaces the cable included with the DXA-2T, DXA-5DA, DXA-SLR audio adapters.
  • Senal SMH-1000 Professional Field and Studio Monitor Headphones
    • Sony a7S Demo
    The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.

    Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.

    The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.

    Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.

    The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening.
    • An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
    • Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
    • Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
    • Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
    • Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
    • Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
    • Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
    • Easy storage via collapsible folding mechanism.
    UPC: 847628015821
In the Box
  • Alpha a7S Mirrorless Digital Camera twszbdqusvbrccauczxdwses
  • 2 x NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
  • BC-TRW W Series Battery Charger (Black)
  • AC Adapter
  • Micro USB Cable
  • Body Cap
  • Shoulder Strap
  • Cable Protector
  • Limited 1-Year Warranty
  • Tascam - DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
  • Varta - High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)
  • Beachtek - SC35 Replacement Cable
  • Senal - SMH-1000 Professional Field and Studio Monitor Headphones
Table of Contents




Upload User Manual

Have you got an user manual for the Sony Alpha a7S Mirrorless Digital Camera with Portable Recorder Audio Solutions Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Sony Alpha a7S Mirrorless Digital Camera
    Lens Mount Sony E
    Camera Format Full-Frame (1x Crop Factor)
    Pixels Actual: 12.4 Megapixel
    Effective: 12.2 Megapixel
    Maximum Resolution 4240 x 2832
    Aspect Ratio 3:2, 4:3
    Sensor Type CMOS
    Sensor Size 35.8 x 23.9 mm
    Image File Format JPEG, RAW
    Bit Depth 14-Bit
    Image Stabilization None
    ISO Sensitivity Auto, 100 to 102400 (Extended: 50 to 409600)
    Shutter Speed Electronic Front Curtain Shutter
    1/8000 to 30 Seconds
    1/8000 to 1/4 Second in Movie Mode
    Bulb Mode
    Metering Method Center-Weighted Average, Multi-Zone, Spot
    Exposure Modes Aperture Priority, Auto, Manual, Program, Shutter Priority
    Exposure Compensation -5 to +5 EV (1/3, 1/2 EV Steps)
    Metering Range 3 to 20 EV
    White Balance Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
    Continuous Shooting Up to 5 fps at 12.2 MP for up to 200 Exposures
    Up to 2.5 fps at 12.2 MP for up to 200 Exposures
    Self Timer 2/10-Second Delay
    Recording Modes XAVC S
    Full HD (1920 x 1080) at 24p/29.97p/59.94p [50 Mb/s]
    HD (1280 x 720) at 120p [50 Mb/s]
    AVCHD
    Full HD (1920 x 1080) at 59.94p [28 Mb/s]
    Full HD (1920 x 1080) at 24p/59.94p [17 to 24 Mb/s]
    MP4
    HDV (1440 x 1080) at 29.97p [12 Mb/s]
    SD (640 x 480) at 29.97p [3 Mb/s]
    External Recording Modes Full HD (1920 x 1080)
    Video Encoding NTSC
    Audio Recording Built-In Microphone (Stereo)
    External Microphone Input
    Audio File Format AAC LC, AC3, Dolby Digital 2ch, Linear PCM
    Focus Type Auto and Manual Focus
    Focus Mode Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S)
    Autofocus Points Contrast Detection: 25
    Autofocus Sensitivity -4 to +20 EV
    Viewfinder Type Electronic
    Viewfinder Size 0.5"
    Viewfinder Resolution 2,359,296 Dot
    Viewfinder Eye Point 27 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.71x
    Diopter Adjustment -4 to +3 m
    Monitor Size 3"
    Monitor Resolution 921,600 Dot
    Monitor Type Tilting LCD
    Built-in Flash None
    Flash Modes Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync, Wireless
    Maximum Sync Speed 1/250 Second
    Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
    External Flash Connection Hot Shoe, Proprietary
    Memory Card Slot 1 x SD/SDHC/SDXC/Memory Stick PRO Duo (High Speed)/Memory Stick PRO HG-Duo/Memory Stick XC-HG Duo
    Connectivity 3.5mm Headphone, 3.5mm Microphone, DC Input, HDMI D (Micro), USB 2.0 Micro-B
    Wireless Wi-Fi
    GPS None
    Operating Temperature 32 to 104°F / 0 to 40°C
    Battery 1 x NP-FW50 Rechargeable Lithium-Ion, 7.2 VDC, 1080 mAh
    Dimensions (W x H x D) 5.0 x 3.7 x 1.9" / 127.0 x 94.0 x 48.3 mm
    Weight 1.08 lb / 489.88 g (Body with Battery and Memory)
    Box Dimensions (LxWxH) 8.976 x 6.299 x 5.984"
  • Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
    Number of Tracks 4
    Max Sample Rate/Resolution 96 kHz / 24-Bit
    Microphone Built-In Omnidirectional Stereo Pair
    Built-In Speaker No
    Memory Card Support SD (64 MB to 2 GB)
    SDHC (4 to 32 GB)
    SDXC (48 to 128 GB)
    Audio File Formats BWF, WAV
    Sample Rates 44.1 kHz
    Bit Depth 16/24-Bit
    Timecode No
    Analog I/O 1 x 1/8" / 3.5 mm TRS Camera Input
    1 x 1/8" / 3.5 mm TRS Headphone Output
    1 x 1/8" / 3.5 mm TRS Input
    1 x 1/8" / 3.5 mm TRS Line Output
    4 x Combo XLR / 1/4" TRS Input
    1 x 2.5 mm TRS Remote Input
    1 x 1/8" / 3.5 mm TRS Camera Output
    Phantom Power +24 / 48 V ± 4 V
    Phantom Power Current 10 mA per Channel
    Plug-In Power Yes
    Host Connection 1 x Micro-USB (USB 2.0)
    Frequency Response Line Outputs, Mic/Line Inputs:
    20 Hz to 20 kHz +0.5/-2 dB (At 48 kHz, JEITA)
    20 Hz to 40 kHz +0.5/-3 dB (At 96 kHz, JEITA)
    Gain Range Mic Inputs:
    +11 to +64 dB
    1/8" Inputs:
    +3 dB to +38 dB
    Max Input Level Mic Inputs:
    -72 dBu
    Line Inputs:
    +20 dBu
    1/8" Inputs:
    +10 dBV
    Camera Inputs:
    +6 dBV
    Max Output Level -24 dBV
    Headphone Output Power 20 mW per Channel
    Impedance Camera Inputs:
    10 kOhms
    Mic Inputs:
    2 kOhms
    Line Inputs:
    ≥10 kOhms
    Camera Outputs:
    200 Ohms
    Line Outputs:
    200 Ohms
    SNR ≥92 dB
    THD <0.02%
    EIN ≤-120 dBu
    Power Options Batteries, USB Bus Power, AC/DC Power Adapter
    Battery Type 4 x AA
    4 x AA
    Operating Temperature 32 to 104°F / 0 to 40°C
    Dimensions 6.7 x 2.2 x 4.2" / 169.0 x 55.2 x 106.5 mm (With Adapter Attached)
    Weight 1.4 lb / 625.0 g (With Batteries)
    1.2 lb / 530.0 g (Without Batteries)
    Box Dimensions (LxWxH) 10.6 x 8.1 x 4.3"
  • Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)
    Battery Type 4 x AA
    Battery Chemistry Alkaline
    Battery Voltage 1.5 V
    Box Dimensions (LxWxH) 4.75 x 3.1 x 0.65"
  • Beachtek SC35 Replacement Cable
    Box Dimensions (LxWxH) 2.9 x 2.5 x 0.8"
  • Senal SMH-1000 Professional Field and Studio Monitor Headphones
    Driver Size 1.6" / 40 mm
    Magnet Type Neodymium
    Design Over-Ear (Circumaural)
    Earcup Style Closed-Back
    Frequency Response 10 Hz to 20 kHz
    Sensitivity 102 dB at 1 kHz / 1 mW
    Impedance 58 Ohms
    Maximum Power Handling 1000 mW
    Total Harmonic Distortion (THD) 1%
    Audio Connector 1/8" (3.5 mm)
    Adapter (Included) 1/4" (6.3 mm)
    Detachable Yes
    Weight 8 oz / 226.8 g
    Box Dimensions (LxWxH) 9.1 x 8.8 x 3.8"

Rating

80% users recommend this product to others. And what about you?
Rating: 4 of 5

This product has already been rated by 62 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

The discussion is empty - enter the first post

Post a new topic / query / comment:

Items marked with * are required.
Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
Processing of personal data in accordance with GDPR


Request for user manual
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

I’m looking for a manual / Request for manual

Current requests for instruction manuals:

looking for a user manual for Quickbooks Premier Nonprofit 2020 for a Disabled American Veterans office....
Bower SFD9260....
4-IN-1 WIRELESS CHARGER ...
Brand :Gemini,model # XGA 4000,AND IT WAS PURCHASED NEW IN 2022,OR POSSIBLY EARLY 2023.WORKED perfect till one day I hit power switch and blew fuse x2...
ZZSTAR binoculars...

Discussion
Latest contributions to the discussion:

Will not reopen
Name: Brian
PNY Technologies 32GB Turbo 3.0 USB
Thum drive will not open after not completely closing and extracting. ...
v18
Name: Craig Mcinturff
Davis & Sanford Provista 7518B Tripod
I am looking for a camera mounting plate for a v18 fluid head Davis & Sandford ...
Impact SF-ABRL160 Flash stopped working
Name: Sarah sananes
Impact SF-ABRL160 Stand Mount Flash with
Hello, our flash is connected to a canon camera and all of the sudden the flash is no longer working. Does the flash have a certain battery life? ...
REPEAT REQUEST AS YOU DID NOT ANSWER YOU JUST SENT ME MY MESSAGE BACK -PLEASE HELP
Name: Tish Hopkins
Benro TAD37C Series 3 Adventure Carbon
Hi again-- all this did was send this email back to me with a link that brought me right back here... what is this?? also a link to search for manuals-- ive been there done that there is NO Manual to be found that answers my ? Please HELP thanks!! Hi there is an extra small sc...
Tripod heads DO NOT sit flush on the plate of the tripod Help Please
Name: Tish Hopkins
Benro TAD37C Series 3 Adventure Carbon
Hi there is an extra small screw on the plate that the tripod head screws on that prevents my gimbal tripod head from sitting flush when it is screwed on. this is very annoying and does not allow my camera to stay steady when shooting. Please tell me how to resolve this issue. th...

PDF User Manuals
We regularly supplement and update our library. Latest instruction manuals added for download:

Detail - PROPEL Star Wars T-65 X-Wing Star
https://www.search-manual.com/ upload/ propel-star-wars-t-65-x-wing-star-fighter-quadcopter-243530-user-manual.pdf
Detail - Lenovo ThinkCentre M625q Tiny Thin Client
https://www.search-manual.com/ upload/ lenovo-thinkcentre-m625q-tiny-thin-client-desktop-computer-294499-user-manual.pdf
Detail - Power2000 XP-UNV AC DC Universal Battery
https://www.search-manual.com/ upload/ power2000-xp-unv-ac-dc-universal-battery-charger-110732-user-manual.pdf
Detail - Core SWX Fleet Q V-Mount Four-Position
https://www.search-manual.com/ upload/ core-swx-fleet-q-v-mount-four-position-charger-224861-user-manual.pdf
Detail - Memento Electronics Flat Power Cable Kit
https://www.search-manual.com/ upload/ memento-electronics-flat-power-cable-kit-for-memento-smart-frame-178564-user-manual.pdf


What our users say about us:

Peter Morgan: "Thanks for this website! With help from your instructions I’ve got my dishwasher working again."

Nick Jackson: "Your site’s been a massive help because the user manual didn’t come with the product. Thanks a lot."

Leslie Scott: "I finally found the user's guide with you that I couldn’t find anywhere else! Totally happy!"

Take a look through our user manuals in our on-line library, with instruction manuals and service handbooks downloadable in PDF format. Our instructions database is constantly updated and supplemented with new products. Looking for instruction manuals? Ask us!
SEARCH-MANUAL.com
Sitemap.xml
