User manual
Sony Alpha a9 Mirrorless Digital Camera

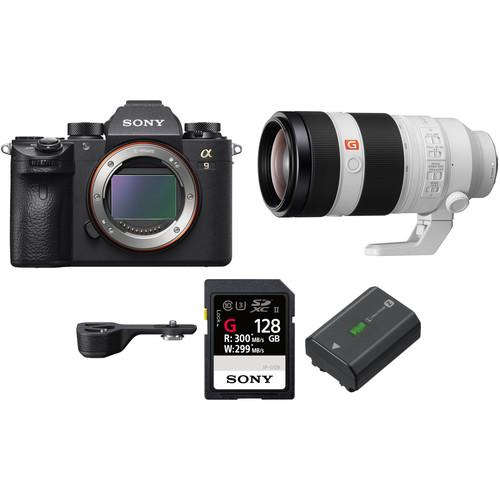

User Manual for Sony Alpha a9 Mirrorless Digital Camera with 100-400mm Lens and Grip Extension Kit

• Product category: Mirrorless System Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Cameras

Product description

• Sony Alpha a9 Mirrorless Digital Camera (Body Only)
  • ILCE 9 Unveil
  • ILCE 9 Silent Shutter Concept
  • ILCE 9 Exmor RS CMOS Image Sensor
  • ILCE 9 Final 4K Sample
  • ILCE 9 PFV 4K 30p XAVCS
  Bringing the speed Sony mirrorless shooters have been waiting for, the Alpha a9 Mirrorless Digital Camera takes impressive multimedia capabilities and ups the processing capabilities for ultra-fast continuous shooting. Making use of a 24.2MP full-frame Exmor RS stacked CMOS sensor and BIONZ X image processor, the a9 is capable of shooting at up to 20 fps, recording UHD 4K video internally, and shooting with an expanded sensitivity range to ISO 204,800. Balancing the quickness of the processor is a well-matched 693-point phase-detection autofocus system that covers 93% of the image area for accurate and quick subject tracking in a variety of lighting conditions. Additionally, complementing both the imaging and focusing assets, the a9 also sports 5-axis SteadyShot INSIDE image stabilization to minimize the appearance of camera shake when shooting handheld.

  Matching its professional imaging capabilities is a well-rounded physical construction that is fully weather-sealed for use in trying environmental conditions. For clear, uncompromised viewing, a quad-VGA OLED Tru-Finder is featured with an impressive 3.686m-dot resolution and 120 fps refresh rate for clear, bright, and smooth eye-level viewing. Alternatively, a 3.0" 1.44m-dot tilting touchscreen LCD is also available to benefit working from high and low angles. Dual SD memory card slots, a customizable menu system, and a variety of physical control dials further round out the camera's intuitive design, and built-in Wi-Fi and Bluetooth enables wireless image sharing and remote camera control from linked mobile devices.
  24.2MP Full-Frame Exmor RS Stacked CMOS Sensor
  • Poised for speed, the a9 features a first-for-full-frame 24.2MP Exmor RS stacked CMOS that affords impressively quick readout speeds to benefit up to 20 fps continuous shooting and UHD 4K video recording. The sensor's back-illuminated design also affords high sensitivity to an extended ISO 204,800 with reduced noise for clean image quality in a variety of lighting conditions. Additionally, uncompressed raw files can be recorded in 14-bit for greater color fidelity and post-production flexibility.
  BIONZ X Image Processor
  • Working in conjunction with the stacked CMOS sensor is an apt BIONZ X image processor that ensures quick processing speeds to keep up with fast-paced shooting applications. Continuous shooting up to 20 fps is supported for up to 362 consecutive JPEGs, or 241 raw frames, along with a top electronic shutter speed of 1/32,000 for freezing fast-moving subjects or working in bright lighting conditions. Benefitting the fast recording capabilities is an equally quick AF/AE metering system that functions at 60 times per second to continuously evaluate the scene in order to lock onto and track moving subjects. Additionally, due to the use of an electronic shutter, totally blackout-free monitoring is possible with the electronic viewfinder for more accurate compositions of moving subjects.
  693-Point Phase-Detection AF
  • Covering 93% of the image area, a focal-plane phase-detection autofocus system incorporates 693 points along with 25 contrast-detection areas for quick and precise focusing in a variety of lighting conditions with sensitivity down to -3 EV. The density of focusing points from this hybrid AF system also enables High-density Tracking AF Technology, which is adept at tracking moving subjects in a variety of lighting conditions. The use of phase-detection points also enables the use of A-mount lenses via the optional LA-EA3 or LA-EA1 lens mount adapters with full continuous AF/AE tracking compatibility.

    The apt focus system also lends itself to a variety of focusing functions for refined accuracy, including Lock-on AF, which maintains focus on moving subjects throughout the use of a configurable frame that is set over the desired moving subject, and Expand Flexible Spot, which employs neighboring focus points to retain focus on moving subjects even if the originally selected point loses focus. Additionally, Eye AF can be used to base focus on recognized subjects' eyes for portraits and is available in both AF-S and AF-C modes. Autofocus can also be used in conjunction with the Focus Magnifier function for critical focus when homing in on minute subject details.

    In addition to autofocus, the a9 also features a Peaking MF function to benefit manual focus control by highlighting sharp edges of contrast for a more objective means of acquiring sharp focus.
  5-Axis SteadyShot INSIDE Image Stabilization
  • Packed into the robust a9 is a 5-stop effective 5-axis SteadyShot INSIDE image stabilization system that compensates for five different types of camera shake encountered during handheld shooting of stills and video. This allows users to confidently use any lens, even adapted lenses, for critical imaging without encountering blur from camera shake.

    For long focal lengths, the system will correct for pitch and yaw adjustments. Macro and high-magnification imagery, on the other hand, will benefit from the inclusion of horizontal and vertical shift compensation. All shooting styles will get usage out of the roll compensation. All 5 axes of stabilization will function at all times, even when used with third-party lenses and adapters or lenses with built-in optical stabilization.
  UHD 4K Video Recording in XAVC S Format
  • Internal recording of UHD 4K movies is possible in multiple frame rates up to 30 fps and, based on the Super35mm recording area and effective 20MP (6000 x 3376) resolution, 2.4x oversampling renders greater detail and full pixel readout is possible, that is void of pixel binning, for higher quality imagery with reduced moiré and aliasing. Full HD 1080p recording is also supported in frame rates up to 120 fps, and both resolutions utilize the 100 Mbps XAVC S format contained within an MP4 wrapper with 4:2:0 sampling. The high-speed, 120 fps recording also enables 4x and 5x slow-motion movie recording with the frame rate set to either 30p or 24p. In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling.

    4K video recording also avails the ability to produce 8MP stills during playback by taking a frame grab from a movie and storing it as a separate file.
  Slow & Quick Motion
  • Take more control over your video capture capabilities with a variety of new frame rates available in an S&Q mode. This will allow shooters to capture Full HD video at one of either steps between 1-120 fps. These settings will allow you to slow down action as well as speed up a slow-moving scene. This setting is also NTSC/PAL switchable.
  Enhanced Zebra Function
  • An enhanced Zebra function is ideally suited to aid in monitoring exposure values in high-contrast scenes. Video signal level targets can be set from 0 to 109, and specific ranges can be set to make exposure level adjustments easier.
  Time Code and User Bit Settings
  • A time code can be used to record hours, minutes, seconds, frames on image data for more precise editing while the User Bit function can record date, time, and scene number to aid in editing together footage from multiple cameras.
  Body Design
  • • Quad-VGA OLED Tru-Finder features a 3.686m-dot resolution and a 0.78x magnification for bright and clear viewing. The EVF also sports a Zeiss T* anti-reflective coating to reduce reflections and a high 120 fps refresh rate can be used to reduce lag for a smoother viewing experience. Additionally, a fluorine coating has been applied to the outermost viewfinder element to benefit cleaning.
    • Rear 3.0" 1.44m-dot tilting touchscreen LCD is available for live view shooting and menu navigation. The touchscreen enables Touch Focus for intuitive adjustment of your focus point, and the tilting design benefits working from both high and low angles.
    • Dual SD card slots provide a more flexible means for storing files. The lower card slot supports UHS-II type cards, and the slots can be configured to do an in-camera backup, segregated raw/JPEG recording, or overflow saving.
    • My Menu function can be used to customize your menu items for easy, direct access with up to 72 options to be set and ordered.
    • Stacked drive mode and focus mode dials, a dedicated AF-ON button, and a rear multi-selector all afford greater efficiency when switching focus modes, points, or exposure settings.
    • Integrated LAN terminal enables making wired FTP transfers for notably fast transfer speeds. Also, the first three characters of the file name can be customized for easier organization during post-production.
    • Built-in Wi-Fi enables the a9 to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.
    • Bluetooth connectivity allows for location data acquisition.
    • Magnesium-alloy body design is both lightweight and durable, and also weather-sealed for use in trying environmental conditions.
    • Integrated PC sync terminal for wired flash sync with strobe packs or wireless radio remotes.
  UPC: 027242907362
• Sony FE 100-400mm f/4.5-5.6 GM OSS Lens
  • ILCE 9 Unveil
  • ILCE 9 Silent Shutter Concept
  • ILCE 9 Exmor RS CMOS Image Sensor
  • ILCE 9 Final 4K Sample
  • ILCE 9 PFV 4K 30p XAVCS
  Targeting sports, wildlife, and action shooters, this FE 100-400mm f/4.5-5.6 GM OSS Lens from Sony will satisfy many photographers and videographers who are looking for a bit of extra reach with their full-frame E-mount camera. As a member of the G Master line, it is designed for outstanding resolution and sharpness with minimal aberrations, something assisted by the implementation of one Super ED and two ED elements as well as a Nano AR coating. It also features a relatively compact size through the use of an f/4.5-5.6 maximum aperture range, and it is equipped with both a Direct Drive SSM autofocus system as Optical SteadyShot image stabilization for outstanding performance at all focal lengths.

  The lens features numerous other settings and controls for making operation smooth and intuitive for a variety of shooting styles. This includes a zoom torque adjustment ring that lets users dial in the stiffness of the zoom mechanism. It also has an internal focus system with a minimum focus distance of just 3.22' as well as focus range limiter switch for faster focusing. Other physical controls and options include multiple customizable focus hold buttons, an AF/MF switch, and a removable and rotatable tripod mount. Additionally, it has a dust- and weather-resistant construction and a nine-blade circular diaphragm.
  • As part of Sony's esteemed G Master series, this lens is designed to achieve notably high resolution and sharpness through the correction of a wide variety of spherical and chromatic aberrations. Additionally, these lenses feature robust and intuitive-to-handle physical designs to benefit both photography and cine applications.
  • A far-reaching telephoto zoom designed for full-frame E-mount mirrorless cameras, this 100-400mm lens is also compatible with APS-C models where it provides a 150-600mm equivalent focal length range.
  • A maximum aperture range of f/4.5-5.6 helps minimize size and weight while providing excellent performance in a variety of applications.
  • Two extra-low dispersion elements and one Super ED element are featured in the lens design and help to control chromatic aberrations and reduce color fringing for increased clarity and color fidelity.
  • A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.
  • Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur.
  • A Direct Drive Super Sonic wave Motor AF system and internal focus mechanism provides quick, quiet, and precise autofocus performance and also contributes to more natural, intuitive manual focus control.
  • A zoom torque adjustment ring will help provide users with added control over the zoom function of the lens.
  • A floating elements system benefits image quality when working at the 3.22' minimum focusing distance with 0.35x magnification.
  • Focus range limiter and focus hold controls offer more intuitive handling and faster performance when photographing moving subjects.
  • Dust and weather-sealed construction benefits using the lens in inclement shooting conditions.
  • The front lens element features a fluorine coating to protect against smudges and dust from adhering to the glass surface.
  • A rounded nine-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  • Removable rotating tripod mount permits quick switching from horizontal to vertical shooting orientations.
  • Compatible with Sony's 1.4x and 2x FE teleconverters for reaching distances of up to 800mm.
  • The included lens hood features a filter access window and a lock switch.
  UPC: 027242906136
• Sony GP-X1EM Grip Extension
  • ILCE 9 Unveil
  • ILCE 9 Silent Shutter Concept
  • ILCE 9 Exmor RS CMOS Image Sensor
  • ILCE 9 Final 4K Sample
  • ILCE 9 PFV 4K 30p XAVCS
  Improve the comfort and stability of your a9, a7 II, or a7 III series camera with the GP-X1EM Grip Extension from Sony. It mounts to the camera's tripod socket and provides a larger and taller grip for a more ergonomic shooting setup. Additionally, it has durable aluminum construction.
  Compatible Cameras
  • a9
    a7 III
    a7R III
    a7 II
    a7R II
    a7S II
  UPC: 027242907539
• Sony 128GB SF-G Series UHS-II SDXC Memory Card
  • ILCE 9 Unveil
  • ILCE 9 Silent Shutter Concept
  • ILCE 9 Exmor RS CMOS Image Sensor
  • ILCE 9 Final 4K Sample
  • ILCE 9 PFV 4K 30p XAVCS
  The 128GB SF-G Series UHS-II SDXC Memory Card from Sony features a storage capacity of 128GB and takes advantage of the UHS-II bus to support advanced DSLR functions such as continuous shutter bursts and rapid shooting, as well as RAW and JPEG captures. This card is also well-suited for video capture, including 4K, 3D, HFR, and Full HD video, and can achieve maximum read speeds of up to 300 MB/s and maximum write speeds of up to 299 MB/s. Thanks to its U3 speed class rating, minimum write speeds are guaranteed not to drop below 30 MB/s.

  UHS-II media achieves its speed through an extra row of pins and while this card has been designed for cameras that are UHS-II compatible, it may be used in devices that do not support UHS-II. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U3. If your device does not support U3, this card is compatible with the U1 and Class 10 standards, each of which guarantees minimum write speeds of 10 MB/s.

  As with most Sony cards, this memory card is shockproof, X-ray proof, and waterproof, while also being able to withstand temperatures from -13 to 185°F, allowing you to take this card with you into extreme environments, such as snow and deserts. Should the card's data become compromised, you also benefit from the option to download File Rescue software for free to help recover deleted content.

  General Features

  Fast SDXC Card
  • The SF-G series boasts a fast write speed up to 299 MB/s, which supports the continuous shooting of high-resolution images with high-performance DSLRs equipped with the UHS-II interface. This card is also compatible with UHS-I devices.
  Fast Transfers
  • With a read speed of up to 300 MB/s, even large files such as 4K or Full HD video captured in XAVC S, or a bunch of high-resolution images by continuous shooting can be quickly transferred to your PC. Spend less time waiting and more time doing.
  Reliability
  • This card offers reliability and durability even in intense use. It is X-ray proof, waterproof, shockproof, and can withstand temperatures ranging from -13 to 185°F.
  File Rescue
  • Sometimes things go wrong and data such as photos and files are accidentally deleted. File Rescue is a powerful tool for recovering data that is simple enough for almost anyone to use and is available as a free download to memory card customers.
  UPC: 027242904347
• Sony NP-FZ100 Rechargeable Lithium-Ion Battery (2280mAh)
  • ILCE 9 Unveil
  • ILCE 9 Silent Shutter Concept
  • ILCE 9 Exmor RS CMOS Image Sensor
  • ILCE 9 Final 4K Sample
  • ILCE 9 PFV 4K 30p XAVCS
  The 7.2 VDC, 2280mAh NP-FZ100 Rechargeable Lithium-Ion Battery from Sony is a high-capacity Z-series power source for select digital cameras. This battery has InfoLITHIUM support for displaying the remaining charge of the battery on the camera's LCD screen.
  Compatible Cameras
  • Alpha a9
    Alpha a7R III
    Alpha a7 III
  UPC: 027242907508

• Alpha a9 Mirrorless Digital Camera (Body Only) stycuzxyzqazdcxs
• NP-FZ100 Rechargeable Lithium-Ion Battery (2280mAh)
• BC-QZ1 Battery Charger
• AC-UUD12 AC Adapter
• Power Cord
• Cable Protector
• ALC-B1EM Body Cap for E-Mount Cameras
• Multi Interface Shoe Cap
• FDA-EP18 Eyepiece Cup
• Micro-USB Cable
• Shoulder Strap
• Limited 1-Year Warranty

• FE 100-400mm f/4.5-5.6 GM OSS Lens stycuzxyzqazdcxs

• GP-X1EM Grip Extension

• 128GB SF-G Series UHS-II SDXC Memory Card

• NP-FZ100 Rechargeable Lithium-Ion Battery (2280mAh)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Alpha a9 Mirrorless Digital Camera (Body Only)

  Lens Mount	Sony E
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 28.3 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	35.6 x 23.8 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 100 to 51200 (Extended: 50 to 204800)
  Shutter Speed	Mechanical Shutter 1/8000 to 30 Seconds Bulb Mode Electronic Shutter 1/32000 to 30 Seconds in Bulb Mode
  Metering Method	Center-Weighted Average, Multi-Zone, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-3 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 20 fps at 24.2 MP for up to 362 Exposures (JPEG Format) Up to 20 fps at 24.2 MP for up to 241 Exposures (Raw Format) Up to 10 fps at 24.2 MP Up to 5 fps at 24.2 MP Up to 2.5 fps at 24.2 MP
  Self Timer	2/5/10-Second Delay

  Recording Modes	XAVC S UHD 4K (3840 x 2160) at 24p/25p/29.97p [60 to 100 Mb/s] Full HD (1920 x 1080) at 100p/120p [60 to 100 Mb/s] Full HD (1920 x 1080) at 24p/25p/29.97p/50p/59.94p [50 Mb/s] AVCHD Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s] Full HD (1920 x 1080) at 24p/25p/50i/59.94i [17 to 24 Mb/s] MP4 Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s] Full HD (1920 x 1080) at 25p/29.97p [16 Mb/s] HD (1280 x 720) at 25p/29.97p [6 Mb/s]
  External Recording Modes	4:2:2 8-Bit UHD 4K (3840 x 2160) at 24.00p/25p/29.97p Full HD (1920 x 1080) at 24.00p/50i/50p/59.94i/59.94p
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC LC, AC3, Dolby Digital 2ch, Linear PCM

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 693 Contrast Detection: 25
  Autofocus Sensitivity	-3 to +20 EV

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	3,686,400 Dot
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.78x
  Diopter Adjustment	-4 to +3 m
  Monitor Size	3"
  Monitor Resolution	1,440,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	None
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	P-TTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x SD/SDHC/SDXC/Memory Stick Duo
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B, X-Sync Socket
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C

  Battery	1 x NP-FZ100 Rechargeable Lithium-Ion, 7.2 VDC, 2280 mAh
  Dimensions (W x H x D)	5.0 x 3.8 x 2.5" / 126.9 x 95.6 x 63.0 mm
  Weight	1.48 lb / 673 g

  Box Dimensions (LxWxH)	9.6 x 6.2 x 5.7"

• Sony FE 100-400mm f/4.5-5.6 GM OSS Lens

  Focal Length	100 to 400mm
  Maximum Aperture	f/4.5 to 5.6
  Minimum Aperture	f/32 to 40
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	24 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 22 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
