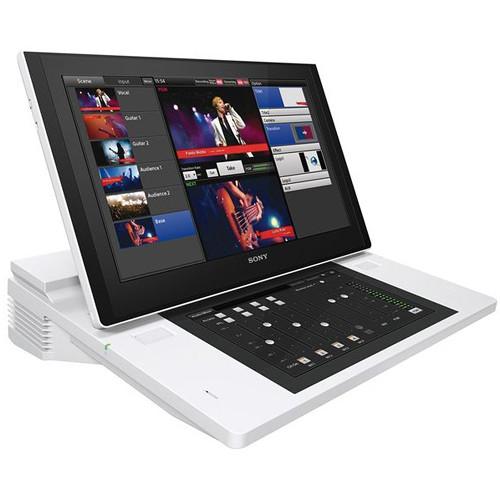

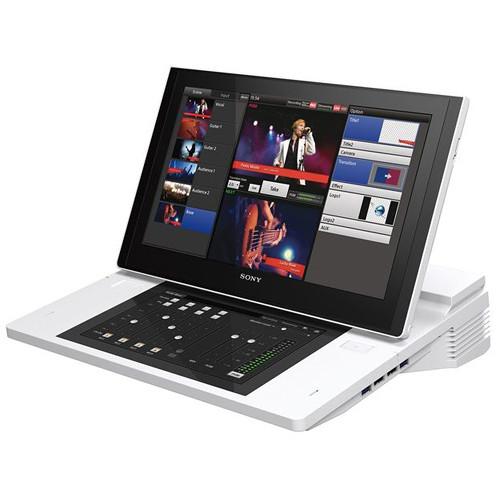

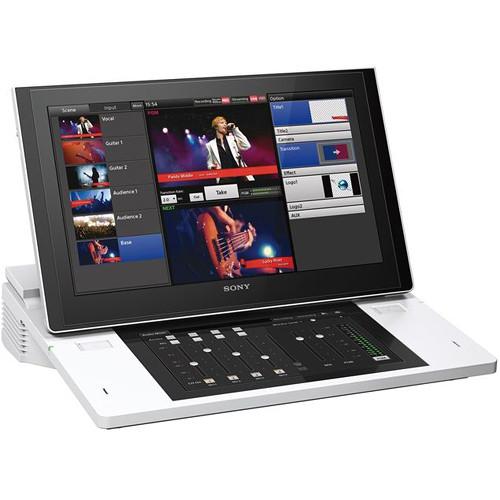

Product description The Sony Anycast Touch Live Content Producer is a portable live production solution with a 15.6" viewing display and 10.6" control display, both touchscreen.
Anycast Touch is a video switcher, video recorder, streaming encoder, audio mixer, clip player, remote camera controller, and titler that supports ten languages. An all-in-one machine with six video and five audio inputs, it accepts professional, consumer, and PTZ cameras, Blu-ray and DVD players, computers, microphones, and other devices on input, and it broadcasts live to streaming servers, projectors, HDTVs, computers, smartphones, and tablets. Connections include SDI, HDMI, Composite, XLR, and RJ-45. The audio mixer features limiting, compression, EQ, and delay adjustments.
Any transition effects and other settings that you assign to an input source can be stored and recalled and applied at anytime you connect that source again. Up to 99 scene lists, with titles, logos, transitions, and different sources, can be prepared in advance and later toggled throughout at the tap of the control surface. Multiple graphics, effects, and wipes can be used simultaneously at any point in a production. One or more PTZ cameras at remote locations can be controlled directly from Anycast Touch for use in live productions.
Anycast Touch features a 192GB fixed internal SSD that you can record ten hours of video and audio to. - All-in-One Portable Live Production Solution
-
- Switcher, recorder, encoder, mixer, player, remote PTZ controller, and titler
- 15.6" viewing display, 10.6" control display, both touchscreen
- Six video and five audio inputs
- Outputs to viewing devices and streaming services
- Connections include SDI, HDMI, Composite, XLR, and RJ-45
- Audio mixer features limiting, compression, EQ, and delay adjustments
- Titler generates overlay text in 10 languages
- Stores transition effects and other settings assigned to input sources
- Up to 99 scene lists can be prepared in advance and toggled throughout at an event
- Multiple graphics, effects, and wipes can be used simultaneously
- A 192GB fixed internal SSD records ten hours of video and audio
In the Box Sony Anycast Touch Live Content Producer AC Adapter User's Guide 1-Year Parts & Labor Warranty User Manual PDF 52.1mbzrqzbzcqcxbfbzwdrfbsvecbcxvbqsfcd Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Anycast Touch Live Content Producer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony AWS-750 Specs | Panel | 15.6" viewing display (40 cm)
High brightness LCD
1920 x 1080 60 Hz
10.6" control display (27 cm)
High brightness LCD
1280 x 768 60 Hz | | Video Signals Performance | Video Process:
10 bit, Y: 74.25 MHz, R-Y/B-Y: 37.125 MHz
SD Video Quantization and Sampling Frequency:
8 bit, Y: 13.5 MHz, R-Y/B-Y: 6.75 MHz
REF Out Frequency Accuracy:
less than 50 ppm | | Audio Signals Performance | Sampling Frequency:
48 kHz (audio mixer)
Quantization:
24 bit (A/D, D/A), 40 bit (DSP)
Frequency Response (MIC/LINE):
20 Hz to 20 kHz +0.5 dB to -2 dB
THD (MIC/LINE -20dBu 1kHz):
0.1% or less
Dynamic Range:
90 dB or more | | Supported Video Format | System Format 59.94 Hz:
1080/59.94i Hz, 480/59.94i Hz
System Format 50 Hz:
1080/50i Hz, 576/50i Hz | | Streaming Performance | Format (Codec) / Protocol:
Flash (H.264, AAC) / RTMP | | Recording | Recording Format:
XDCAM , MPEG HD (.mxf)
Recording Source:
PGM or AUX
Recording Media:
Internal mSATA SSD, 192 GB | | Video Switcher | Configuration:
Input: 6 primary video inputs
1 M/E + 4 keyer (2 x PinP, 2 x title) + 2 logo
Output: PGM output, PGM/AUX output
Key Type:
Luminance key / Alfa channel / Chroma key
Internal Media Playback:
Data can be imported from a USB flash memory device | | Audio Mixer | Configuration:
Input: 6 analog monaural / 6 stereo embedded audio inputs
Mixing: 5 stereo mixing
Output: PGM (stereo) / MIX (stereo)
Oscillator:
100 Hz, 1 kHz, 10 kHz | | Camera Control | Supported camera:
BRC series camera (VISCA protocol) | | Text Typing Tool | Keyboard:
Built-in software keyboard
Input Language:
English
Chinese (Simplified)
Chinese (Traditional)
Japanese
Korean
German
Spanish
Italian
Portuguese
French | | Video Inputs | HD/SD SDI:
4x BNC, 75 Ω, 1.5 Gbps, 270 Mbps
SMPTE 292M, SMPTE 259M-C
Composite:
2x phono jack
VIDEO: 1.0 Vp-p 75 Ω, negative sync
RGB:
2x D-Sub shrink 15-pin female
HDMI:
2x HDMI type A | | Video Outputs | HD/SD SDI:
2x BNC (x2) 75 Ω, 1.5 Gbps, 270 Mbps
SMPTE 292M, SMPTE 259M-C
HD SDI:
1x BNC 75 Ω, 1.5 Gbps, SMPTE 292M
RGB:
1x D-Sub shrink 15-pin female
HDMI:
1x HDMI type A
REF Out:
1x BNC analog black burst signal
NTSC: 0.286 Vp-p ±2 dB, 75 Ω, negative sync
PAL: 0.3 Vp-p ±2 dB, 75 Ω, negative sync | | Audio Inputs | Analog Inputs:
4x 1-4 XLR/TRS combo type
Ref. level: +4 dBu, -20 dBu, -44 dBu
Input impedance: 3.3 kΩ or more
Mic. power: +48 V On/Off
Analog Inputs:
2x 5-6 phono jack
Reference input level: -10 dBu
Input impedance: 10 kΩ or more | | Audio Outputs | PGM Out:
2x TRS phone
Reference level: +4 dBu (10 kΩ load)
Max. output level: +24 dBu
Output impedance: 150 Ω
MIX Out:
2x phono jack
Reference level: -10 dBu (10 kΩ load)
Max. output level: +10 dBu
Output impedance: 470 Ω
Headphones:
1x 1/4" stereo phone jack
2x max. power: 70 mW
Impedance: 47 Ω | | Other Interfaces | LAN:
2x RJ-45, 100BASE-TX, 1000BASE-T
USB 3.0:
4x USB type A, USB 3.0 equivalent | | Speakers | 2x built-in speakers
Approx. 0.8" in diameter (20 mm) | | Power Requirements | DC 19.5 V, 7.5 A
Operating voltage of included AC adapter:
100 V - 240 V, 2.5 A, 50 / 60 Hz | | Operating Temperature | 42 to 95°F (5 to 35°C) | | Dimensions | 16.3 x 3.7 x 13.2" (41.5 x 9.5 x 33.6 cm) | | Weight | 13.68 lb (6.2 kg) | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 20.0 x 17.6 x 9.0" |
