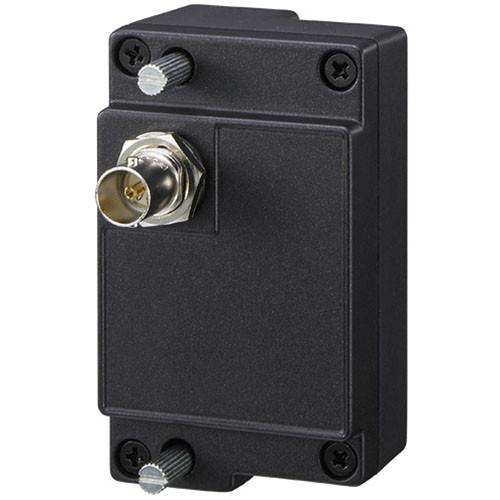

User Manual for Sony BKM341HS HD SD-SDI Input Adapter for LMD1510W and LMD2110W Monitors Click to enlarge the picture
Contents of the user manual for the Sony BKM341HS HD SD-SDI Input Adapter
- Product category: Modules & Interface Cards Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Modules & Interface Cards
|
User manual for the Sony BKM341HS HD SD-SDI Input Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony BKM341HS HD/SD-SDI Input Adapter enables the LMD1510W and LMD2110W monitors to handle both HD-SDI and SD-SDI input signals with a higher picture quality and shorter depth. It has a 9-pin D-sub output to the monitor. - Enables the LMD1510W and LMD2110W monitors to handle both HD-SDI (high definition serial digital interface) and SD-SDI (standard definition serial digital interface) input signals
- Can handle HD-SDI/SD-SDI signals with a higher picture quality and shorter depth
UPC: 027242827080 In the Box Sony BKM341HS HD/SD-SDI Input Adapter for LMD1510W and LMD2110W Monitors 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BKM341HS HD SD-SDI Input Adapter for LMD1510W and LMD2110W Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BKM341HS Specs | Compatibility | Sony LMD1510W and LMD2110W monitors | | Input | 1 x Digital BNC | | Output | 1 x 9-pin D-sub | | Input Signal | 270 Mbps, 10 bit 4:2:2 component digital video
SMPTE 259M: 1.48 Gbps, 10 bit 4:2:2 component digital video
SMPTE 292M: (except 1080/50p and 1080/60p input) | | Operating Conditions | Temperature: 32 to 95°F (0 to 35°C)
Optimum Temperature: 68 to 86°F (20 to 30°C)
Humidity: 0 to 90% (no condensation)
Pressure: 700 to 1060 hPa | | Storage Conditions | Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 90%
Pressure: 700 to 1060 hPa | | Power Requirements | 5 V (supplied by monitor) | | Power Consumption | Approximately 1.8 W | | Dimensions (Approx.) | 1.9 x 3.0 x 1.5" (45 x 75 x 36 mm) not including projected parts | | Weight (Approx.) | 4.2 oz (120 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.1 x 3.5 x 3.0" |
