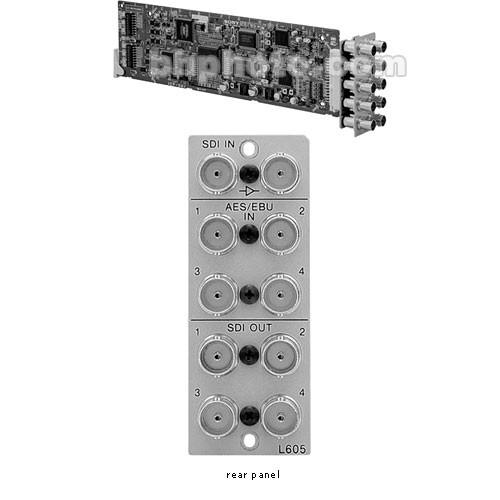

User Manual for Sony BKPFL605 Audio Video Multiplexer Click to enlarge the picture
Contents of the user manual for the Sony BKPFL605 Audio Video Multiplexer
- Product category: Embedders & De-Embedders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Embedders & De-Embedders
|
User manual for the Sony BKPFL605 Audio Video Multiplexer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The BKPFL605 Audio/Video Multiplexer from Sony is a practical AV multiplexer that incorporates a number of functions on a single device. This model distributes serial digital video with embedded audio signal to up to (4) outputs.
This unit embeds (2) AES/EBU stereo pairs (four individual channels) into a single 525/625 component or NTSC composite serial digital video signal. You can also cascade (2) BKPF-L605 boards to add another (4) AES/EBU signals. This configuration will allow you to achieve a total of (8) AES/EBU stereo pairs (16 audio channels) to a serial digital video signal.
This unit also features a number of other functions and features. It is capable of swapping channels and offers a programmable audio delay. Audio group assignment is selectable via an internal switch and function selection for channels 3/4 is also available. It also includes automatic 525/625 line detection and EDH monitoring and insertion. - Multiple Signals on Single Board
- You can multiplex (4) AES/EBU stereo pair signals into a 525/625 component or NTSC composite serial digital video signal with one board.
- 16 Individual Audio Channels
- Achieve up to (16) individual audio channels multiplexed by cascading boards.
- Four Stereo Pair Inputs
- This unit offers (4) AES/EBU stereo pair inputs (eight individual channels)
In the Box Sony BKPFL605 Audio/Video Multiplexer Audio-Video Multiplexer One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BKPFL605 Audio Video Multiplexer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BKPFL605 Specs | Video Inputs | SDI IN connector: BNC type (1)525/625 component or NTSC composite serial digital signal conforming to SMPTE259M-A/C, 143Mbps or 270Mbps (selectable with an internal switch)
Input impedance: 75 ohms
Input return loss: 15 dB or more (5 MHz to 270 MHz)
Transmission distance: 200 m max. (when using a BELDEN 8281 coaxial cable) | | Audio Inputs | Digital audio signal inputs: AES/EBU IN connectors: BNC type (2)48 kHz/20 bits AES/EBU digital audio signal, 1 Vp-p+/-10%, 75 ohms, unbalanced
Input return loss: 25 dB or more (0.1 MHz to 6 MHz)
Transmission distance: 600 m max. (when using a BELDEN 8281 coaxial cable)
Phase difference between channels: Within the same board: 0.1 or less (when converted to 1 kHz analog audio) Between the cascaded boards: 6 or less (when converted to 1 kHz analog audio)
Sync signal output: WORD SYNC OUT connector (BNC type) (1) 48 kHz audio word sync, square signal, 1 Vp-p (NORMAL) or 2.8 Vp-p (HIGH) internally switched, 75 ohms, unbalanced | | Multiplexing | Conforms to SMPTE 272M | | Signal Delay | 4:2:2 SDI Approx. 0.78 s
4 fsc SDI Approx. 1.47 s
Digital audio Approx. 460 s (at 4:2:2 SDI), Approx. 630 a (at 4 fsc SDI) | | EDH | Conforms to SMPTE RP165 | | Power | +/-5 V DC: 1.0 A (supplied from the PFV-L10 Interface Unit) | | Operating Temperature | 5° C to 40° C (41° F to 104° F) | | Dimensions | Board HxD: 3-1/8 x 10-5/8" (77 x 267mm)
Connector panel WxH: 1-5/16 x 3-3/8" (33 x 85mm) | | Weight | Board: approx. 140 g (5 oz)
Connector panel: approx. 100 g (4 oz) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 13.4 x 6.5 x 2.2" |
