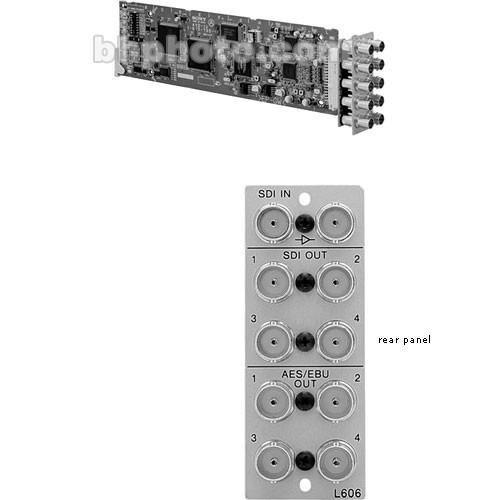

Sony BKPFL606 Audio Video Demultiplexer

Search your instruction manual in PDF to download

User Manual for Sony BKPFL606 Audio Video Demultiplexer

Click to enlarge the picture
Sony BKPFL606 Audio Video Demultiplexer Contents of the user manual for the Sony BKPFL606 Audio Video Demultiplexer
  • Product category: Embedders & De-Embedders Sony
  • Brand: Sony
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sony Embedders & De-Embedders

User manual for the Sony BKPFL606 Audio Video Demultiplexer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sony product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!



Product description

The BKPFL606 Audio/Video Demultiplexer from Sony is a practical device that extracts AES/EBU format digital audio signals from a multiplexed 525/625 component serial or NTSC composite serial digital video signal.

This unit extracts (2) AES/EBU stereo pairs (four individual channels). You can also cascade (2) BKPF-L605 boards to add another (4) AES/EBU signals. It also allows you to separate up to (8) AES/EBU stereo pairs (16 audio channels) from a 525/625 component serial digital video signal by cascading (4) BKPFL606 boards. The BKPFL606 distributes an input serial digital video signal to (4) outputs and each of two extracted AES/EBU stereo pairs to (4) outputs.

This unit also features a number of other functions and features. It is capable of swapping channels and offers a programmable audio delay. Audio group assignment is selectable via an internal switch and automatic 525/625 line detection and EDH monitoring and insertion are also included.
    Multiple Signals on Single Board
  • You can demultiplex (2) AES/EBU stereo pair signals into a 525/625 component or NTSC composite serial digital video signal with one board.
    16 Individual Audio Channels
  • Achieve up to (16) individual audio channels demultiplexed by cascading boards.
    Two Distribution Outputs
  • This unit offers (2) distribution outputs per each of two AES/EBU stereo output (eight individual channels).
In the Box Sony BKPFL606 Audio/Video Demultiplexer
  • Audio-Video Demultiplexer
  • One-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sony BKPFL606 Audio Video Demultiplexer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sony BKPFL606 Specs

    Video Inputs
  • SDI IN connector: BNC type (1)525/625 component or NTSC composite serial digital signal conforming to SMPTE259M-A/C, 143Mbps or 270Mbps (selectable with an internal switch)
  • Input impedance: 75 ohms
  • Input return loss: 15 dB or more (5 MHz to 270 MHz)
  • Transmission distance: 200 m max. (when using a BELDEN 8281 coaxial cable)
  • Audio Inputs
  • Digital audio signal inputs: AES/EBU IN connectors: BNC type (2)48 kHz/20 bits AES/EBU digital audio signal, 1 Vp-p+/-10%, 75 ohms, unbalanced
  • Input return loss: 25 dB or more (0.1 MHz to 6 MHz)
  • Phase difference between channels: Within the same board: 0.1 or less (when converted to 1 kHz analog audio) Between the cascaded boards: 6 or less (when converted to 1 kHz analog audio)
  • Sync signal output: WORD SYNC OUT connector (BNC type) (1) 48 kHz audio word sync, square signal, 1 Vp-p (NORMAL) or 2.8 Vp-p (HIGH) internally switched, 75 ohms, unbalanced
  • Multiplexing Conforms to SMPTE 272M
    Signal Delay
  • 4:2:2 SDI Approx. 0.48 s
  • 4 fsc SDI Approx. 0.91 s
  • Digital audio Approx. 450 s (at 4:2:2 SDI), Approx. 610 a (at 4 fsc SDI)
  • EDH Conforms to SMPTE RP165
    Power +/-5 V DC: 1.0 A (supplied from the PFV-L10 Interface Unit)
    Operating Temperature 5° C to 40° C (41° F to 104° F)
    Dimensions Board HxD: 3-1/8 x 10-5/8" (77 x 267mm)
    Connector panel WxH: 1-5/16 x 3-3/8" (33 x 85mm)
    Weight Board: approx. 140 g (5 oz)
    Connector panel: approx. 100 g (4 oz)
    Package Weight 1.0 lb
