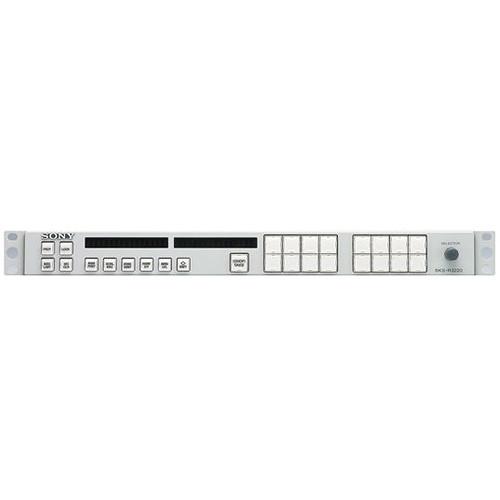

Product description The Sony BKS-R3220 controls matrix crosspoints in routers connected to an S-BUS system. Any combination of inputs and outputs, pre-defined with the control terminal, are controllable with a single 'take' button. The names of the selected sources and destinations are shown on the front panel displays. - Key Features
-
- Router control in S-BUS systems
- Fully compliant with expanded S-BUS systems
- 1024 destinations or 16 levels can be displayed using the selector knob
- Two source selection methods available: Type plus number or Direct
- Large selector buttons show source and destination name; status shown by button color
- Route function for expanded sources
- Sources selectable to levels
- Improved monitor function for the selection of destinations
- Number of sources and destinations controlled expandable with additional units
- Alternate source switching using chop function
- Several crosspoints switchable with a single button
- Control bridge between RS-422A (cart + protocol) and S-BUS
- Easy ROM update
- Single cable connection
- Reduced depth helps in desk mounting applications
In the Box Sony BKS-R3220 Router X-Y Control Unit T-Bridge Operation Guide Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BKS-R3220 Router X-Y Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BKSR3220 Specs | Remote 1 | 1x BNC, SBUS
Data Transfer Method:
BI-PHASE SPECE
Data Transfer Rate:
312.5 kbps/1250 kbps | | Remote 2 | 1x D-Sub 9-pin, RS-422
Data Transfer Method:
Conforms to EIA RS-422A
Data Transfer Rate:
38.4 kbps | | RS-232C | 1x D-Sub 9-pin
Data Transfer Method:
8 bits, no parity, no check
Data Transfer Rate:
19.2 kbps | | Signal Transfer Distance | 1640 ft (500 m) max
(75 ohm coaxial cable, Belden 8281 or equivalent) | | Power Requirements | 100-120 VAC (for U.S. and Canada)
100-240 VAC (for other countries)
50/60 Hz | | Current Consumption | 0.25 A | | Peak Inrush Current | Power ON, current probe method: 28 A (240 V)
Hot switching inrush current, measured in accordance with European standard EN55103-1: 8 A (230 V) | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions | 17.3 x 1.7 x 4.7" (44 x 4.4 x 12 cm) | | Weight | Approx. 3.3 lb (1.5 kg) |
