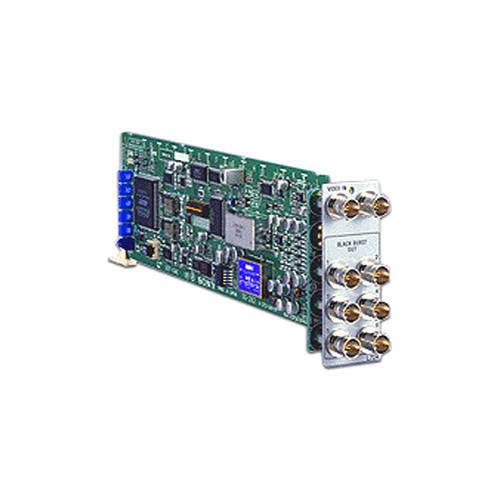

Product description Sony's Black Burst Regenerator Board is an analog I/O black burst regenerator board that installs in PFV-L Series interface units and generates a black-burst signal for synchronization with an input signal. This cost-effective tool is ideal for use in systems making the transition from analog to digital, where both analog and digital equipment must co-exist. It can be used in combination with other BKPF-L Series function boards and has a range of NTSC system applications--such as in a mixed analog/digital system where delaying the sync signal to the analog equipment is necessary to compensate for the longer video delay of the digital equipment. - Regenerates black burst signals
- NTSC composite analog input with passive loop-through
- Continuously variable delay of -4 H to +3 H
- 0 IRE to 44 IRE variable setup
- Video input presence lamp
In the Box Sony Black Burst Regenerator Board Main Board Connector Panel 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Black Burst Regenerator Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BKPFL704 Specs | Inputs/Outputs | Video Input: VIDEO IN connectors (BNC type) (x2) 0.286 Vp-p (SYNC, Burst) at 75 ohms
Input Return Loss: 40dB or more (at above 5 MHz)
Analog Output: Passive loop-through output connectors (BNC type) (x2)
Black Burst Output: BLACK BURST OUT connectors (BNC type) (x3 for each channel) (conforming to RS-170A)
Output Level: SYNC: 0.286 Vp-p +/-2% at 75 ohms BURST: 0.286 Vp-p +/-5% at 75 ohms
SCH: Less than +/-5°
Output Return Loss: 40dB or more (above 5 MHz)
H Phasing: Approx. -4.5 to +59.0 s all "0" position
V Phasing: -4 H to +3 H | | Power Requirements | +5VDC, 1.0A | | Dimensions | Board: (3.1 x 10.6" (7.7 x 26.7 cm)
Connector Panel: 1.3 x 3.4" (3.3 x 8.5 cm) | | Weight | Board: 5 oz (140g)
Connector Panel: 4 oz (100g) |
