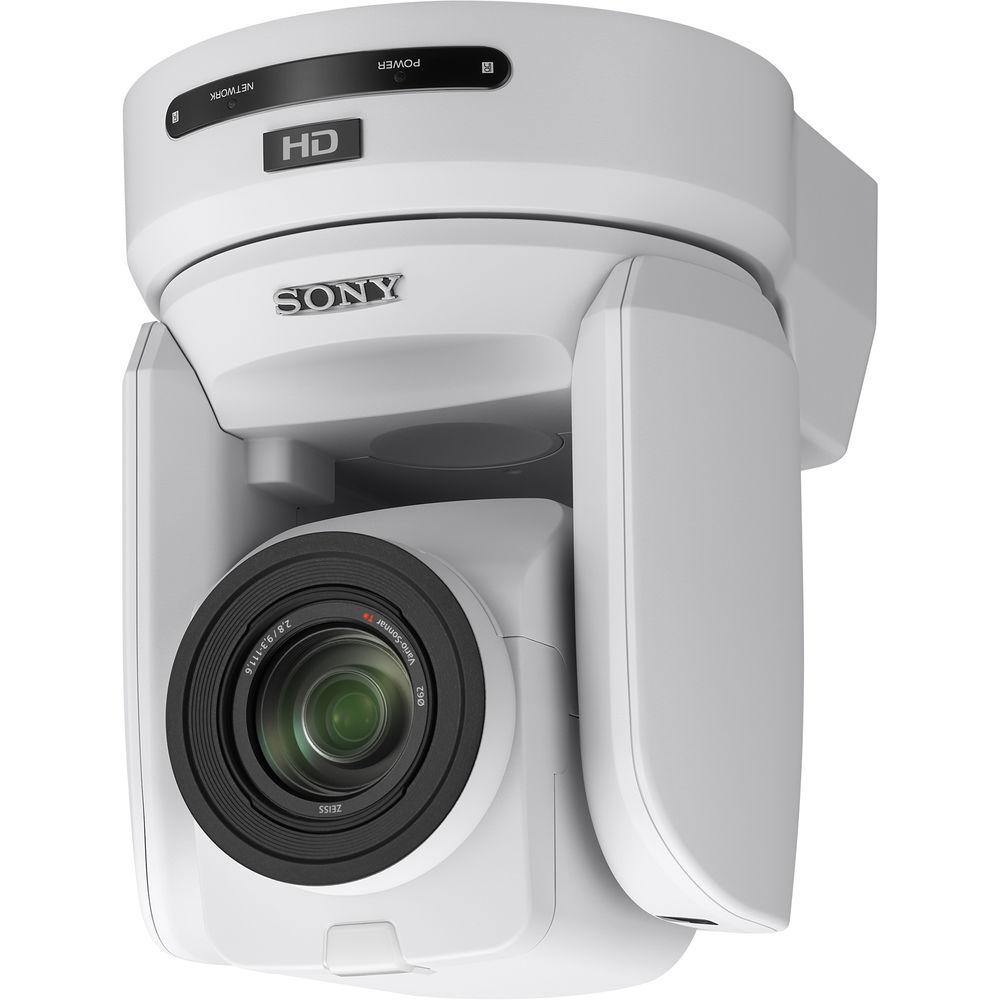

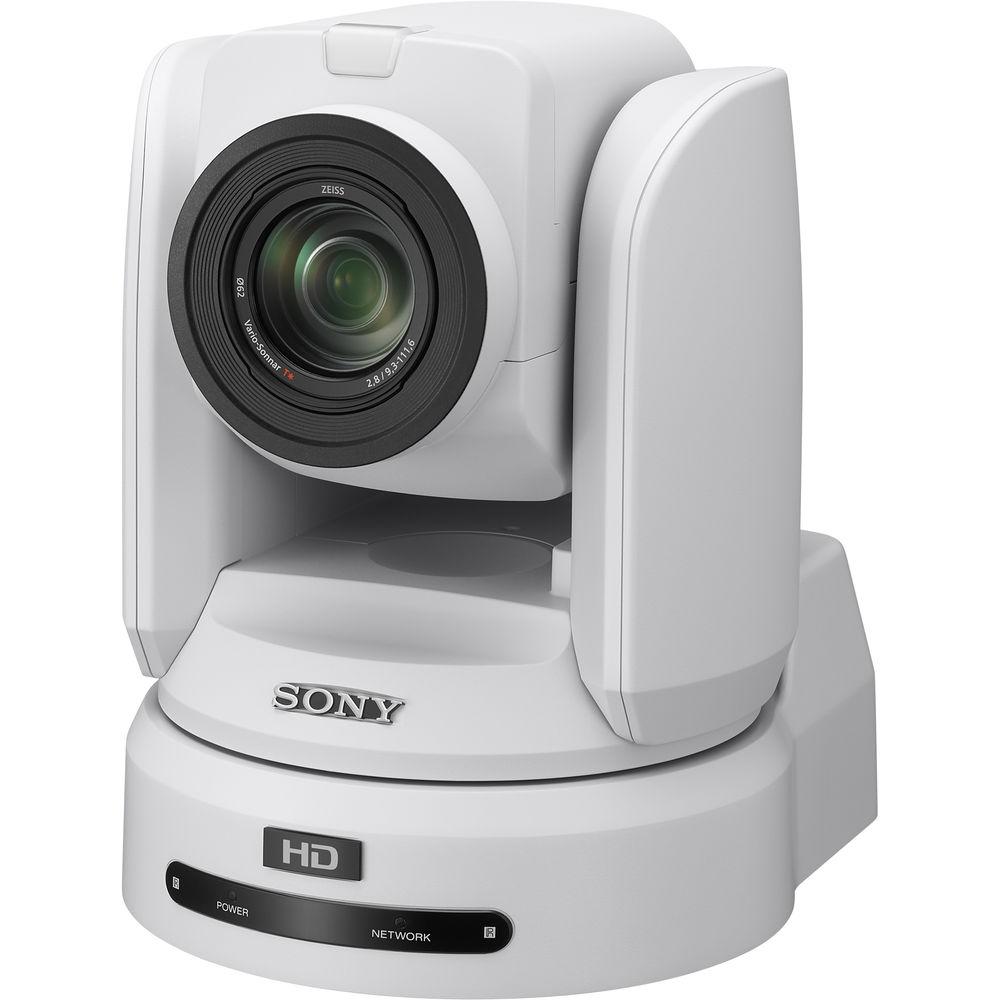

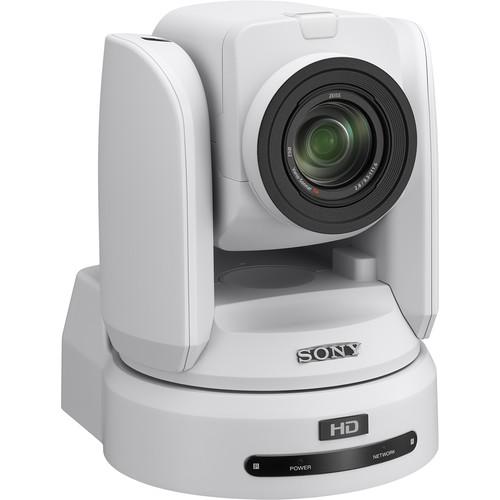

User Manual for Sony BRC-H800 HD WPW PTZ Camera with 1" CMOS Sensor and PoE Click to enlarge the picture
Contents of the user manual for the Sony BRC-H800 HD WPW PTZ Camera
- Product category: PTZ Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony PTZ Cameras
 |
User manual for the Sony BRC-H800 HD WPW PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Smoothly capture full HD video even in lower-light settings with the BRC-H800/WPW HD Camera from Sony. This compact, white PTZ camera features a 1" type Exmor CMOS image sensor, 1.7-lux sensitivity, a 12x Zeiss optical zoom, and PoE+ transmission. It captures HD video using a back-illuminated, 1" type CMOS sensor and a 9.3-111.6mm, f/2.8-f/4.5 optical zoom lens. The large image sensor enables you to create attractive bokeh effects with shallow depth of field.Swiftly follow fast-moving action or use the low-speed zoom and slow pan/tilt modes to precisely track subjects. The PTZ Trace Memory function enables you to capture and repeat a series of movements and the PTZ Motion Sync feature blends separate pan, tilt, and zooms into smooth transitions.For capturing tight sports shots, etc. Clear Image Zoom Technology extends the 12x zoom lens to a 24x digital range while maintaining the exceptional image quality of the Zeiss Vario-Sonnar zoom lens. The BRC-H800 features flexible PoE+ (Power-over-Ethernet) installation, utilizing a single cable to carry both IP camera control and power. For multi-camera productions, a Genlock feature is used to integrate the BRC-H800 with other systems. Control the camera using the included IR remote or use a (separately available) RM-IP500 unit to control multiple cameras. Up to 100 PTZ camera positions can be preset on the BRC-H800.The BRC-H800 PTZ Camera features HDMI, 3G-SDI, Ethernet, and RS-422 control interfaces. Remote control functions include pan, tilt, zoom, focus, iris, shutter speed, and gain. The BRC-H800 is suitable for use in broadcast studios, remote on-air setups, houses of worship, and live sports applications. The front and rear tally lights are useful for on-air broadcasting and have adjustable brightness levels. Camera function upgrades may be applied by the user via its IP connection. The BRC-H800 PTZ camera is ceiling- and desktop-mountable and comes with two brackets, screws, an HDMI cable clamp, and an IR remote commander. Key Features -
- PoE+ capability uses a single cable for IP camera control and power
- 3G-SDI, Ethernet, and HDMI interfaces provide a range of output choices
- HD-resolution PTZ camera with remotely controllable pan, tilt, zoom, focus, iris, and shutter speed
- 1" type Exmor R CMOS back-illuminated image sensor and 1.7-lux sensitivity for optimal low-light performance
- Clear Image Zoom Technology increases the optical zoom to 24x in HD while maintaining the exceptional image quality of the Zeiss Vario-Sonnar 12x zoom lens
- PTZ Trace Memory and PTZ Motion Sync functions enable you to precisely repeat moves with smooth transitions
- Genlock function for integration with other systems in multi-camera setups
- Up to 100 preset pan/tilt/zoom positions; flexible desktop or ceiling mounting
- For on-air broadcasting, the camera features adjustable front and rear tally lights
- Firmware updates are user-accessible through the camera's IP connection
Camera Features -
- Day/Night, Visibility Enhancer, Image Flip, Picture Profile Preset
- ND Filter: Off, 1/4, 1/16, 1/64—Switchable in Menu
- Color Gain (15-step), Color Hue (15-step)
- Color Matrix: Off/Standard/High Saturation/FL light/Movie/Still/Cinema/Pro/ITU709/B&W
- Gamma: Standard/Straight/Movie/Still/Cine1/Cine2/Cine3/Cine4/ITU709/Pattern
- Gamma Level (15-step), Black Level (97-step), Black Gamma (15-step)
- Knee Point (13-step), Knee Slope (15-step), Flicker Cancel: On/Off
In the Box Sony BRC-H800 HD/WPW PTZ Camera with 1" CMOS Sensor and PoE+ (White) IR Remote Commander Ceiling Bracket A Ceiling Bracket B Wire Rope 7 x M3x8 Mounting Screw M4x8 Stainless Steel Screw HDMI Cable Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BRC-H800 HD WPW PTZ Camera with 1" CMOS Sensor and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BRC-H800 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Horizontal Resolution (TV Lines) | 850 TV Lines 3G-SDI output (center) | | Sensor Resolution | 20.4 MP | | Effective Sensor Resolution | 14.2 MP | | Gain | -3 to 33 dB | | Minimum Illumination | 1.7 lux at 1/30 Shutter Speed | | | | Shutter Speed | 1/10000 to 1/8 sec 1/10000 to 1/8 sec (59.94/29.97)
1/10000 to 1/6 sec (50/25/23.98) | | Max Digital Zoom | 48x 24x Digital Zoom or 48x Zoom in HD Tele Convert Mode | | Flip / Mirror Support | Image Flip | | | | Optical Zoom Ratio | 12x | | Focal Length | 9.3 to 111.6mm | | 35mm Equivalent Focal Length | 29 to 348mm | | Field of View | Horizontal: 64.6
