User Manual for Sony BRC-H900 1 2" HD 3CMOS Remote PTZ Camera with IP Control Card and IP Remote Controller Click to enlarge the picture
Contents of the user manual for the Sony BRC-H900 1 2" HD 3CMOS
- Product category: PTZ Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony PTZ Cameras
|
User manual for the Sony BRC-H900 1 2" HD 3CMOS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

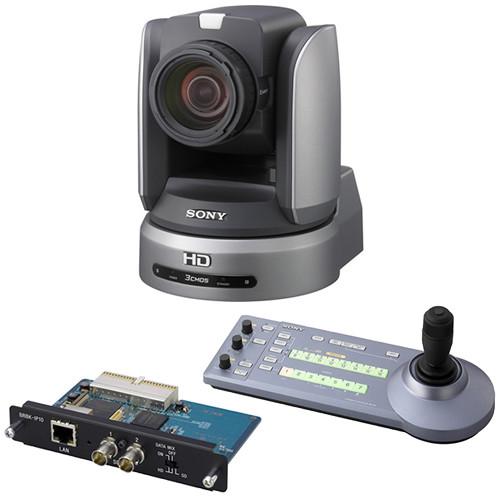

Product description This kit is assembled to provide you with a Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera, a Sony BRBK-IP10 BRC Camera IP Control Interface Card, and a Sony RM-IP10 IP Remote Controller . The PTZ camera is an NTSC / PAL standards switchable camera, which outputs HD / SDI and SD Video. The IP Control Interface Card provides you the capability to control your camera from the included RM-IP10 IP Controller over an Ethernet connection. The remote controller allows you to control up to five BRC-H900 cameras (each outfitted with an IP control card).
The PTZ camera simultaneously outputs HD video over SDI and supports 1080i or 720p. It features a 14x optical zoom lens and an extensive image control menu. You can mount the camera to a tripod, but it includes mounting hardware for mounting on a ceiling. The camera incorporates an image flip feature providing an upright image when mounting on a ceiling. This set up is suitable for use in the corporate boardroom, video studio, auditorium, house of worship, government buildings, and for remote and e-learning applications. - Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera The Sony BRC-H900 is an HD video PTZ camera unit. The unit consists of the pan/tilt module and the camera head and lens. The BRC-H900 is switchable between 59.98 and 50 Hz standards (NTSC and PAL), and simultaneously outputs both HD/SDI and SD video. This feature makes it well suited for facilities that are planning to transition to HD, as you can shoot SD now, and change over to HD by simply using a different output on the unit.
The camera head produces HD video in 1080i or 720p, using the 1/2" Exmor Full HD 3CMOS sensor and a 5.8-81.2mm / f/1.9-f/2.8 optical zoom lens. It features a sensitivity of 4-lux at F1.9 with gain at + 24 db, for low light shooting capability. An extensive image-control menu tree is accessible by remote, allowing for fine-tuning and optimizing of the image. The BRC-H900 has a slot for a single expansion card. Optional cards are available for adding additional HD/SD-SDI output, additional analog SD output, HD Optical Multiplex capability, or IP control.
The BRC-H900 unit installs on a desk or a tripod, or mounts onto a ceiling using the included hardware. Tripod mounting is possible by using one of the two 1/4"-20 receivers in the base of the unit. The camera also comes with an included Image Flip Option, which simplifies setting up the camera when mounted upside down. You can program the camera with up to 16 preset positions, which is useful for repetitive events and productions.
Remote operation is a major component of the BRC-H900's design. The included Sony Remote Commander utilizes IR to control the unit, which also has a built-in 3-position IR selector switch, allowing individual control of adjacent units. Additionally the optional Sony RM-BR300 remote control unit can control the BRC-H900 when connected to the unit's built-in RS-232C or RS-422 ports using Sony's VISCA protocol. The RM-BR300 can individually control up to 7 cameras daisy chained together. Installation of an optional IP controller card in the expansion slot allows for remote operation over IP.
The small size and remote operation capabilities of the BRC-H900 allow for placement where a manually operated camera and operator could not go. It features remote control operation of pan, tilt, zoom, focus, iris, shutter speed, and gain. The BRC-H900 is suitable for use in the corporate boardroom, video studio, auditorium, house of worship, government buildings, and for remote and e-learning applications. - Remote operated HD camera with pan, tilt, zoom, focus, iris, and shutter speed control
- Pan and tilt speed 0.22 to 60°/sec
- 16 programmable position presets
- 1/2" Exmor 3CMOS sensor with approximately 2.1 MP
- F=5.8-81.2mm
f/1.9-2.8 14x Optical Zoom Lens - Outputs 1080/59.94i, 720/59.94p, and NTSC at 60 Hz operation
- Outputs 1080/50i, 720/50p, and PAL at 50 Hz operation
- Simultaneous output of HD and SD video NTSC / PAL selectable
- Flexible mounting system: desktop, tripod or ceiling
-
- Exposure
- Color
- Detail
- Color Detail
- Knee
- Gamma
- Flicker Cancel
- Focus
- Pan Tilt
- System
- Video Out
-
- IR remote control
- 3 ID settings for individual control of BRC-H900 units
- Access to 6 Programmable Position Presets
- Access to camera menu tree
- Control of BRC-H900 functions
-
- Visca control over RS-232C or RS-422
- Individual control of up to 7 BRC-H900 units with optional RM-BR300
- Access to all 16 Programmable Position Presets
- Access to camera menu tree
- Control of BRC-H900 functions
-
- Optional IP Control
- Requires installation of optional BRBKIP10 expansion card in each unit to be controlled
- Requires use of optional RM-IP10 IP remote control unit
- Individual control of up to 112 BRC-H900 units
- Access to all 16 Programmable Position Presets
- Access to camera menu tree
- Control of BRC-H900 functions
UPC: 027242274310 - Sony BRBK-IP10 BRC Camera IP Control Interface Card The Sony BRBK-IP10 BRC Camera IP Control Interface Card adds IP control capability to the BRC-H900 and BRC-Z330 Remote Control Cameras. Installation of the BRBK-IP10 makes these cameras compatible with the RM-IP10 IP Controller. This unit can be addressed by up to 5 separate controllers, and also allows you to configure your multiple BRC camera system in a "star" configuration between controllers.
- Compatible with the BRC-H900 and BRC-Z330 Remote Control Cameras 1
Please Note: Requires the use of the RM-IP10 IP Controller to achieve IP control. close UPC: 027242864467 - Sony RM-IP10 IP Remote Controller With the Sony RM-IP10 IP Remote Controller, the BRC-H900, BRC-Z700, and BRC-Z330 Remote Control Cameras can be controlled though an IP network. The use of the proper IP Control Interface Board, either BRBK-IP10 or BRBK-IP7Z (depending on camera model), is also required for compatibility. This functionality allows for flexible configurations, and enables the installation of up to 112 units of BRC cameras and up to 5 units of the RM-IP10 controller depending on customer requirements.
- Comfortable PTZ operation with the optical 3-axis joystick
- Versatile camera adjustment by simple panel operation
- Use of IP technology allows flexible installation and easy operation
- Preset feature saves camera settings (up to 16 positions)
UPC: 027242860308 In the Box - BRC-H900 1/2" HD 3CMOS Remote PTZ Camera
- IR Remote Commander Unit (Requires 2 x AA Batteries, Not Included)
- AC Power Adapter
- AC Power Cord
- DC Cord Secure Connection Attachment
- RS-422 Connector Plug
- Ceiling Bracket A
- Ceiling Bracket B
- Wire Rope
- 7 x Screws (M3 x 8)
- Screws (M4 x 8)
- Operating Instructions
- Limited 1-Year Warranty
- BRBK-IP10 BRC Camera IP Control Interface Card aqarrqyzxwwcytdxdwesxruryzztf
- RM-IP10 IP Remote Controller
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BRC-H900 1 2" HD 3CMOS Remote PTZ Camera with IP Control Card and IP Remote Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera
| Sensor | 1/2" Exmor 3CMOS Image Sensor | Resolution | Approx. 2.07 Megapixels | Signal System | 60 Hz 1080/59.94i 720/59.94p NTSC
50 Hz 1080/50i 720/50p PAL | Horizontal Resolution | > 1000 TV Line (HD-SDI Output) (Center) | Minimum Illumination | 4 lux (50 IRE, f/1.9, +24dB) | Shutter Speed Range | 1/8000 to 1/60
1/8000 to 1/50 | Gain | Auto, Manual -3 to 24 dB | White Balance | Settings Auto / Outdoor / Indoor
Method One-push / Manual | Gamma Curve | STD 1 STD 2 STD 3 STD 4 CINE 1 CINE 2 CINE 3 CINE 4 | Image Stabilization | SteadyShot On / Off | Image Flip | Selectable On / Off | Video Signal-to-Noise Ratio | 50 dB | Sync Input | External 1 x BNC 75 Ω | Synchronization System | Internal / External | | HD | SDI 1 x BNC HD / SD Switchable
RGB/Component 1 x D-Sub 15 Pin Component (Y/Pb/Pr) RGB HD Bi-Level VD Tri-Level SYNC | SD | 1 x BNC Composite 1 x S-Video Y/C | Camera Control | Mini DIN 8 Pin 1 x RS-232C (VISCA IN )
Mini Din 8 Pin 1 x RS-232C (VISCA OUT)
Connector Plug 9 Pin 1 x RS-422 (VISCA IN / OUT) | | Lens | Focal Length f=5.8-81.2mm (f/1.9-f/2.8)
Zoom Ratio 14x Optical Zoom
Minimum Object Distance 31.5" (80 cm)
Horizontal Viewing Angle 59.6° at the Wide End of the Lens
Focusing System Auto / Manual | | Pan/Tilt | Pan Angle -170 to +170°
Tilt Angle -30 to +90°
Pan/Tilt Speed 0.22 to 60°/sec
Preset Positions 16 | Presets | Number of Programmable Position Presets 16
Included Presets 1-6 available using the included Remote Commander
Optional Presets 7-16 require the use of the optional RM-BR300 | Tally Light | Quantity 2
Location 1 x Front 1 x Rear | Expansion Slot | 1 x Available Slot
Card Options HD/SD-SDI Output Card - BRBK-HSD2 Analog SD Output Card - BRBK-SA1 HD Optical Multiplex Card - BRBK-SF1 IP Control Interface Card - BRBKIP10 | | Mounting | Less than ±15° to the horizontal surface | Ceiling Mount Bracket | 2 x Brackets Included
Note: When installing to ceiling or shelf, use included wire rope for safety, and confirm that ceiling or shelf can support 132 lb (60 kg) | Desktop Mounting | Install on a solid level flat surface, ensure camera does not fall | Tripod Mount | 2 x 1/4"-20 Threaded Female Receiver | | Temperature | Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C) | Power Requirements | 10.8 to 13.2 VDC | Power Consumption | Without Optional Cards 28.8 W
With Optional Cards 34.2 W | Dimensions (WxHxD) | 7.83 x 10.25 x 9.38" (20 x 26 x 24 cm) | Weight | 11 lb (5.0 kg) | | Box Dimensions (LxWxH) | 17.5 x 15.2 x 11.8" | - Sony BRBK-IP10 BRC Camera IP Control Interface Card
| Box Dimensions (LxWxH) | 9.6 x 8.0 x 1.7" | - Sony RM-IP10 IP Remote Controller
| Box Dimensions (LxWxH) | 19.1 x 10.2 x 9.4" |
