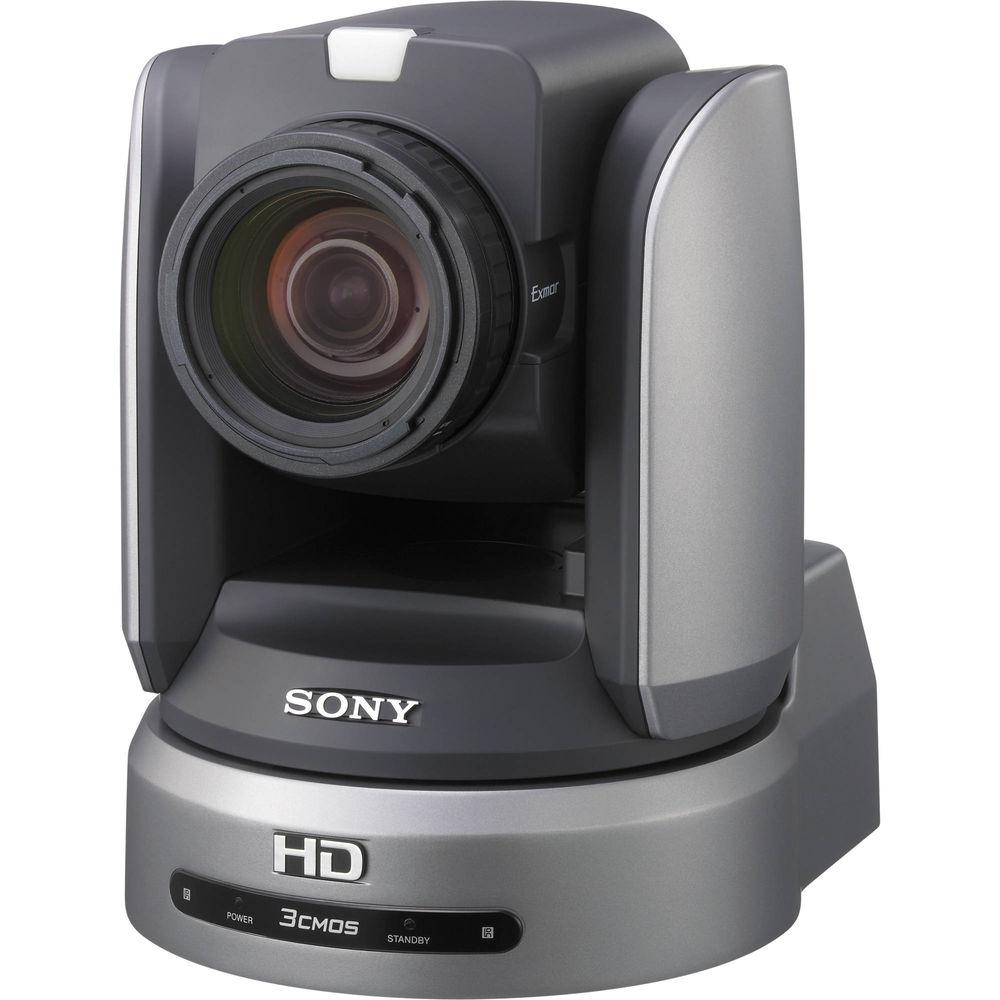

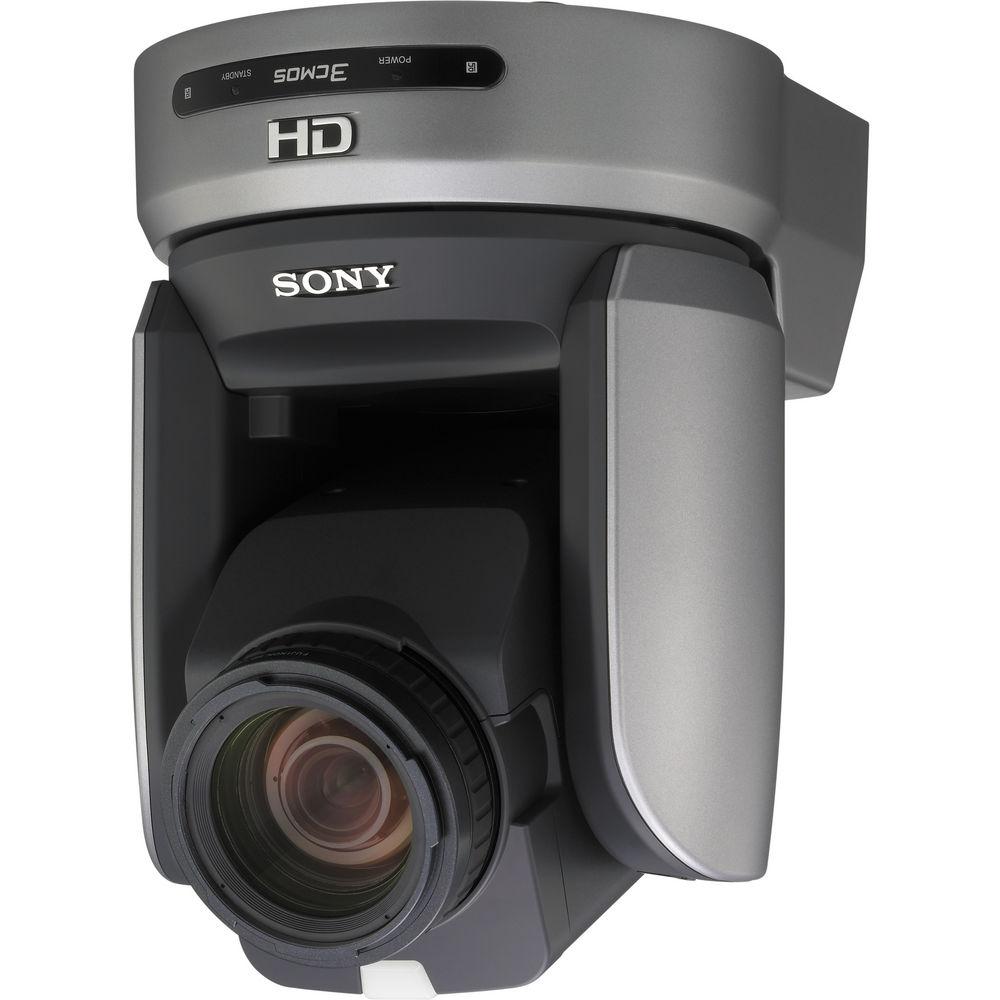

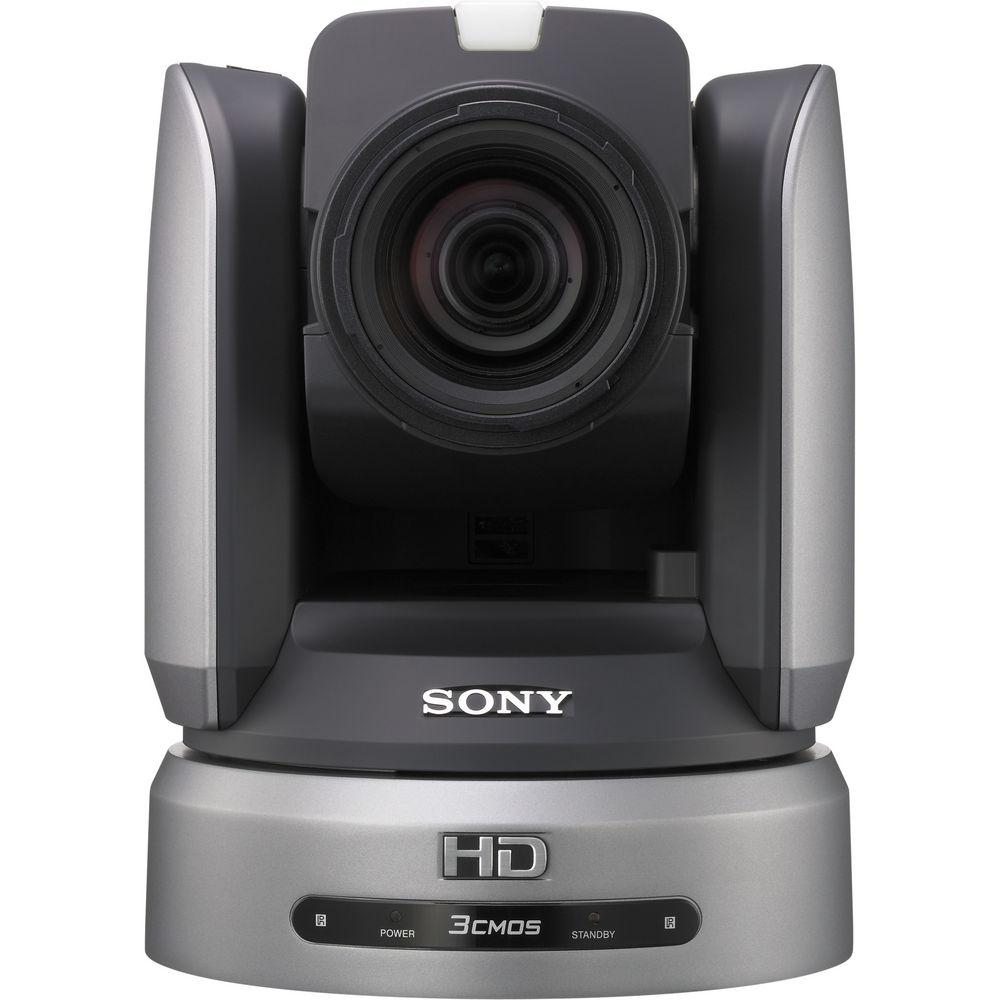

Product description The BRCH900/PAC2 EZ-2-Connect PTZ Camera Solution from Sony includes BRC-H900 PTZ camera and RC2-HDS camera extension kit. The BRC-H900 pan/tilt/zoom color video camera incorporates a 1/2" Exmor 3CMOS sensor that allows it to capture images of up to 1000 TVL resolution. It supports panning from -170 to 170° and tilting from -30 to 90°. Both panning and tilting is done at speed of 0.22 to 60° per sec. With the use of Sony's RM-IP10 IP remote controller, the BRC-H900 can be controlled through an IP network for flexible configuration and can accommodate installations of up to 112 BRC cameras and up to five RM-IP10 controllers (BRBK-IP10 board also required). In addition to standard desktop installation, the BRC-H900 can be ceiling mounted or can be used with a tripod for mobile, live events. Its silent and smooth pan/tilt/zoom mechanism makes this camera suitable for use in noise-conscious environments. The RemoteCam2 analog PTZ camera extension kit uses dual Cat5e/6 cables for extending camera signals for up to 300'. Both, the head-end and camera modules, entail small clean metal enclosures to provide secure cable management. Provided threaded mounting holes on the side of the camera module allow for flexible mounting options with Sound Control Technologies Wall Mounts or custom design solutions. A rack mountable head-end module enclosure provides clean and easily terminated cabling for UTP wiring, video, control, VISCA, and power supply when deployed with Sound Control Technologies' rack shelves. Camera's Features - 1/2" Exmor full HD 3CMOS image sensor
- Approximately 2MP of effective picture elements
- Image stabilization function that reduce vibration
- Supports various outputs like analog RGB/component, SDI (HD/SD switchable) and composite, Y/C
- RS-232C/RS-422 serial control (VISCA protocol)
- Daisy chain capability (up to 7 units)
- Multi-function IR remote commander unit

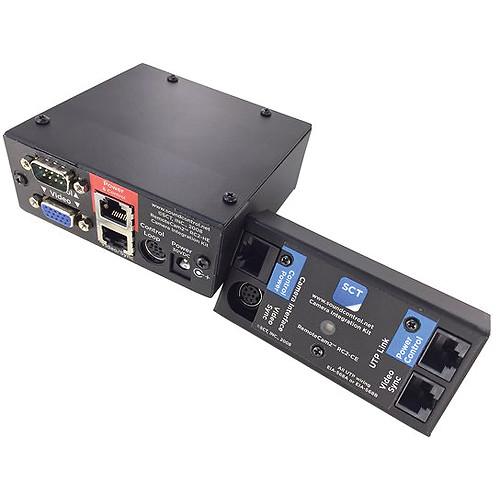

Extender's Features - Supports dual Cat5e/6 cables
- Transfers camera power as well as data and control signals
- Supports wired and modulated IR
- Supports VISCA control loop

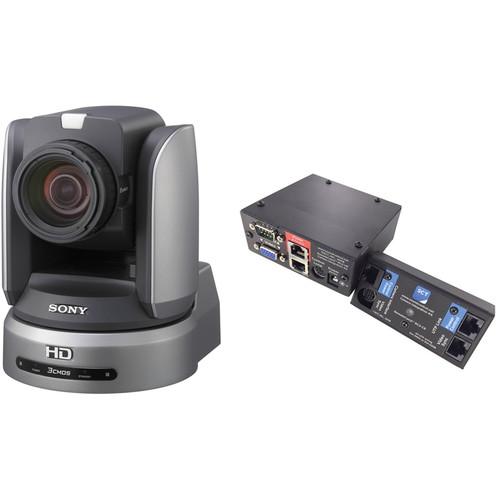

In the Box Sony BRC-H900 PTZ Camera with RC2-HDS Camera Extension Kit BRC-H900 1/2" HD 3CMOS Remote PTZ Camera RC2-CE Camera Interface Modules RC2-HE Codec/Head-End Interface Module 1' RC2-003 Camera Cable (RJ45 to 8-Pin Mini-Din) 1' RC2-004 Camera Cable (8-Pin Mini-Din to HD-15) WPS-12 Power Supply Limited 3-Year Warranty on RC2-HDS Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BRC-H900 PTZ Camera with RC2-HDS Camera Extension Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BRC-H900 Specs | | | Image Device | 1/2" Exmor 3CMOS image sensor | | Effective Pixels | Approximately 2 MP
CCD Effective Pixels: Approximately 2.07 MP (CMOS) | | Horizontal Resolution | 1000 TVL | | Focal Length | 5.8 to 81.2mm (f/1.9 to 2.8) | | Zoom | 14x optical zoom | | Focus System | Auto/Manual | | Minimum Object Distance | 12" (wide), 32" (tele) (30 cm (wide), 80 cm (tele)) | | Horizontal Angle of View | 59.6° (wide end) | | Minimum Illumination | 4 lux (50 IRE, f/1.9, 24 dB) | | Backlight Compensation | On/Off | | S/N Ratio | 50 dB | | Gain | Auto/Manual (-3 to 24 dB) | | Optical Image Stabilizer | On/Off | | Shutter Speed | 1/8000 to 1/60 sec
1/8000 to 1/50 sec | | White Balance | Auto/Indoor/Outdoor/One-push/Manual | | Synchronization | Internal/external | | Signal System | NTSC: 1080/59.94i, 720/59.94p
PAL: 1080/50i, 720/50p | | Video Output | SDI (HD/SD selectable)
D-sub 15 pin: HD video out
Y/Pb/Pr or RGB, HD, VD or SYNC
Y/C

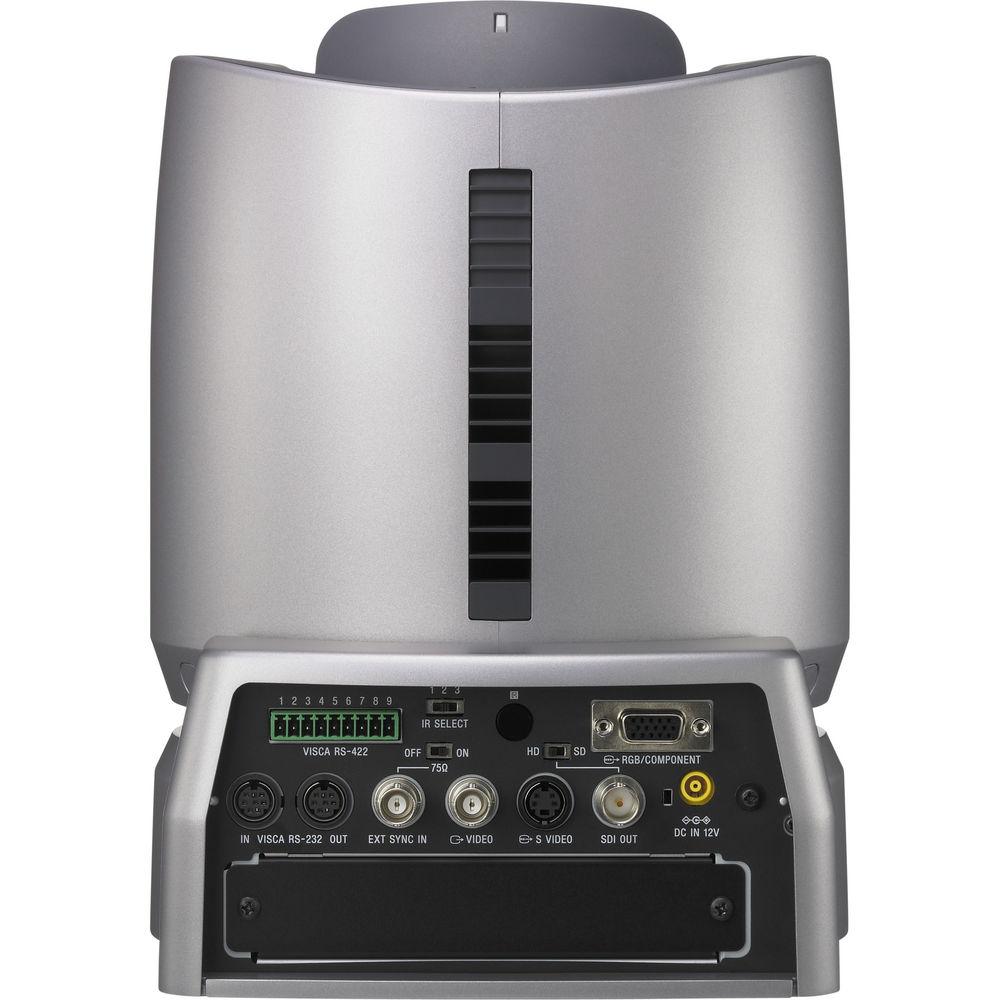

Composite | | Analog Output | RGB / Y / Pb / P (D-sub 15-pin), Y/C, composite | | Image Flip | On/Off | | Camera Control Interface | Mini Din 8-pin: RS-232C (VISCA In/Out)
Connector Plug 9-pin: RS-422 (VISCA In/Out) | | Pan Angle | -170 to 170° | | Tilt Angle | -30 to 90° | | Pan/Tilt Speed | 0.22 to 60° per sec (pan/tilt) | | Preset Positions | 16 positions | | Power Requirements | 10.8 to 13.2 VDC | | Power Consumption | Maximum 28.8 W (without optional cord)
Maximum 34.2 W (with optional cord) | | Operating Temperature | 0 to 40°C (32 to 104°F) | | Storage Temperature | -4 to 104°F (-20 to 60°C) | | Dimensions | 7.9 x 10.3 x 9.4" (19.8 x 26.0 x 23.8 cm) | | Weight | 11.02 lb (4.99 kg) | | | | Codecs | Generic HDMI & control device | | Cameras Supported | Sony EVI-HD1, Sony EVI-HD7 (analog), BRC-Z700, and BRC-H700 | | Distance | 300.0' (91.4 m) | | Cables | Dual Cat5e/6 | | Dimensions | RC2-HE: 3.75 x 1.50 x 3.63" (9.52 x 3.81 x 9.22 cm)
RC2-CE: 3.63 x .875 x 1.75" (9.22 x 2.22 x 4.45 cm) |
