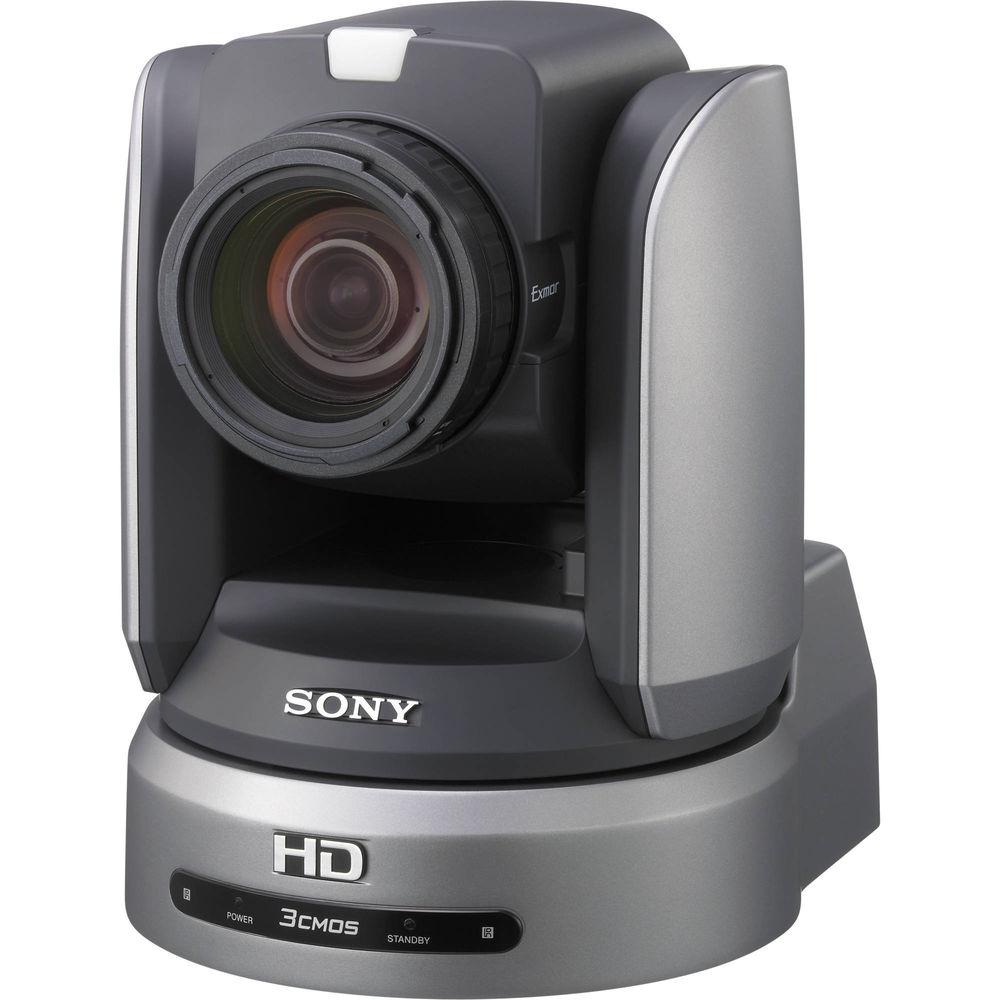

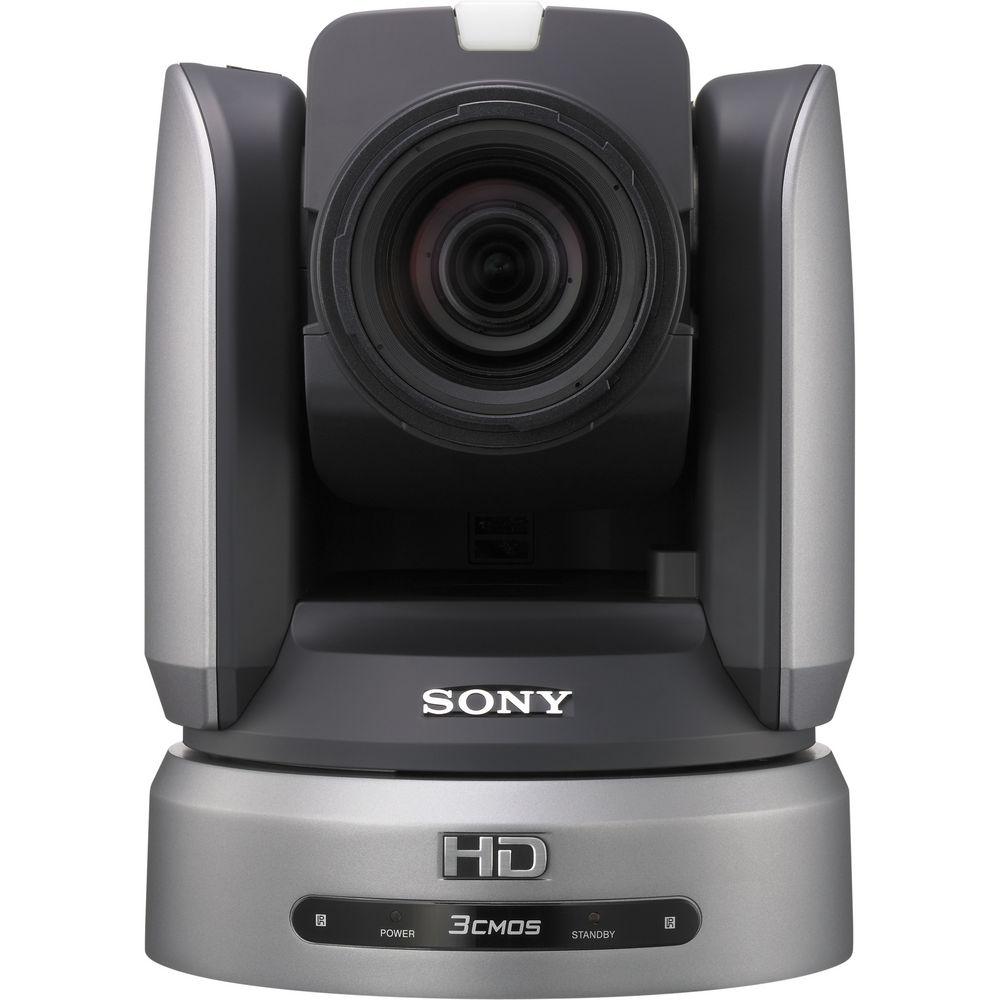

Product description Sony's BRC-H900 Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit includes a Sony BRC-H900 camera, head/camera-end interface modules, plus a variety of HDMI and UTP cables. The BRC-H900 is suitable for use in the corporate boardroom, video studio, auditorium, house of worship, government buildings, and for remote and e-learning applications. It is switchable between 59.98 and 50 Hz standards (NTSC and PAL), and simultaneously outputs both HD/SDI and SD video.
The camera head produces HD video in 1080i or 720p, using the 1/2" Exmor Full HD 3CMOS sensor and a 5.8-81.2mm / f/1.9-f/2.8 optical zoom lens. It features a sensitivity of 4-lux at F1.9 with gain at + 24 dB, for low light shooting capability. An extensive image-control menu tree is accessible by remote, allowing for fine-tuning and optimizing of the image. The BRC-H900 has a slot for a single expansion card. Optional cards are available for adding additional HD/SD-SDI output, additional analog SD output, HD Optical Multiplex capability, or IP control.
The included head/camera-end interface modules allows you to control and power the camera over a single CAT5e or CAT6 Ethernet cable. The camera-end module accepts video over HDMI or its RJ-45 port and transmits it up to 300' to the head-end module. Camera Features - Remote operated HD camera with pan, tilt, zoom, focus, iris, and shutter speed control
- Pan and tilt speed 0.22 to 60°/sec
- 16 programmable position presets
- 1/2" Exmor 3CMOS sensor with approximately 2.1 MP
- F=5.8-81.2mm
f/1.9-2.8 14x Optical Zoom Lens - Outputs 1080/59.94i, 720/59.94p, and NTSC at 60 Hz operation
- Outputs 1080/50i, 720/50p, and PAL at 50 Hz operation
- Simultaneous output of HD and SD video NTSC / PAL selectable

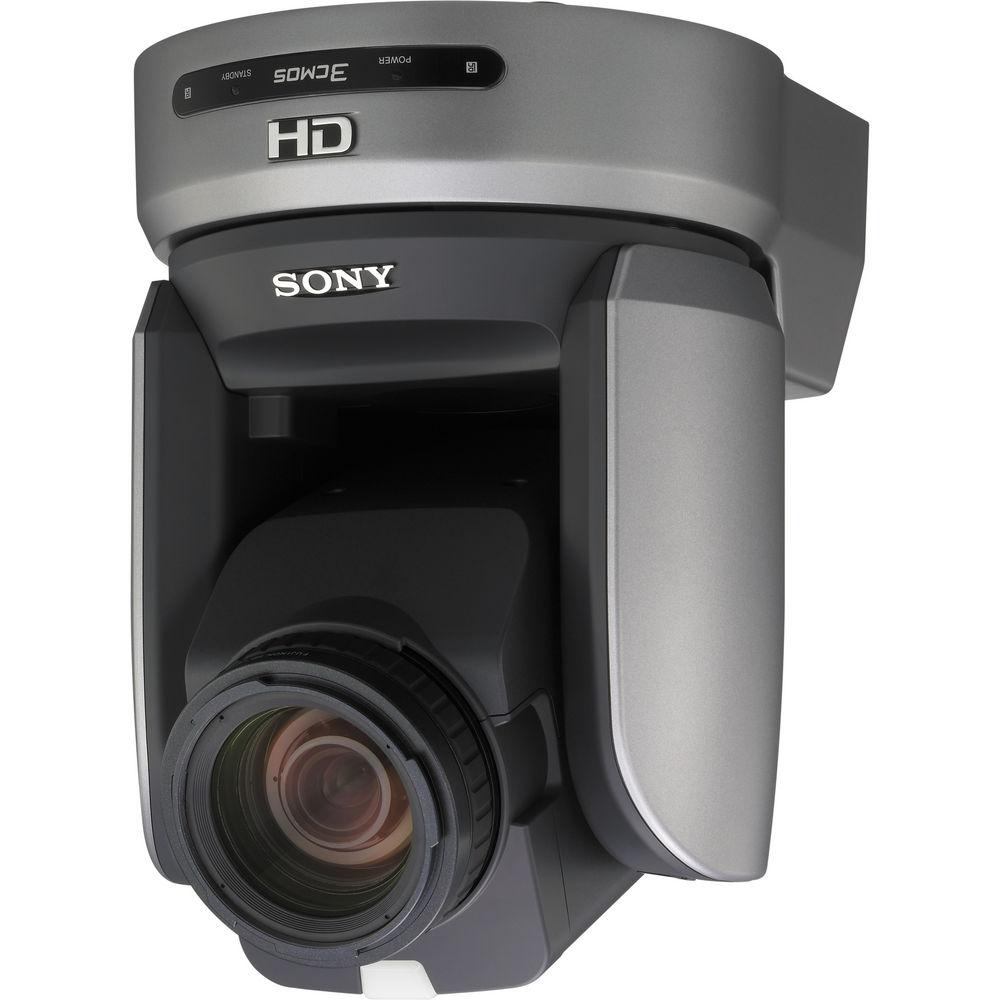

- Flexible mounting system: desktop, tripod or ceiling
-
- Exposure
- Color
- Detail
- Color Detail
- Knee
- Gamma
- Flicker Cancel
- Focus
- Pan Tilt
- System
- Video Out
-
- IR remote control
- 3 ID settings for individual control of BRC-H900 units
- Access to 6 Programmable Position Presets
- Access to camera menu tree
- Control of BRC-H900 functions
-
- Visca control over RS-232C or RS-422
- Individual control of up to 7 BRC-H900 units with optional RM-BR300
- Access to all 16 Programmable Position Presets
- Access to camera menu tree
- Control of BRC-H900 functions
-
- Optional IP Control
- Requires installation of optional BRBKIP10 expansion card in each unit to be controlled
- Requires use of optional RM-IP10 IP remote control unit
- Individual control of up to 112 BRC-H900 units
- Access to all 16 Programmable Position Presets
- Access to camera menu tree
- Control of BRC-H900 functions
Camera/Head-End Interface Modules - Provides:
- Camera Power
- Digital Video up to 1080p60
- Ethernet Camera Control
- Ethernet Streaming Video on 10/100 capable devices
- Wired and modulated IR
- Distances up to 300' over a single CAT5e or CAT6 UTP cable

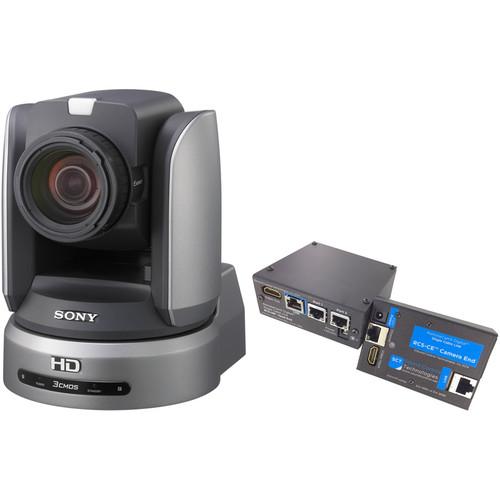

In the Box Sony BRC-H900 Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit BRC-H900 1/2" HD 3CMOS Remote PTZ Camera Camera-End Interface Module Head-End Interface Module 1' HDMI Camera Cable 1' UTP Camera Cable 1' DC Power Camera Cable 3' HDMI Camera Head-End Cable 3' UTP Head-End Cable Limited 1-Year Parts, 90-Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BRC-H900 Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BRC-H900 Specs | | | Sensor | 1/2" Exmor 3CMOS Image Sensor | | Resolution | Approx. 2.07 Megapixels | | Signal System | 60 Hz
1080/59.94i
720/59.94p
NTSC
50 Hz
1080/50i
720/50p
PAL | | Horizontal Resolution | > 1000 TV Line (HD-SDI Output) (Center) | | Minimum Illumination | 4 lux (50 IRE, f/1.9, +24dB) | | Shutter Speed Range | 1/8000 to 1/60
1/8000 to 1/50 | | Gain | Auto, Manual
-3 to 24 dB | | White Balance | Settings
Auto / Outdoor / Indoor
Method
One-push / Manual | | Gamma Curve | STD 1
STD 2
STD 3
STD 4
CINE 1
CINE 2
CINE 3

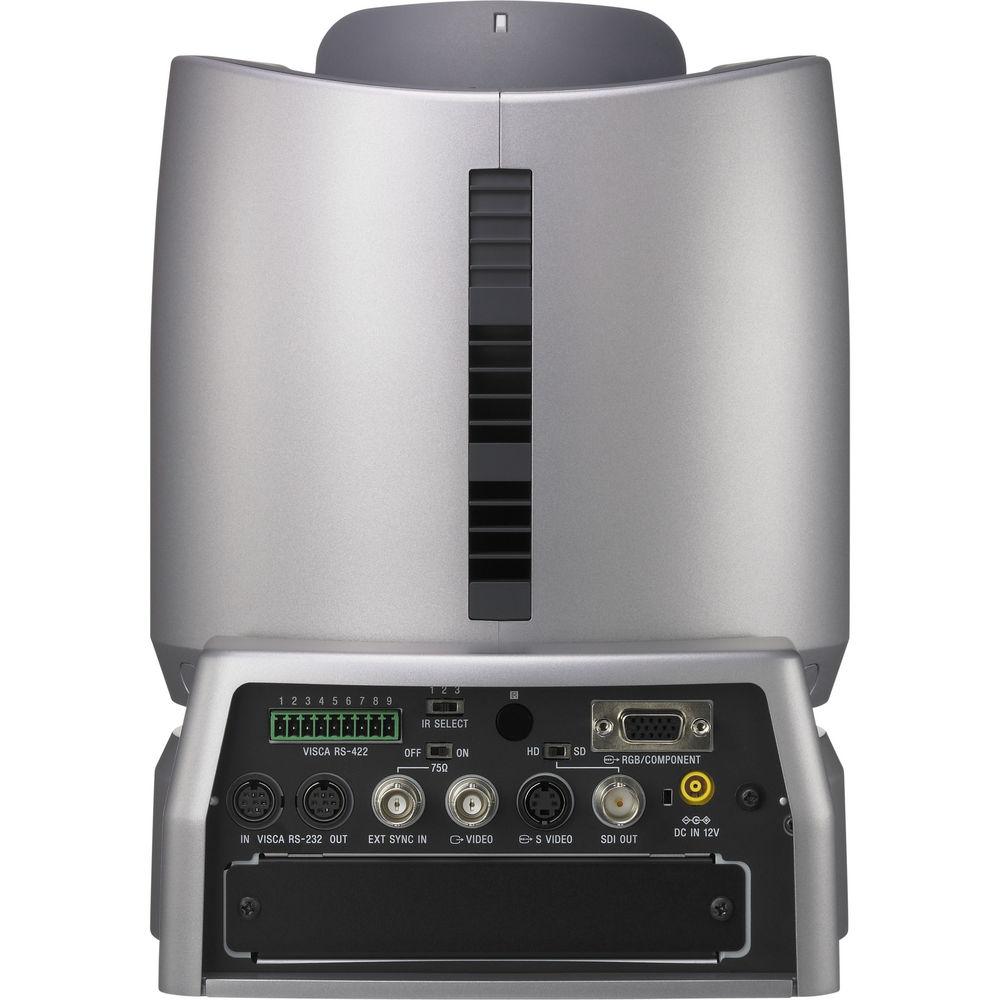

CINE 4 | | Image Stabilization | SteadyShot
On / Off | | Image Flip | Selectable On / Off | | Video Signal-to-Noise Ratio | 50 dB | | Sync Input | External
1 x BNC 75 Ω | | Synchronization System | Internal / External | | | | HD | SDI
1 x BNC
HD / SD Switchable
RGB/Component
1 x D-Sub 15 Pin
Component (Y/Pb/Pr)
RGB
HD
Bi-Level VD
Tri-Level SYNC | | SD | 1 x BNC Composite
1 x S-Video Y/C | | Camera Control | Mini DIN 8 Pin
1 x RS-232C (VISCA IN)
Mini Din 8 Pin
1 x RS-232C (VISCA OUT)
Connector Plug 9 Pin
1 x RS-422 (VISCA IN / OUT) | | | | Lens | Focal Length
f=5.8-81.2mm (f/1.9-f/2.8)
Zoom Ratio
14x Optical Zoom
Minimum Object Distance
31.5" (80 cm)
Horizontal Viewing Angle
59.6° at the Wide End of the Lens
Focusing System
Auto / Manual | | | | Pan/Tilt | Pan Angle
-170 to +170°
Tilt Angle
-30 to +90°
Pan/Tilt Speed
0.22 to 60°/sec
Preset Positions
16 | | Presets | Number of Programmable Position Presets
16
Included
Presets 1-6 available using the included Remote Commander
Optional
Presets 7-16 require the use of the optional RM-BR300 | | Tally Light | Quantity
2
Location
1 x Front
1 x Rear | | Expansion Slot | 1 x Available Slot
Card Options
HD/SD-SDI Output Card - BRBK-HSD2
Analog SD Output Card - BRBK-SA1
HD Optical Multiplex Card - BRBK-SF1
IP Control Interface Card - BRBKIP10 | | | | Mounting | Less than ±15° to the horizontal surface | | Ceiling Mount Bracket | 2 x Brackets Included
Note: When installing to ceiling or shelf, use included wire rope for safety, and confirm that ceiling or shelf can support 132 lb (60 kg) | | Desktop Mounting | Install on a solid level flat surface, ensure camera does not fall | | Tripod Mount | 2 x 1/4"-20 Threaded Female Receiver | | | | Temperature | Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C) | | Power Requirements | 10.8 to 13.2 VDC | | Power Consumption | Without Optional Cards
28.8 W
With Optional Cards
34.2 W | | Dimensions (WxHxD) | 7.83 x 10.25 x 9.38" (20 x 26 x 24 cm) | | Weight | 11 lb (5.0 kg) | | | | Codecs Supported | Generic HDMI & Control Device | | Connectors | Camera Module
Ethernet: 1 x RJ-45
Link: 1 x RJ-45
Video Input: 1 x HDMI Type-A
Head-End Module
Port1: 1 x RJ-45
Port2: 1 x RJ-45
Link: 1 x RJ-45M
Video Output: 1 x HDMI Type-A | | Power | 12 VDC | | Dimensions | Camera Module:3.75 x 1.5 x 3.63" / 9.53 x 3.81 x 9.21 cm
Head-End Module: 2.5 x 0.88 x 3.69" / 6.35 x 2.22 x 9.37 cm | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 17.5 x 15.0 x 11.0" |
